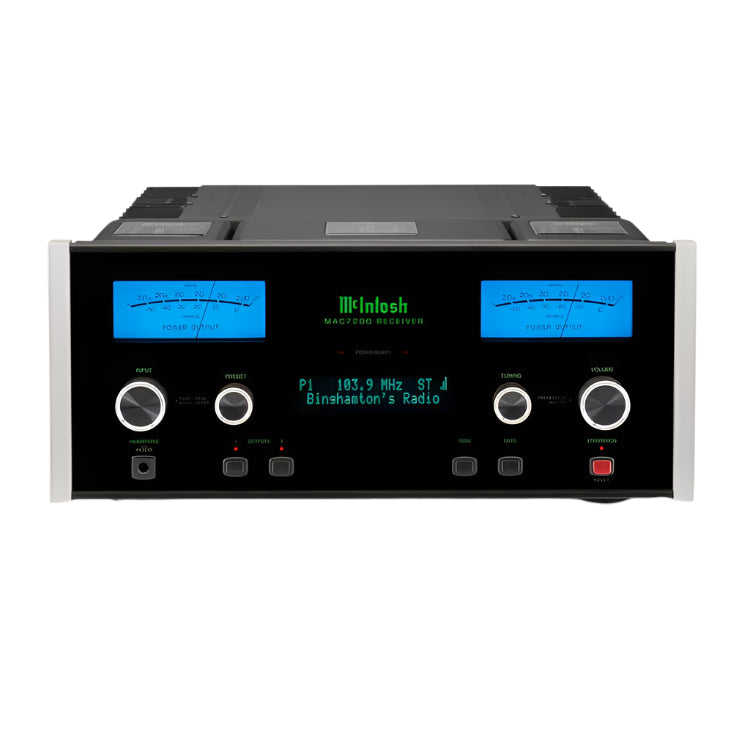

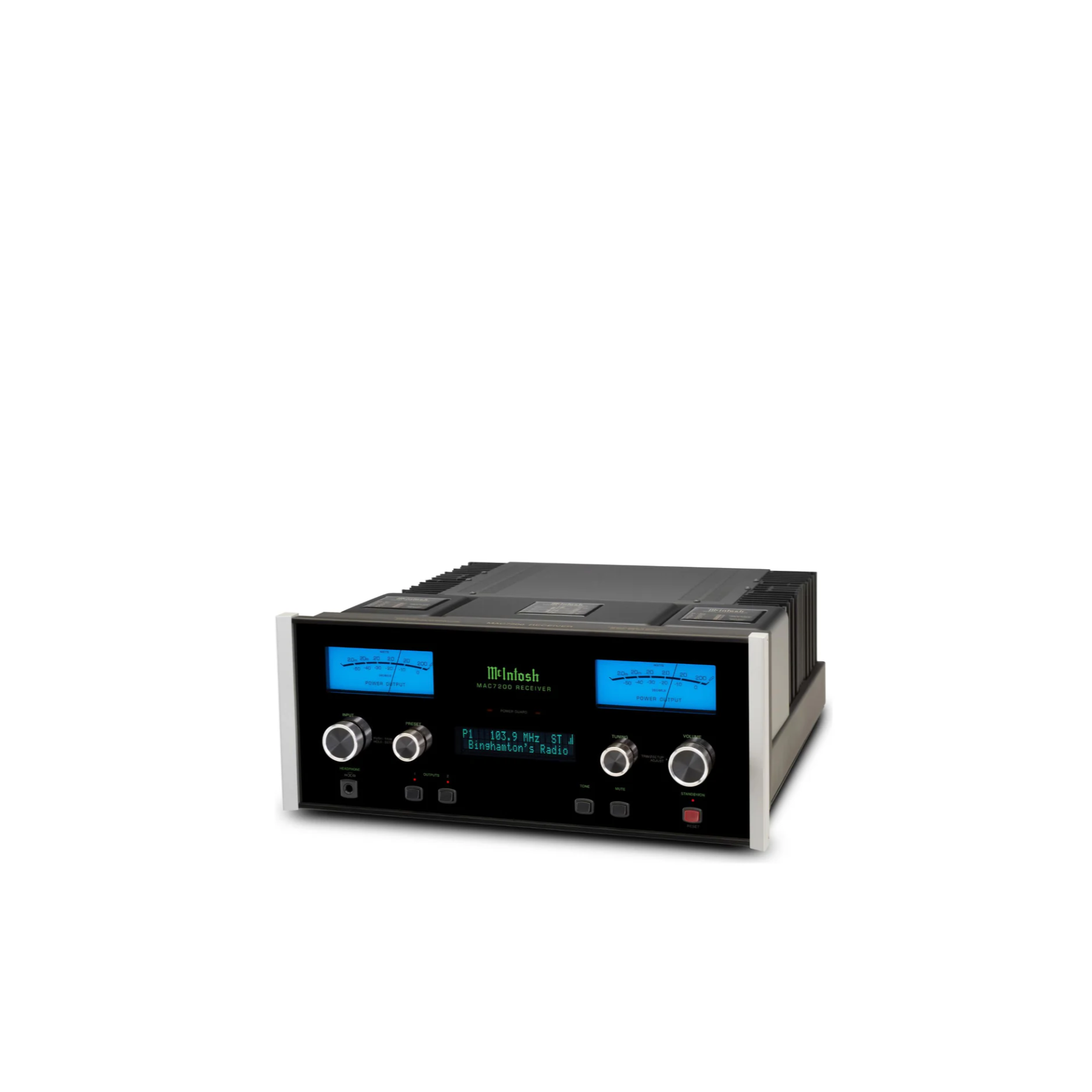

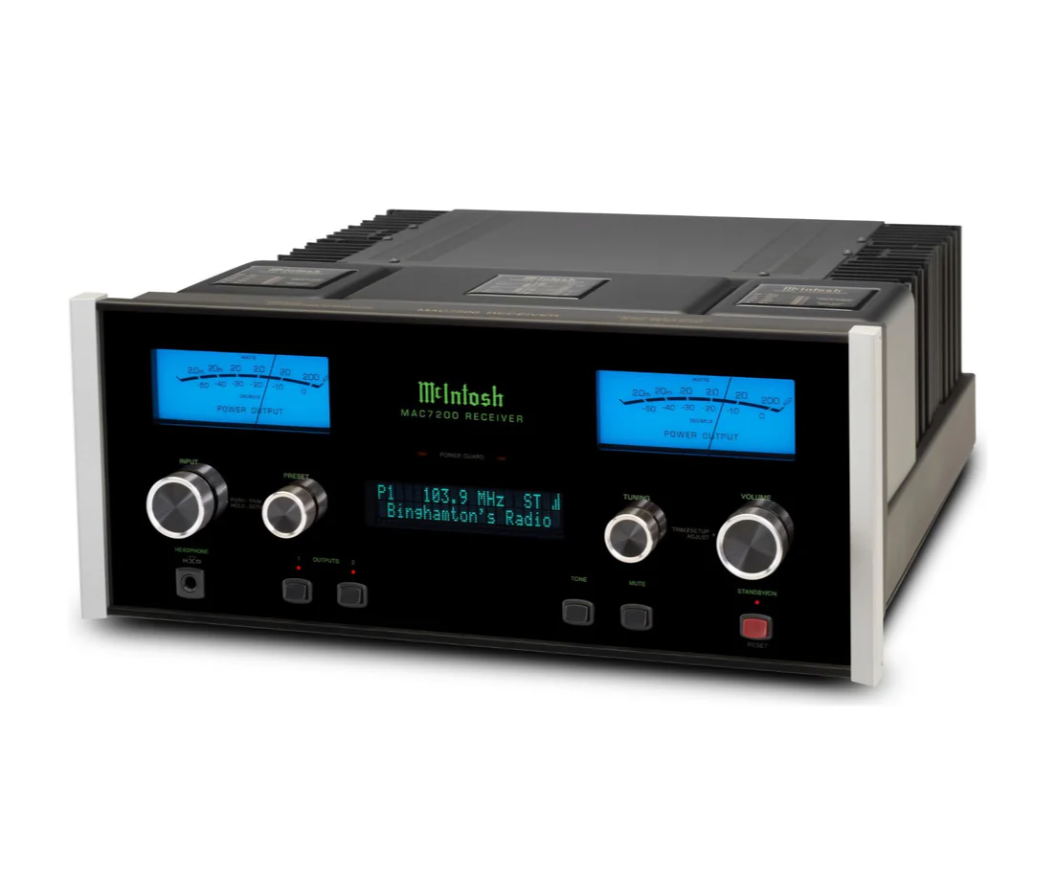

The McIntosh MAC7200 is a powerful and versatile 2-channel receiver that delivers 200 watts per channel and combines high-performance audio amplification with a built-in AM/FM tuner and extensive input options. Designed for serious music enthusiasts, it includes 14 total inputs comprised of both analog and digital types making it a comprehensive hub for your home audio system. On the analog side, it features 1 balanced and 5 unbalanced inputs, along with dedicated Moving Coil and Moving Magnet phono inputs for connecting turntables. For digital audio, it offers 2 coaxial, 2 optical, 1 USB, and 1 MCT input for use with McIntosh’s MCT500 SACD/CD Transport. These digital connections are managed through the DA1 Digital Audio Module, which is upgradeable to the DA2 module to ensure future compatibility with emerging digital audio formats.
One of the standout features of the MAC7200 is its built-in AM/FM tuner, which continues McIntosh's legacy of excellence in radio technology dating back to the 1950s. Inspired by classics like the MR78, the tuner offers exceptional clarity and low distortion, ensuring a pure and immersive radio listening experience. It includes a signal quality monitor to display multi-path interference and noise levels, helping users position their antenna for the best possible reception.
The Radio Data System (RDS) functionality allows the display of station details, artist names, and song titles when supported by the broadcaster. With 20 presets per band and separate TUNING and PRESET knobs, the tuner is easy and intuitive to use. All inputs on the MAC7200 can be custom named for simplified control and seamless integration into your system. Combining powerful solid-state amplification, premium radio performance, and modern digital upgradeability, the MAC7200 is an ideal all-in-one solution for music lovers who appreciate both analog warmth and digital precision.
Technical Specifications (200W Model)
General Features
Feature
Specification
Preamplifier Type
Solid State
Amplifier Type
Solid State
Output Type
Autoformer™
Output Meters
Yes
Dual Layer Chassis
Yes
Chassis Finish
Black painted steel
McIntosh Monogrammed Heatsinks™
Yes
Power Requirement
120V, 50/60Hz, 4.4A
Standby Power Requirement
<0.25 Watts
Weights & Dimensions
Specification
Measurement
Unit Dimensions (W x H x D)
17-1/2" x 7-5/8" x 18-3/4" (44.5 cm x 19.4 cm x 47.6 cm)
Unit Weight
75 lbs (34.1 kg)
Shipping Weight
93 lbs (42.3 kg)
Electronic Performance
Specification
Details
FTC Power Output Rating
200 W
Power Output per Channel
200 W into 2, 4, or 8 ohms
Number of Channels
2
Rated Power Band
20Hz to 20kHz
Total Harmonic Distortion
0.005%
Dynamic Headroom
2 dB
Frequency Response (+0, -0.5dB)
20Hz to 20kHz
Frequency Response (+0, -3dB)
10Hz to 100kHz
Input Sensitivity & Impedance
Specification
Details
Phono Sensitivity (Moving Coil)
0.25 mV
Phono Sensitivity (Moving Magnet)
2.5 mV
High-Level Sensitivity (Balanced/Unbalanced)
0.5V / 0.25V
Power Amp Input Sensitivity
1.4 V
Input Impedance (Balanced / Unbalanced)
20K / 20K ohms
Signal-To-Noise Ratio (SNR)
Source Type
SNR
Moving Coil (MC)
80 dB
Moving Magnet (MM)
82 dB
High-Level Input
95 dB
Power Amp Input
113 dB
Output Levels
Output Type
Maximum Output
Unbalanced
8 V
Balanced
—

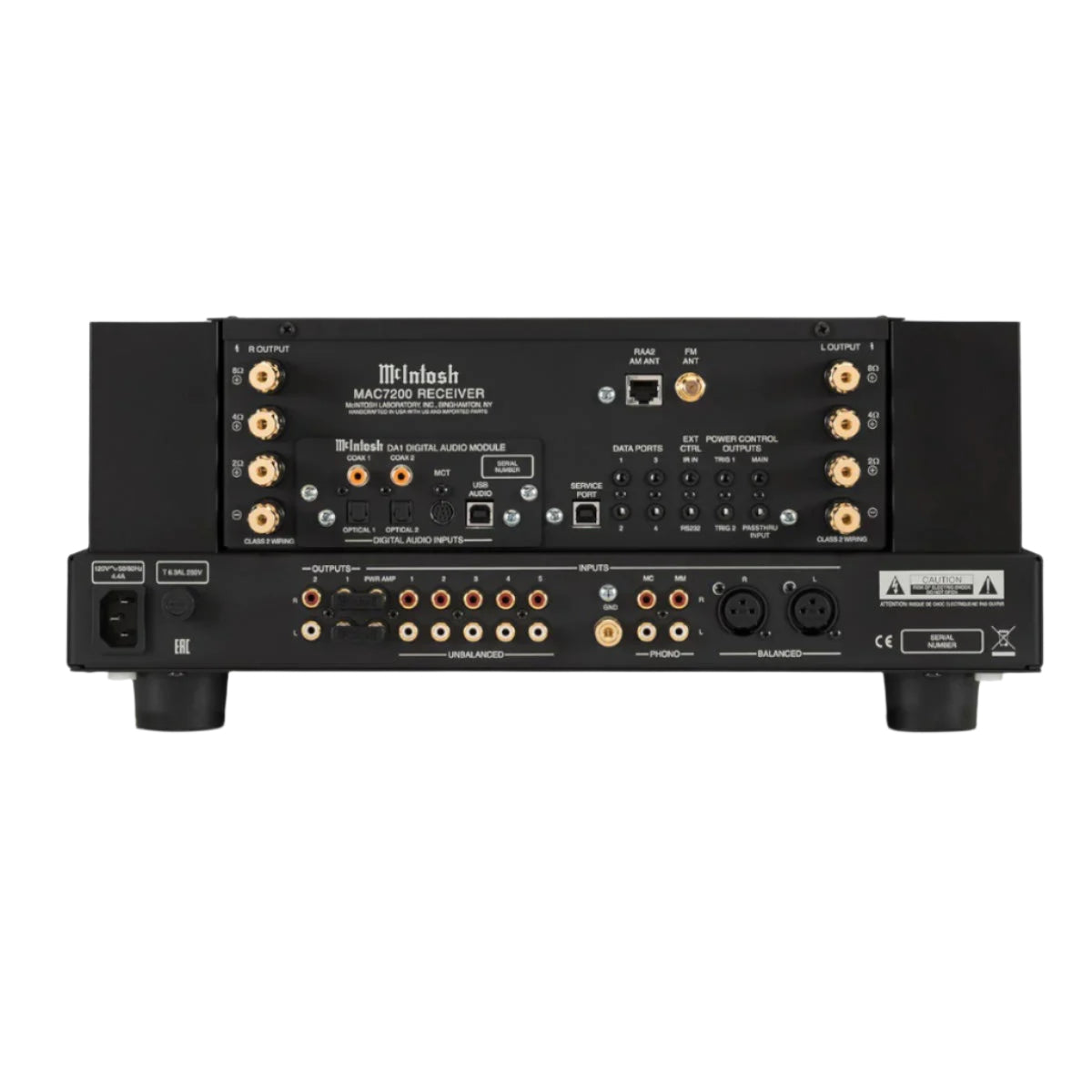

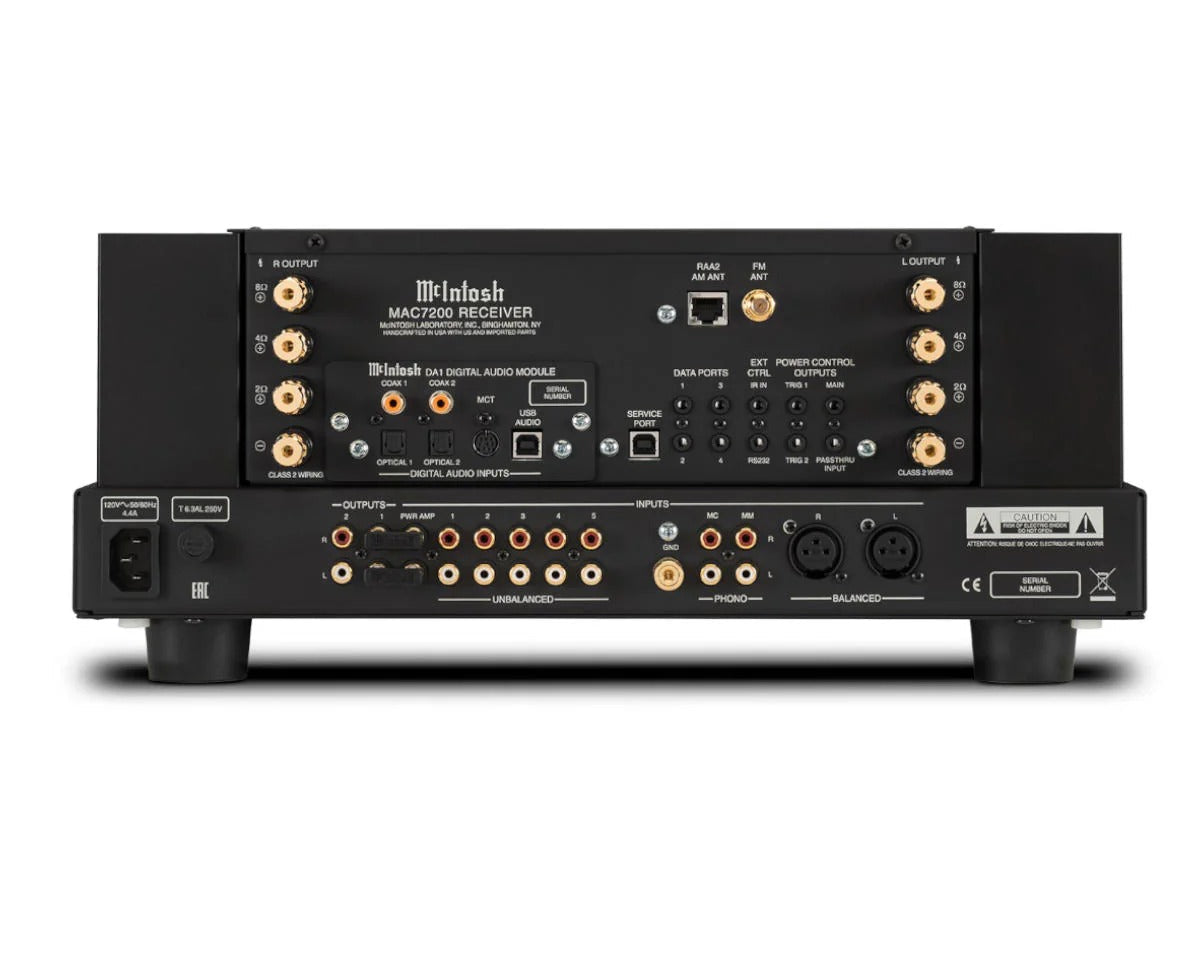

Analog & Digital Connectivity
Input/Output
Details
Balanced Inputs
1
Unbalanced Inputs
5
Phono Inputs
1 MC (adjustable), 1 MM (fixed)
Balanced Variable Output
0
Unbalanced Fixed Output
0
Unbalanced Variable Output
2
Headphone Output
1/4" High Drive with HXD®
Subwoofer Output
0
Unbalanced Connector Type
Standard
Speaker Binding Posts
Standard
Home Theater PassThru
Yes
AM/FM Tuner Option
Included
Service Port
1
Digital Audio Specifications
Feature
Details
Upgradeable Digital Module
Yes (DA1)
Digital Coaxial Inputs
2 (24-bit / 44.1–192kHz)
Digital Optical Inputs
2 (24-bit / 44.1–192kHz)
Digital MCT Input
1 (CD: 16-bit/44.1kHz, SACD: DSD64)
Digital USB Input
1
USB Input Sample Rate
32-bit / 44.1kHz to 384kHzDSD64–256, DXD352.8–384kHz
