McIntosh ML1 Loudspeaker Mk II

Description

Vintage style meets cutting-edge sound the ML1 loudspeaker reborn

The McIntosh ML1 Loudspeaker Mk II reimagines McIntosh’s first loudspeaker from 1970 by blending its vintage charm with advanced modern engineering. While honoring the original’s beloved design and powerful performance, the ML1 Mk II takes audio reproduction to a new level with improved drivers, refined acoustics, and premium materials making it the perfect fusion of heritage and innovation.

Vintage Outside

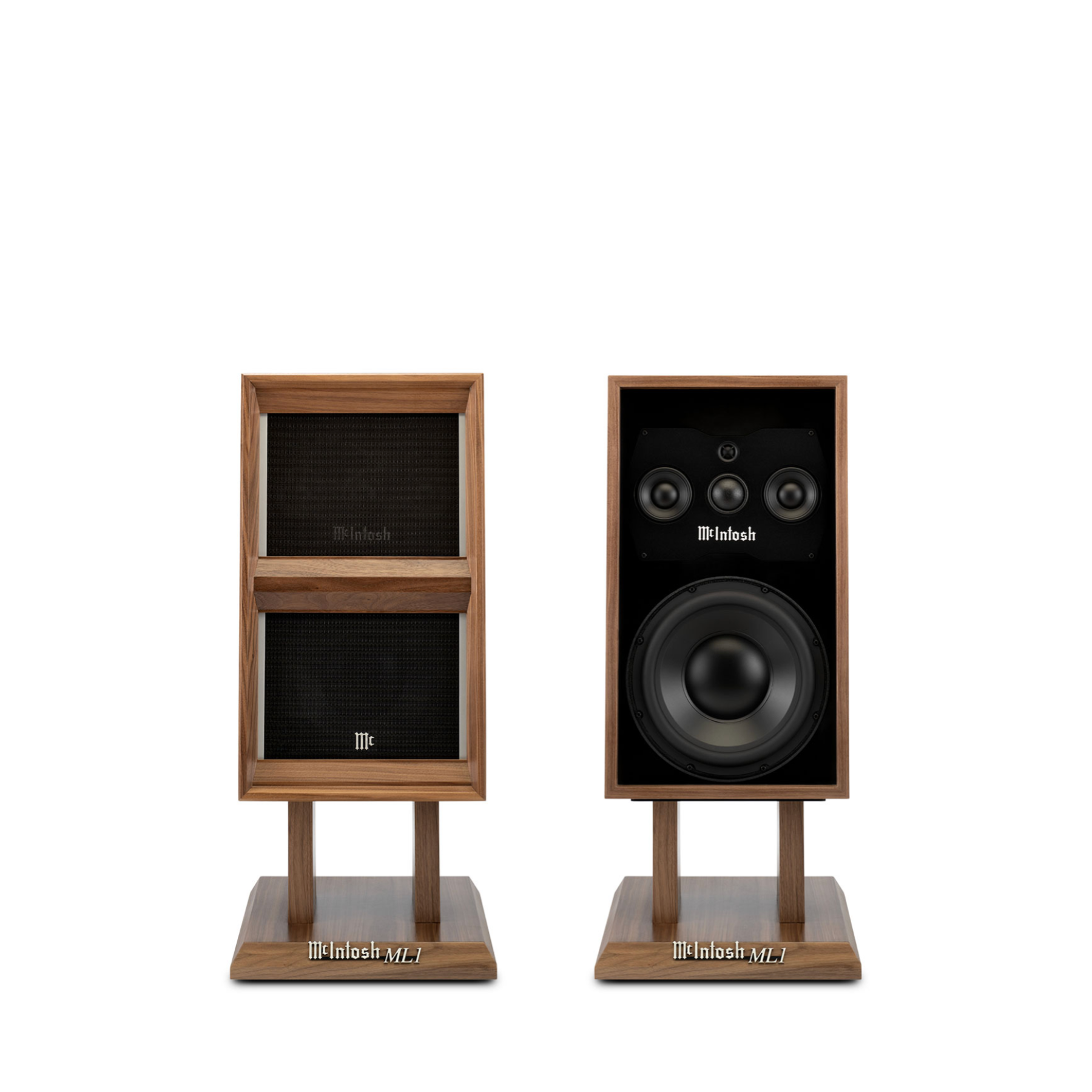

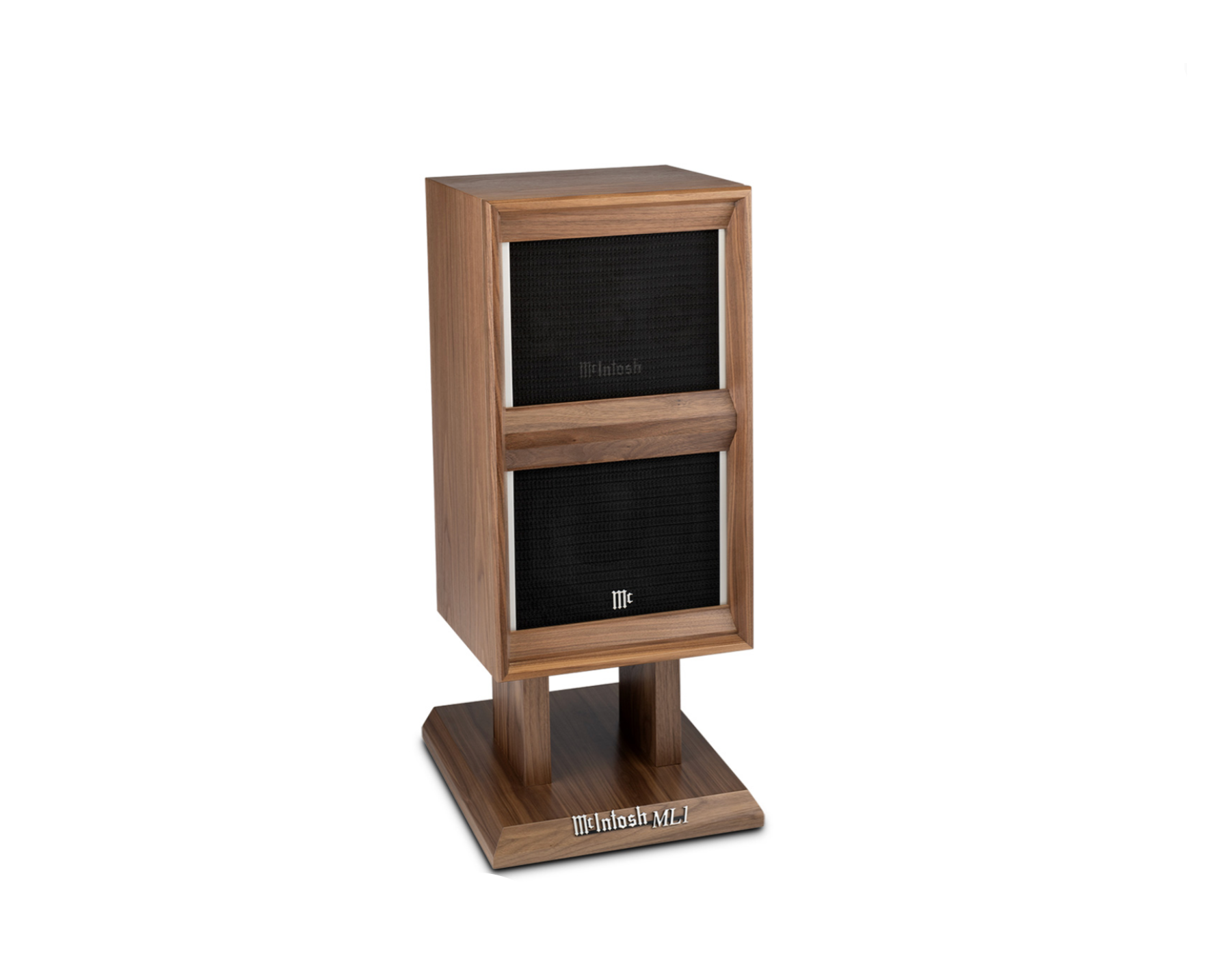

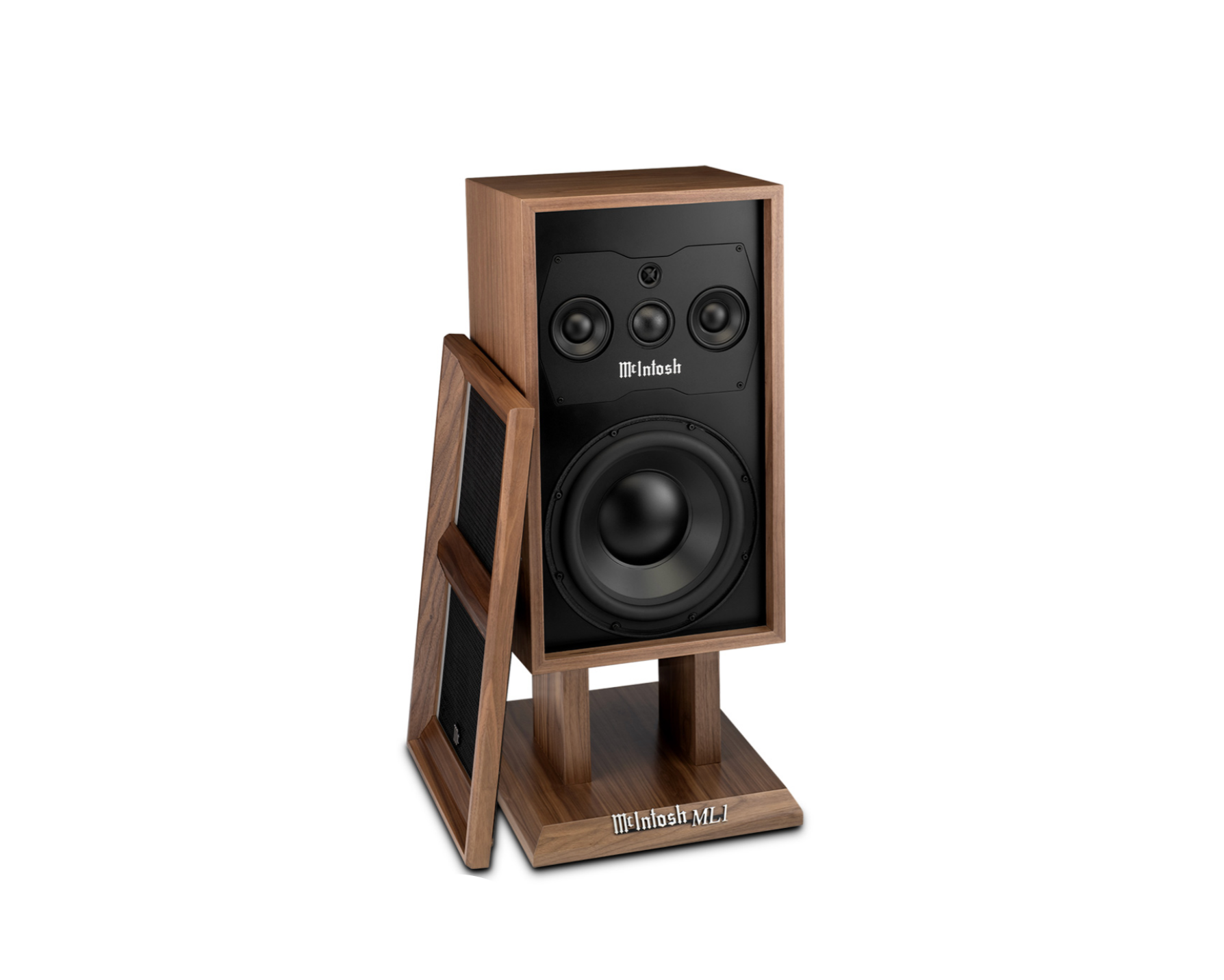

On the exterior, the ML1 Mk II echoes the look and feel of the original model with a cabinet made from oiled American walnut solid wood and veneers, finished in a warm satin texture. Its magnetically attached wooden grille, wrapped in acoustically transparent cloth, preserves the retro aesthetic while removing the vertical slats that once interfered with sound dispersion. The design instantly brings back the nostalgic mood of the 1970s, inviting you into a relaxed, immersive listening experience.

Cutting-edge Inside

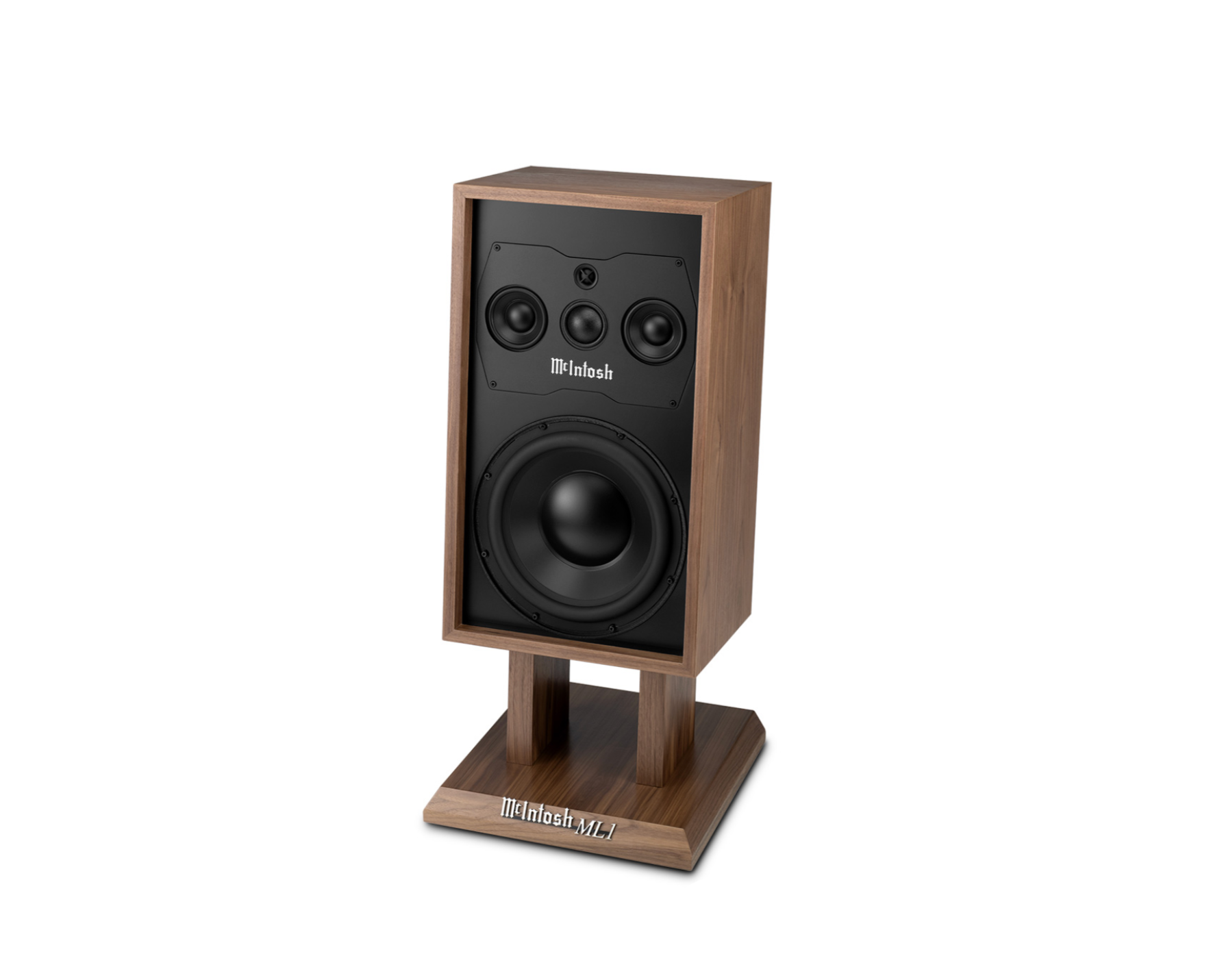

The ML1 Mk II has been fully redesigned with modern, high-performance components, making it a true reference speaker for precise, natural sound reproduction. It is a 4-way system with five drivers, arranged symmetrically to ensure consistent tonal balance and imaging across the room. The low end is handled by a 12" woofer in a sealed cabinet, delivering tight, controlled bass, while two 4" lower midrange drivers in a sealed sub-enclosure provide clear and powerful mid-bass response. The midrange is further refined by a 2" soft-dome upper midrange driver, which reproduces natural, detailed vocals and instruments, and a ¾" titanium dome tweeter extends the high frequencies with clarity and precision.

All upper-frequency drivers are mounted on a precision-milled transition plate, which improves imaging and reduces off-axis lobing, ensuring a wide and accurate soundstage. The cabinet features internal bracing to minimize vibrations, while the advanced crossover design avoids the critical 1kHz vocal range, maintaining crystal-clear, natural-sounding vocals. The ML1 Mk II combines careful engineering with musical artistry, delivering an immersive listening experience that is both powerful and refined.

Powerful by Design

Built to handle up to 600 watts, the ML1 Mk II thrives with high-power amplifiers like the MC611 or MC462, yet performs beautifully even with lower-power models such as the MC275 or MC312. For ultimate performance, it can also be bi-amped using the McIntosh MC451.

Deep Bass from 12" Woofer with LD/HP Technology

With bass extending down to 27Hz, the ML1 Mk II delivers deep, authoritative low frequencies without requiring a subwoofer in most rooms. Its 12" woofer uses McIntosh’s patented LD/HP® (Low Distortion/High Performance) magnetic circuit to achieve exceptional precision and power handling. Modern simulation and tuning give the ML1 the same bass impact as the original ML1 but without the need for an external equalizer.

Expansive Sound Stage for All Listeners

Thanks to its 4-way design, symmetrical layout, and expertly tuned crossover network, the ML1 projects an impressively wide sound stage. Rather than limiting listeners to a narrow sweet spot, it delivers consistent clarity and imaging across the entire room, ensuring everyone enjoys the full stereo experience.

Better Crossover for Better Performance

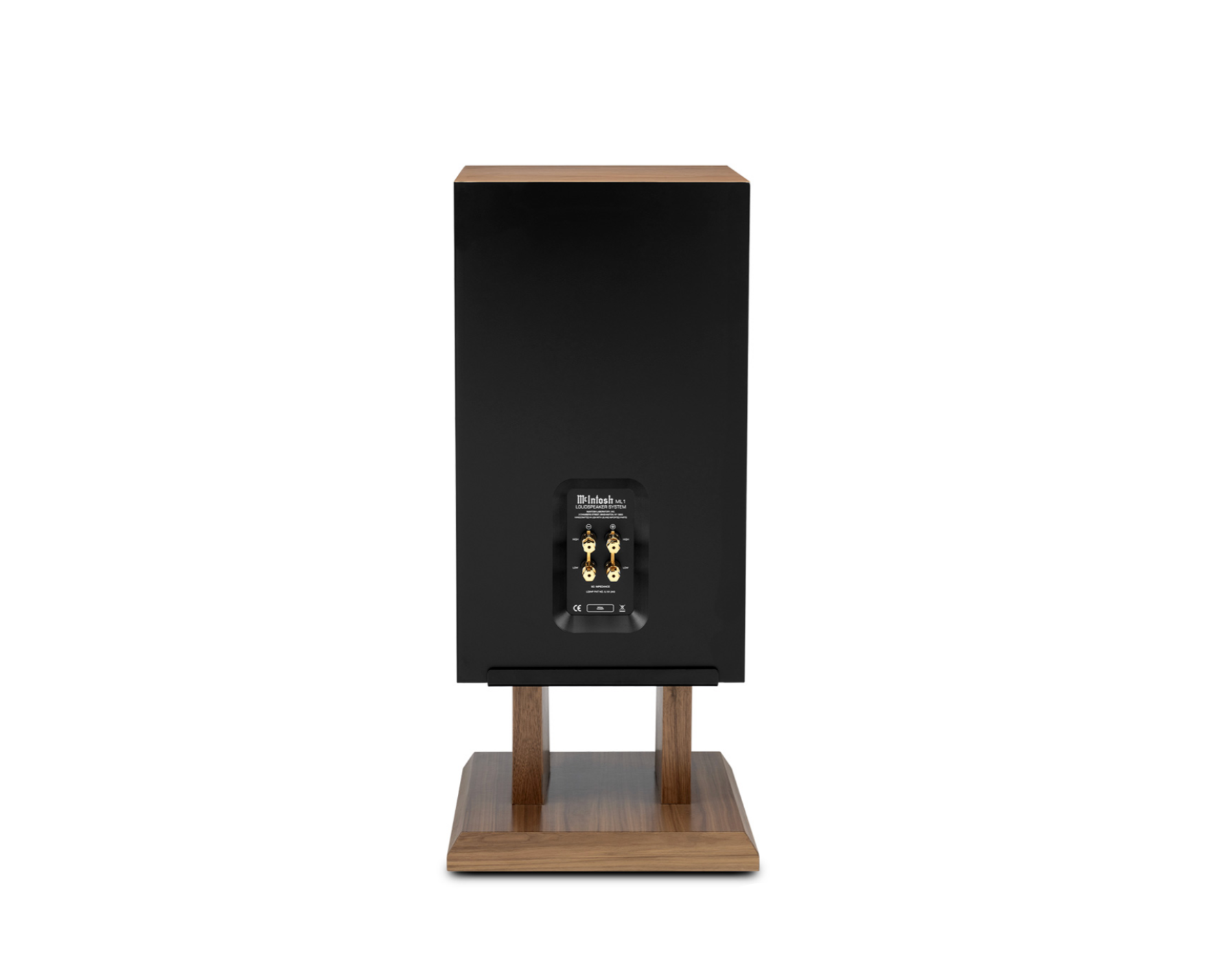

The custom McIntosh-engineered crossover uses oversized components for higher power handling and longevity. Separate high- and low-frequency sections support bi-wiring and bi-amping, while self-resetting protection circuits safeguard the drivers. Gold-plated Solid Cinch™ binding posts guarantee a secure, corrosion-free connection.

Finishing Touches

Handcrafted in the USA, the ML1 Mk II includes a matching speaker stand tailored for ideal height and imaging. The stand features a vintage die-cast McIntosh badge and comes with interchangeable feet for hard floors or carpet. The speakers may also be placed directly on the floor or on a sturdy surface.

Technical Specifications
