Mclntosh C8
- Regular price
- Rs. 533,900.00
- Sale price
- Rs. 533,900.00
- Regular price
-
Couldn't load pickup availability
Description
The C8 Vacuum Tube Preamplifier has an open chassis industrial design similar to our popular MC275 Vacuum Tube Amplifier, and MA252 and MA352 Integrated Amplifiers. When combined with an amplifier (like the matching MC830 Amplifier), source components such as a turntable, CD player (see the matching MCD85 SACD/CD Player) or streaming music player, and a pair of speakers, it can help deliver a lifelike audio experience in your home.

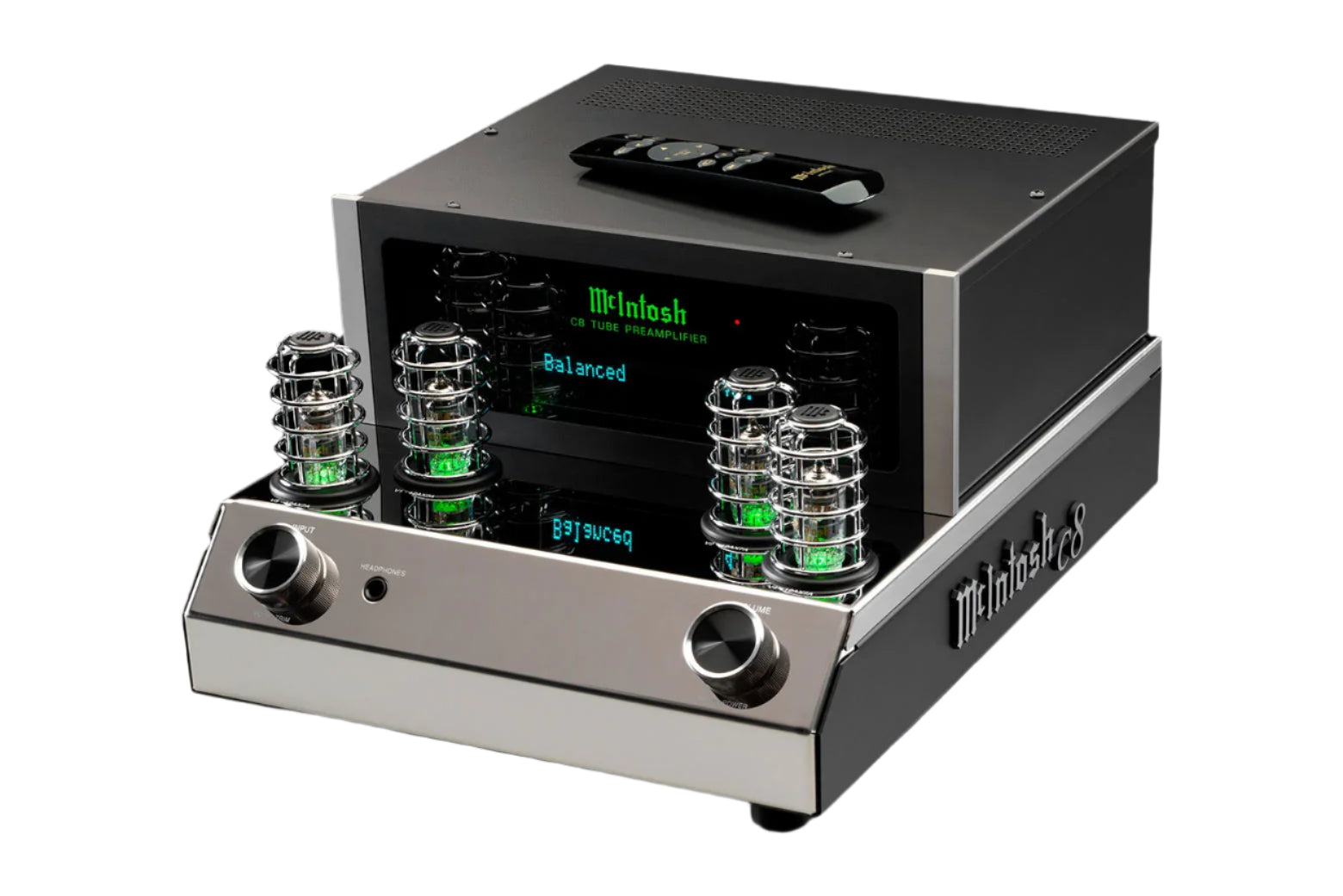

Similarly sized to our MA252 Integrated Amplifier, the C8 is powered by four 12AX7a vacuum tubes housed inside stylish protective cages. For inputs, the C8 comes with 1 balanced and 2 unbalanced analog inputs, plus 1 Moving Coil and 1 Moving Magnet phono inputs with adjustable loading to play cherished vinyl collections. All inputs can be given user-friendly names in order to simplify user control. Bass and treble tone controls help fine tune your music to your personal preferences. For outputs, it has 1 balanced and 2 unbalanced; 1 of the unbalanced outputs can be configured as a subwoofer output for use with a powered subwoofer to further enhance low frequencies.While the C8 does not come equipped with any digital inputs, it is digital-audio-ready as our DA2 Digital Audio Module can be installed in it. Adding the DA2 is an optional dealer installed upgrade. The DA2 has 7 digital inputs: 2 coax, 2 optical, 1 USB, 1 MCT (for use with our MCT500 or MCT80 SACD/CD Transport), and 1 audio-only HDMI Audio Return Channel (ARC)1 connection. The DA2 is powered by a next generation, Quad Balanced, 8-channel, 32-bit Digital-to-Analog Converter (DAC). Its audiophile-grade DAC is highlighted by improved dynamic range and improved total harmonic distortion. For high resolution audio playback, the USB input can support native playback of up to DSD512 and DXD up to 384kHz, and the coax and optical inputs can decode digital music up to 24-bit/192kHz.For personal listening, the C8 comes with our High Drive headphone amplifier that has plenty of power and flexibility to drive a wide range of headphones. Power Control ports allow for easy system power up and shutdown by sending power on/off signals to other connected McIntosh components. The user selectable Auto Off feature will turn the C8 off after 30 minutes when there's been no user input or if no audio signal has been detected. Home Theater Pass Through allows the C8 to be seamlessly integrated into your home theater system, and Data Ports can send remote control commands to connected source components.
Features
This high-performance audio component offers exceptional versatility and sonic fidelity, featuring five analog inputs to accommodate a wide range of source devices: one balanced input for professional-grade connections, two unbalanced inputs for standard analog sources, and two dedicated phono inputs ideal for turntable enthusiasts. At its core, the unit is powered by four 12AX7a vacuum tubes, delivering a warm, rich sound signature characteristic of classic tube amplification. For private listening, a High Drive headphone amplifier ensures outstanding clarity and dynamic range across a variety of headphone types. For those seeking enhanced digital capabilities, an optional dealer-installed upgrade to the DA2 Digital Audio Module is available, adding cutting-edge digital input support including USB, coaxial, optical, and HDMI (ARC) connections.
Specifications
Electronic
| Spec | Value |
|---|---|
| Number of Channels | 2 |
| Total Harmonic Distortion (THD) | 0.08% |
| Frequency Response (+0, -0.5dB) | 20Hz to 20kHz |
| Frequency Response (+0, -3dB) | 15Hz to 100kHz |
| Maximum Output (Balanced / Unbalanced) | 16V RMS / 8V RMS |
| Sensitivity - High Level (Balanced) | 900 mV |
| Sensitivity - High Level (Unbalanced) | 450 mV |
| Sensitivity - Phono (Moving Coil) | 0.45 mV |
| Sensitivity - Phono (Moving Magnet) | 4.5 mV |
| Signal-to-Noise Ratio - High Level | 95 dB |
| Signal-to-Noise Ratio - Moving Coil | 75 dB |
| Signal-to-Noise Ratio - Moving Magnet | 80 dB |
| Voltage Gain - High Level | 15 dB |
| Voltage Gain - Moving Coil | 75 dB |
| Voltage Gain - Moving Magnet | 55 dB |
| Input Impedance (Balanced / Unbalanced) | 44K ohm / 22K ohm |

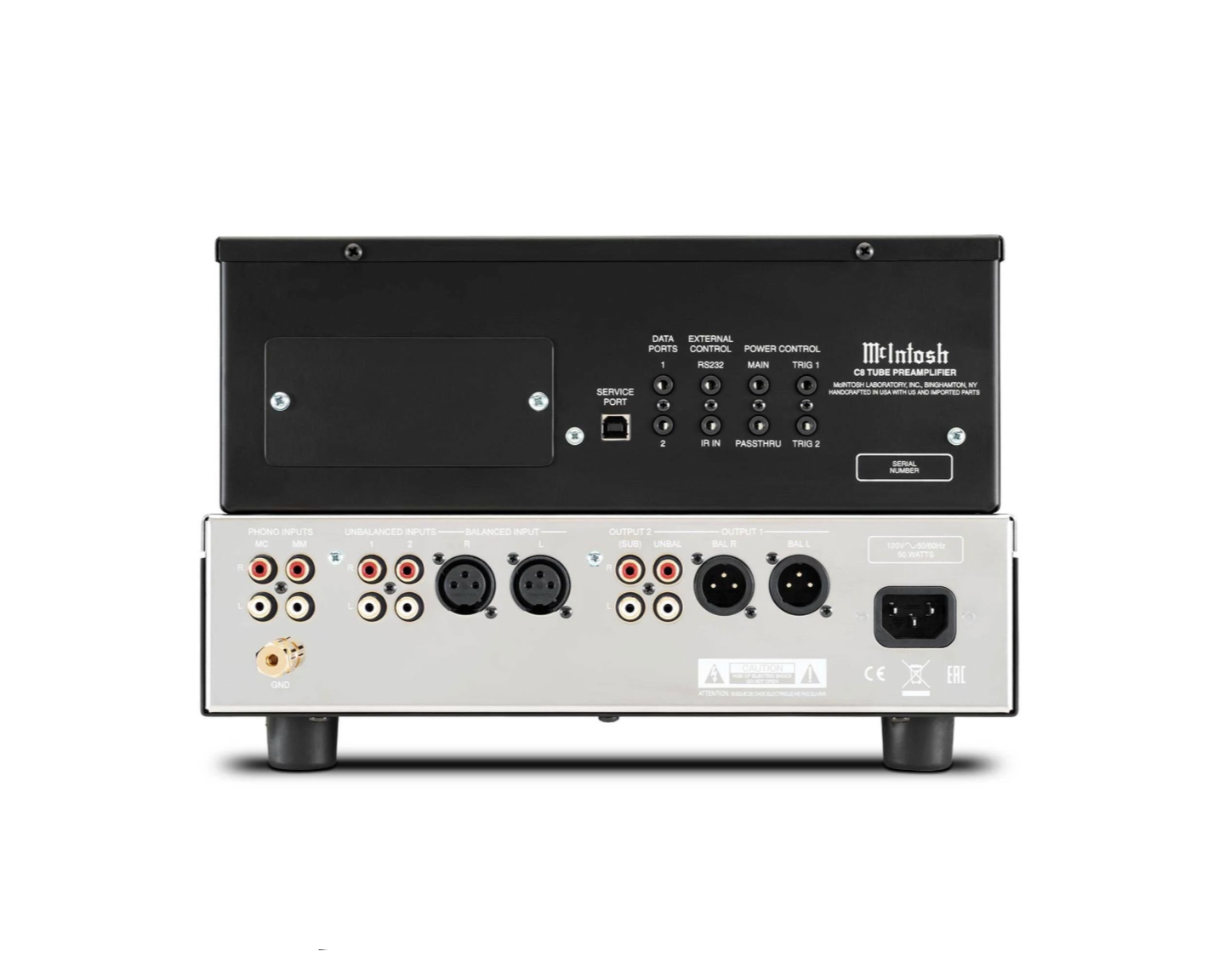

Connectivity

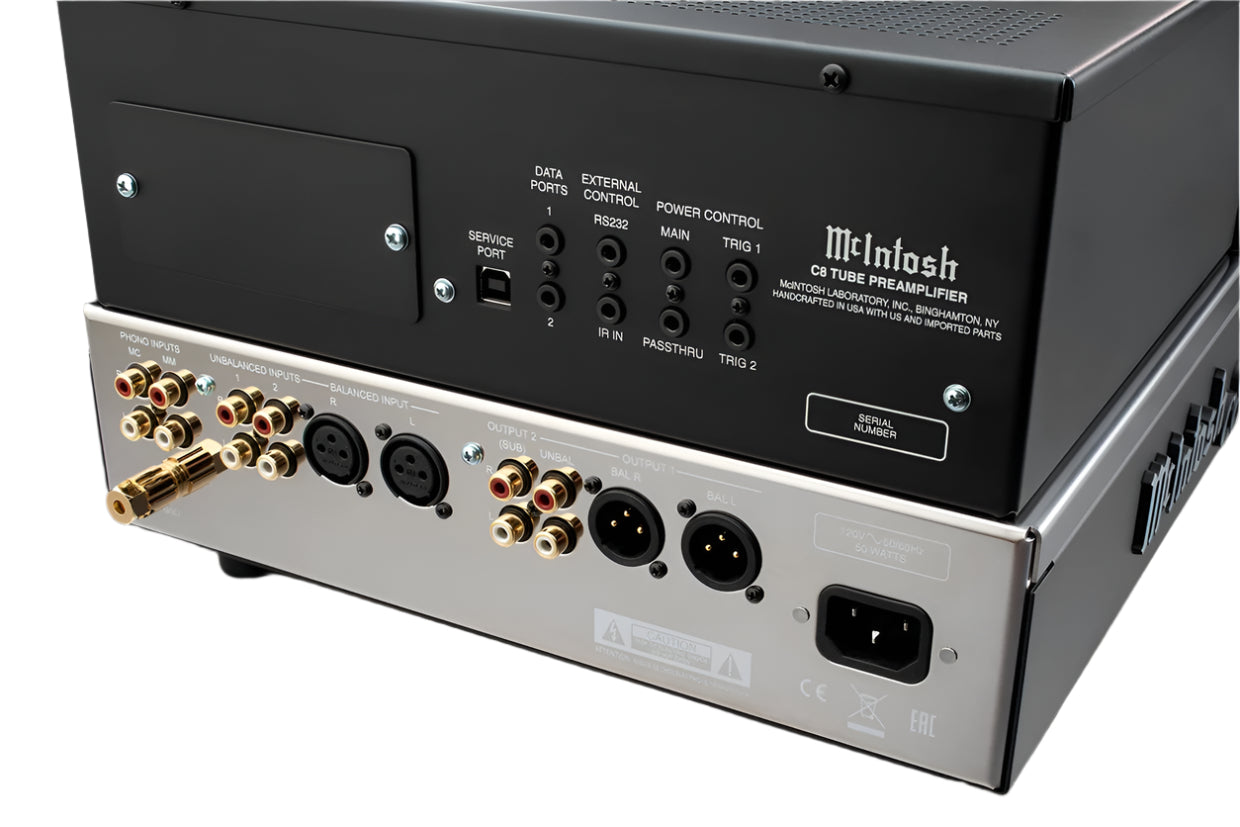

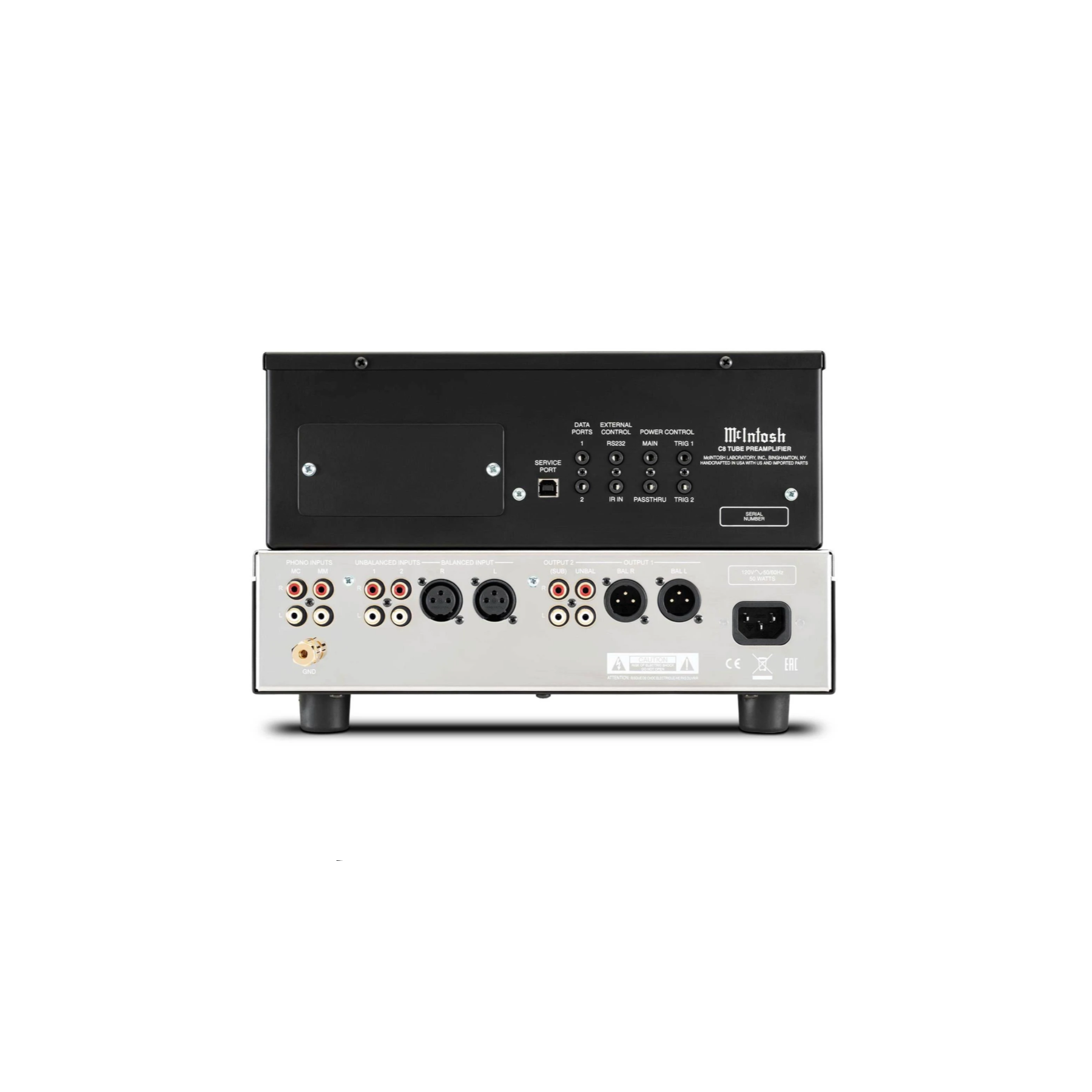

| Input/Output Specification | Value |
|---|---|
| Balanced Inputs | 1 |
| Unbalanced Inputs | 2 |
| Phono Input (Moving Coil) | 1 (adjustable) |
| Phono Input (Moving Magnet) | 1 (adjustable) |
| Upgradeable Digital Audio Module | Yes: DA2 can be installed |
| Digital Coaxial Inputs | 0 |
| Digital Optical Inputs | 0 |
| Digital MCT Input | 0 |
| Digital USB Input | 0 |
| HDMI (ARC) Input | 0 |
| Digital AES/EBU Input | 0 |
| Balanced Fixed Outputs | 0 |
| Balanced Variable Outputs | 1 |
| Unbalanced Fixed Outputs | 0 |
| Unbalanced Variable Outputs | 2 |
| Headphone Output | 1/4" High Drive |
| Input Level Match | Yes, ±6 dB |
| Home Theater PassThru | Yes |
| Unbalanced Analog Connector Type | Standard |
| Service Port | 1 |
| Network Connection | 0 |
Control
| Control & Tone Feature | Value |
|---|---|
| Tone Controls | Bass and Treble |
| Tone Bypass and Input Assign | Yes |
| RS232 Control Input | Yes |
| Power Control Output | 1 Main, 2 Trigger |
| Rear Panel Data Ports | 2 |
| Rear Panel IR Sensor Input | Yes |
General Specifications
| Design & Power Feature | Value |
|---|---|
| Multi-Chassis or Single | Single |
| Output Meters | No |
| Vacuum Tube or Solid State | Vacuum Tube |
| Power Consumption (On) | 50 Watts |
Weights & Dimensions
| Physical Specification | Value |
|---|---|
| Unit Dimensions (W × H × D) | 12-9/32" (31.2 cm) × 7-5/8" (19.4 cm) × 16-1/4" (41.3 cm) |
| Unit Weight | 18 lbs (8.2 kg) |
| Shipping Weight | 25 lbs (11.3 kg) |
