Mclntosh MA12000 AN 2-Channel Hybrid Integrated Amplifier
- Regular price
- Rs. 1,939,900.00
- Sale price
- Rs. 1,939,900.00
- Regular price
-
Couldn't load pickup availability
Description
The MA12000 2-Channel Hybrid Integrated Amplifier from McIntosh combines the best of both worlds with its Hybrid Drive™ technology, blending vacuum tube pre-amplification with solid-state power amplification to deliver exceptional sound quality. Offering a powerful 350 Watts per channel, it features an 8-band tone control for precise audio adjustments and 17 inputs (including 10 analog and 7 digital) for seamless connectivity. The amplifier comes with the DA2 Digital Audio Module pre-installed, ensuring high-resolution digital audio support and future-proofing your system. With its innovative design and McIntosh’s legendary craftsmanship, the MA12000 offers an unparalleled audio experience for audiophiles and music enthusiasts alike.
The fully loaded, hybrid MA12000 Integrated Amplifier is a product of uncompromising audio engineering and expert craftsmanship. Our most powerful integrated amplifier ever, the feature rich MA12000 offers 350 Watts per channel of clean, high performance power that produces a breathtaking home audio experience. You will think your favorite musicians are playing a live, in-person performance in your house.
The MA12000 includes our Hybrid Drive™ technology that uses the best of vacuum tubes and solid state to produce the best sound performance. It gives you the warm nuances of a vacuum tube preamplifier (or valve preamplifier as some of our friends like to say) combined with the speed and raw power of a solid state amplifier, state-of-the-art digital audio capabilities, and enough analog audio connections for virtually any home music system.
The MA12000 is a hybrid design with the preamplifier section powered by (4) 12AX7A vacuum tubes (2 tubes per audio channel), while the 350 Watt power amplifier section employs a solid state design. Our Autoformer™ technology guarantees your speakers will always be capable of receiving that full 350 Watts whether they have 2, 4 or 8 Ohm impedance.

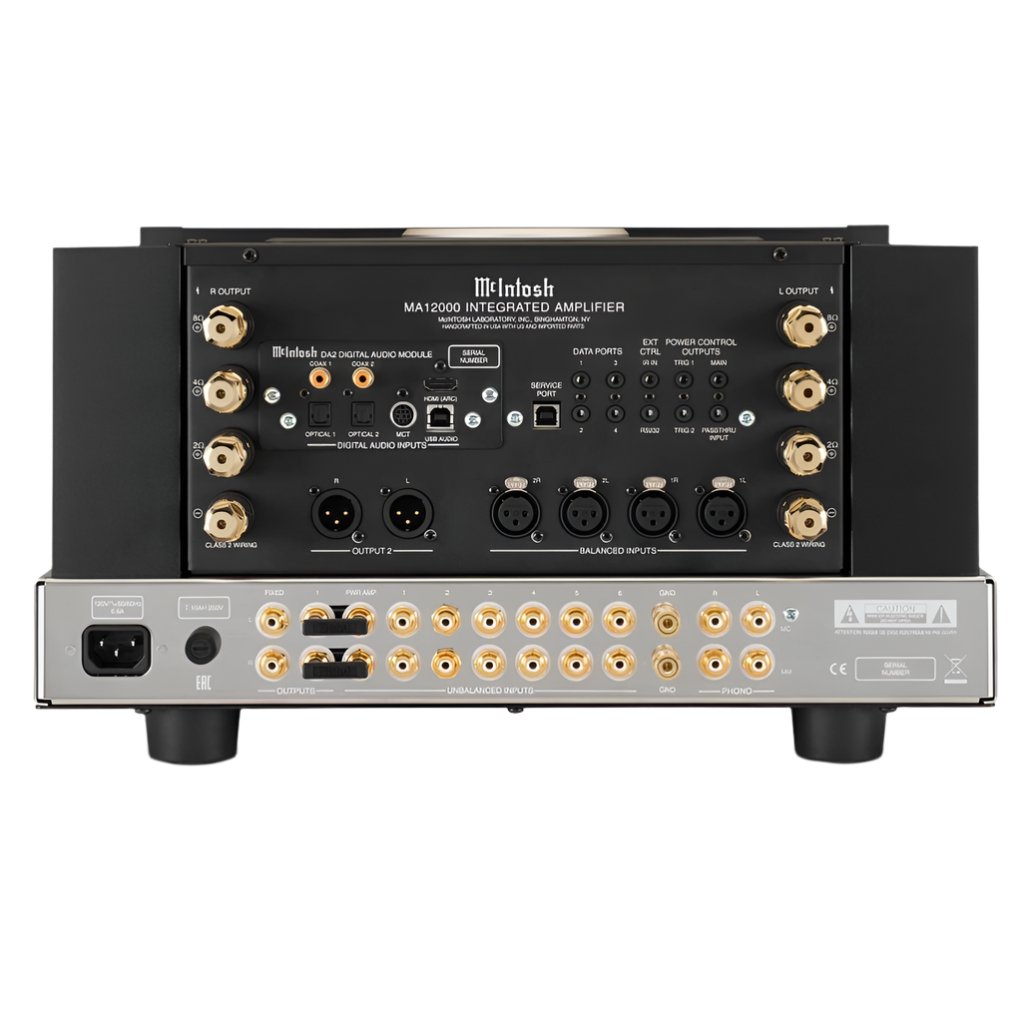

There are 10 analog inputs on the MA12000 consisting of 2 balanced and 6 unbalanced inputs, plus 1 Moving Coil and 1 Moving Magnet input for connecting a turntable. Both phono inputs feature adjustable loading for fine tuning the MA12000 to your specific turntable configuration to your vinyl collection sounds just right. All the unbalanced analog connectors are constructed from premium gold-plated solid brass for superior signal handling and grounding. The MA12000 also has 1 balanced and 1 unbalanced output if you ever want to connect to an additional amplifier that's used in a different part of your residence.
Exceptional Digital Audio with DA2 Module
For digital music, the MA12000 comes with our DA2 Digital Audio Module factory installed. Located in the DA2 are 7 digital audio inputs: 2 coaxial, 2 optical, 1 USB and 1 MCT (for use with our MCT series of SACD/CD Transports), and 1 audio-only HDMI Audio Return Channel (ARC)1 connection. The DA2 is powered by a next generation, Quad Balanced, 8-channel, 32-bit Digital-to-Analog Converter (DAC). This audiophile-grade DAC features improved dynamic range and improved total harmonic distortion. The DA2 supports high resolution digital audio playback, as the USB input supports native playback of up to DSD512 and DXD up to 384kHz, while the coax and optical inputs can decode digital music up to 24-bit/192kHz.
The HDMI (ARC) input allows TVs with a compatible HDMI (ARC) output to be connected to the MA12000 and your home stereo system to bring a new level of audio performance to your TV and movie watching that TV speakers or soundbars just can't provide. Popular multi-channel audio formats from Dolby® and DTS® are supported and will be expertly converted to 2-channel audio for proper playback. When CEC communication is enabled in both the MA12000 and your TV, your TV remote can control the power and volume of the MA12000. The DA2 can be replaced by future modules to keep your MA12000 up to date as new digital audio formats and technologies are developed.
The DA2 has received Roon Tested designation from Roon Labs, which can be especially useful if you have an extensive library of digital music. As a Roon Tested partner, McIntosh has provided equipment to Roon for testing with a variety of different operating systems and computers, and shared information about its design and capabilities.
The top of the MA12000 is highlighted by some updated industrial design elements. The Autoformers and power transformer are now contained in a new glass topped enclosure capped by a glass name plate encircled with a decorative trim ring. Key performance specifications and a detailed block diagram are printed on 5 glass panels.
Features
The McIntosh MA12000 AN 2-Channel Hybrid Integrated Amplifier combines advanced technology with classic McIntosh design to deliver exceptional audio performance and versatility. At its core, it features Power Guard®, which continuously monitors the output signal to prevent distortion and clipping by adjusting the input signal, thereby protecting speakers from damage. The Sentry Monitor™ provides short-circuit protection by automatically disconnecting the output stage if unsafe current levels are detected, ensuring system safety without relying on fuses.
Its iconic "McIntosh Blue" Watt Meters respond to signal peaks in real time, offering a visually engaging representation of power output for each channel. The amplifier is equipped with McIntosh Monogrammed Heatsinks™, which are connected to high-current output transistors to provide efficient heat dissipation and reduce thermal lag. For users integrating the MA12000 into a home theater setup, the Home Theater PassThru feature allows for effortless switching between two-channel and multichannel sources.
Connectivity is robust and secure, thanks to Solid Cinch™ speaker binding posts, which are gold-plated to prevent corrosion and signal loss. The MA12000 also includes an 8-band tone control, enabling precise manual adjustments across the audio spectrum for personalised sound tailoring. For headphone enthusiasts, the High Drive Headphone Amplifier with HXD® adds spatial enhancement, making headphone listening more immersive.
Additional features such as Power Control allow for seamless coordination of power states between connected McIntosh components, simplifying operation. The amplifier boasts doubling of filter capacity, which results in significantly improved low-frequency response. Internally, it uses audio-grade circuit components and is driven by powerful control microprocessors, ensuring reliable, high-fidelity performance. All of this is packaged in a system designed for easy operation, featuring intuitive front panel controls and a comprehensive remote control.
Technical Specifications
Electronic & Power Output
| Specification | Details |
|---|---|
| FTC Power Output Rating | 350 W |
| Power Output per Channel | 350 W into 2, 4, or 8 ohms |
| Number of Channels | 2 |
| Rated Power Band | 20Hz to 20kHz |
| Total Harmonic Distortion | Preamplifier: 0.03%, Amplifier: 0.005% |
| Dynamic Headroom | 1.5dB |
| Frequency Response +0, -0.5dB | 20Hz to 20kHz |
| Frequency Response +0, -3dB | 10Hz to 100kHz |
Sensitivity & Signal-to-Noise Ratio
| Specification | Details |
|---|---|
| Sensitivity Phono (Moving Coil) | 0.30mV |
| Sensitivity Phono (Moving Magnet) | 3.0mV |
| Sensitivity High Level (Balanced/Unbalanced) | 600 mV/300mV |
| Sensitivity (Power Amp input) | 1.7V |
| Signal To Noise Ratio (Moving Coil) | 75dB |
| Signal To Noise Ratio (Moving Magnet) | 77dB |
| Signal To Noise Ratio (High Level) | 95dB |
| Signal To Noise Ratio (Power Amp input) | 114dB |
| Input Impedance (Balanced/Unbalanced) | 44K/22K |
| Damping Factor | >40 |
Maximum Output
| Specification | Details |
|---|---|
| Maximum Output (Unbalanced) | 8V |
| Maximum Output (Balanced) | 16V |
Connectivity
| Specification | Details |
|---|---|
| Balanced Input | 2 |
| Unbalanced Input | 6 |
| Phono Input Moving Coil | 1 (adjustable loading) |
| Phono Input Moving Magnet | 1 (adjustable loading) |
| Upgradeable Digital Audio Module | Yes: DA2 |
| Digital Coaxial Input | 2 |
| Digital Optical Input | 2 |
| Digital MCT Input | 1 |
| Digital USB Input | 1 |
| HDMI (ARC) Input | 1 |
| Balanced Variable Output | 1 |
| Unbalanced Fixed Output | 1 |
| Unbalanced Variable Output | 1 |
| Headphone Output | 1/4" High Drive with Headphone Crossfeed Director (HXD®) |
| Subwoofer Output | 0 |
| AM/FM Tuner option | No |
| Home Theater PassThru | Yes |
| Unbalanced Analog Connector Type | Premium gold-plated solid brass |
| Speaker Binding Post Type | Patented Solid Cinch™ Speaker Binding Posts |
| Service Port | 1 |
Digital Audio
| Specification | Details |
|---|---|
| Digital-to-Analog Converter (DAC) Type | 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced |
| Digital Coaxial Input Sample Rate | 24-bit/44.1kHz to 192kHz |
| Digital Optical Input Sample Rate | 24-bit/44.1kHz to 192kHz |
| Digital MCT Input Sample Rate | 16-bit/44.1kHz (CD), DSD64 (SACD) |
| Digital USB Input Sample Rate | 32-bit/44.1kHz to 384kHz (PCM), DSD64, DSD128, DSD256, DSD512, DXD352.8kHz, DXD384kHz |
Control
| Specification | Details |
|---|---|
| Tone Controls | 8-Band |
| Tone Bypass and Input Assign | Yes |
| RS232 Control Input | Yes |
| Power Control Output | 1 Main, 2 Trigger |
| Rear Panel Data Port | 4 |
| Rear Panel IR Sensor Input | Yes |
| Input Level Match | Yes |
General Specifications
| Specification | Details |
|---|---|
| Vacuum Tube or Solid State | Preamplifier: Vacuum Tube, Amplifier: Solid State |
| Output Type | Autoformer™ |
| Output Meters | Yes |
| Dual Layer Chassis | Yes |
| Chassis Finish | Polished stainless steel & black painted steel |
| McIntosh Monogrammed Heatsinks™ | Yes |
| Power Requirement | 120V, 50/60Hz, 6.6A |
| Standby Power Requirement | <0.25 Watts |
Weights & Dimensions
| Specification | Details |
|---|---|
| Unit Dimensions (W x H x D) | 17-1/2” (44.5cm) x 9-7/16” (24 cm) x 19-3/4” (50.2cm) |
| Unit Weight | 108 lbs (48.9kg) |
| Shipping Weight | 141 lbs (63.9kg) |
