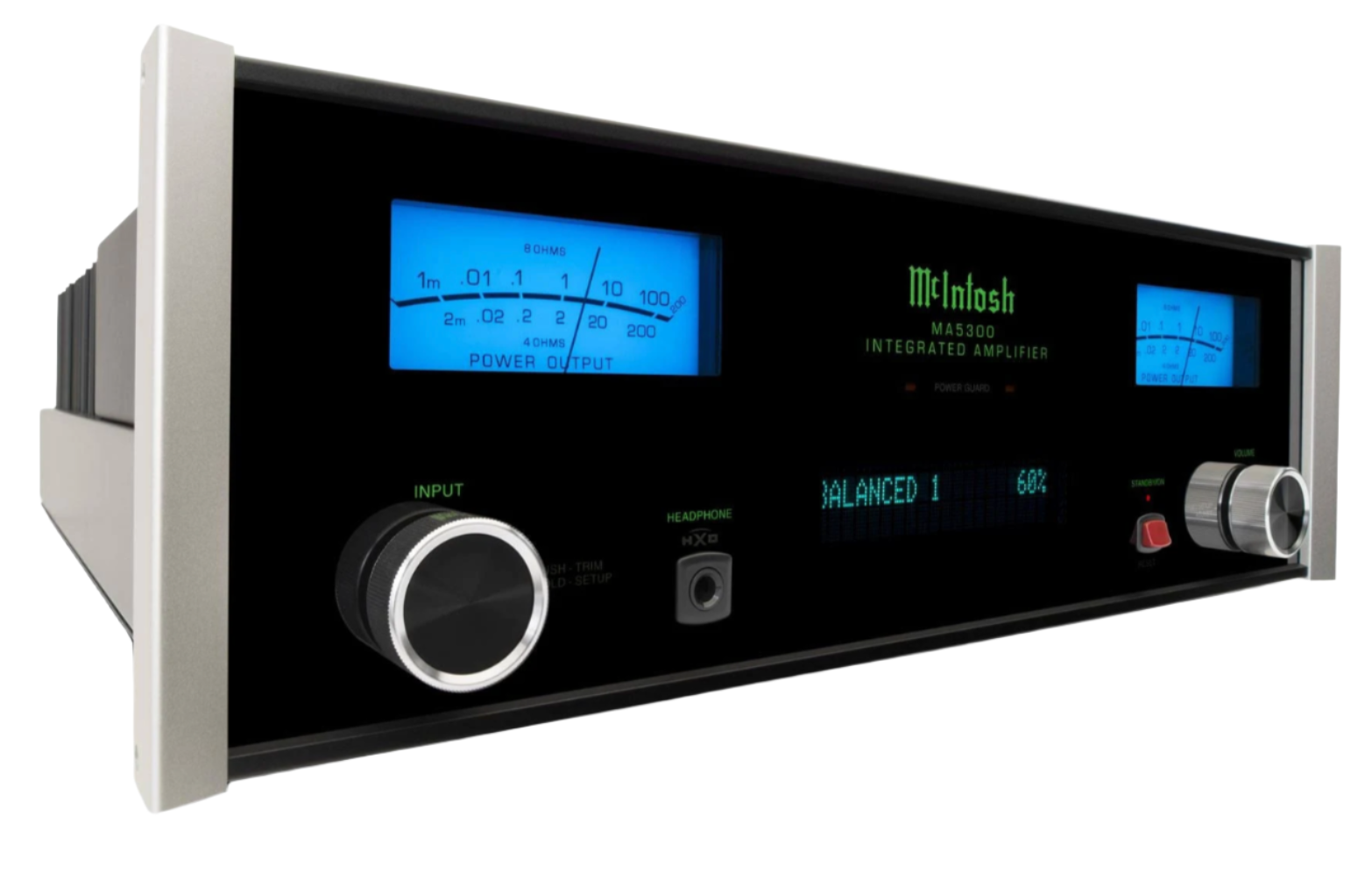

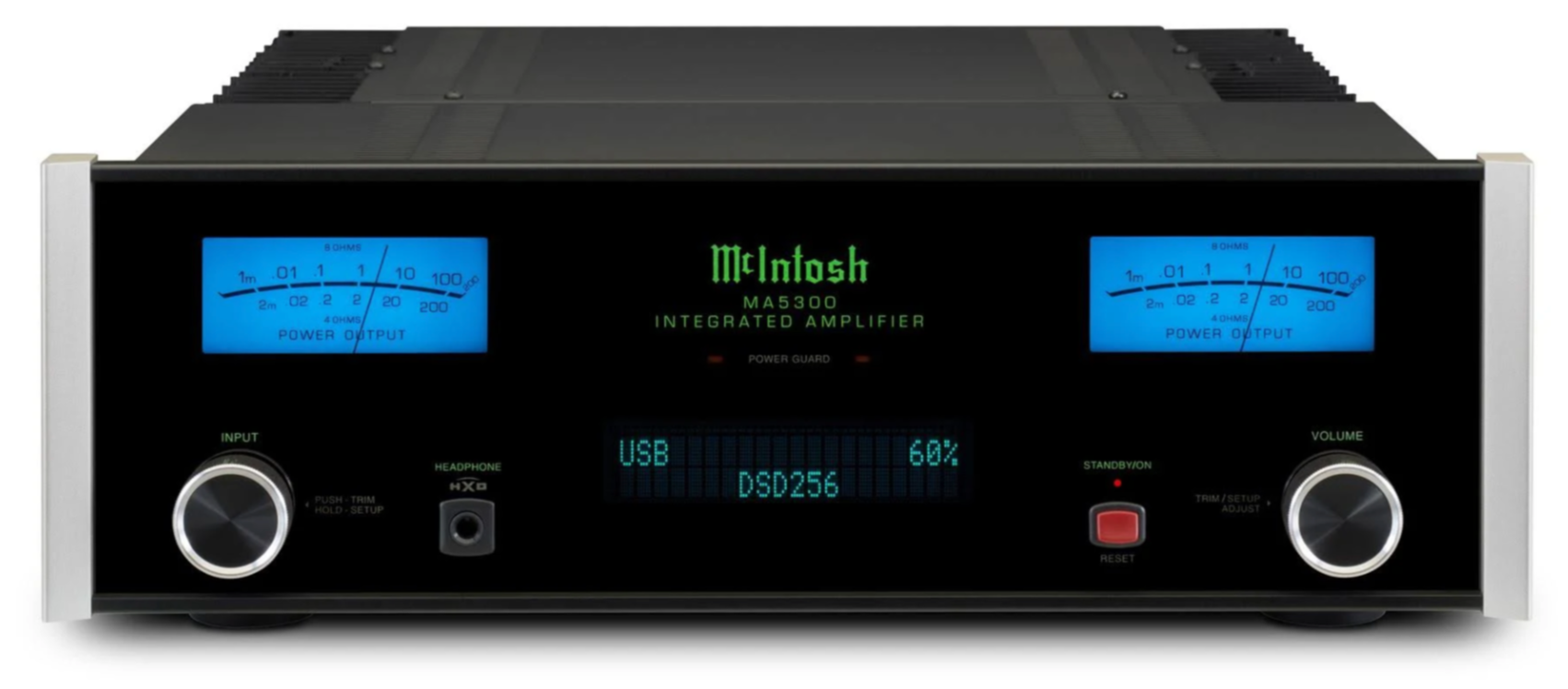

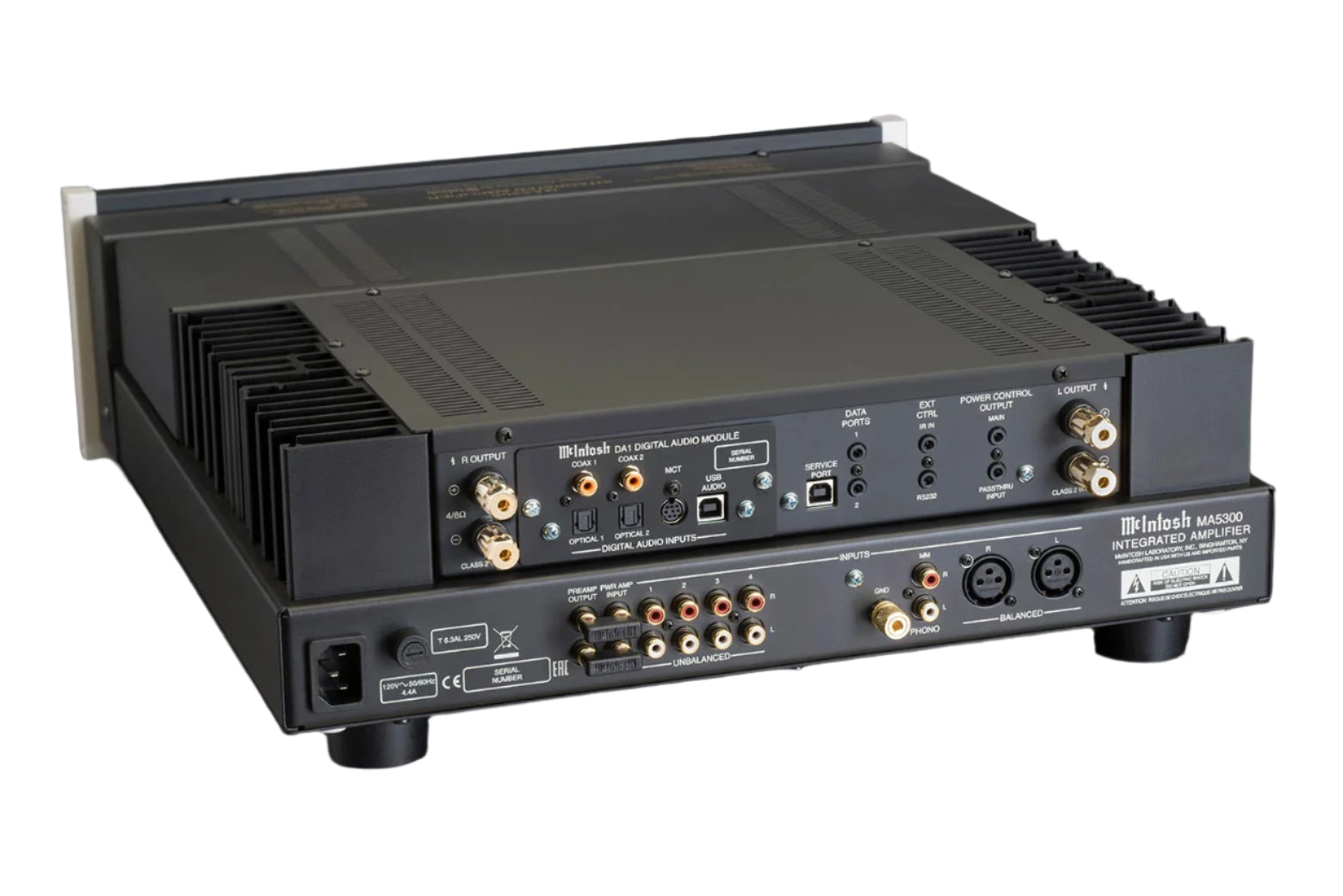

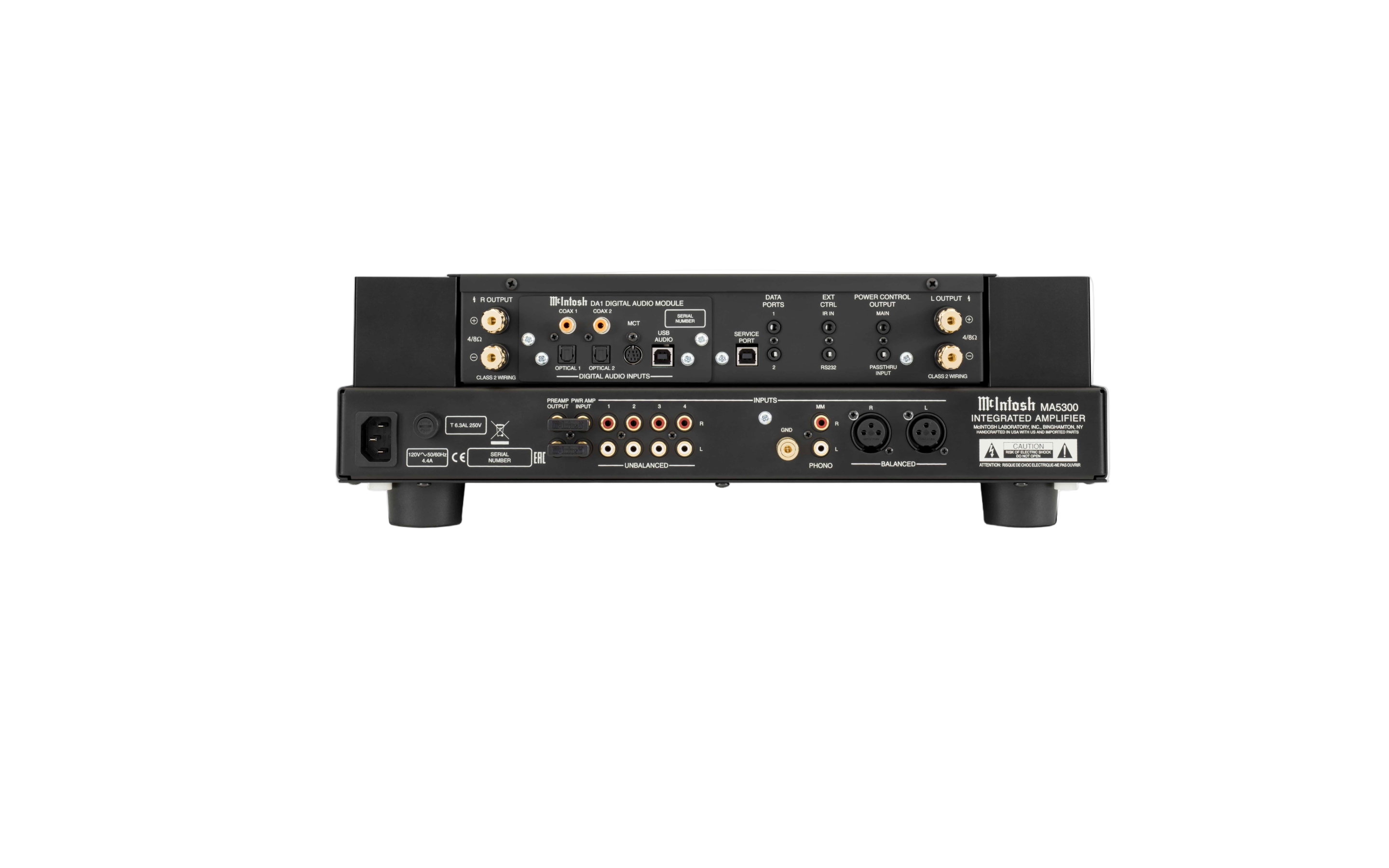

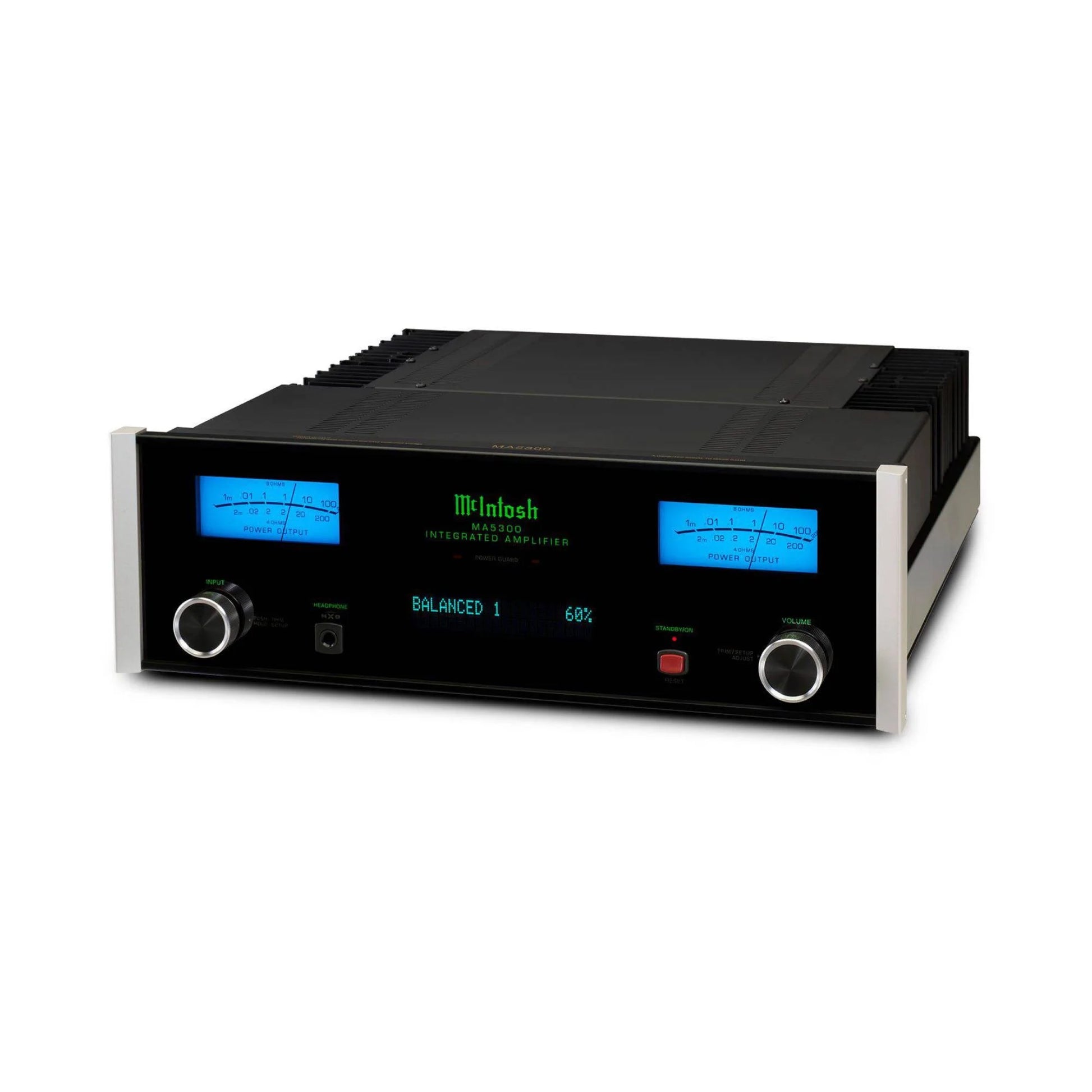

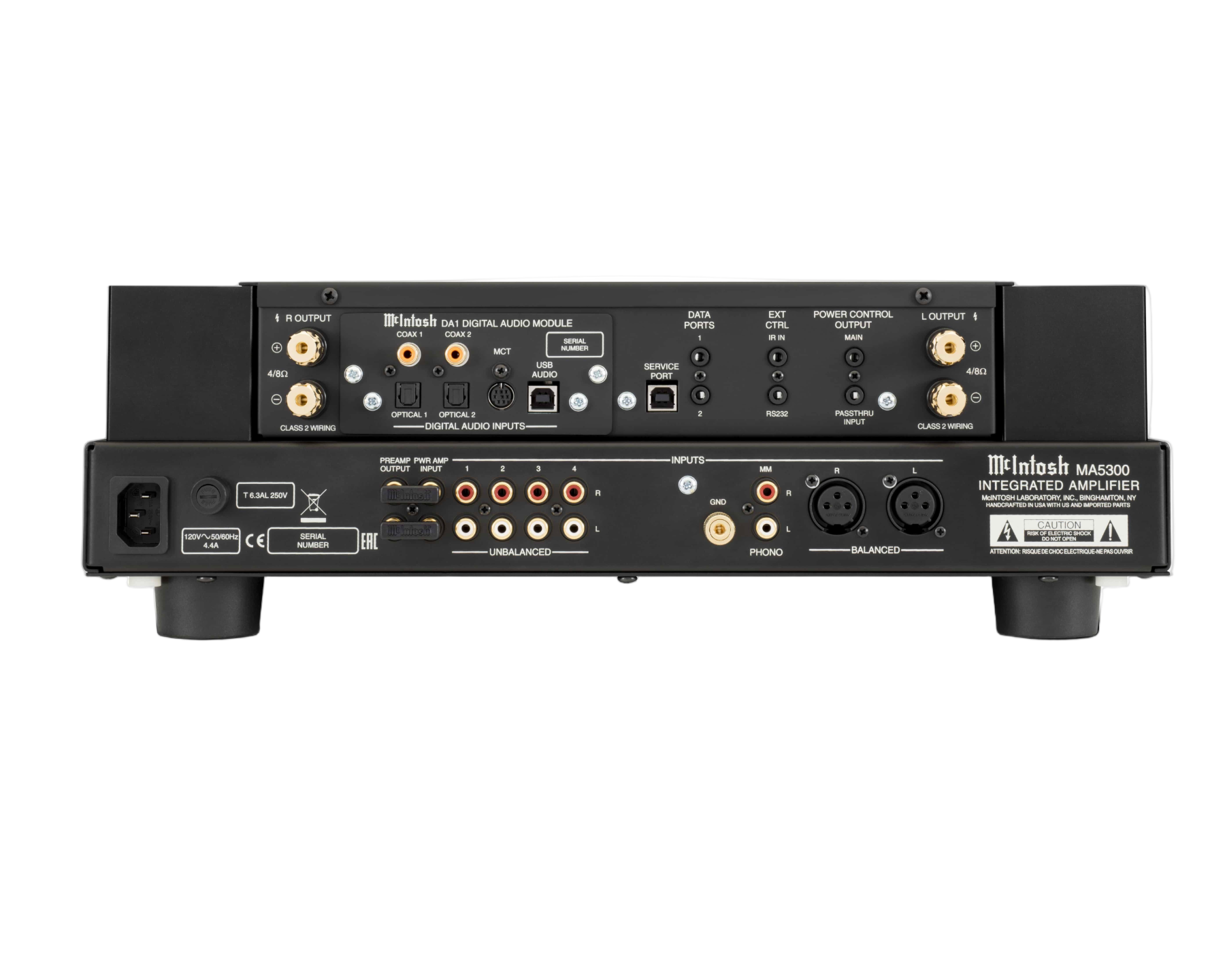

Mclntosh MA5300 Integrated Amplifier
- Regular price
- Rs. 717,900.00
- Sale price
- Rs. 717,900.00
- Regular price
-
Couldn't load pickup availability
Description
The MA5300 Integrated Amplifier is proof that big sound can come in small packages. It is our smallest solid state integrated amplifier in terms of both power output and physical size, making it an ideal choice for smaller spaces or for someone just beginning to assemble a home audio system. It’s a direct coupled amplifier that delivers 100 Watts per channel into 8 Ohm speakers or 160 Watts per channel into 4 Ohm speakers. New dual scale blue Watt meters give an accurate readout of power output for both 4 and 8 Ohm impedances.
The MA5300’s complement of 12 inputs includes 6 analog inputs (4 unbalanced, 1 balanced and 1 Moving Magnet input for turntables) and 6 digital inputs (2 each coaxial and optical, 1 USB and 1 proprietary MCT for use with our MCT series of SACD/CD Transports). All digital inputs are housed in our DA1 Digital Audio Module which can be replaced by future modules as new digital audio technologies are developed. (NOW AVAILABLE: Optional dealer installed upgrade to the DA2 Digital Audio Module.) The DA1 comes with an 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode and supports up to DSD256 and DXD 384kHz for high resolution audio playback. All inputs can be given user-friendly names to simplify system control and configuration.
Included on the MA5300 are our McIntosh Monogrammed Heatsinks™ which are connected to advanced high current output transistors that eliminate warm-up time so you can enjoy the MA5300’s complete sonic capabilities from the moment you turn it on. Powerful new control microprocessors have been used to improve overall system operation, along with some of the latest audio-grade circuit components to deliver the best possible sound. Bass and treble tone controls have been added to help you further fine tune your music to your personal preferences.The MA5300 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. As a Roon Tested partner, McIntosh has provided equipment to Roon for testing with a variety of different operating systems and computers, and shared information about its design and capabilities.Technical Specifications
Technical Specifications
Electronic
| Specification | 100 W Model |
|---|---|
| FTC Power Output Rating | 100 W |
| Power Output per Channel | 100 W into 8 ohms, 160 W into 4 ohms |
| Number of Channels | 2 |
| Rated Power Band | 20Hz to 20kHz |
| Total Harmonic Distortion (THD) | 0.005% |
| Dynamic Headroom | 1.8 dB |
| Frequency Response (+0, -0.5dB) | 20Hz to 20kHz |
| Frequency Response (+0, -3dB) | 10Hz to 100kHz |
| Sensitivity - Phono (Moving Coil) | N/A |
| Sensitivity - Phono (Moving Magnet) | 2.5 mV |
| Sensitivity - High Level (Balanced) | 0.5 V |
| Sensitivity - High Level (Unbalanced) | 0.25 V |
| Sensitivity - Power Amp Input | 1.0 V |
| SNR - Moving Coil | N/A |
| SNR - Moving Magnet | 82 dB |
| SNR - High Level | 95 dB |
| SNR - Power Amp Input | 110 dB |
| Input Impedance (Balanced) | 20K ohms |
| Input Impedance (Unbalanced) | 20K ohms |
| Damping Factor (8 ohms) | >200 |
| Damping Factor (4 ohms) | >100 |
| Maximum Output - Unbalanced | 8 V |
Connectivity
| Input/Output Specification | 100 W Model |
|---|---|
| Balanced Inputs | 1 |
| Unbalanced Inputs | 4 |
| Phono Input (Moving Coil) | 0 |
| Phono Input (Moving Magnet) | 1 (fixed loading) |
| Upgradeable Digital Audio Module | Yes: DA1 |
| Digital Coaxial Inputs | 2 |
| Digital Optical Inputs | 2 |
| Digital MCT Input | 1 |
| Digital USB Input | 1 |
| HDMI (ARC) Input | 0 |
| Balanced Variable Output | 0 |
| Unbalanced Fixed Output | 0 |
| Unbalanced Variable Outputs | 1 |
| Headphone Output | 1/4" High Drive with Headphone Crossfeed Director (HXD®) |
| Subwoofer Output | 0 |
| AM/FM Tuner Option | No |
| Home Theater PassThru | Yes |
| Unbalanced Analog Connector Type | Standard |
| Speaker Binding Post Type | Standard |
| Service Port | 1 |
Digital Audio Specifications
| Digital Audio Specification | 100 W Model |
|---|---|
| DAC Type | 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced |
| Digital Coaxial Input Sample Rate | 24-bit / 44.1kHz to 192kHz |
| Digital Optical Input Sample Rate | 24-bit / 44.1kHz to 192kHz |
| Digital MCT Input Sample Rate | 16-bit / 44.1kHz (CD), DSD64 (SACD) |
| Digital USB Input Sample Rate | 32-bit / 44.1kHz to 384kHz (PCM); DSD64, DSD128, DSD256, DXD352.8/384kHz |
Control
| Control & Tone Feature | 100 W Model |
|---|---|
| Tone Controls | Bass and Treble |
| Tone Bypass and Input Assign | Yes |
| RS232 Control Input | Yes |
| Power Control Output | 1 Main |
| Rear Panel Data Ports | 2 |
| Rear Panel IR Sensor Input | Yes |
| Input Level Match | Yes |
General Specifications
| Design / Power Specification | 100 W Model |
|---|---|
| Vacuum Tube or Solid State | Solid State |
| Output Type | Direct Coupled |
| Output Meters | Yes |
| Dual Layer Chassis | Yes |
| Chassis Finish | Black painted steel |
| McIntosh Monogrammed Heatsinks™ | Yes |
| Power Requirement | 120V, 50/60Hz, 2.3A |
| Standby Power Requirement | <0.25 Watts |
Weights & Dimensions
| Physical Specification | 100 W Model |
|---|---|
| Unit Dimensions (W × H × D) | 17-1/2" (44.45 cm) × 6" (15.2 cm) × 18-3/4" (47.6 cm) |
| Unit Weight | 38 lbs (17.2 kg) |
| Shipping Weight | 55.5 lbs (25.2 kg) |
