Description
The W10 is the most compact model within the Anthra subwoofer series. It features a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.
Features
The Monitor Audio Anthra W10 Active Subwoofer is a compact powerhouse designed to deliver precise, room-filling bass with exceptional clarity and control. At its core is a 10” Rigid Surface Technology II (RST II) driver, constructed with a C-CAM (Ceramic-Coated Aluminum Magnesium) high-excursion cone that ensures deep, accurate low-frequency performance with minimal distortion. Powering the sub is a high-efficiency 500-watt Class-D amplifier, delivering clean and dynamic output, even at high volume levels. The W10 is also equipped with a full-colour LCD display, offering intuitive control over settings and adjustments.
Internally, the subwoofer is built with massive motor assemblies, allowing for precise cone movement and enhanced durability under demanding conditions. For connectivity, it offers both RCA and professional-grade XLR inputs and outputs, ensuring seamless integration into a wide range of home theater or hi-fi systems. The Anthra W10 is also compatible with MaestroUnite™, Monitor Audio’s proprietary wireless control and setup platform, enabling effortless pairing and advanced configuration through the MaestroUnite Setup feature. Combining elegant design with cutting-edge acoustic engineering, the Anthra W10 is an ideal choice for audiophiles and home theater enthusiasts seeking premium low-end performance in a sleek, modern enclosure.
Deep, Controlled Bass. Simply.
Engineered to deliver deep, agile bass in small to mid-sized spaces, the Anthra W10 subwoofer features a 500 Watt Class-D amplifier driving a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W10 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

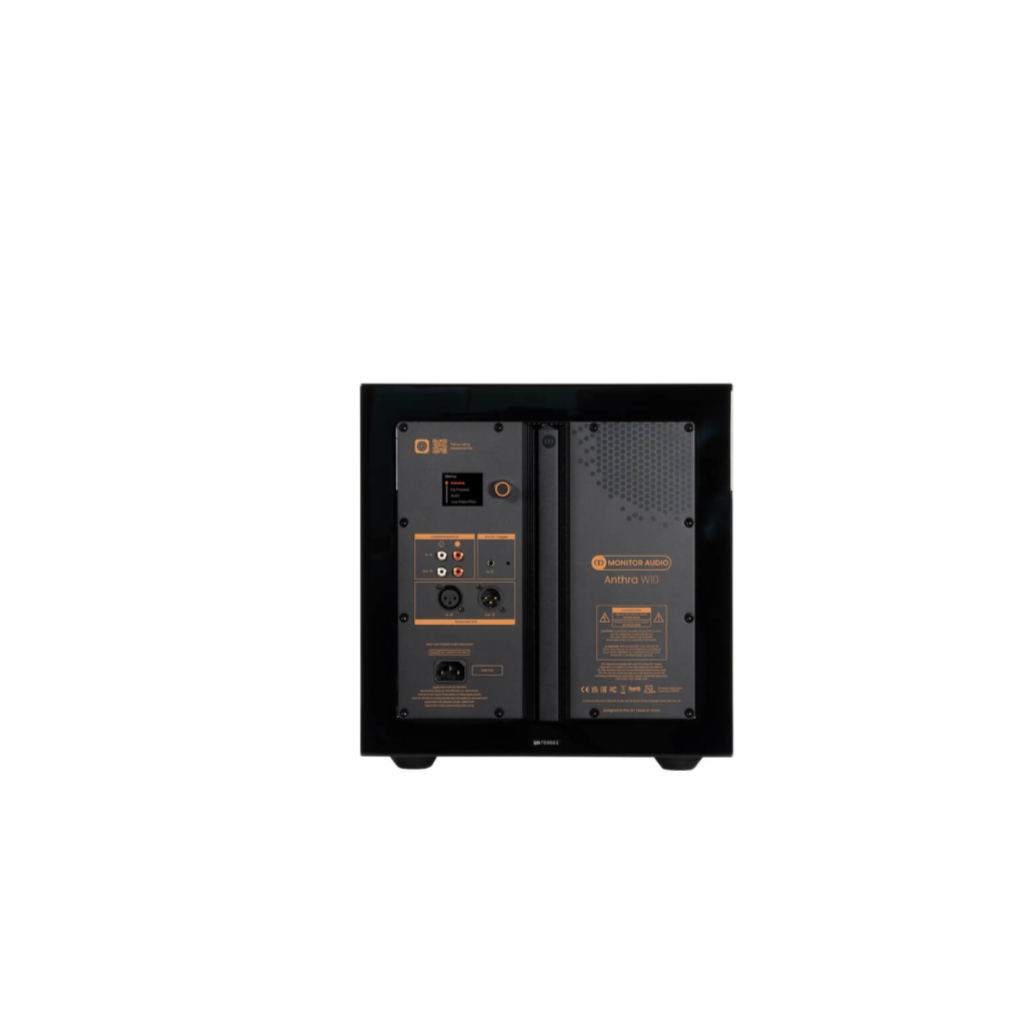

A full-colour LCD display and rotatory dial are located on the back panel to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.
Subwoofers and Their Ideal Placement
Forget simply finding a spot that fits proper subwoofer placement is a crucial element in the art and science of audio, requiring a touch of knowledge and a willingness to experiment.
Technical Specifications
| Category | Details |
|---|---|
| System Format | Active – Sealed Cabinet |
| Drive Unit Complement | 1x 10" (254 mm) High Linear-Excursion Triple Suspension Driver |
| Amplifier Classification | High-Efficiency Class-D |
| Lower Frequency Limit | -6dB @ 17Hz |
| Upper Frequency Limit | (LPF Off) -6dB @ 400Hz |
| Driver Excursion (pk-pk) | 50 mm |
| DSP | 28 Bit, 50 MIPS – Configurable via MaestroUnite |
| Analogue Digital Conversion | Auto-ranging Input (10Vrms max) with low SNR for small signals |
| Amplifier Output Power (240V AC) | Instantaneous: 500 W Continuous Short-Term : 425 W |
| Amplifier Output Power (120V AC) | Instantaneous: 450 W Continuous Short-Term: 390 W |
| LED UI Control | Brightness, On/Off |
| Phase Control | 0–360° (measured at LPF crossover) |
| Low Pass Filter | 20–200 Hz with roll-off adjustable from -3 to -48 dB/Oct |
| Custom EQ | 3 predefined + 3 user EQsEach with 8-band EQ (Peaking, High Shelf, Low Shelf, High Pass) |
| Volume Level | Wide adjustable input gain for varied signal levels |
| Inputs | - Stereo Unbalanced RCA (or Mono/LFE via LFE connector)- Mono/LFE Balanced XLR |
| Outputs | - Stereo Unbalanced RCA (unbuffered throughput)- Mono/LFE Balanced XLR (unbuffered throughput) |
| Mains Input Voltage | Universal (85–265 VAC) |
| External Dimensions (HxWxD) | 321 x 321 x 321 mm (without feet) |
| Power Consumption | 120 W |
| Cabinet Construction | Braced 18 mm MDF with 36 mm front baffle |
| Grille | Cloth-covered, magnetically attached |
| Weight | 20.06 kg (44 lb 1 oz) |
