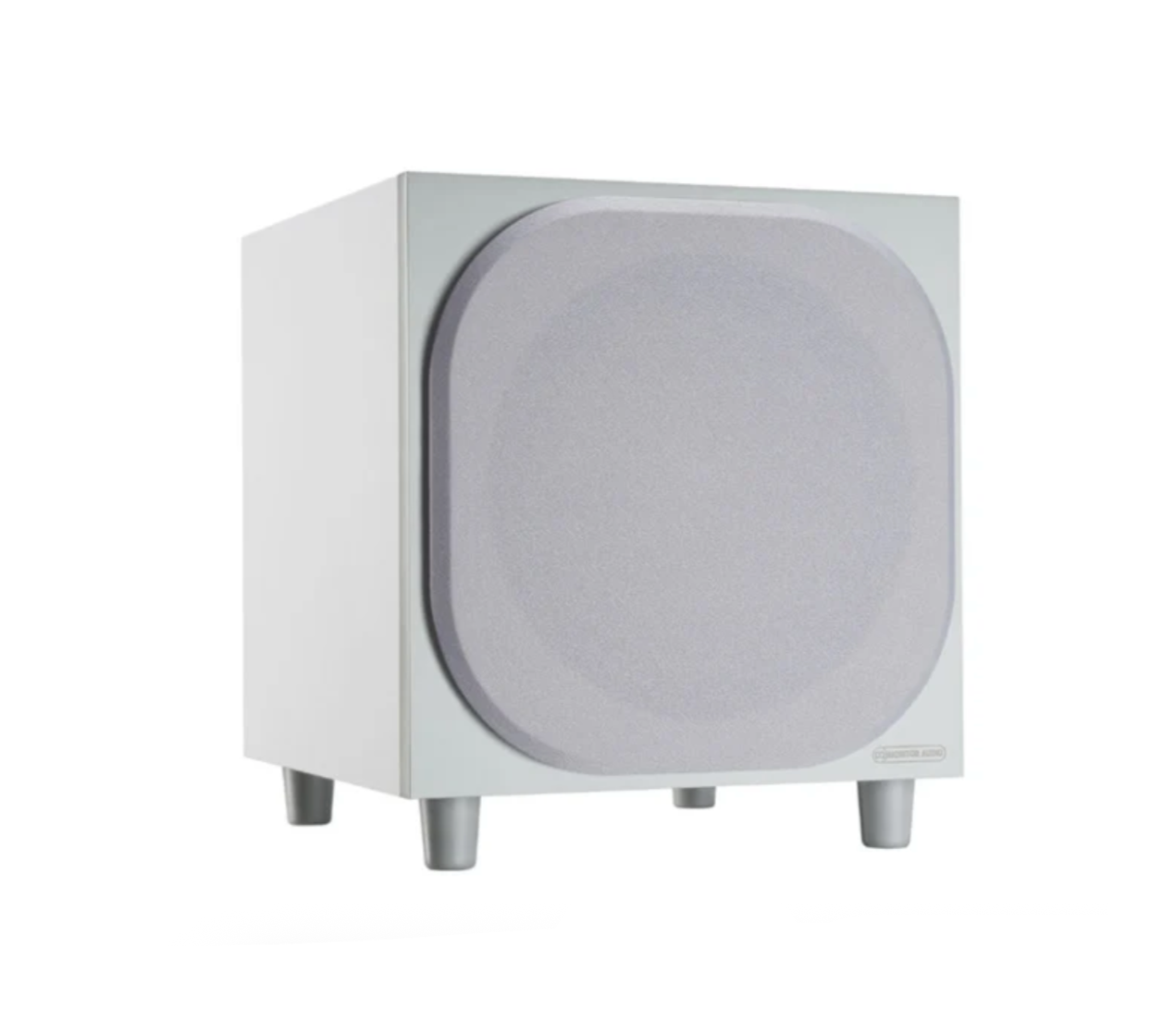

Monitor Audio Bronze W10 Subwoofer
- Regular price
- Rs. 91,000.00
- Sale price
- Rs. 91,000.00
- Regular price
-
Couldn't load pickup availability
Description
If you love deep and refined bass notes, the Bronze W10 is a must-have addition to your speaker set-up as every soundscape is effortlessly reinforced by our beautifully designed subwoofer. The Bronze W10’s long-throw 10" C-CAM subwoofer driver combines with the 10" auxiliary bass radiator to bring a vivid realism to any performance.
Our engineers have acoustically improved the driver and bass radiator by reducing the moving masses and tuning the compliances in the system to improve the transient response kick drumsand explosions now have much more punch and precision. Reduced moving mass and improved rubber feet allows more energy to be transmitted directly into the room rather than being lost through mechanical vibrations through the floor and walls. The Bronze W10 is a stunning addition to any room.
Key Features
The Monitor Audio Bronze W10 subwoofer is designed to deliver deep, impactful bass with remarkable precision and power. It features a long-throw 10-inch (250 mm) driver equipped with a ‘dished’ C-CAM cone, engineered to provide strong, accurate low-frequency performance while minimizing distortion. Complementing this is a 10-inch (250 mm) flat panel Auxiliary Bass Radiator (ABR) positioned underneath the unit, which helps extend the bass response further and enhances the overall richness and depth of sound. Powered by a Class D amplifier with a high-current Switch Mode Power Supply (SMPSU), the Bronze W10 offers efficient and dynamic amplification, ensuring clean and consistent power delivery for impressive bass performance in any home audio or cinema setup.
Technical Specifications
| Spec | Details |
|---|---|
| System Format | Long-throw 10" driver with dished C-CAM cone 10" flat panel ABR (Auxiliary Bass Radiator) |
| Cabinet Construction | 18 mm M.D.F. internally braced |
| Lower Frequency Limit | -3 dB @ 33 Hz / -10 dB @ 28 Hz (Free Field) Default preset (Music): -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room) |
| Upper Frequency Limit | -6 dB @ 150 Hz |
| Drive Unit Complement | 1 x 250 mm (10") C-CAM subwoofer driver with 2" long throw voice coil |
| Linear Driver Excursion | 17 mm peak to peak |
| Amplifier Output | 220 W |
| Amplifier Classification | Class D with high current Switch Mode Power Supply (SMPSU) |
| Phase Control | 0° and 180° pure invert |
| Low Pass Filter Alignment | 4th order (24 dB/octave), adjustable 50 Hz to 120 Hz |
| Equalisation DSP | 3 pre-set modes: Music, Movie, Impact |
| Auto Sensing | Line Level >3 mV Auto standby after 20 minutes |
| Audio Inputs | LFE unbalanced input (RCA) Stereo unbalanced inputs (RCA) |
| Input Impedance | 20 kOhms |
| 12 V Trigger | 3.5 mm mono mini-jack, 6 V threshold |
| Electrical Certifications | CE, CB, ETL, FCC, CCC, ErP compliant |
| Mains Input Voltage | 110–120 Vac 50–60 Hz / 220–240 Vac 50–60 Hz (Manual selection) |
| Power Consumption | Max 300 W, Standby <0.5 W (ErP compliance) |
| Fuse Type | 20 mm T4AL 250 VAC |
| External Dimensions (incl. Amp, Drivers & Terminals) | 321 x 321 x 364 mm (12 5/8 x 12 5/8 x 14 5/16") |
| External Dimensions (incl. Amp, Drivers, Terminals & Feet) | 366.5 x 321 x 364 mm (14 7/16 x 12 5/8 x 14 5/16") |
| Weight (unpacked) | 13.4 kg (29 lb 9 oz) |
