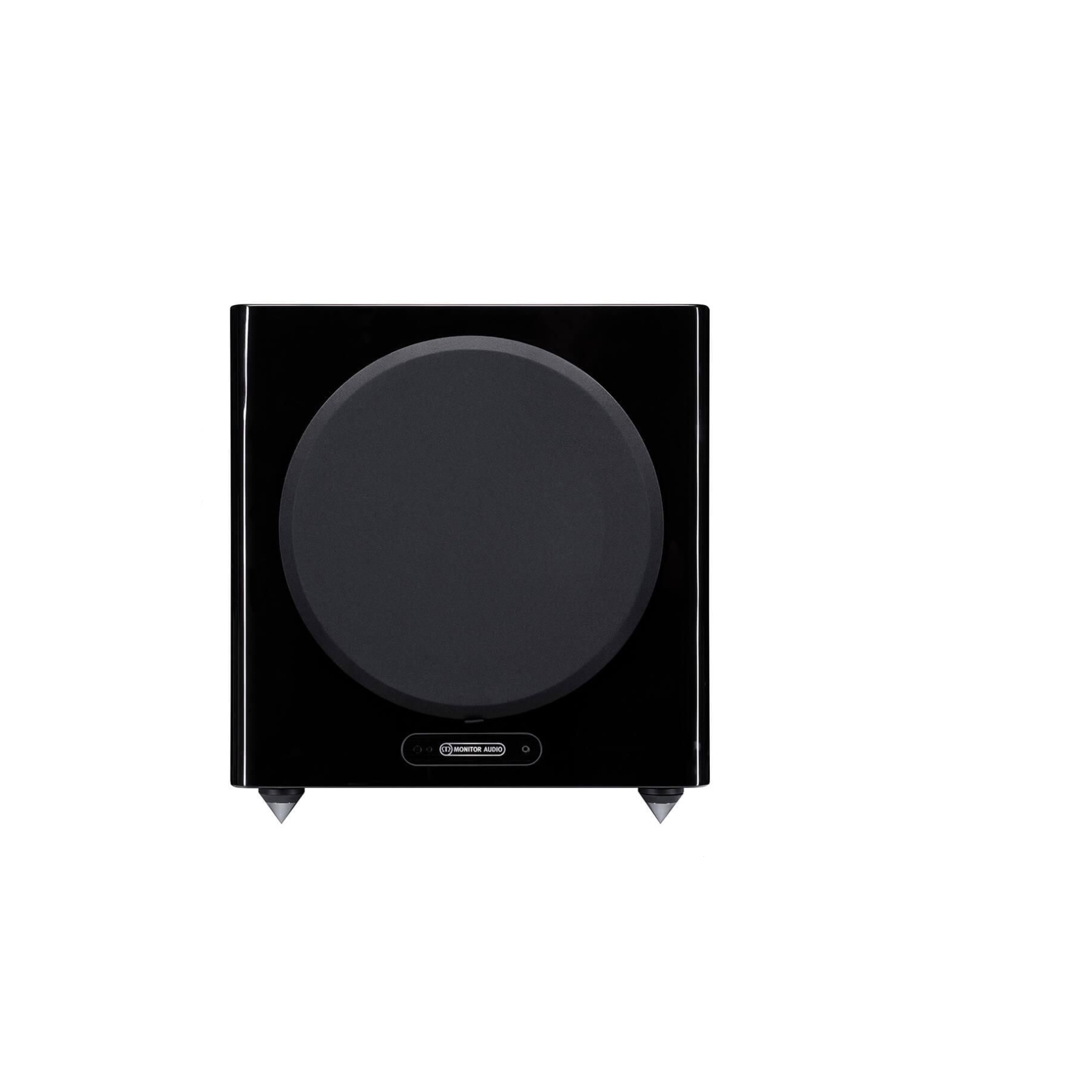

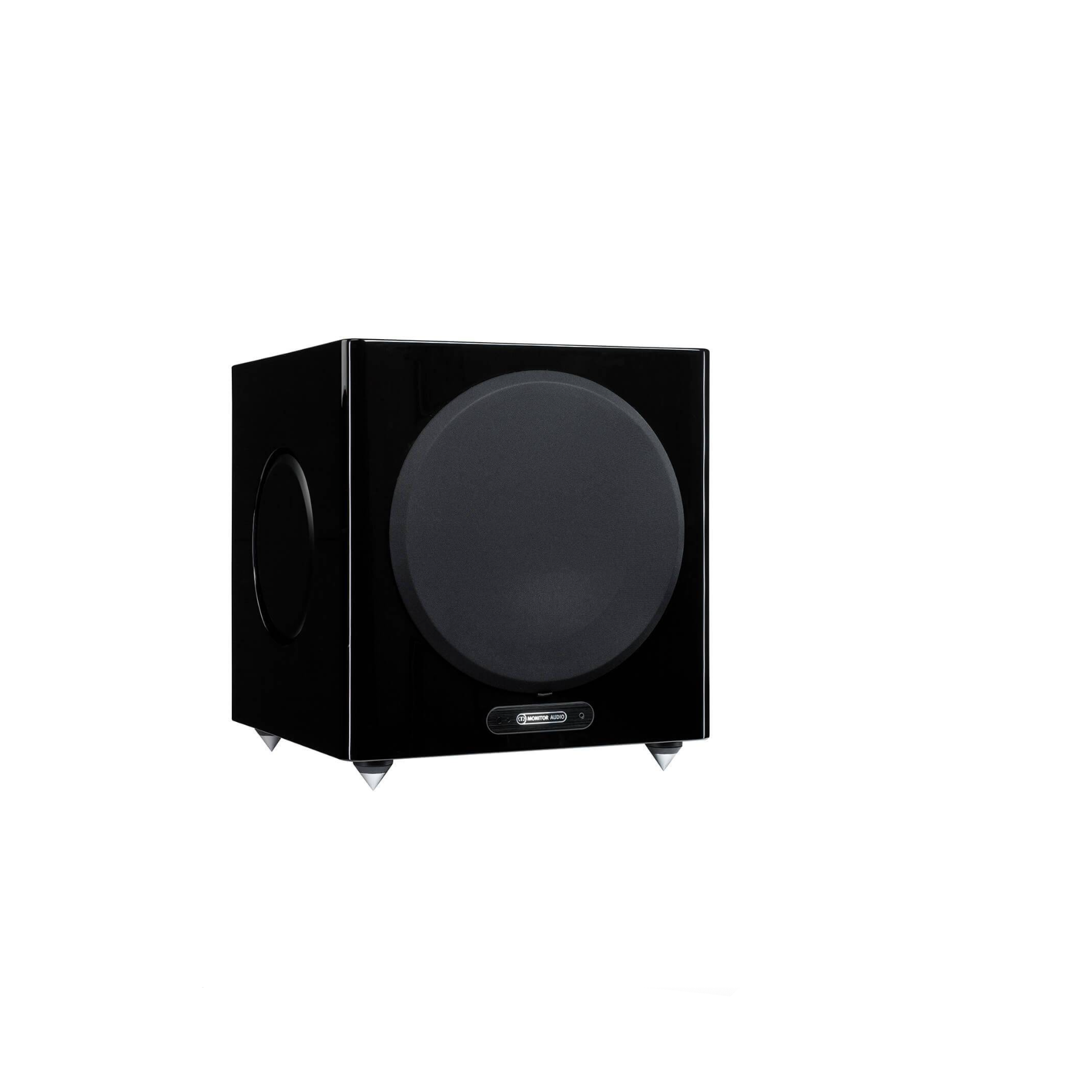

Monitor Audio Gold W12 Subwoofer
- Regular price
- Rs. 325,000.00
- Sale price
- Rs. 325,000.00
- Regular price
-
Couldn't load pickup availability
Description
The Monitor Audio Gold W12 Subwoofer is a high-performance subwoofer engineered to deliver deep, tight, and accurate low frequencies, extending punchy bass response to below 20 Hz. At its heart is an ultra-long throw 12" driver, capable of delivering powerful low-end impact with precision and clarity.
Supporting the main driver are two 200 mm Auxiliary Bass Radiators (ABRs), forming a three-driver system that significantly enhances bass output without increasing cabinet size. Powering this setup is a 600-watt Hypex Class-D amplifier module with a high-efficiency switching power supply, ensuring consistent and dynamic performance even at high volume levels.
Digital Signal Processing (DSP) handles all crossover and control features for optimal system tuning and flexibility. The subwoofer also features a top-mounted control panel for easy access to settings, making it a sophisticated and user-friendly addition to any high-end audio or home cinema setup.
Specifications
| Category | Details |
|---|---|
| Brand | Monitor Audio |
| Model | Gold W12 |
| System Format | Active subwoofer with 12" long-throw C-CAM driver & dual 200 mm ABRs |
| Cone Type | ‘Dished’ C-CAM with triple suspension and 3" long-throw voice coil |
| Linear Driver Excursion | 19 mm Peak-to-Peak (1.6 litres displacement) |
| Frequency Response | -3 dB @ 25 Hz (Free Field), -3 dB @ 19 Hz (In Room, Music preset) |
| Assignable LF Limit Filter | Down to -3 dB @ 12 Hz |
| Upper Frequency Limit | -3 dB @ 150 Hz |
| Amplifier Power | 600 W RMS |
| Amplifier Type | Class D with high-current SMPSU |
| DSP | 50 MIPS DSP Core with 512 instructions/sample & 138 dB dynamic range |
| Digital Conversion | 24-bit / up to 48 kHz ADCs & DACs |
| Room EQ | 6-band parametric EQ with mic calibration (2 to 6 positions via SubConnect) |
| Night Mode | Assignable per preset, dynamic range compression (-0 to -36 dB) |
| Phase Control | 0–360° in 15° increments, with pure invert at 180° |
| Low Pass Filter | 2nd or 4th order (12 or 24 dB/Oct), adjustable from 35–135 Hz |
| Auto Sensing | Line level >1mV (balanced & unbalanced), standby 5–240 min (user adjustable) |
| Inputs | LFE XLR (balanced), LFE RCA, Stereo RCA |
| Outputs | LFE XLR (balanced), LFE RCA, Stereo RCA (link) |
| Connections | 12V trigger in, 3.5 mm mic input, RJ45 (RS232), IR repeater out, USB-B |
| Power Supply | 100–120V~ 60Hz / 220–240V~ 50/60Hz (manual switch) |
| Power Consumption | Max 600 W, <0.5 W standby (ErP compliant) |
| Cabinet Design | Front baffle 36 mm, cabinet 25 mm MDF with internal bracing (sealed amp) |
| Dimensions (H x W x D) | 413 × 410 × 433.5 mm |
| Weight | 26.98 kg |
| Color | Black |
