Monitor Audio Platinum PLIC II In- Ceiling Speaker

Description

The Platinum II PLIC II in-ceiling speaker brings the outstanding performance of Monitor Audio's Platinum Series into a discreet, architectural format. Designed for both new builds and retrofit installations, this speaker offers uncompromising sound quality while meeting the practical demands of architects, interior designers, home technology professionals, and discerning homeowners alike.

At the heart of its performance is a MPD high-frequency transducer, delivering smooth, extended highs with exceptional detail. It’s complemented by two 2" C-CAM mid-range drivers and a powerful 8" long-throw RDT II bass driver, ensuring a full-bodied, dynamic sound experience from a compact in-ceiling form factor.

For ease of installation, the PLIC II features Tri-Grip mounting for a secure and simple fit, along with a magnetic grille for a clean, flush appearance. It's also compatible with the MDF PLIC-BOX II and the CB10 pre-construction bracket, offering flexibility for both retrofit and pre-construction setups. The PLIC II is the ideal solution for those seeking high-end in-ceiling audio without compromising on style or performance.

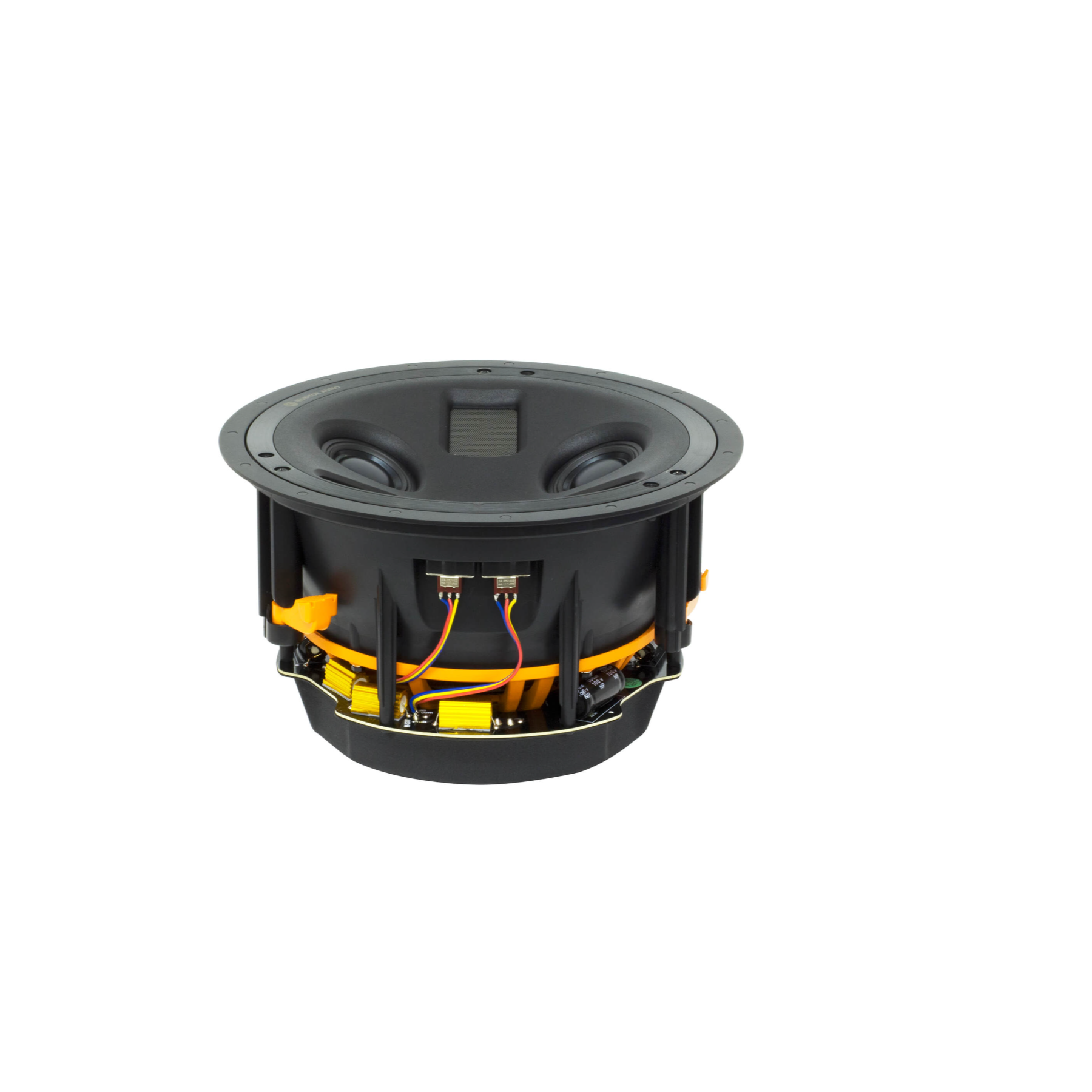

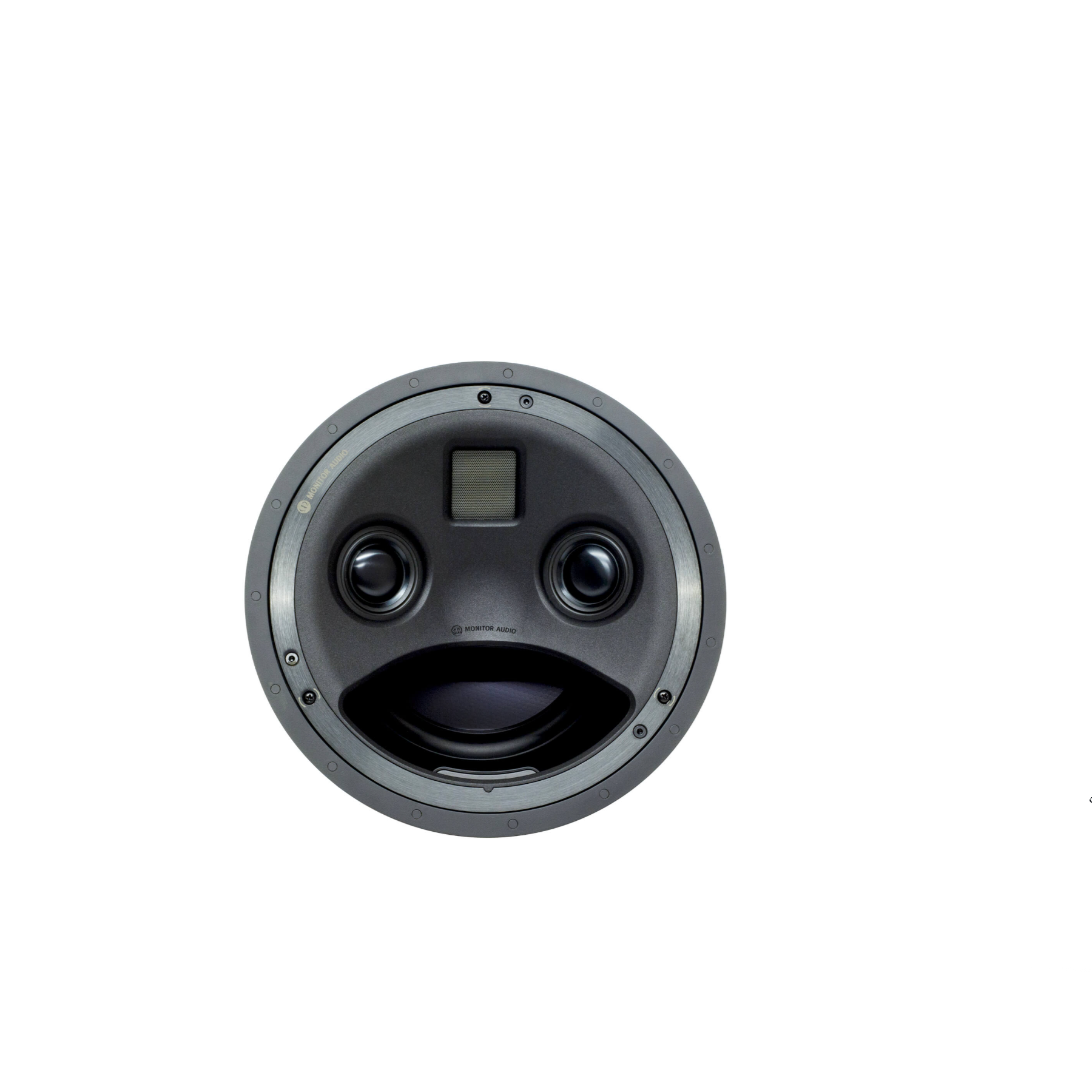

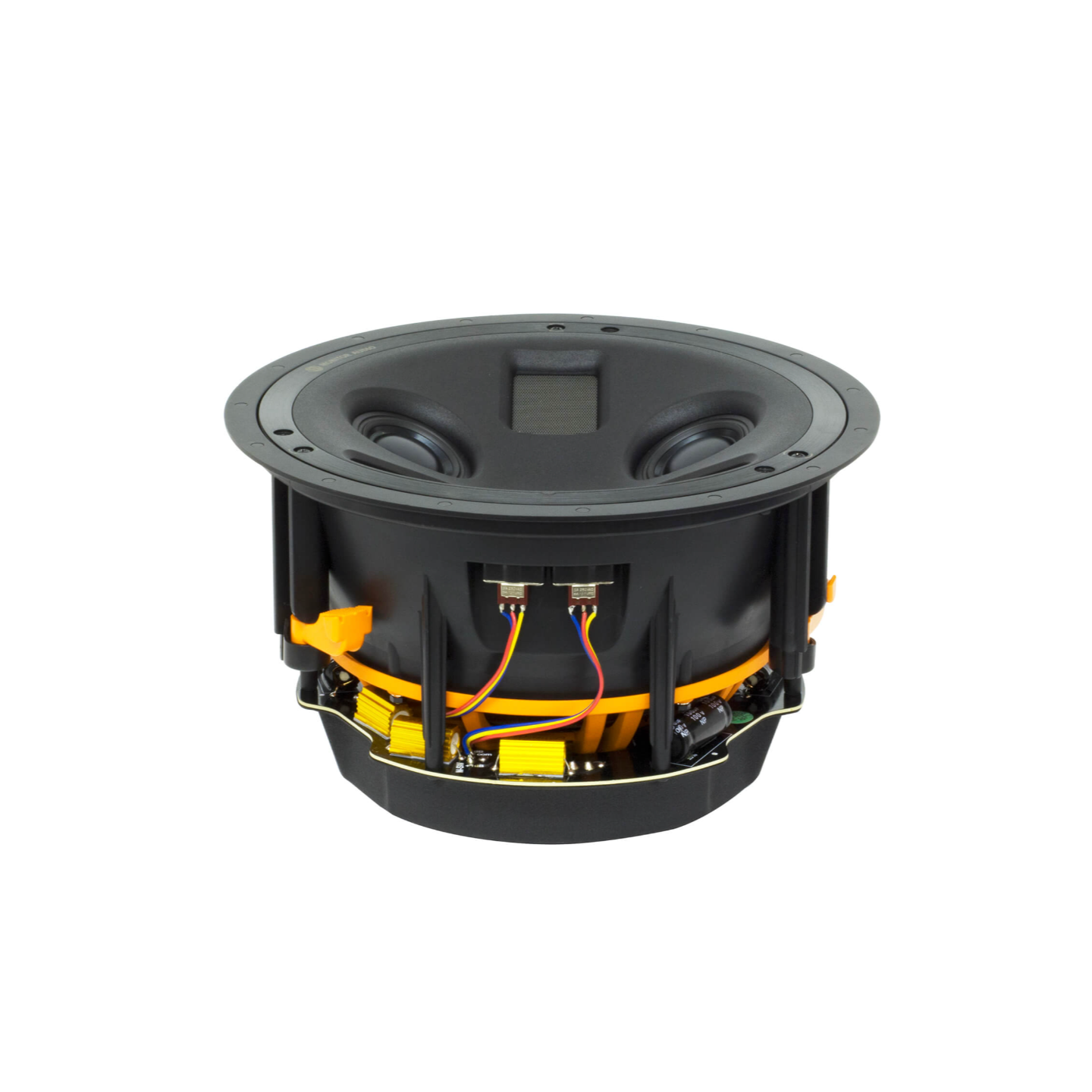

The Monitor Audio PLIC II in-ceiling speaker features an 8" long-throw bass driver with Rigid Diaphragm Technology (RDT II) cone technology to provide immensely powerful bass lines. This is achieved by the RDT cone reacting to an audio signal with lightning-fast precision without deformation. To provide the listener with a uniform frequency spectrum when the speaker is played at higher frequencies, additional dual mid-range drivers that feature C-CAM cone technology and Monitor Audio’s Micro Pleated Diaphragm (MPD) transducer are mounted on a rigid aluminium baffle and directed towards the listening zone to provide uniform mid- and high-frequency dispersion.

All PLIC II drivers employ a heavy-duty motor system, which deploys an under-hung motor assembly to ensure the coil always remains in the gap, even when driven hard. The addition of copper ‘shorting’ rings greatly improves magnetic linearity and lowers intermodulation distortion, resulting in crisp and clear audio delivery. A world first for an in-ceiling speaker!

Designed for installation in both new build and retrofit projects, the PLIC II in-ceiling speaker features Monitor Audio’s unique Tri-Grip fixing system. This 3-position 'dog-leg' style fixing provides a greater contact surface area than other types. This system, combined with the magnetic grille, saves the installer both time and money by speeding up the speaker fitting process.

To ensure controlled audio performance, Monitor Audio has designed an MDF back box with a predetermined air volume of 24 L. The rigid box is available with pre-loaded internal damping material to provide the best possible sound absorption and reduce standing waves.

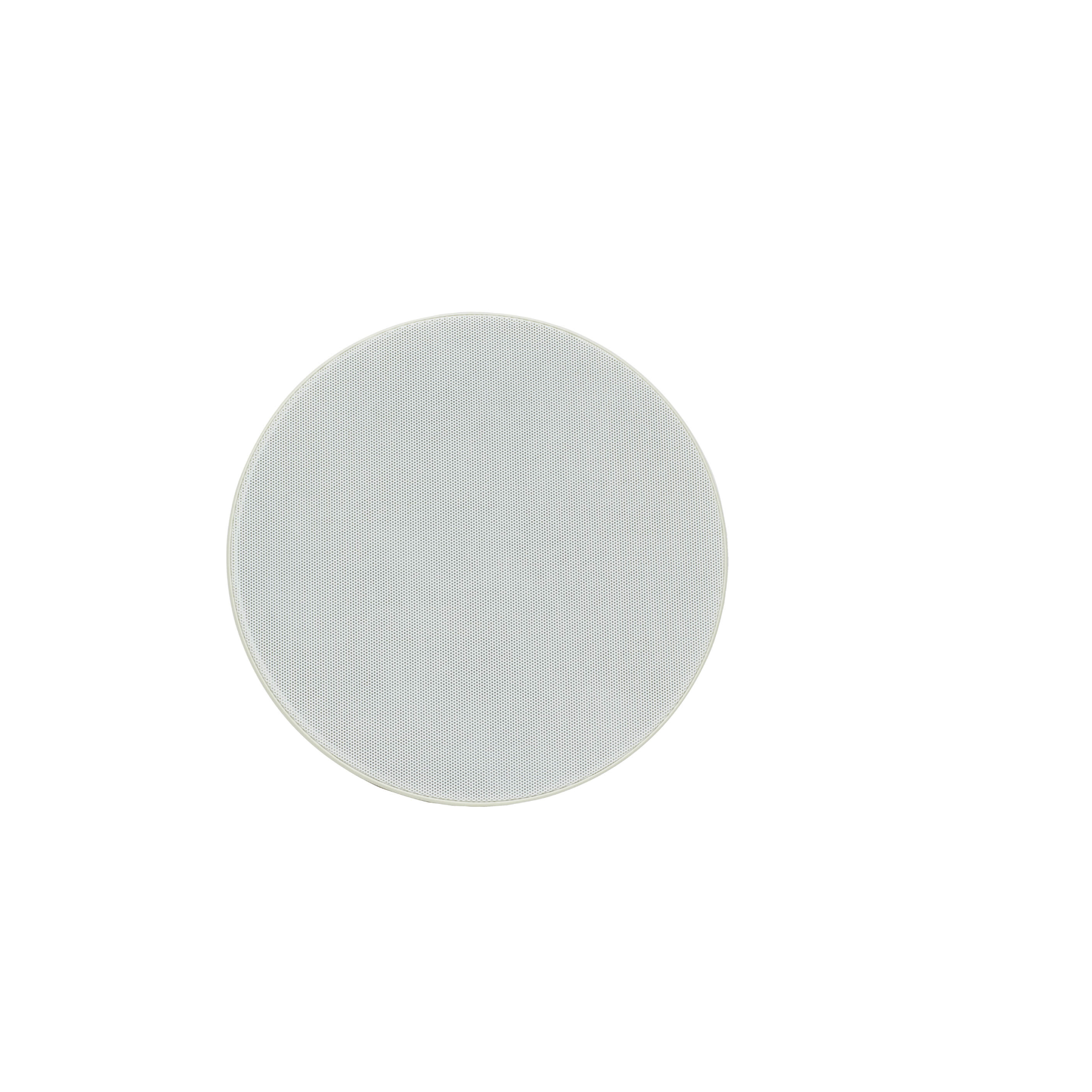

To satisfy the interior designer and end-user, the circular grille can appear almost invisible by being painted to match the room décor. Monitor Audio also offers a square option to match lighting fixtures and ventilation. An optional square grille can be used with this model.

Technical Specifications
