Monitor Audio

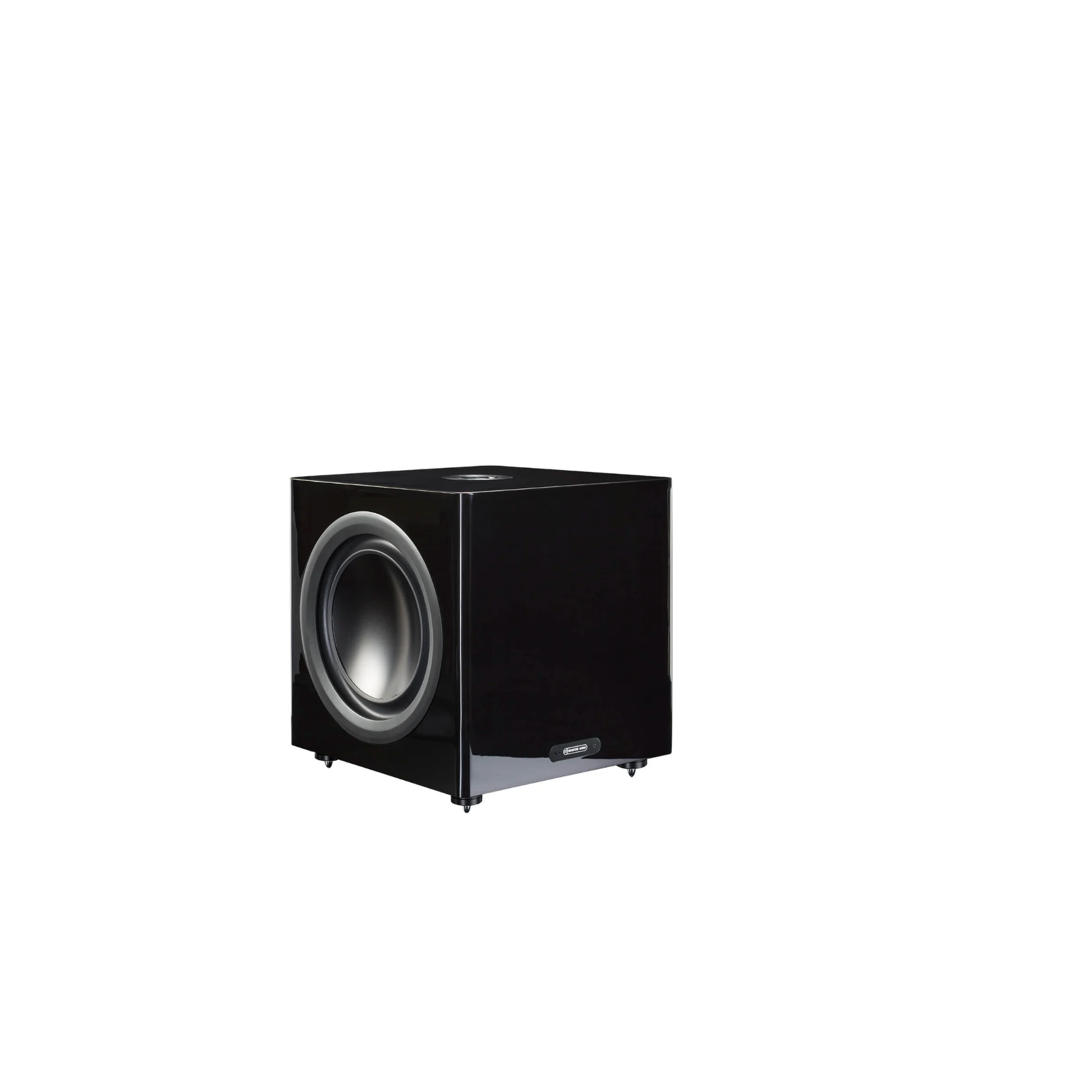

Monitor Audio Platinum PLW215 II Subwoofer

Regular price
Rs. 730,000.00
Sale price
Rs. 730,000.00
Regular price
Get free shipping on your order.
  • Monitor Audio Platinum PLW215 II Subwoofer
2 In Stock
Ships in 24 Hours
All India shipping
Manufacturer's Warranty
Secure Payment

Description

The Monitor Audio Platinum PLW215 II Subwoofer is a powerhouse low-frequency performer, engineered to deliver extraordinary bass output and control in high-end audio systems. It features twin 15” C-CAM (Ceramic-Coated Aluminium Magnesium) drivers, each triple-suspended to achieve a substantial 4 cm of excursion, ensuring deep, powerful, and accurate bass reproduction.

Each driver is powered by a dedicated DSP-controlled amplifier, allowing precise tuning and dynamic performance across all listening levels. The subwoofer is highly customizable thanks to Monitor Audio’s SubConnect software, which enables users to tailor in-room response via the top panel rotary dial or directly through a connected laptop.

The PLW215 II offers four user presets per input, including built-in Flat, Music, Movie, and Impact modes to suit various content types. A built-in Night Mode helps to reduce the dynamic range of louder sequences, maintaining an enjoyable listening experience at lower volumes.

Additional features include a high-current SMPSU, 12V trigger input, infrared remote control, front panel IR receiver, and a 3.5 mm microphone input (with microphone included) for optimal room correction. This subwoofer is built for uncompromising performance in elite stereo and home cinema environments.

Specifications

Category Details
Brand Monitor Audio
Model Platinum PLW215 II
Color Black

System Design

Spec Details
System Format Sealed cabinet with vibration-cancelling driver configuration
Construction 25 mm MDF with internal bracing and sealed amplifier compartment
Driver Complement 2 x 15" C-CAM subwoofersInverted surround, triple suspension, 3" vented voice coils
Linear Driver Excursion 42 mm Peak-to-Peak
Total Displacement 6.4 Litres

Frequency Performance

Condition -3 dB Point -10 dB Point
Free Field (Music Preset) 23 Hz 18 Hz
In Room (Music Preset) 19 Hz 16 Hz
Limited by Protection Filter 12 Hz (-3 dB)
Upper Frequency Limit 150 Hz (-3 dB)

Amplification & Processing

Spec Details
Amplifier Output Dual Class-D amps (1 per driver)1400 W RMS total2000 W Peak
Amplifier Classification Balanced differential input, DSP controlled, high-current SMPSU
DSP 172 MHz core, 56-bit double precision, 139 dB dynamic range
Microcontroller 80 MHz MCU for real-time updates
Digital Conversion 24-bit / 48 kHz (WM8786 ADC & WM8740 DAC)

Control & Configuration

Spec Details
Phase Control 0°–360° in 15° steps, pure invert at 180°
Low-Pass Filter 2nd or 4th order (12 / 24 dB per octave)Adjustable from 35–135 Hz (5 Hz steps)
Volume Control -11 to +11 dB (control panel)-80 to +20 dB (SubConnect app)
Auto Sensing >1 mV (balanced/unbalanced)Auto-standby (5–240 mins in 5 min steps)
Remote Control IR remote includedFront IR receiverDiscrete IR codes for automation

Connectivity

Input/Output Description
12V Trigger In 3.5 mm mono jack (6V threshold), assignable
Microphone Input 3.5 mm jack (mic included)
RS232 RJ45 (Tx Pin 6, Rx Pin 5, GND Pin 4)
IR Repeater Out 3.5 mm mono jack
USB (Type B) For SubConnect app & firmware updates

Power & Physical

Spec Details
Input Voltage 110–120 V / 220–240 V, 50/60 Hz (manual selection)
Max Power Consumption 1200 W
Standby Power <0.5 W (ErP compliant)
Dimensions (H x W x D) 500 x 504 x 512.5 mm
Weight 57.54 kg
