Monitor Audio Radius 390
- Regular price
- Rs. 136,000.00
- Sale price
- Rs. 136,000.00
- Regular price
-
Couldn't load pickup availability
Description
The Monitor Audio Radius 390 is a compact yet powerful active subwoofer, designed to deliver deep, controlled bass for both music and home cinema applications. Housed in a rigid 18 mm MDF cabinet with internal bracing for reduced resonance, the Radius 390 features a cool-running 200 W Class D amplifier with a switch-mode power supply (SMPSU), ensuring efficient and reliable performance even under demanding use.

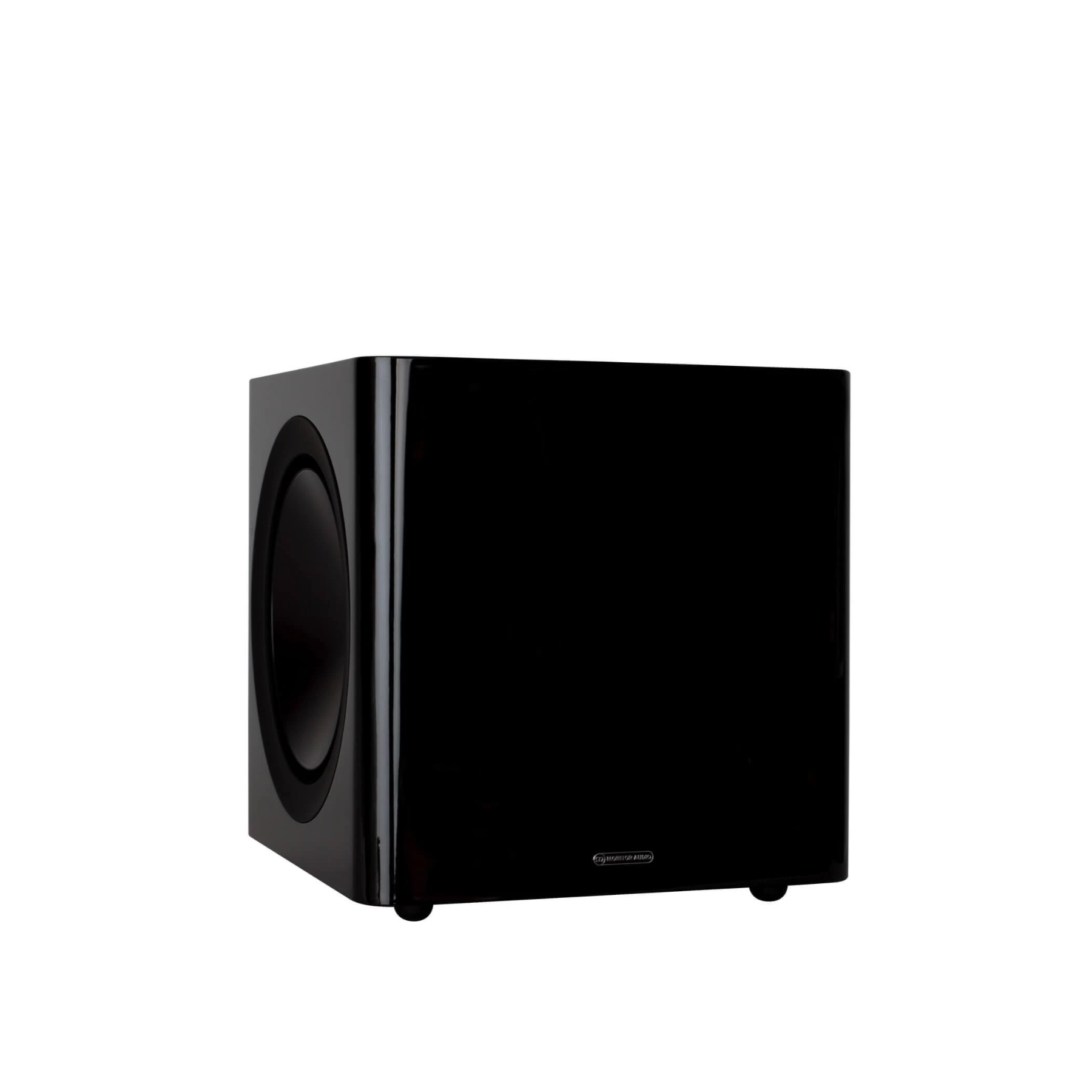

At its core are twin 10" C-CAM drivers one active and one passive Auxiliary Bass Radiator (ABR) positioned in a side-firing configuration to maximize output while maintaining a discreet profile. A low-pass filter switch allows users to select between LFE and stereo input modes, while the power switch includes ON, Auto, and 12V trigger settings for flexible system integration. With stereo/LFE RCA inputs and three EQ presets (Music, Movie, and Impact), the Radius 390 adapts seamlessly to various content and room types, delivering rich, room-filling low frequencies from a compact footprint.
Technical Specifications
| Category | Spec |
|---|---|
| Brand | Monitor Audio |
| Model | Radius 390 |
| Color | Black |
| System Format | Active subwoofer system – Auxiliary Bass Radiator (ABR) loading |
| Cabinet Construction | 18 mm MDF |
| Lower Frequency Limit | 30 Hz (–6 dB) |
| Upper Frequency Limit | Variable 40 – 120 Hz @ 24 dB/Octave |
| Amplifier Output | 200 W @ 1% THD+N |
| Amplifier Type | Class D with Switch Mode Power Supply (SMPSU) |
| Bass EQ Profiles | Music / Movie / Impact |
| Phase Control | 0° / 180° |
| Auto Sensing | Line level > 3.5 mV Standby after approx. 15 minutes of no signal |
| Driver Complement | 1 × 10" (250 mm) C-CAM long-throw driver1 × 10" (250 mm) ABR |
| Input Impedance | > 20 ohms |
| Power Input Voltage | AC 110–120V ~ 50/60HzAC 220–240V ~ 50/60Hz (Factory region preset) |

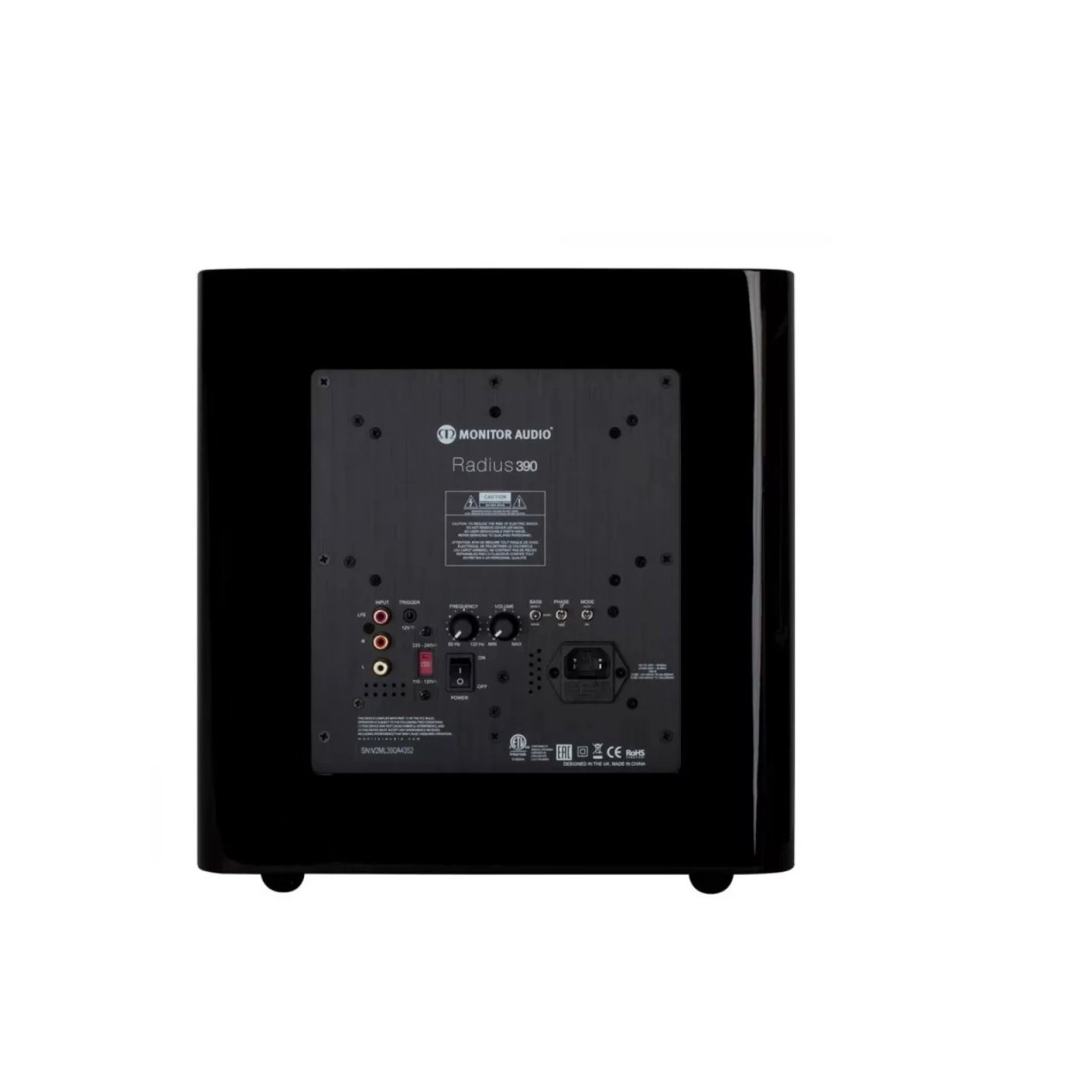

| Connections | Stereo RCA in, LFE in, 12V Trigger in (3.5 mm mono mini-jack) |
| Trigger Input | 5–12V via 3.5 mm mono mini-jack socket |
| Dimensions (H × W × D) | 348 × 330 × 345 mm |
| Weight | 13.76 kg |
