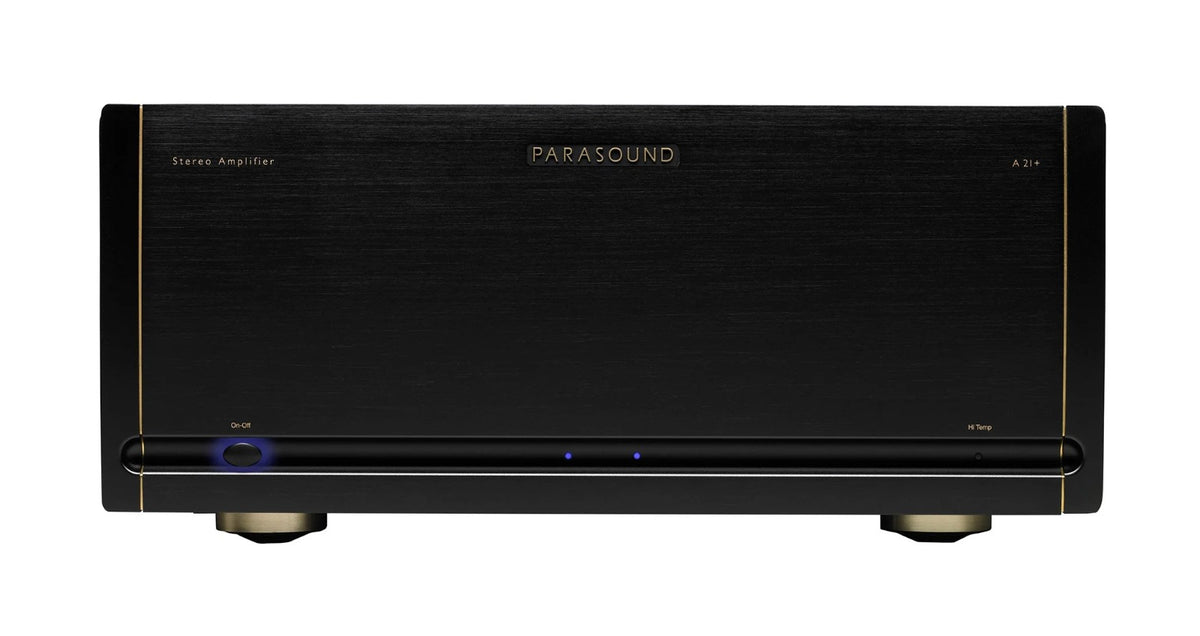

Parasound Halo A21+ THX Ultra 2 Certified 2 Channel Power Amplifier
- Regular price
- Rs. 673,000.00
- Sale price
- Rs. 673,000.00
- Regular price
-
Couldn't load pickup availability
Description
Halo A21+ — Power You Can Feel, Control You'll Love
The Parasound Halo A21+ delivers commanding power with effortless musicality. At 300 W per channel into 8 Ω (500 W into 4 Ω), and up to 1,000 W bridged, it drives any loudspeaker with authority while keeping the sound spacious, controlled, and fatigue-free.

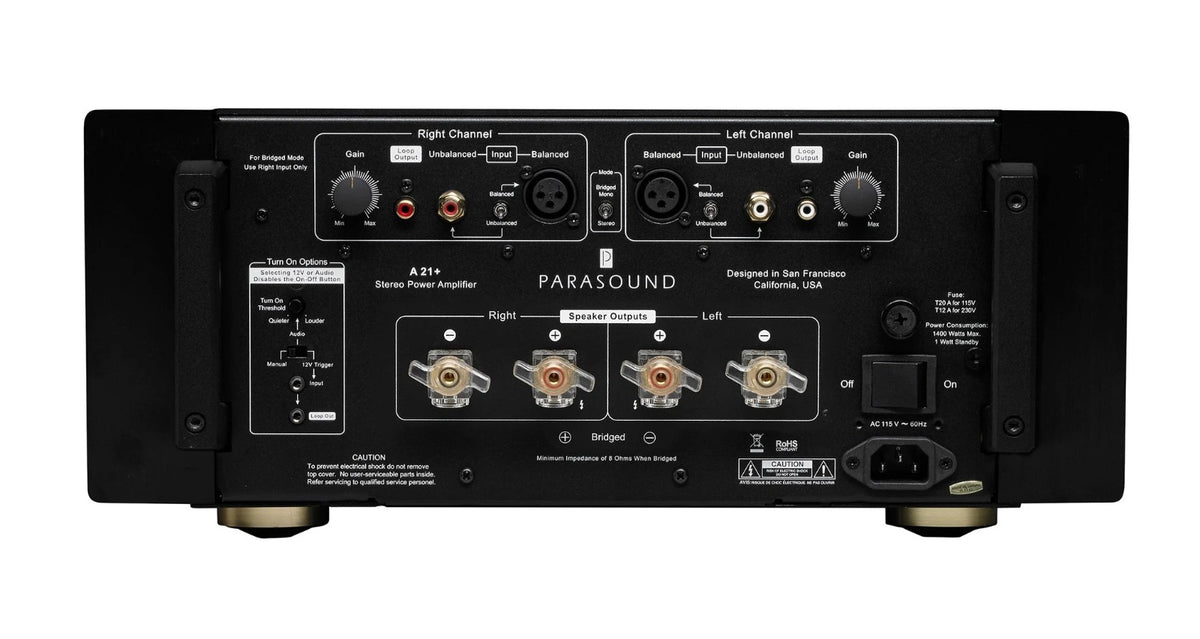

Based on legendary John Curl's circuit design, the A21+ refines Parasound's most celebrated power amp for today's systems blending raw performance with elegant simplicity. Balanced XLR and RCA inputs, 2 Ω stability, and flexible bridging make it an ideal match for both stereo and home theater setups.
Features
The Parasound Halo A 21+ Power Amplifier is a high-performance power amplifier featuring circuitry designed by legendary engineer John Curl, combining high-bias Class A/AB operation with powerful, detailed audio reproduction. It delivers 300 watts RMS per channel into 8 ohms and 500 watts RMS per channel into 4 ohms, with both channels driven, and provides 1,000 watts into 8 ohms in bridged mode. With a peak current capability of 60 amperes per channel, it remains stable with speaker impedance dips to 1.5 ohms, making it suitable for demanding speaker loads. Its direct-coupled signal path eliminates capacitors and inductors from the audio path, while discrete balanced input circuits and gold-plated RCA input and loop output jacks provide flexible connectivity.
The amplifier features a JFET input stage, MOSFET driver stage, and 16 beta-matched 15-ampere, 60 MHz bipolar output transistors. A 1.3 kVA shielded toroidal transformer with independent windings for each channel works alongside separate power supplies for the input, driver, and output stages, supported by 108,000 µF of output-stage filter capacitance and Harris hyper-fast soft-recovery bridge diode rectifiers. Full power is rated down to 5 Hz for deep, unrestricted low-frequency performance. DC servo and relay protection circuits, AC turn-on inrush surge protection with relay bypass, and automatic turn-on via a 12V trigger or audio sensing add convenience and protection. The amplifier is completed with custom CHK Infinium five-way speaker binding posts and a four-rack-space chassis with rear carry handles; rack-mount hardware is included.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Power Output – Stereo (0.1% THD) |
300 W × 2 at 8 Ω; 500 W × 2 at 4 Ω (both channels driven) |
|
Power Output – Bridged (0.1% THD) |
1000 W × 1 at 8 Ω; 4 Ω operation not recommended |
|
Power Measurement |
120 VAC, 0.1% THD, RMS continuous, 20 Hz–20 kHz |
|
Current Capacity |
60 A peak per channel |
|
Slew Rate |
>130 V/µs |
|
Frequency Response |
5 Hz–100 kHz (+0/−3 dB); 20 Hz–20 kHz (+0/−0.25 dB) |
|
Total Harmonic Distortion (THD) |
80 dB at 1 kHz; >70 dB at 20 kHz |
|
Input Impedance |
Unbalanced: 33 kΩ; Balanced: 66 kΩ (33 kΩ per leg) |
|
Total Gain |
29 dB |
|
Input Sensitivity (28.28 V output into 8 Ω) |
Unbalanced: 1 V; Balanced: 1 V per leg |
|
S/N Ratio |
>115 dB (IHF A-weighted); >110 dB (unweighted), input shorted |
|
Damping Factor |
>1100 at 20 Hz |
|
DC Trigger Requirements |
+9 to +12 VDC, 5 mA |
|
Audio Trigger Requirements |
2–10 mV |
|
XLR Pin Identification |
1: Ground (Shield); 2: Positive; 3: Negative (Return) |
|
Dimensions (W × H × D) |
Width: 17-5/8" (448 mm); Height without feet: 7-1/8" (181 mm); Height with feet: 7-3/4" (197 mm); Depth: 20" (508 mm); Depth with cables: 21-1/2" (546 mm) |
|
Net Weight |
71 lb (32.2 kg) |
|
Shipping Weight |
88 lb (39.9 kg) |
|
Power Consumption |
Standby: 1 W; Idle: 160 W; Typical listening: 300 W; Maximum: 1400 W |
