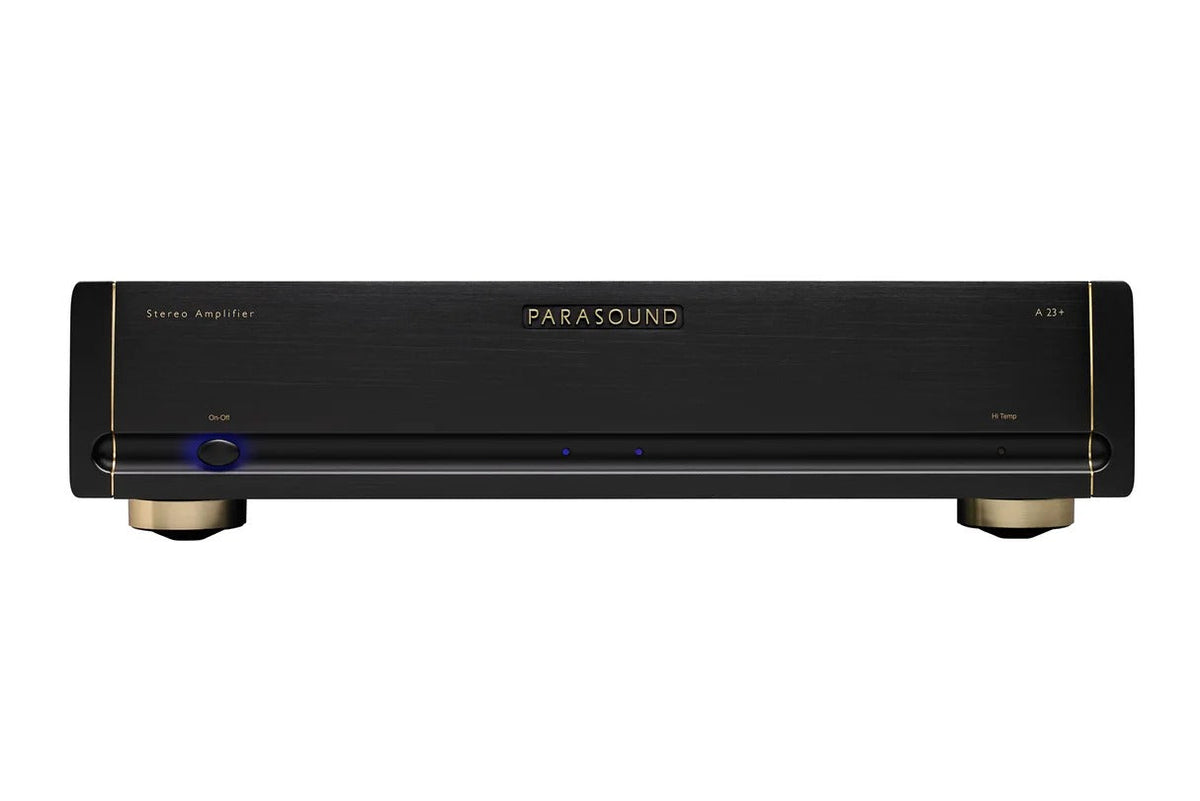

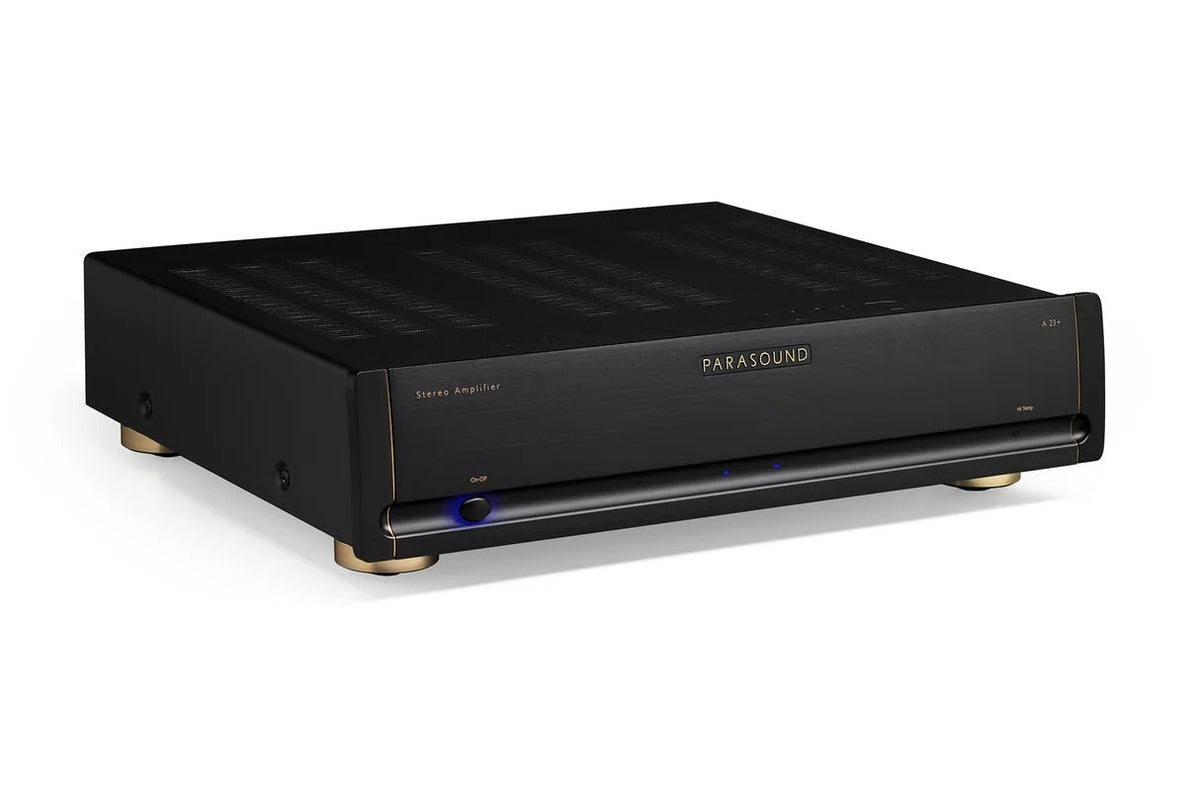

Parasound Halo A23+ 2 Channel Stereo Power Amplifier
- Regular price
- Rs. 327,000.00
- Sale price
- Rs. 327,000.00
- Regular price
-
Couldn't load pickup availability
Description
Two-Channel Power with Elegance and Precision
The Parasound A23+ brings studio-level amplification into your listening room delivering clarity, depth, and control that defies its compact size.
Co‑designed by legendary engineer John Curl, it features a dual-mono Class A/AB architecture with independent transformers per channel. With 160 W per channel into 8 Ω (240 W into 4 Ω) and bridgeable to 500 W, along with balanced XLR and gold-plated RCA inputs, the A23+ integrates seamlessly into stereo or home theater systems.
Features
The Parasound Halo A 23+ Power Amplifier is a high-performance stereo power amplifier featuring circuitry designed by legendary engineer John Curl, combining high-bias Class A/AB operation with powerful, detailed sound reproduction. It delivers 160 watts RMS per channel into 8 ohms and 240 watts RMS per channel into 4 ohms, with both channels driven, and provides 500 watts into 8 ohms in bridged mode. With a peak current capability of 45 amperes per channel, it remains stable with speaker impedance dips below 2 ohms, making it suitable for demanding speaker loads. Its direct-coupled signal path eliminates capacitors and inductors from the audio path, while discrete balanced input circuits and gold-plated RCA input and loop output jacks provide flexible connectivity.
The amplifier features a JFET input stage, MOSFET driver stage, and 12 beta-matched 15-ampere, 60 MHz bipolar output transistors. A 1.1 kVA shielded toroidal transformer with independent windings for each channel works alongside separate power supplies for the input, driver, and output stages, supported by 54,400 µF of output-stage filter capacitance and Harris hyper-fast soft-recovery bridge diode rectifiers. Full power is rated down to 5 Hz for deep, unrestricted low-frequency performance. DC servo and relay protection circuits, AC turn-on inrush surge protection with relay bypass, and automatic turn-on via a 12V trigger or audio sensing add convenience and protection. Heavy-duty 24-karat gold-plated five-way speaker binding posts provide secure connections. The amplifier features a two-rack-space chassis with rear carry handles, with rack-mount hardware available separately, and is available in silver or black.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Stereo Power Output (0.06% THD) |
160 W × 2 at 8 Ω; 240 W × 2 at 4 Ω, both channels driven |
|
Stereo Power Output (0.9% THD) |
210 W × 2 at 8 Ω; 300 W × 2 at 4 Ω, both channels driven |
|
Bridged Power Output (0.06% THD) |
500 W × 1 at 8 Ω; 4 Ω operation not recommended |
|
Bridged Power Output (0.9% THD) |
600 W × 1 at 8 Ω; 4 Ω operation not recommended |
|
Power Measurement |
120 VAC, RMS continuous power, 20 Hz–20 kHz |
|
Current Capacity |
45 A peak per channel |
|
Slew Rate |
>130 V/µs |
|
Frequency Response |
5 Hz–100 kHz (+0/−3 dB); 20 Hz–20 kHz (+0/−0.25 dB) |
|
Total Harmonic Distortion (THD) |
85 dB at 1 kHz; >70 dB at 20 kHz |
|
Input Impedance |
Unbalanced: 33 kΩ; Balanced: 66 kΩ (33 kΩ per leg) |
|
Total Gain |
29 dB |
|
Input Sensitivity (28.28 V output, 8 Ω load) |
Unbalanced: 1 V; Balanced: 1 V per leg |
|
S/N Ratio |
>112 dB (IHF A-weighted); >107 dB (unweighted), input shorted |
|
Damping Factor |
>800 at 20 Hz |
|
DC Trigger Requirements |
+9 to +12 VDC, 5 mA |
|
Audio Trigger Requirements |
2–10 mV |
|
XLR Pin Identification |
1: Ground (Shield); 2: Positive; 3: Negative (Return) |
|
Dimensions (W × H × D) |
Width: 17-1/4" (437 mm); Height with feet: 4-1/8" (105 mm); Height without feet: 3-1/2" (89 mm), 2U; Depth: 15-1/4" (388 mm); Depth with cables: 17" (432 mm) |
|
Net Weight |
27 lb (12.2 kg) |
|
Shipping Weight |
34 lb (14.4 kg) |
