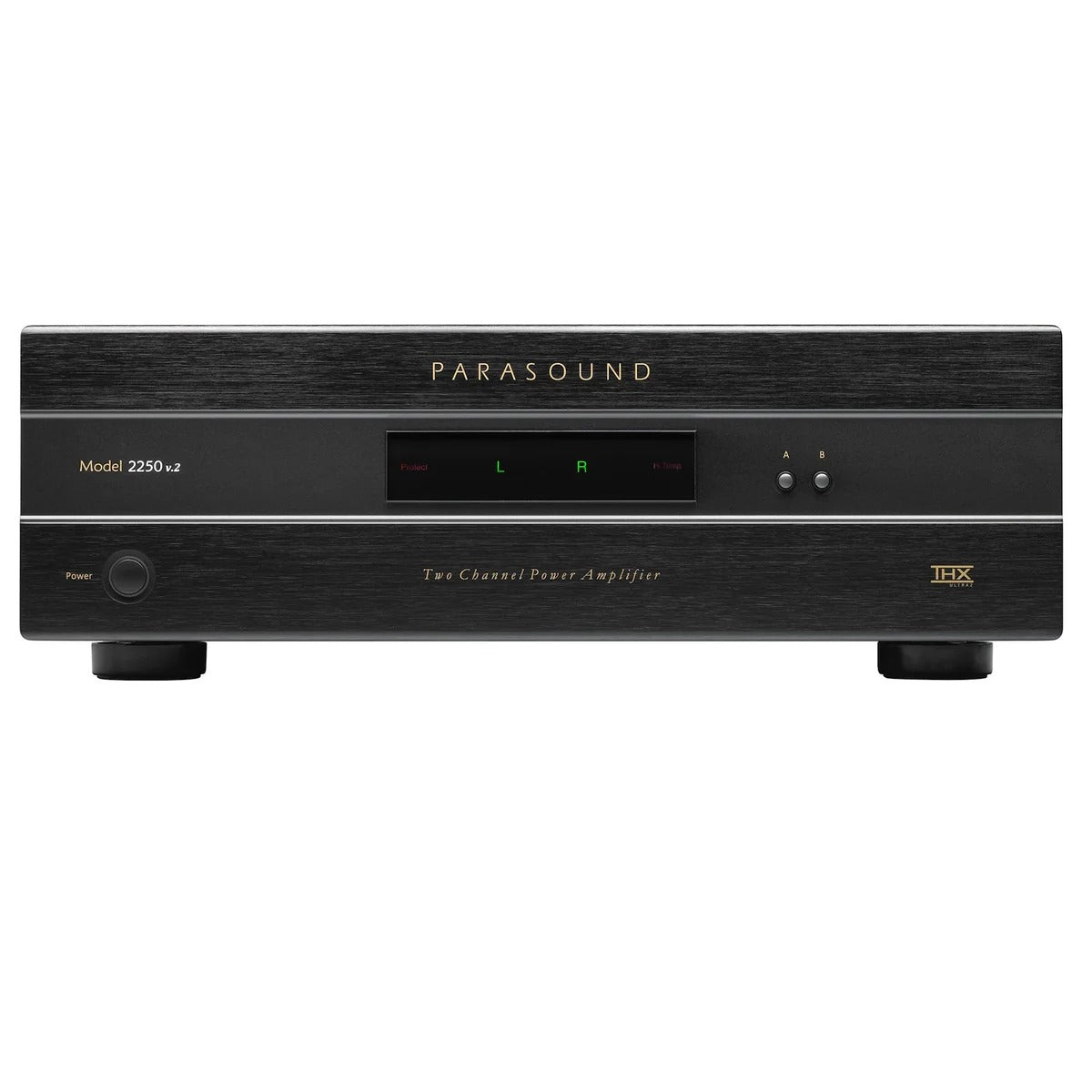

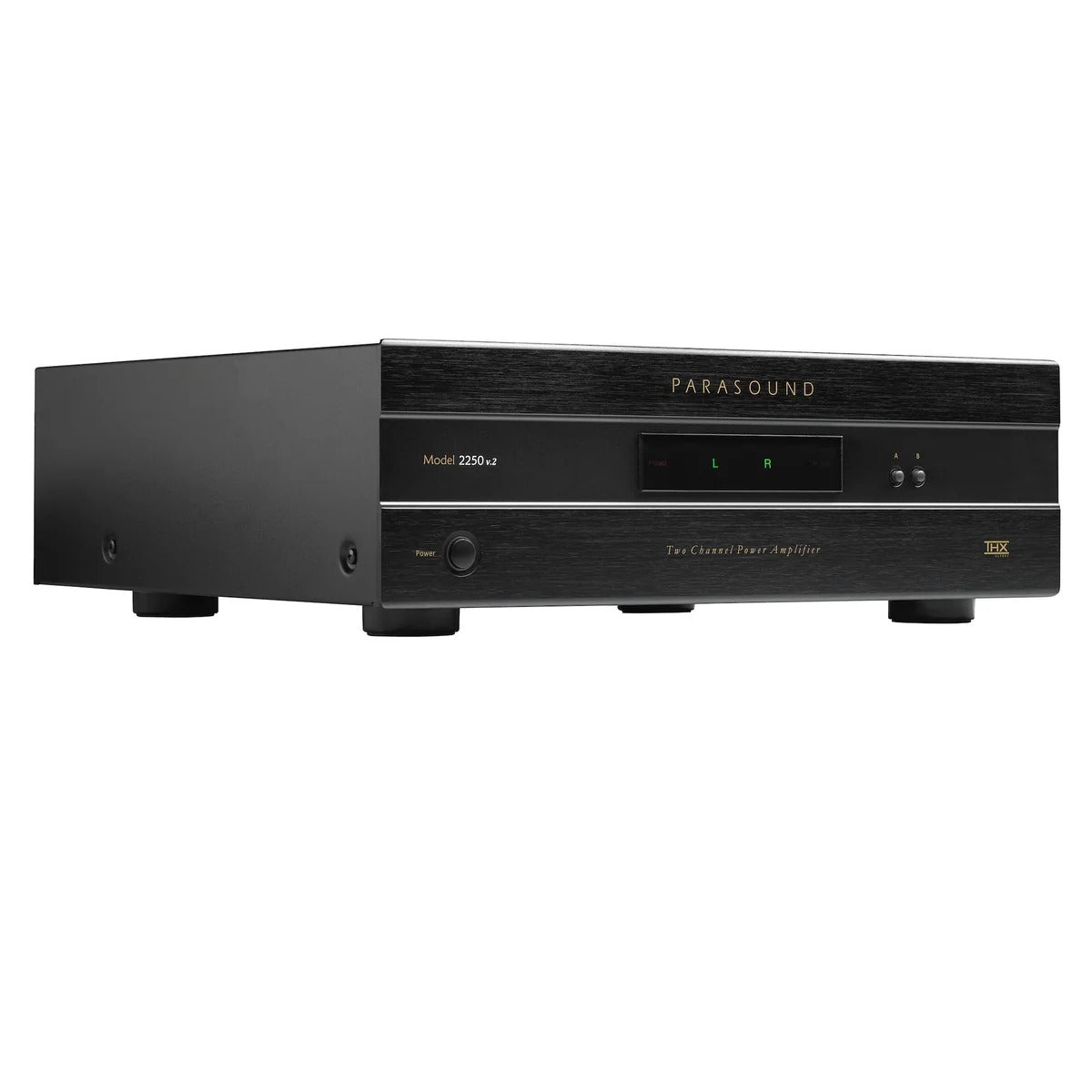

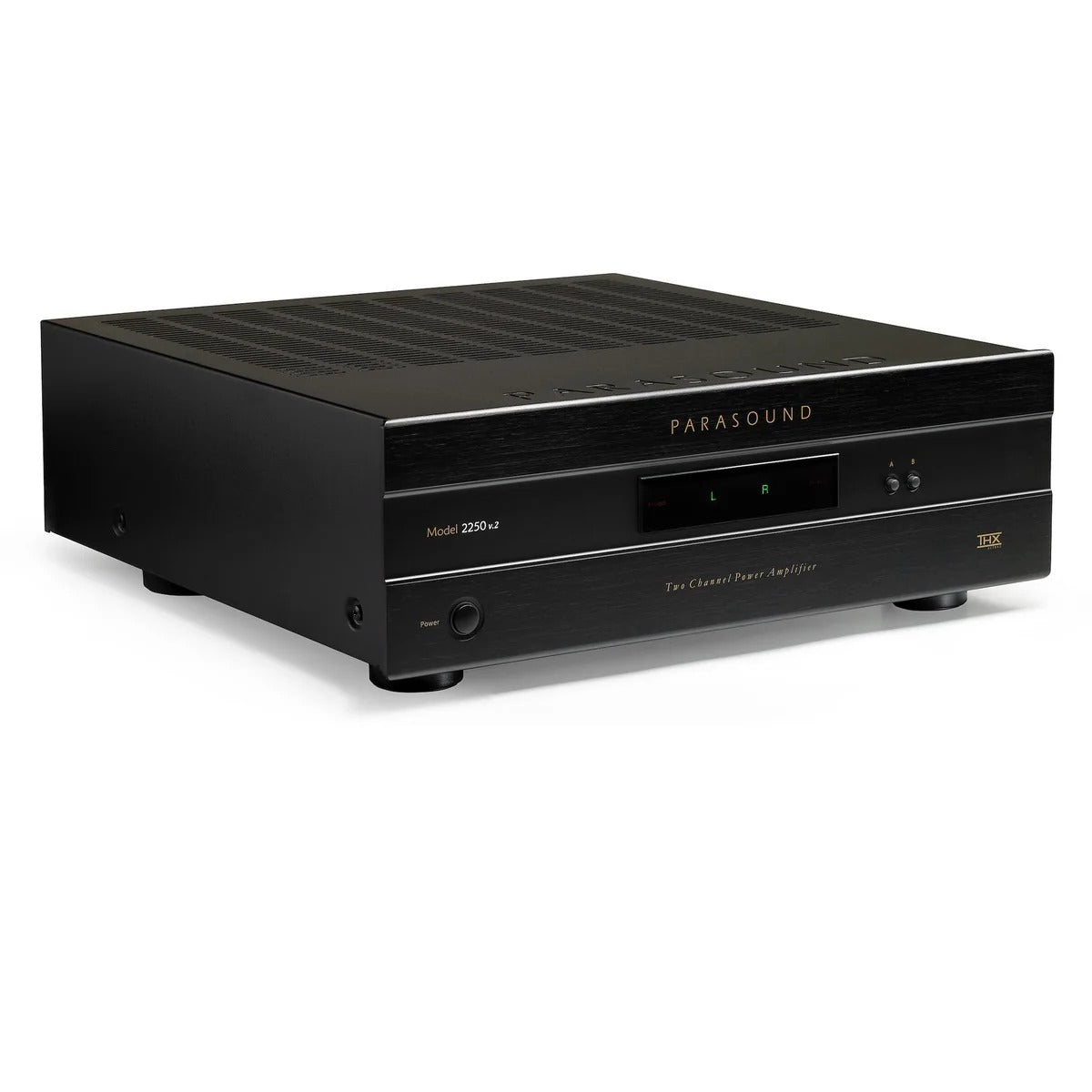

Parasound NewClassic 2250 v.2 2 Channel Power Amplifier
- Regular price
- Rs. 264,000.00
- Sale price
- Rs. 264,000.00
- Regular price
-
Couldn't load pickup availability
Description
Studio-Level Two-Channel Power in a Compact Rack
The NC 2250v2 packs serious muscle into a 3U chassis perfect for music lovers and home theater enthusiasts looking to upgrade without expanding their setup. It delivers clean, consistent performance even under heavy loads.

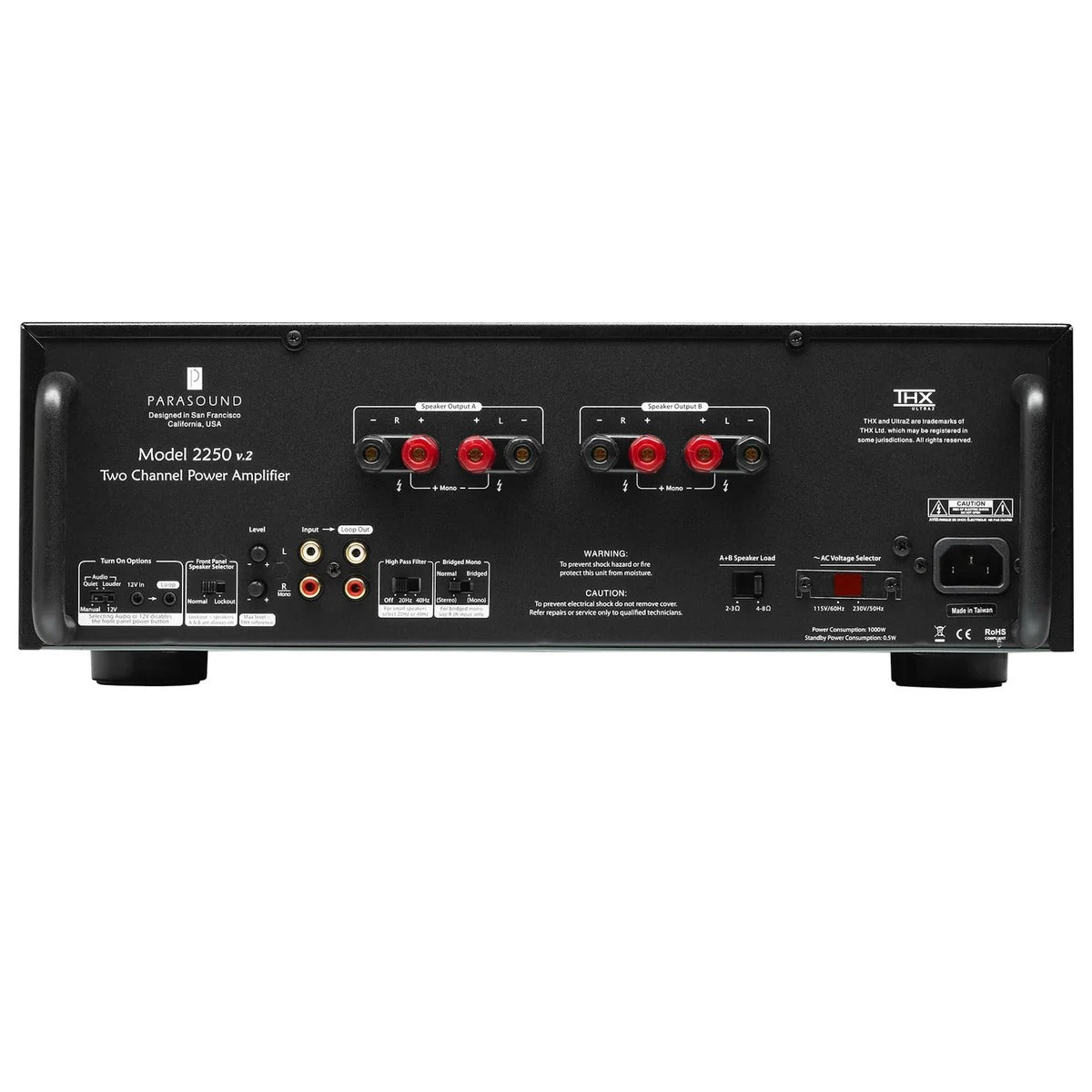

Designed for real‑world headroom, the NC 2250v2 delivers 275 W x2 into 8 Ω, 400 W x2 into 4 Ω (and 2 Ω with the load selector), or 750 W bridged mono, with Class‑AB topology, 45 A peak current, and THX Ultra2 certification. It adds dual A/B speaker outputs with lockout, a switchable 20/40 Hz high‑pass filter, Gold-plated RCA input jacks, and 12 V trigger or audio‑sense auto‑on.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Stereo Power Output (All Channels Driven) |
275 W × 2 at 8 Ω; 400 W × 2 at 4 Ω; 400 W × 2 at 2 Ω (load switch set to 2–3 Ω) |
|
Bridged Mono Output |
750 W × 1 at 8 Ω; 750 W × 1 at 4 Ω (load switch set to 2–3 Ω) |
|
Current Capacity |
45 A peak per channel |
|
Frequency Response |
20 Hz–50 kHz (+0/−3 dB) at 1 W |
|
Dynamic Headroom |
1.6 dB |
|
Total Harmonic Distortion (THD) |
0.20% at full rated output; 0.015% at average listening levels |
|
IM Distortion |
0.05% |
|
Transient IM Distortion |
Not measurable |
|
S/N Ratio |
114 dB (IHF A-weighted) and 106 dB (unweighted) at rated output; 93 dB (IHF A-weighted) and 84 dB (unweighted) at 2.828 V output |
|
Input Impedance |
33 kΩ |
|
Input Sensitivity |
1 V input for 28.28 V output (THX standard) |
|
Inter-Channel Crosstalk |
85 dB at 1 kHz; 73 dB at 10 kHz; 67 dB at 20 kHz |
|
Damping Factor |
>150 at 20 Hz |
|
12 V Trigger Turn-On |
DC 9–12 V, 15 mA |
|
Audio Turn-On |
Quieter: 1 mV; Louder: 6 mV |
|
AC Power Requirements |
110–120 V / 220–240 V, 50–60 Hz |
|
Power Consumption |
Standby: 0.5 W; Idle: 35 W; Full output: 1000 W |
|
Dimensions (W × D × H) |
17.25" × 18.5" × 6" with feet; panel height: 5.25" (437 × 470 × 153 mm; panel height: 133 mm), 3U |
|
Net Weight |
43 lb (19.5 kg) |
|
Rack Mount Accessory |
RMK33, sold separately |
Up to 10 Years of Hassle-Free Warranty.
Many sellers offer products without service, but we’ve got you covered. Contact us to book your warranty, drop it in-store, or ship it to us for a refund or exchange for up to 10 years.
