Parasound NewClassic 275 v.2 Two Channel Power Amplifier
- Regular price
- Rs. 135,000.00
- Sale price
- Rs. 135,000.00
- Regular price
-
Couldn't load pickup availability
Description
Drop the NC 275v2 into your system and the whole presentation tightens up—voices lock center‑stage, bass digs deep without bloat, and big moments stay calm, clear, and composed.
In just 1U, it delivers 90 W x2 into 8 Ω (150 W x2 into 4/2 Ω) or 200 W bridged mono. A fully discrete Class‑AB design with a high‑current toroidal transformer supplies clean current, while a switchable 20/40 Hz high‑pass filter and dual A/B speaker outputs make real‑world setups easy.
Features
The Parasound NewClassic 275 v.2 Two-Channel Power Amplifier is designed to deliver reliable, high-quality performance for stereo audio and home theatre systems. It provides 90 watts per channel into 8 ohms and 150 watts per channel into 4 or 2 ohms, with both channels driven, while bridged mono operation delivers 200 watts into 8 or 4 ohms. With a peak current capability of 20 amperes per channel and a dedicated load selector switch for stable 2-ohm operation, it offers flexibility when driving compatible speakers. Its fully discrete circuitry and high-current toroidal transformer support consistent power delivery, while the stereo/mono bridging switch allows flexible system configuration.

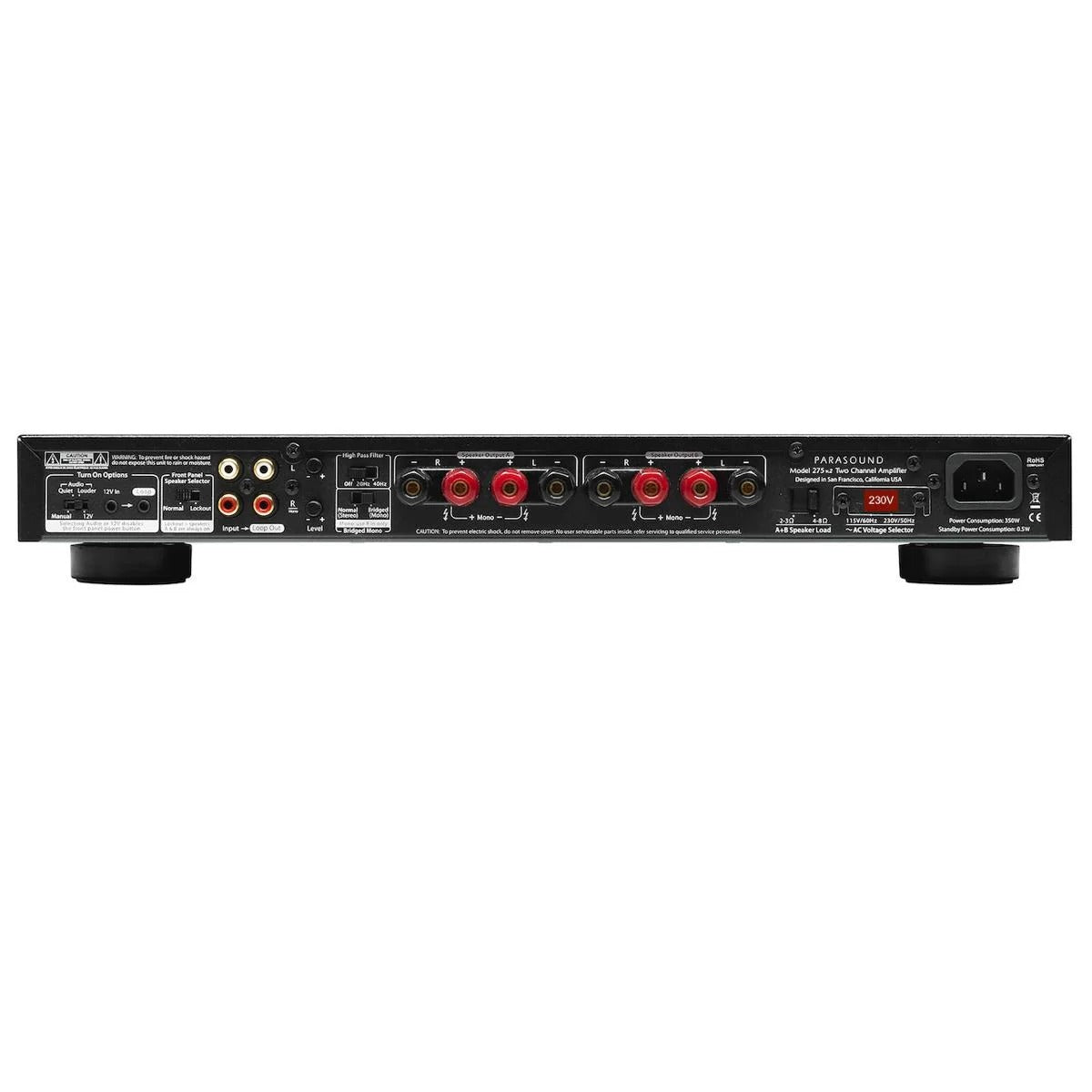

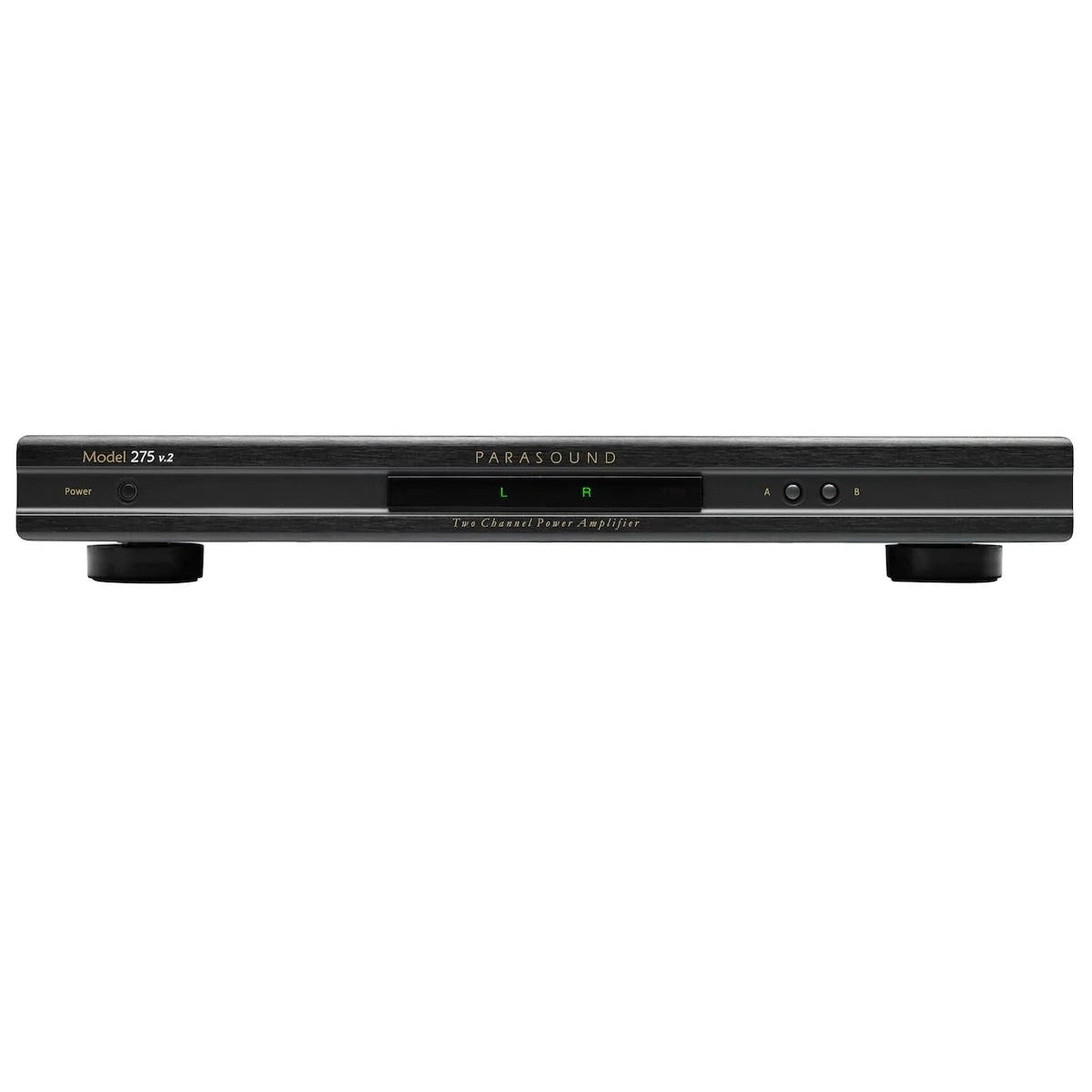

Two pairs of speaker outputs with front-panel A/B buttons make speaker selection convenient, and a rear-mounted lockout switch prevents accidental operation of these controls. A switchable high-pass filter provides 20 Hz and 40 Hz settings, while automatic power-on and off can be managed through a DC trigger with looping output or audio signal sensing with two sensitivity settings. Additional features include an efficient, low-heat design, DC servo and relay protection circuits, rear-mounted left and right gain controls, and front-panel indicators for standby, channel status, and high temperature. Gold-plated RCA input jacks and heavy-duty 24-karat gold-plated five-way speaker terminals ensure dependable connectivity. A rear-panel 115/230V selector allows the amplifier to be configured for the appropriate mains voltage.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Power Output (Stereo, RMS, 20 Hz–20 kHz) |
90 W × 2 at 8 Ω; 150 W × 2 at 4 Ω; 150 W × 2 at 2 Ω (load switch set to 2–3 Ω) |
|
Bridged Mono Output |
200 W × 1 at 8 Ω; 200 W × 1 at 4 Ω (load switch set to 2–3 Ω) |
|
Current Capacity |
20 A peak per channel |
|
Frequency Response |
20 Hz–50 kHz (+0/−3 dB) at 1 W |
|
Dynamic Headroom |
1.3 dB |
|
Total Harmonic Distortion (THD) |
0.35% at full rated output; 0.025% at average listening levels |
|
IM Distortion |
0.05% |
|
S/N Ratio |
110 dB (IHF A-weighted) and 103 dB (unweighted) at rated output; 93 dB (IHF A-weighted) and 84 dB (unweighted) at 2.828 V output |
|
Input Impedance |
33 kΩ |
|
Input Sensitivity |
800 mV for full rated output (28 dB gain) |
|
Inter-Channel Crosstalk |
80 dB at 1 kHz; 72 dB at 10 kHz; 65 dB at 20 kHz |
|
Damping Factor |
>150 at 20 Hz |
|
12 V Trigger Turn-On |
DC 9–12 V, 15 mA |
|
Audio Turn-On |
Quieter: 1 mV; Louder: 6 mV |
|
AC Power Requirements |
110–120 V / 220–240 V, 50–60 Hz |
|
Power Consumption |
Standby: 0.5 W; Idle: 25 W; Full output: 350 W |
|
Dimensions (W × D × H) |
17-1/4" × 16" (with cables) × 2-1/2" (with feet); panel height: 1-3/4" (437 × 406 × 63 mm; panel height: 44.1 mm), 1U |
|
Weight |
9.1 kg |
