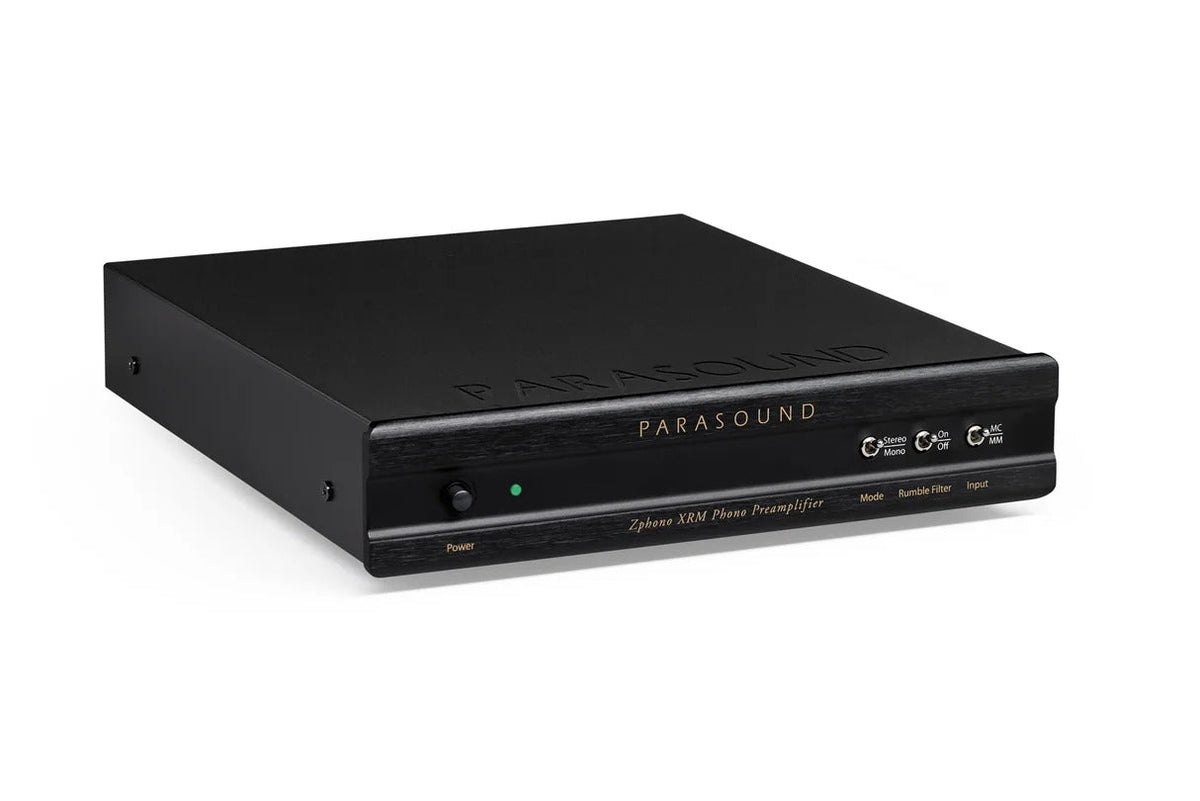

Parasound Zphono XRM Phono Preamplifier
- Regular price
- Rs. 75,000.00
- Sale price
- Rs. 75,000.00
- Regular price
-
Couldn't load pickup availability
Description

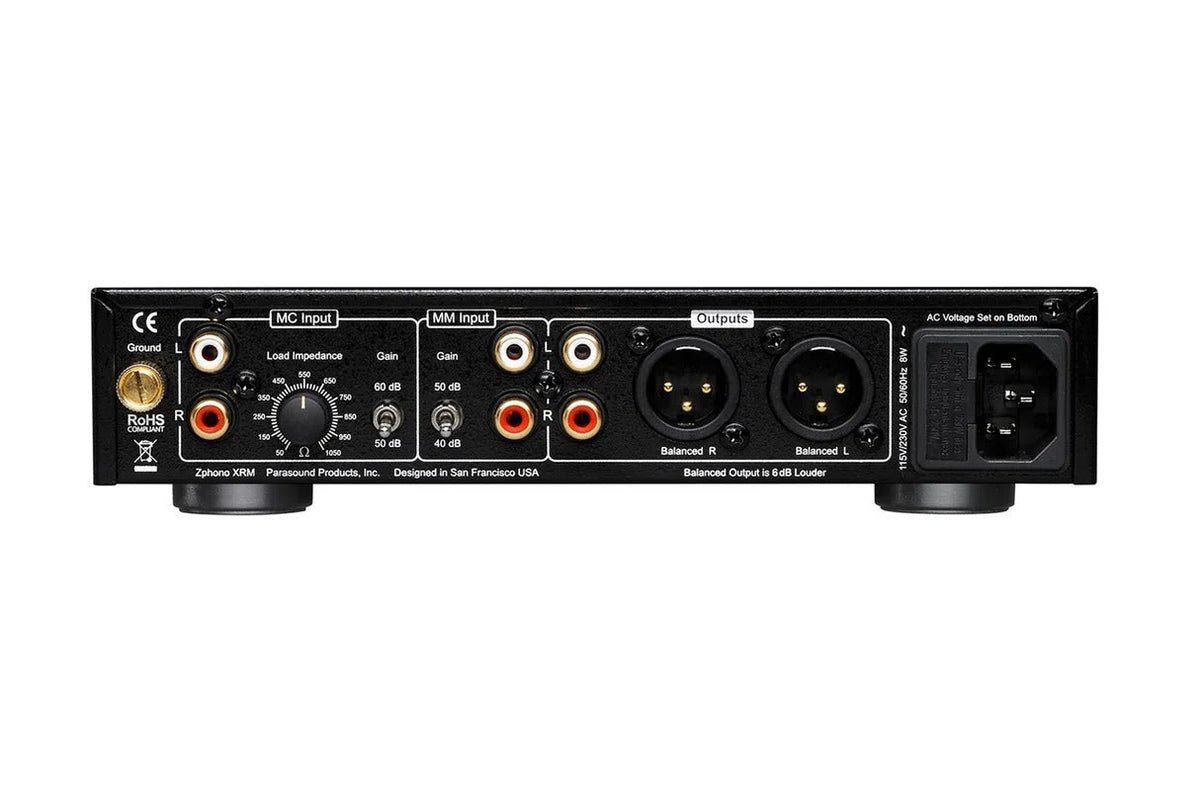

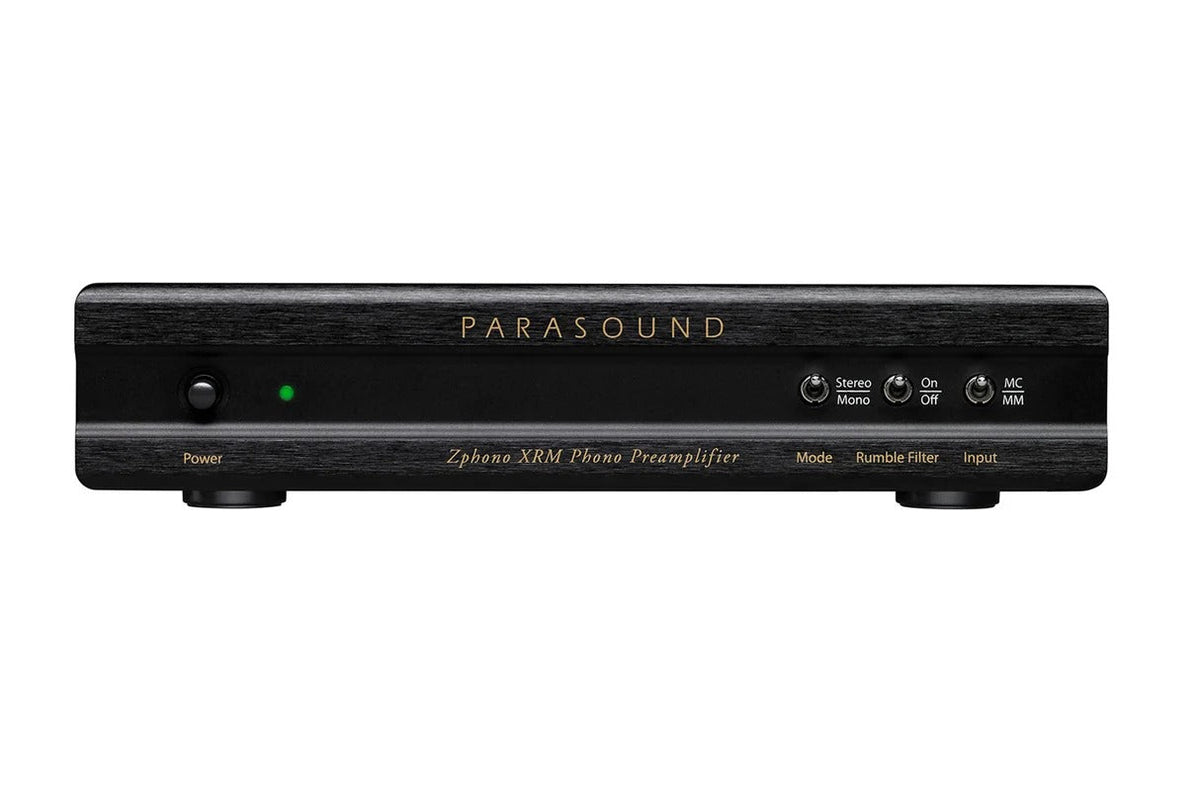

The Parasound Zphono XRM Phono Preamplifier is designed for versatile vinyl playback, featuring dual inputs for connecting two turntables simultaneously, with dedicated support for one Moving Magnet (MM) and one Moving Coil (MC) cartridge. Convenient front-panel controls allow users to select the input, switch between mono and stereo playback modes, and activate the rumble filter. Both balanced and unbalanced outputs provide flexible integration with a variety of audio systems. For MC cartridges, the variable impedance adjustment ranges from 50 to 1,050 ohms, allowing users to fine-tune cartridge loading. The MM gain options are 40 dB or 50 dB for unbalanced connections and 46 dB or 56 dB for balanced connections, while MC gain options are 50 dB or 60 dB unbalanced and 56 dB or 66 dB balanced. With RIAA equalization accuracy within 0.2 dB and total harmonic distortion below 0.02%, the Zphono XRM is engineered for accurate, low-distortion audio reproduction. Ultra-high-speed, low-noise operational amplifiers, audiophile-grade resistors and capacitors, and gold-plated RCA input and output jacks further support clean signal performance and reliable connectivity. Its distinctive half-rack-width chassis, occupying just one rack space in height, offers a compact and practical solution for high-quality vinyl playback systems.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Frequency Response |
20Hz–20kHz, ±0.2dB |
|
Inter-channel Crosstalk |
Greater than 80dB at 1kHz |
|
Total Gain (Unbalanced Output) |
40dB / 50dB / 60dB |
|
Total Gain (Balanced Output) |
46dB / 56dB / 66dB |
|
Total Harmonic Distortion (THD) |
0.02% at 1kHz |
|
Input Impedance (MM) |
47kΩ |
|
Input Impedance (MC) |
50–1050Ω |
|
Rumble Filter |
40Hz high-pass, 18dB/octave |
|
Signal-to-Noise Ratio (MM, 40dB Setting) |
Greater than 94dB (IHF A-weighted); greater than 90dB (unweighted), input shorted |
|
Signal-to-Noise Ratio (MM, 50dB Setting) |
Greater than 94dB (IHF A-weighted); greater than 90dB (unweighted), input shorted |
|
Signal-to-Noise Ratio (MC, 50dB Setting) |
Greater than 92dB (IHF A-weighted); greater than 88dB (unweighted), input shorted |
|
Signal-to-Noise Ratio (MC, 60dB Setting) |
Greater than 82dB (IHF A-weighted); greater than 80dB (unweighted), input shorted |
|
Input Capacitance |
150pF |
|
Output Impedance (Unbalanced) |
150Ω |
|
Output Impedance (Balanced) |
150Ω per leg |
|
Input Sensitivity at 1kHz (4mV Input) |
40dB: 5mV for 500mV output; 50dB: 5mV for 1.5V output; 60dB: 5mV for 3V output |
|
Input Sensitivity at 1kHz (1V Output) |
40dB: 10mV; 50dB: 3.5mV; 60dB: 1.8mV |
|
AC Power Requirements |
Standby: 0W; power on: 7W; 115VAC or 230VAC, 50–60Hz (selected on the bottom) |
|
Dimensions (W × D × H, with feet) |
8.5 × 10 × 2 inches (220 × 254 × 51mm) |
|
Depth with Cables Connected |
12 inches (305mm) |
|
Height without Feet |
1.75 inches (45mm), 1U |
|
Net Weight |
3.9lbs (1.8kg) |
|
Shipping Weight |
6.8lbs (3.1kg) |
