Powersoft

Powersoft Duecanali 4804 DSP+

Rs. 306,305.00
Rs. 306,305.00
Get free shipping on your order.
  • Powersoft Duecanali 4804 DSP+ 2-channel Flexible Amplifier with DSP and AES67
1 In Stock
Ships in 24 Hours
All India shipping
Manufacturer's Warranty
Secure Payment

Description

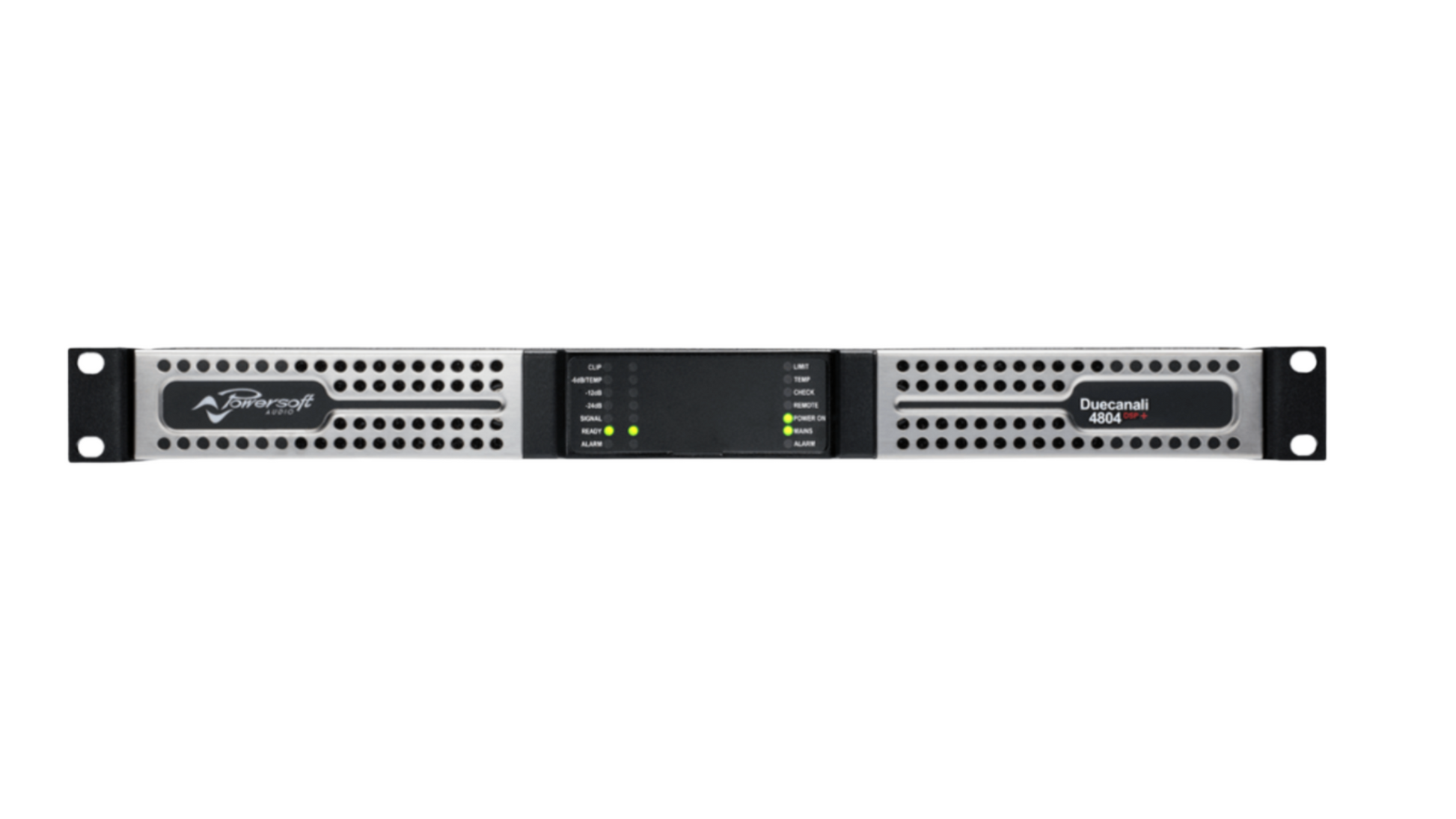

DUECANALI 4804 DSP+ 4800W/2-channel Flexible Amplifier with DSP and AES67

The ability to implement any configuration with ease makes the Duecanali series extremely flexible. Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum. The Duecanali 4804 DSP+ is designed to work with Lo-Z (from 2 Ω ) and with 70V/100V distributed lines: any mixed impedance output loads can be realiSed.

A fully integrated state-of-the-art DSP yields extensive system management functionality. In addition to sound shaping and limiter functions in a unique Powersoft style, the DSP hardware and ArmoníaPlus software enable compliance with IEC 60849 for the crucial requirements of sound systems for emergency purposes.

Features

Power Supply

Feature Details
Power Supply Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor Correction
Output Filter Patented output filter with ripple cancellation network
Low Inrush Limiting Reduces AC inrush current, removing the need for expensive power sequencers
AC Mains Cable Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections

Protection Details
AC Protection Shuts down power supply when AC mains voltage is outside the operating range
Clip Limiter Prevents severely clipped waveforms from reaching loudspeakers while maintaining full peak power output
DC Protection Protects against infrasonic signal at the outputs
VHF Protection Protects the loudspeakers against non-audible, strong, non-musical high-frequency signals
Short Circuit Protection Protects the amplifier from short circuits or other stressful events with automatic protection reset
Long Term Limiter Protects loudspeakers against steady long-term RMS (non-audio) signals by reducing maximum output
Thermal Protection Output stages operate at temperatures up to 80 °C (176 °F)
Fan Control Temperature-controlled continuous variable speed fan with front-to-back airflow
Temperature Forecast LCD-traced historical behavior for temperature prediction

General

Feature Details
Output Stage Fixed frequency switchmode output stage for high-grade sound accuracy
Compact Size All models only 1 RU for reduced rack cost and space
Lightweight 7 kg (15.4 lbs) for easier racking and shipping
Connectors Standard Phoenix connectors for analog audio outputs, aux supply, alarms, and GPIO
Double Input Remotely switchable double input (main and aux) per channel

Loudspeaker System Configuration

Feature Details
Direct Drive Direct drive either low impedance loads or 70V/100V Hi-Z distributed lines
High Pass Filter Switchable 35Hz / 70Hz high pass filter per channel
Mixed Configuration Mixed configuration with Lo-Z/Hi-Z systems possible
Bridged Mode Bridged mode low impedance per channel pair

Alarms and GPI/O

Feature Details
Alarm Notifications NC/NO contacts per channel for alarm notifications
Remote Control Remote ON/OFF switch
VCA Control Remote VCA control per channel

Digital Signal Processing

Feature Details
DSP Platform TI C6000 DSP platform
AD/DA Converter Dual 24bit @ 48 kHz Tandem® architecture
Equalizers Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters, and custom output FIR filters
Delay Delay up to 100 ms for time alignment
Cable Compensation Active DampingControl™ for cable compensation
Limiters Peak, RMS voltage, RMS current, TruePower™ limiters

Remote Control & Monitoring

Via Software

Feature Details
Monitoring Control and diagnostics monitoring via ArmoníaPlus
WebApp Dedicated WebApp

Via Hardware

Feature Details
Attenuation From 0dB to 26dB
High-pass Filters 35Hz, 70Hz high-pass filters
Output Selection Lo-Z/Hi-Z/70V/100V output selection
Gain Adjustment Adjustable gain (from 26dB to 35 dB)


Specifications

General

Feature Details
Output Power per Channel 3000 W @ 2 Ω
Output Power per Channel 2400 W @ 4 Ω
Output Power per Channel 1250 W @ 8 Ω
Bridge Mode 6000 W @ 4 Ω
Bridge Mode 4800 W @ 8 Ω

Max Output Voltage / Current

Feature Details
Max Unclipped Output Voltage @8 Ω 142 Vpeak
Current 80 Apeak

AC Main Power

Feature Details
Power Supply Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal Power Requirement 100-240 V ±10%, 50-60 Hz
Operating Voltage 90 V – 264 V

Power Consumption / Current Draw

Feature 115 V 230 V
Idle Power Consumption 32.5 W – 0.31 A 32.8 W – 0.30 A
1/8 of Max Output Power @ 4 Ω 780 W – 7.0 A 755 W – 3.9 A

Thermal

Feature Details
Operating Temperature Range 0° – 45° C (32° – 113° F)

Thermal Dissipation

Feature 115 V 230 V
Idle Thermal Dissipation 111 BTU/h 112 BTU/h
1/8 of Max Output Power @ 4 Ω 613 BTU/h 528 BTU/h
