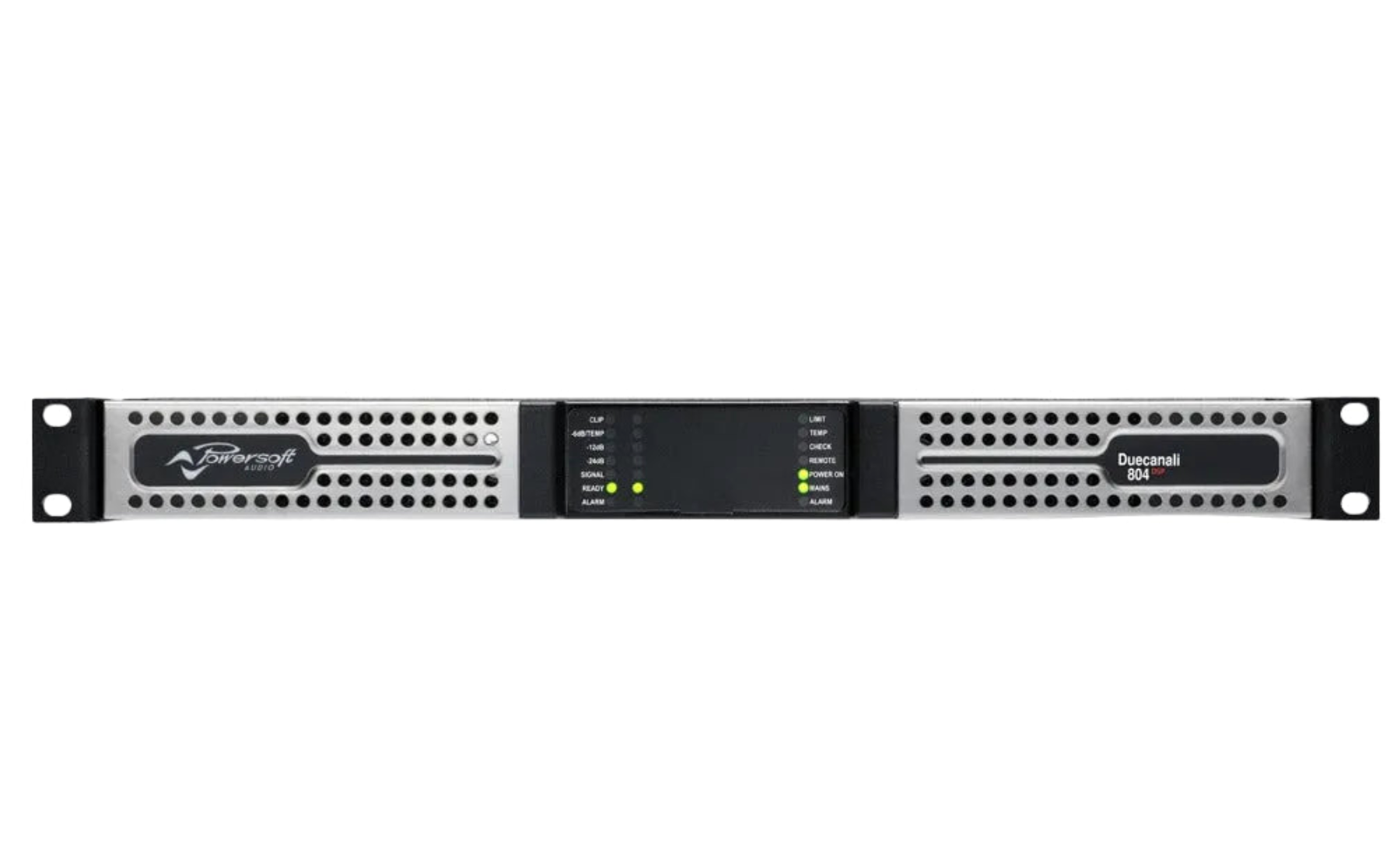

Powersoft Duecanali 804 DSP
- Regular price
- Rs. 168,245.00
- Sale price
- Rs. 168,245.00
- Regular price
-
Get free shipping on your order.
1 In Stock
Couldn't load pickup availability
Description
The ability to implement any configuration with ease makes the Duecanali series extremely flexible. Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum.The Duecanali 804 DSP is designed to work with Lo-Z (from 2 Ω ) and with 70V/100V distributed lines: any mixed impedance output loads can be realised.
A fully integrated state-of-the-art DSP yields extensive system management functionality. In addition to sound shaping and limiter functions in unique Powersoft style, the DSP hardware and ArmoníaPlus software enable compliance with IEC 60849 for the crucial requirements of sound systems for emergency purposes. MyPowersoft services are available for this product.
Specifications
General
| Specification | Value |
|---|---|
| Output power per Channel | 500 W @ 2 Ω, 400 W @ 4 Ω, 400 W @ 8 Ω |
| Bridge mode | 1000 W @ 4 Ω, 800 W @ 8 Ω |
| Max unclipped output voltage @ 8 Ω | 80 Vpeak |
| Max output current | 39 Apeak |
AC Main Power
| Specification | Value |
|---|---|
| Power Supply | Universal, regulated switch mode with PFC (Power Factor Correction) |
| Nominal Power Requirement | 100-240 V ±10%, 50-60 Hz |
| Operating Voltage | 90 V – 264 V |
Power Consumption / Current Draw
| Specification | 115 V | 230 V |
|---|---|---|
| Idle Power Consumption | 23.0 W – 0.34 A | 22.5 W – 0.21 A |
| 1/8 of Max Output Power @ 4 Ω | 148 W – 1.4 A | 147 W – 0.9 A |
Thermal
| Specification | 115 V | 230 V |
|---|---|---|
| Operating Temperature Range | 0° – 45° C (32° – 113° F) | 0° – 45° C (32° – 113° F) |
| Thermal Dissipation – Idle | 78 BTU/h | 77 BTU/h |
| Thermal Dissipation – 1/8 of Max Output Power @ 4 Ω | 162 BTU/h | 161 BTU/h |
Features
Power Supply
| Specification | Details |
|---|---|
| Type | Universal switch-mode power supply with Power Factor Correction (PFC) |
| AC Mains Voltage Tolerance | Up to 400VAC |
| Special Features | Patented output filter with ripple cancellation network |
| Inrush Limiting | Reduces AC inrush current, removing the need for expensive power sequencers |
| AC Mains Cable | Detachable IEC C19/22.2 (16A for EU, 20A for USA) socket |
Protections
| Protection Type | Description |
|---|---|
| AC Protection | Shut down power supply when AC mains voltage is outside the operating range |
| Clip Limiter | Prevents severely clipped waveforms from reaching loudspeakers, while maintaining full peak power |
| DC Protection | Protects against infrasonic signal at the outputs |
| VHF Protection | Protects loudspeakers against non-audible, strong, non-musical high-frequency signals |
| Short Circuit Protection | Protects amplifier from short circuit or other stressful events with automatic protection reset |
| Long Term Limiter | Protects loudspeakers against steady long-term RMS (non-audio) signals by reducing maximum output |
| Thermal Protection | Protects output stages operating temperature up to 80°C (176°F) |
| Temperature Controlled Fan | Continuous variable speed fan, front to back airflow |
General
| Specification | Details |
|---|---|
| Output Stage | Fixed frequency switch-mode for high-grade sound accuracy |
| Size | Compact – Only 1RU for reduced rack cost and space |
| Weight | 7 kg (15.4 lbs) for easier racking and shipping |

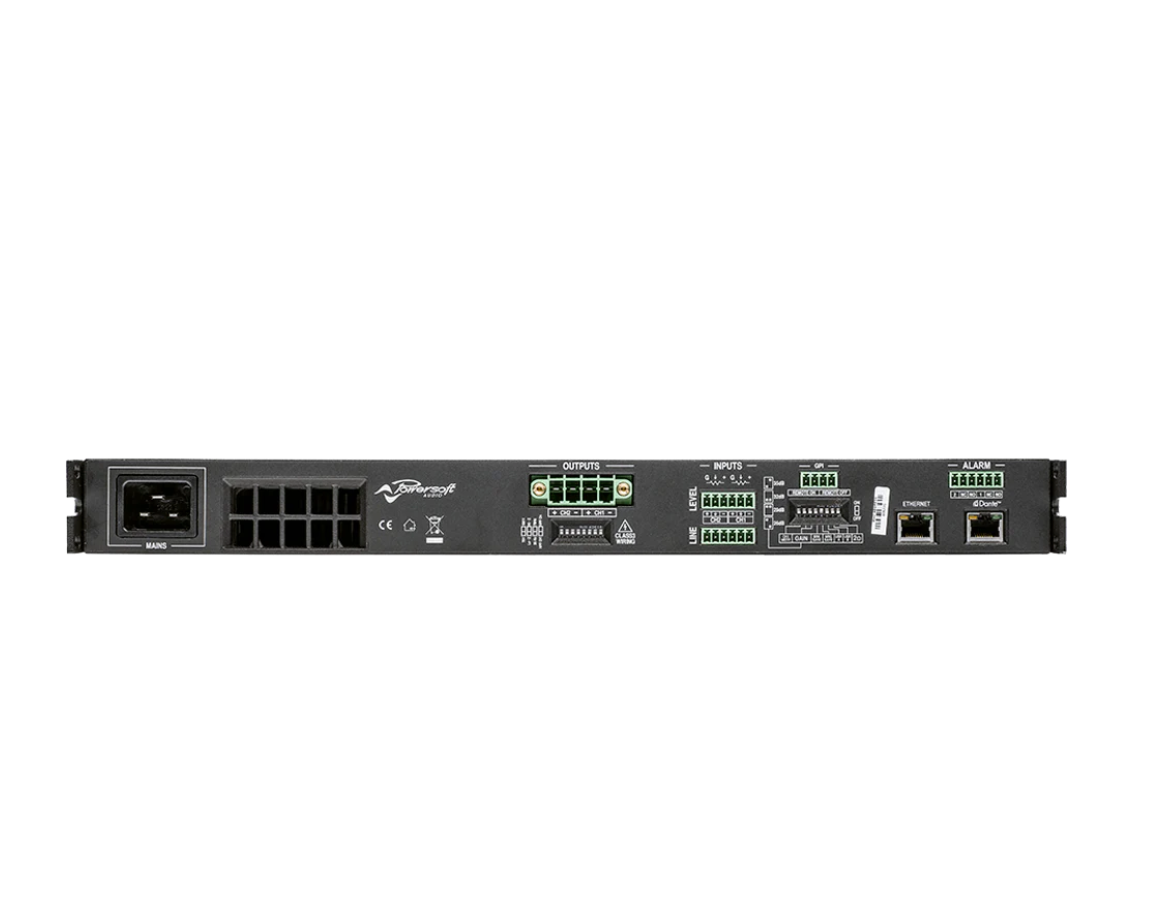

| Connectors | Standard Phoenix connectors: analog audio outputs, aux supply, alarms, GPIO |
| Double Input | Remotely switchable per channel (main and aux) |
Loudspeaker System Configuration
| Specification | Details |
|---|---|
| Impedance Loads | Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines |
| High Pass Filter | Switchable 35Hz / 70Hz per channel |
| Mixed Configuration | Possible with Lo-Z/Hi-Z systems |
| Bridged Mode | Low impedance per channel pair |
Alarms and GPI/O
| Specification | Details |
|---|---|
| NC/NO Contacts | Alarm notifications per channel |
| Remote Control | Remote ON/OFF switch and VCA control per channel |
Digital Signal Processing
| Specification | Details |
|---|---|
| DSP Platform | TI C6000 DSP platform |
| AD/DA Converter | Dual 24bit @ 48 kHz Tandem® architecture |
| Equalizers per Channel | Independent PEQ, raised cosine, shelving IIR filters, custom output FIR filters |
| Delay | Up to 100 ms for time alignment |
| Active DampingControl™ | For cable compensation |
| Limiters | Peak, RMS voltage, RMS current, TruePower™ limiters |
Remote Control & Monitoring
| Control and Monitoring | Details |
|---|---|
| Software Monitoring | Via ArmoníaPlus and Dedicated WebApp |
| Hardware Control | Attenuation (from 0dB to 26dB), High-pass filters (35Hz, 70Hz), Lo-Z/Hi-Z/70V/100V output selection, Adjustable gain (from 26dB to 35 dB) |
