Powersoft Mezzo 322 AD
- Regular price
- Rs. 96,140.00
- Sale price
- Rs. 96,140.00
- Regular price
-
Couldn't load pickup availability
Description

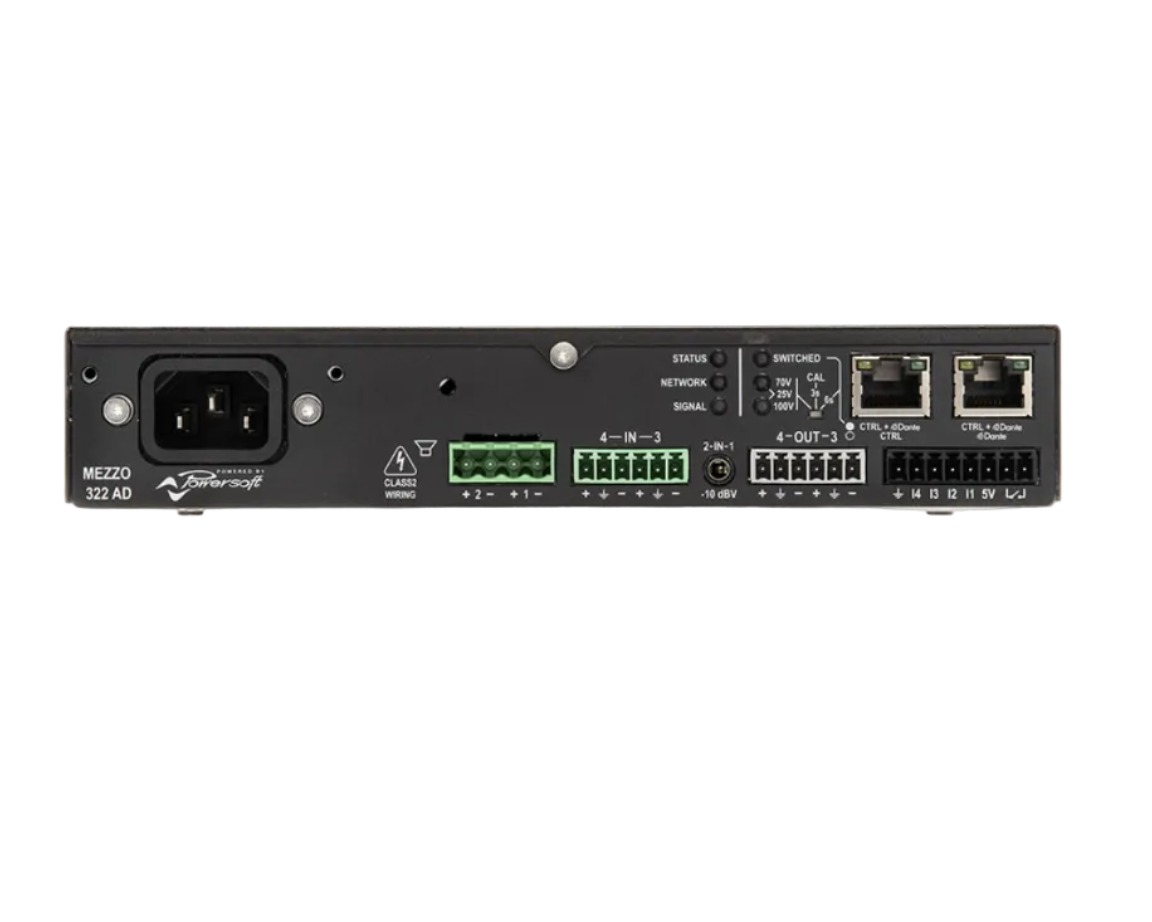

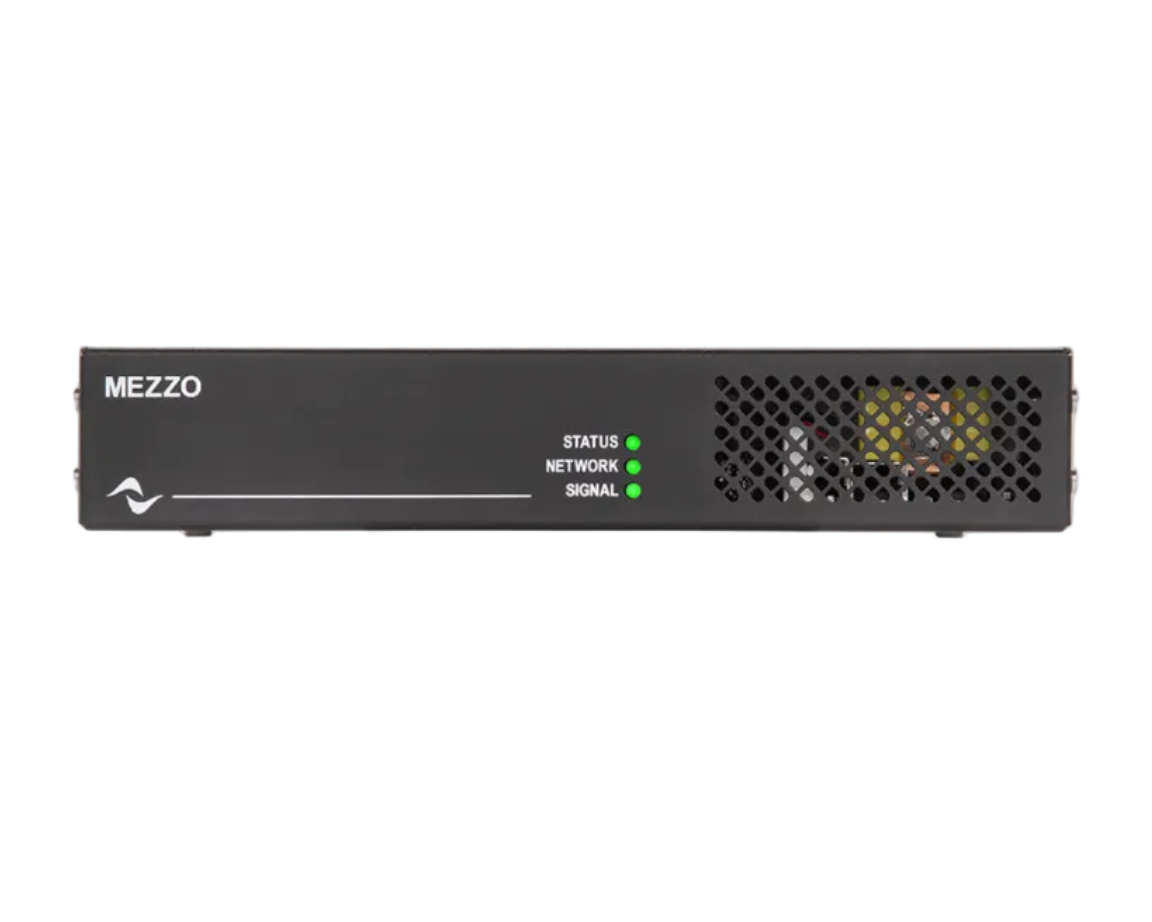

320W/2-channel Compact Amplifier with DSP and Dante™
Mezzo 322 AD heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “AD” versions of Mezzo offer all the remote control and monitoring functions of the “A” versions, further extending networking capabilities with Dante and AES67. The small form factor allows it to be mounted anywhere thanks to the included mounting kit. The 320 W versions of Mezzo can also be mounted in air handling spaces, such as ceilings or wall boxes. Two-channel versions of Mezzo also feature 2 line-level outputs, further extending routing options.
Features
| Feature | Description |
|---|---|
| Multiple Mounting Options | Flexible installation (rack, shelf, wall, etc.) |
| Auto-Setup | Automatic configuration for easy deployment |
| Power-Sharing | Dynamically distributes available power between outputs |
| Full Remote Control | Compatible with 3rd party control systems for remote management |
Technical Specifications
General Output Power
| Mode | Output Power |
|---|---|
| Single Channel Mode | 160 W @ 2 Ω, 4 Ω, 8 Ω |
| Power-Sharing Capacity | 320 W @ 4 Ω, 8 Ω |
Max Output Voltage / Current
| Specification | Value |
|---|---|
| Maximum Unclipped Voltage | 142 Vpeak |
| Maximum Output Current | 15.6 Apeak |
AC Main Power
| Parameter | Value |
|---|---|
| Power Supply | Universal, regulated switch mode with PFC |
| Nominal Requirement | 100–240 V ±10%, 50–60 Hz |
| Operating Voltage | 90 V – 264 V |
Power Consumption / Current Draw
| Condition | 115 V | 230 V |
|---|---|---|
| Idle | 12 W – 0.23 A | 13 W – 0.20 A |
| 1/8 Max Power @ 4 Ω | 73 W – 0.68 A | 77 W – 0.44 A |
Thermal Dissipation
| Condition | 115 V | 230 V |
|---|---|---|
| Idle | 41 BTU/h | 46 BTU/h |
| 1/8 Max Power @ 4 Ω | 81 BTU/h | 97 BTU/h |
