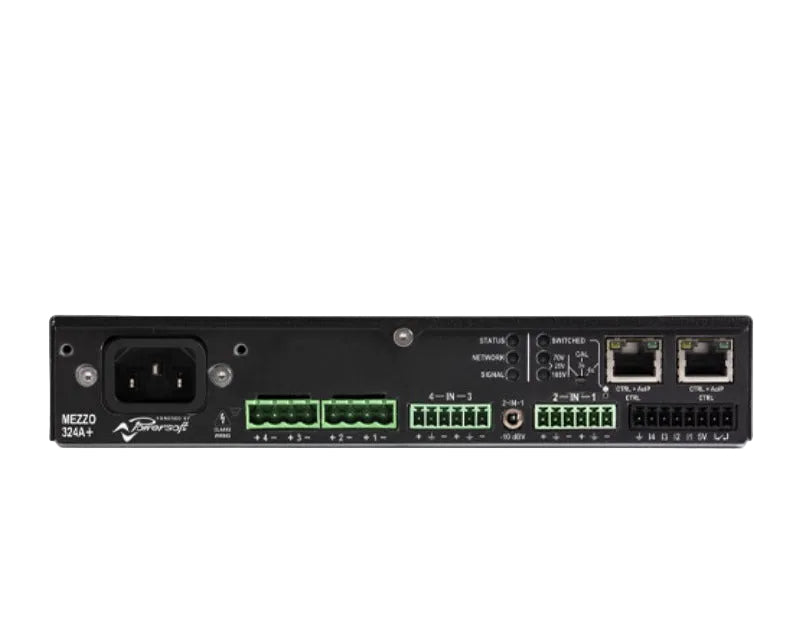

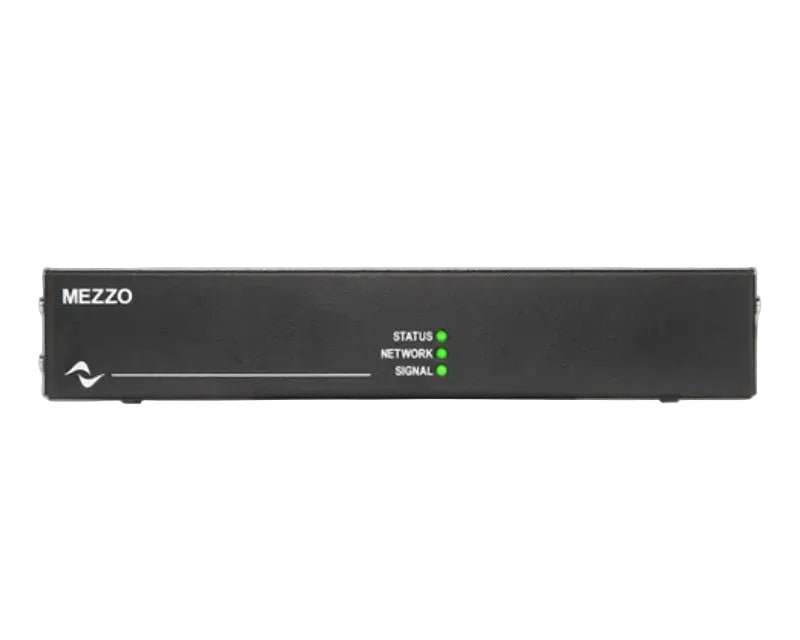

Powersoft Mezzo 324 A+ 320W/4- Channel Compact Amplifier with DSP and AES67
- Regular price
- Rs. 118,560.00
- Sale price
- Rs. 118,560.00
- Regular price
-
Couldn't load pickup availability
Description
Mezzo 324 A+ heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “A+” versions of Mezzo offer all the remote control and monitoring functions of the “A” versions, further extending networking capabilities with AES67. The small form factor allows it to be mounted anywhere thanks to the included mounting kit, the 320 W versions of Mezzo can also be mounted in air handling spaces, such as double ceilings or wall boxes.
Features
The Powersoft Mezzo 324 A+ is a compact yet powerful amplifier designed with features that prioritize versatility, simplicity, and advanced control. It offers multiple mounting options, allowing for flexible installation in various rack or surface mount configurations, making it ideal for different application setups. The auto-setup feature streamlines system deployment by enabling automatic configuration, reducing the time and expertise needed for installation. With its power-sharing capability, the Mezzo 324 A+ can dynamically redistribute power across channels based on real-time demand, maximising efficiency and performance. Furthermore, the amplifier supports full remote control via 3rd party controls, allowing seamless integration with external control systems for convenient and centralised operation.
Technical Specifications
| Category | Details |
|---|---|
| Output Power per Channel | 80 W @ 2 Ω, 80 W @ 4 Ω, 80 W @ 8 Ω |
| Max Power-Sharing per Channel | 320 W @ 4 Ω, 320 W @ 8 Ω |
| Max Output Voltage | 142 Vpeak |
| Max Output Current | 15.6 Apeak |
AC Main Power
| Category | Details |
|---|---|
| Power Supply | Universal, regulated switch mode with PFC (Power Factor Correction) |
| Nominal Power Requirement | 100–240 V ±10%, 50–60 Hz |
| Operating Voltage | 90 V – 264 V |
Power Consumption / Current Draw
| Condition | 115 V | 230 V |
|---|---|---|
| Idle | 16 W – 0.27 A | 77 W – 0.72 A |
| 1/8 of Max Output Power @ 4 Ω | 77 W – 0.72 A | 80 W – 0.45 A |
Thermal Dissipation
| Condition | 115 V | 230 V |
|---|---|---|
| Idle | 54 BTU/h | 59 BTU/h |
| 1/8 of Max Output Power @ 4 Ω | 93 BTU/h | 108 BTU/h |
