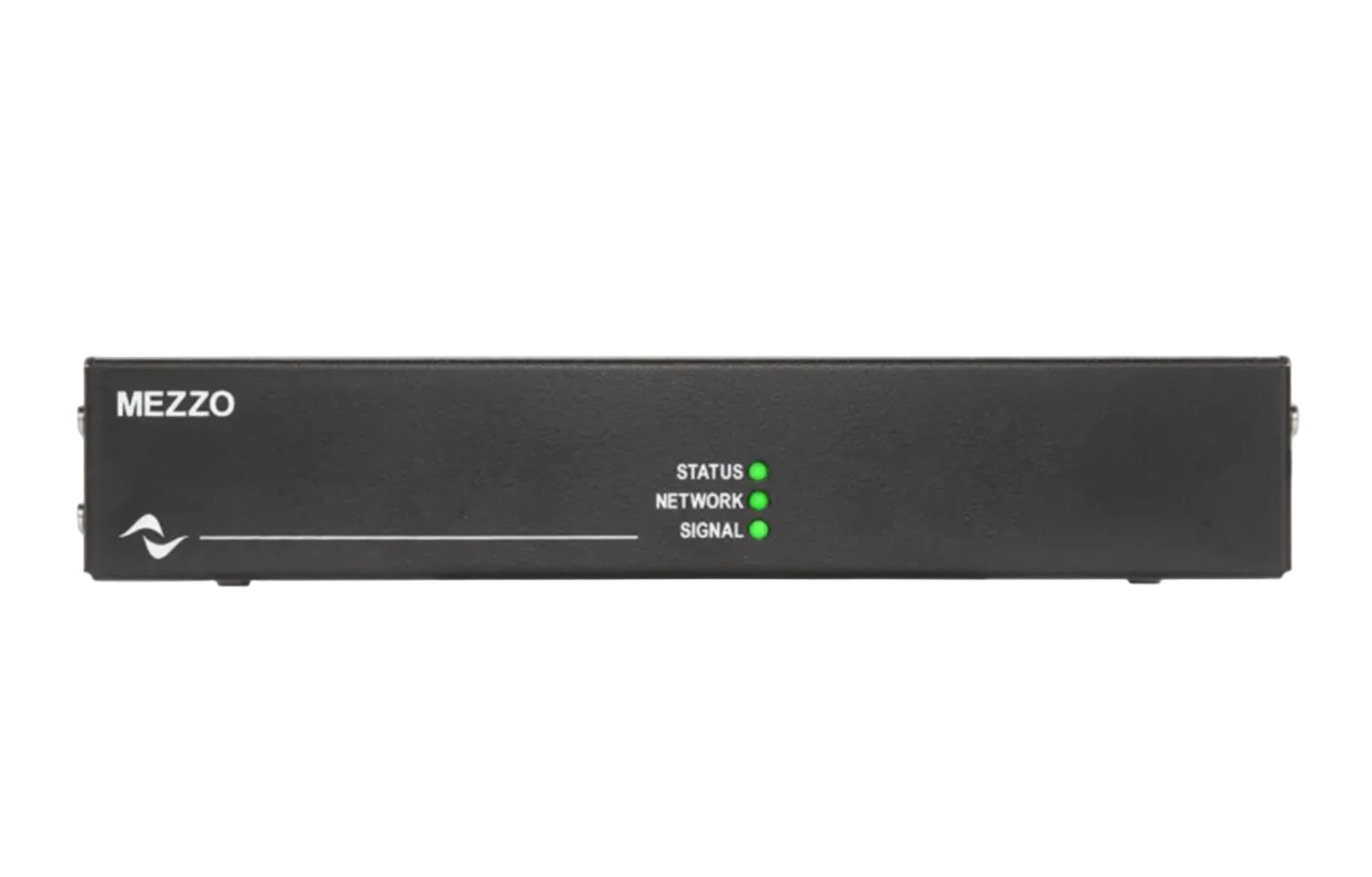

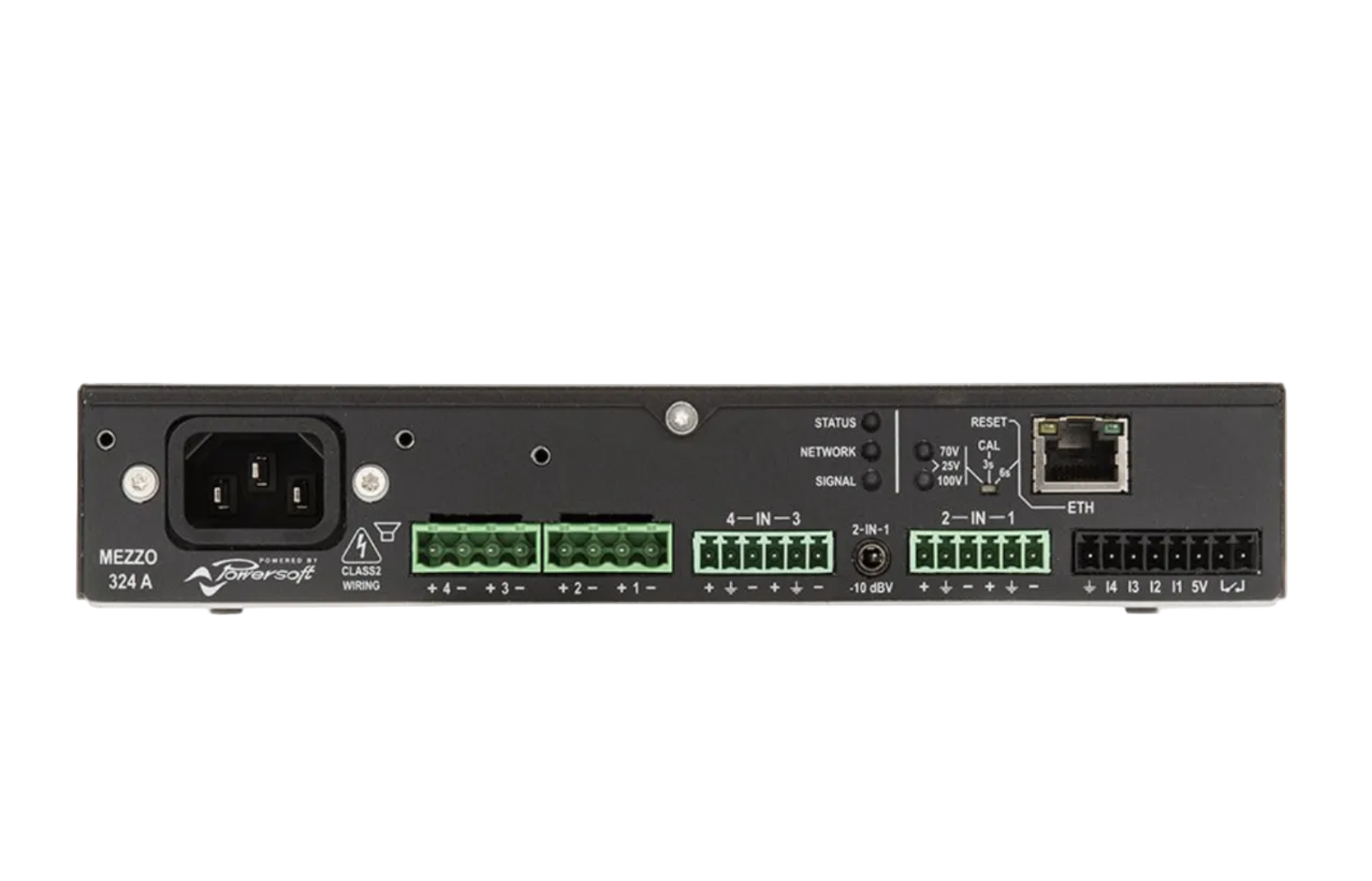

Powersoft Mezzo 324 A 320W/4- Channel Compact Amplifier with DSP
- Regular price
- Rs. 95,760.00
- Sale price
- Rs. 95,760.00
- Regular price
-
Couldn't load pickup availability
Description
Mezzo 324 A heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “A” versions of Mezzo offer remote control and monitoring of all the vital functions. The small form factor allows it to be mounted anywhere thanks to the included mounting kit. The 320 W versions of Mezzo can also be mounted in air handling spaces, such as double ceilings or wall boxes.
Features
The 320W/4-channel Compact Amplifier with DSP is engineered to deliver high performance in a space-saving design, with key features that enhance flexibility and control. It supports multiple mounting options, making it suitable for installation in racks, under tables, or on walls to accommodate a wide range of environments. Its auto-setup function ensures quick and error-free deployment through automatic configuration, minimizing setup time and complexity. The amplifier’s power-sharing technology allows dynamic distribution of available power across all output channels, optimizing efficiency based on system demands. Additionally, it offers full remote control via third-party controls, enabling seamless integration with external control systems for remote monitoring and management.
Technical Specifications
General Output Power
| Mode | Output |
|---|---|
| Per Channel Output Power | 80 W @ 2 Ω / 4 Ω / 8 Ω |
| Max Power-Sharing per Channel | 320 W @ 4 Ω / 8 Ω |
Max Output Voltage / Current
| Specification | Value |
|---|---|
| Max Unclipped Output Voltage | 142 Vpeak |
| Max Output Current | 15.6 Apeak |
AC Main Power
| Parameter | Specification |
|---|---|
| Power Supply | Universal, regulated switch mode with PFC |
| Nominal Power Requirement | 100–240 V ±10%, 50–60 Hz |
| Operating Voltage | 90 V – 264 V |
Power Consumption / Current Draw
| Condition | 115 V | 230 V |
|---|---|---|
| Idle | 15 W – 0.25 A | 16 W – 0.18 A |
| 1/8 Max Output Power @ 4 Ω | 76 W – 0.71 A | 78 W – 0.43 A |
Thermal Dissipation
| Condition | 115 V | 230 V |
|---|---|---|
| Idle | 90 BTU/h | 54 BTU/h |
| 1/8 Max Output Power @ 4 Ω | 50 BTU/h | 102 BTU/h |
Up to 10 Years of Hassle-Free Warranty.
Many sellers offer products without service, but we’ve got you covered. Contact us to book your warranty, drop it in-store, or ship it to us for a refund or exchange for up to 10 years.
