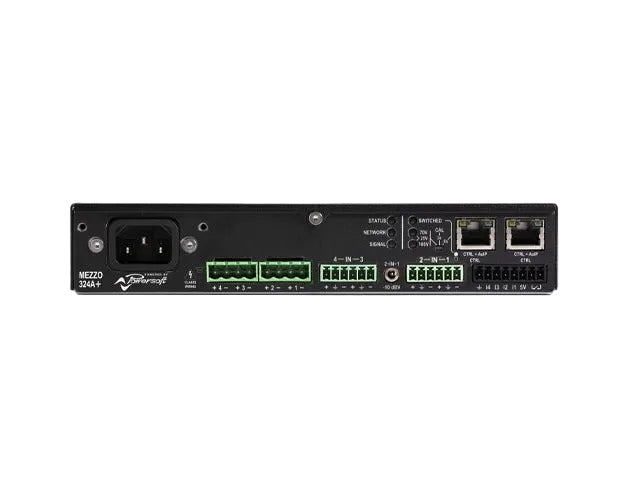

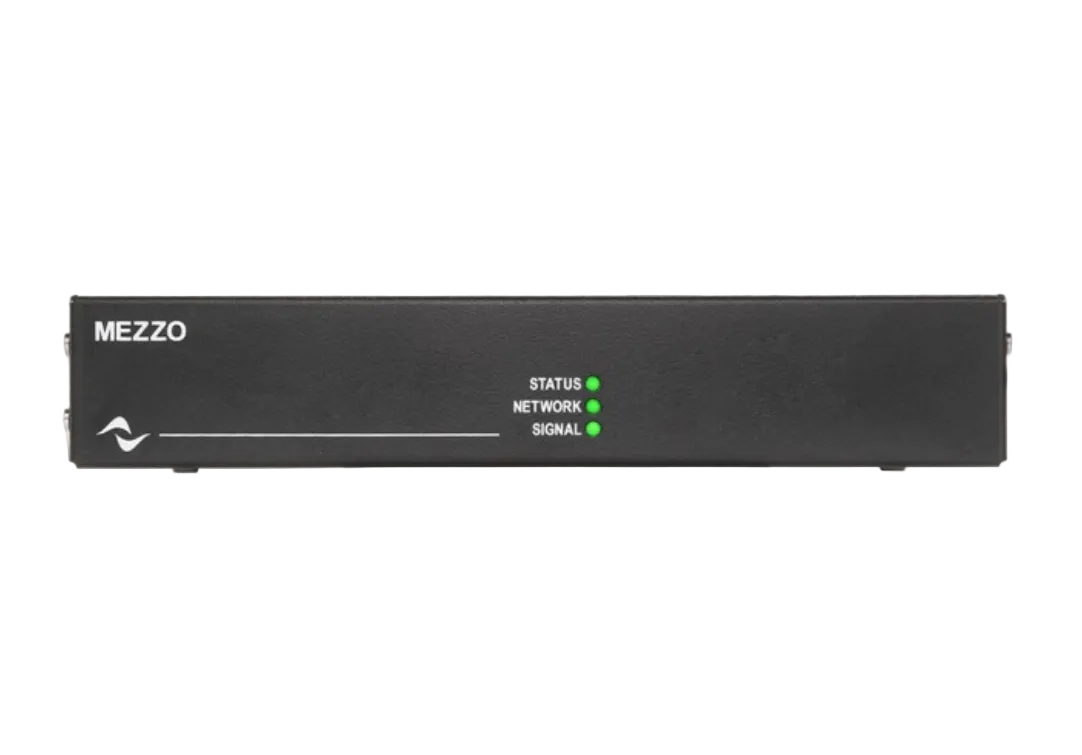

Powersoft Mezzo 324 AD 320W/4 Channel Compact Amplifier with DSP and Dante
- Regular price
- Rs. 118,560.00
- Sale price
- Rs. 118,560.00
- Regular price
-
Couldn't load pickup availability
Description
Mezzo 324 AD heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “AD” versions of Mezzo offer all the remote control and monitoring functions of the “A” versions, further extending networking capabilities with Dante and AES67. The small form factor allows it to be mounted anywhere thanks to the included mounting kit, the 320 W versions of Mezzo can also be mounted in air handling spaces, such as double ceilings or wall boxes.
Features
The Powersoft Mezzo 324 AD is designed with flexibility and intelligent control at its core, making it ideal for compact and professional installations. Its multiple mounting options allow seamless integration into racks, walls, ceilings, or discreet AV setups where space efficiency is essential. With Auto-Setup functionality, configuration becomes faster and more intuitive, automatically optimizing system parameters to ensure reliable performance. The power-sharing capability intelligently distributes available power across channels based on demand, maximizing efficiency and performance without wasting resources. In addition, the amplifier offers full remote control via third-party control systems, enabling easy monitoring, adjustments, and system management from a centralized interface for enhanced convenience and operational control.
Technical Specifications
| Category | Spec |
|---|---|
| Output Power per Channel | 80 W @ 2 Ω, 80 W @ 4 Ω, 80 W @ 8 Ω |
| Max Power-Sharing Capacity / Channel | 320 W @ 4 Ω, 320 W @ 8 Ω |
| Max Output Voltage | 142 Vpeak |
| Max Output Current | 15.6 Apeak |
| Power Supply | Universal, regulated switch mode with PFC |
| Nominal Power Requirement | 100–240 V ±10%, 50–60 Hz |
| Operating Voltage Range | 90 V – 264 V |
| Power Consumption – Idle (115 V) | 16 W – 0.27 A |
| Power Consumption – Idle (230 V) | 77 W – 0.72 A |
| Power Consumption – 1/8 Power @ 4 Ω (115 V) | 77 W – 0.72 A |
| Power Consumption – 1/8 Power @ 4 Ω (230 V) | 80 W – 0.45 A |
| Thermal Dissipation – Idle (115 V) | 54 BTU/h |
| Thermal Dissipation – Idle (230 V) | 59 BTU/h |
| Thermal Dissipation – 1/8 Power @ 4 Ω (115 V) | 93 BTU/h |
| Thermal Dissipation – 1/8 Power @ 4 Ω (230 V) | 108 BTU/h |
Up to 10 Years of Hassle-Free Warranty.
Many sellers offer products without service, but we’ve got you covered. Contact us to book your warranty, drop it in-store, or ship it to us for a refund or exchange for up to 10 years.
Book Your Private Cinema Experience
