Powersoft Mezzo 602 A 600W/2 Channel Compact Amplifier with DSP
- Regular price
- Rs. 100,320.00
- Sale price
- Rs. 100,320.00
- Regular price
-
Couldn't load pickup availability
Description

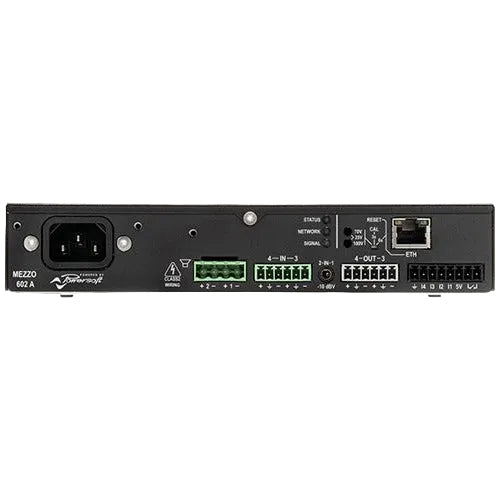

Mezzo 602 A heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “A” versions of Mezzo offer remote control and monitoring of all the vital functions. The small form factor allows it to be mounted anywhere thanks to the included mounting kit. Two channel versions of Mezzo also feature 2 line-level outputs, further extending routing options.
Features
This device offers multiple mounting options, allowing flexible installation whether rack-mounted, wall-mounted, or placed under a desk. It features an auto-setup function that enables automatic configuration for quick and hassle-free deployment. With its power-sharing capability, the system dynamically allocates available power across output channels to maximize efficiency. Additionally, it provides full remote control support through third-party systems, ensuring convenient and seamless management.
Technical Specifications
| Spec | Details |
|---|---|
| Output Power (Single Channel Mode) | 200 W @ 2 Ω |
| Output Power (Single Channel Mode) | 300 W @ 4 Ω |
| Output Power (Single Channel Mode) | 300 W @ 8 Ω |
| Maximum Power Sharing (Per Channel) | 400 W @ 4 Ω |
| Maximum Power Sharing (Per Channel) | 600 W @ 8 Ω |
| Max Unclipped Output Voltage | 142 V peak |
| Max Output Current | 15.6 A peak |
| Power Supply | Universal, regulated switch-mode power supply with PFC |
| Nominal Power Requirement | 100–240 V ±10%, 50–60 Hz |
| Operating Voltage Range | 90 V – 264 V |
| Power Consumption (Idle) | 11 W @ 115 V / 12 W @ 230 V |
| Current Draw (Idle) | 0.22 A @ 115 V / 0.17 A @ 230 V |
| Power Consumption (1/8 Max Output @ 4 Ω) | 125 W @ 115 V / 122 W @ 230 V |
| Current Draw (1/8 Max Output @ 4 Ω) | 1.12 A @ 115 V / 0.62 A @ 230 V |
| Thermal Dissipation (Idle) | 37 BTU/h @ 115 V / 41 BTU/h @ 230 V |
| Thermal Dissipation (1/8 Max Output @ 4 Ω) | 109 BTU/h @ 115 V / 118 BTU/h @ 230 V |
