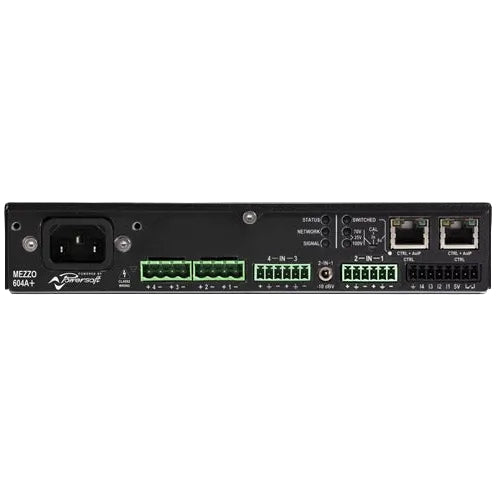

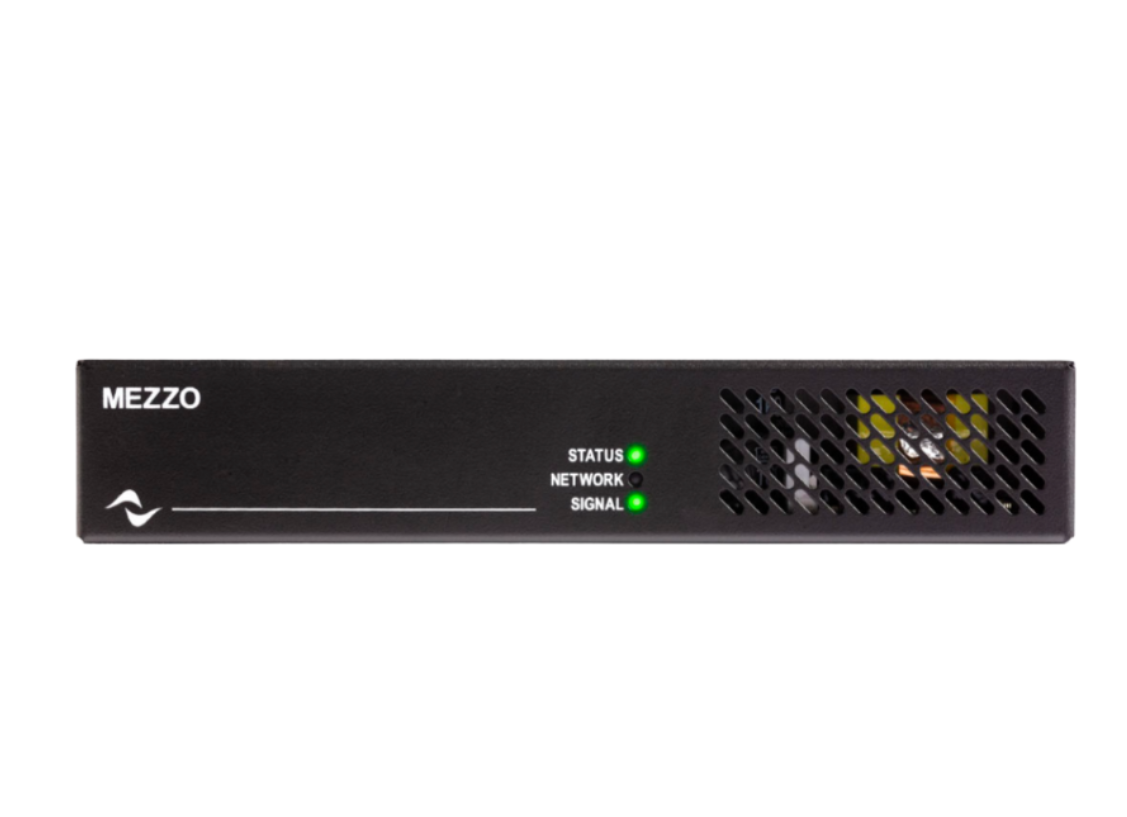

Mezzo 604 A+ heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “A+” versions of Mezzo offer all the remote control and monitoring functions of the “A” versions, further extending networking capabilities with AES67. The small form factor allows it to be mounted anywhere thanks to the included mounting kit.
Features
The Powersoft Mezzo 604 A+ is a 600W, 4-channel compact amplifier with DSP and AES67 support, engineered for high-efficiency audio performance in demanding installation scenarios. It features multiple mounting options, offering flexible installation across a variety of environments including racks, walls or under furniture ideal for both fixed and mobile setups. With its auto-setup capability the amplifier simplifies system deployment by automatically configuring settings, enabling fast and user-friendly installation. The power-sharing functionality allows for intelligent distribution of power across all channels based on real-time needs, ensuring optimal system performance and resource efficiency. Additionally, the Mezzo 604 A+ supports full remote control via third-party systems, allowing seamless integration into broader AV networks and providing comprehensive remote monitoring and control for maximum operational convenience.
Technical Specifications
Output Power
Spec
Details
Single Channel Mode
150 W @ 2 Ω, 150 W @ 4 Ω, 150 W @ 8 Ω
Maximum Power-sharing Capacity per Channel
400 W @ 4 Ω, 600 W @ 8 Ω
Max Output Voltage / Current
Spec
Details
Maximum Unclipped Output Voltage
142 Vpeak
Maximum Output Current
15.6 Apeak
AC Main Power
Spec
Details
Power Supply
Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal Power Requirement
100-240 V ±10%, 50-60 Hz
Operating Voltage
90 V – 264 V
Power Consumption / Current Draw
Spec
Details
Idle
115 V: 16 W – 0.275 A230 V: 17 W – 0.21 A
1/8 of Max Output Power @ 4 Ω
115 V: 130 W – 1.17 A230 V: 129 W – 0.67 A
Thermal
Spec
Details
Thermal Dissipation (Idle)
115 V: 53 BTU/h230 V: 59 BTU/h
Thermal Dissipation @ 1/8 of Max Output Power
115 V: 126 BTU/h230 V: 139 BTU/h
