Powersoft NOTA 142 2-Channel Ultra Compact PoE Amplifier
- Regular price
- Rs. 55,000.00
- Sale price
- Rs. 55,000.00
- Regular price
-
Couldn't load pickup availability
Description

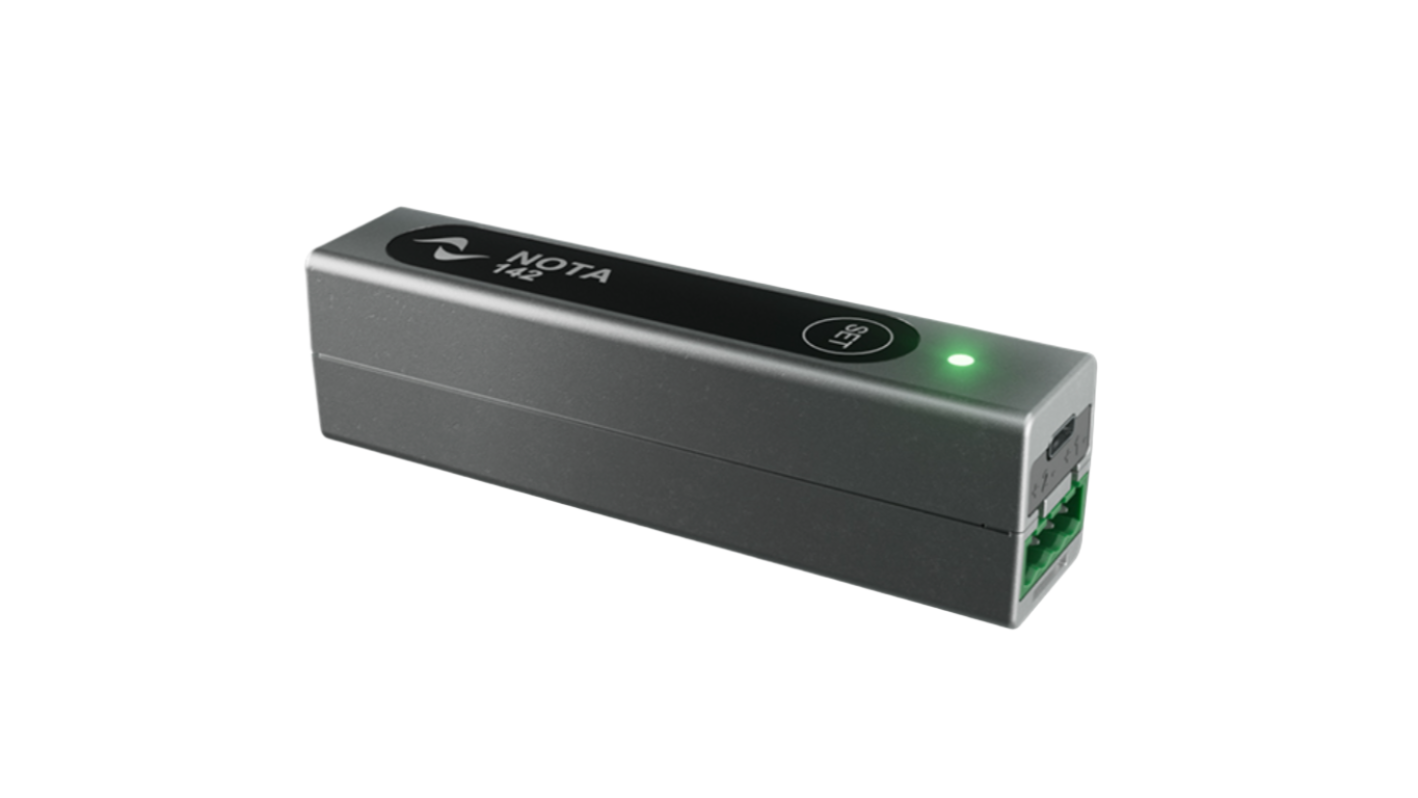

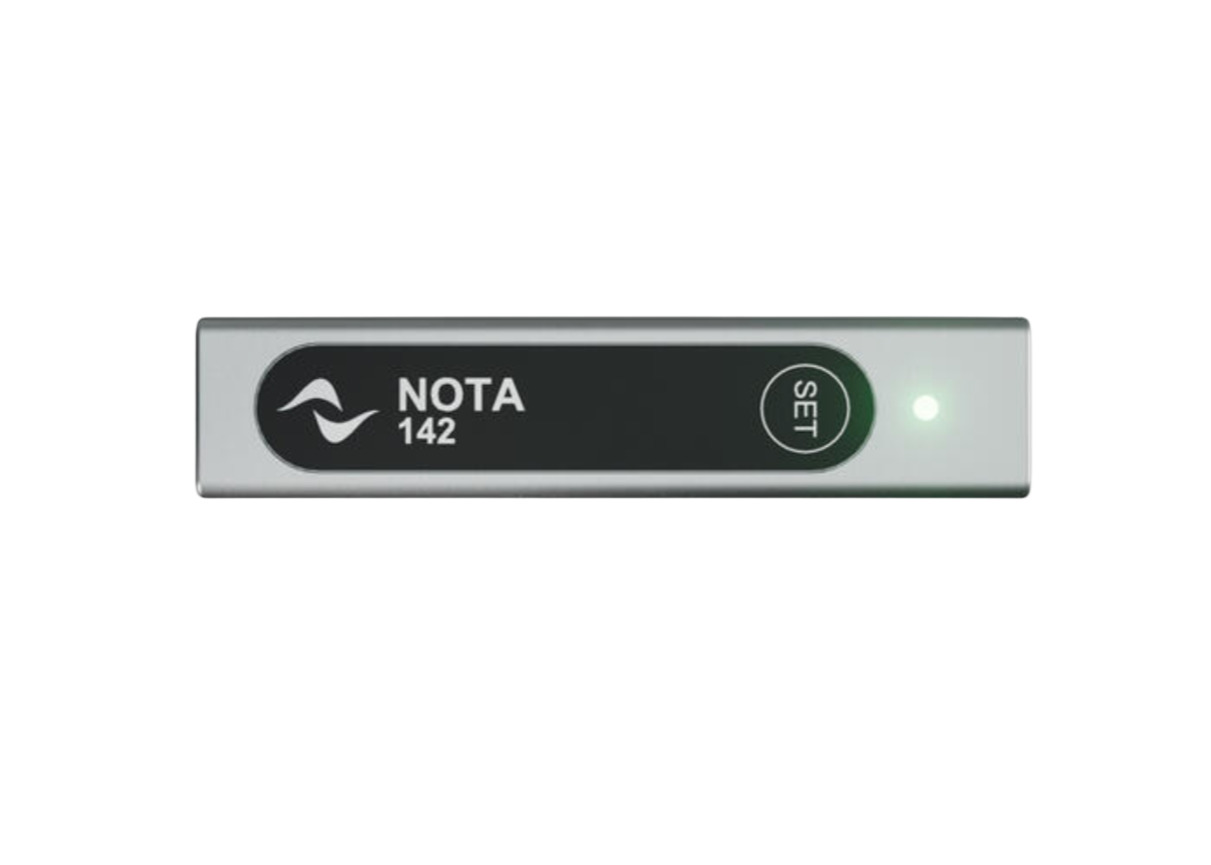

Powersoft NOTA 142 The Ultra Compact PoE Amplifier 2ch 140W
Nota is an ultra compact, versatile PoE/PoE+ amplifier designed for networked AoIP applications where space and wiring constraints are a concern. Tailored for AV and IT system integrators, it offers an intuitive installation process with a single Ethernet cable for power and data. With its modular design and flexibility, Nota seamlessly integrates into existing systems and expands them as needed, ensuring efficient operation in any networked environment.
Powersoft Nota is purpose-built for AV and IT system integrators who demand versatility, efficiency, and seamless integration in their installations. Designed to simplify the setup of both new systems and the enhancement of existing installations, Nota combines modularity, ease of use, and efficient operation into one compact solution. This professional PoE/PoE+ amplifier delivers up to 140 W across two channels, making it an ideal choice for networked environments where space and wiring constraints are critical. Nota simplifies installations by using a single Ethernet cable for both power and data, significantly reducing complexity and cost.
In addition to its compact form factor, Nota offers impressive DSP capabilities, including load monitoring and speaker health monitoring to ensure reliable performance. Its compatibility with AES67 guarantees straightforward integration into existing AoIP networks, making it easy for integrators to incorporate Nota into their projects. The amplifier is designed to support a wide range of applications, including commercial spaces, conferencing environments, and retrofit projects, giving users the flexibility to adapt it to diverse system needs.
Nota is equipped with an Auto Setup function, which automatically matches the impedance of the connected speaker and applies a high-pass filter at the touch of a button. This feature enhances usability and simplifies installation, making it ideal for users without deep technical expertise. The amplifier can be controlled via Powersoft’s ArmoníaPlus software or third-party solutions through provided APIs, streamlining system management.
For integrators seeking a streamlined yet powerful amplifier that fits modern networked demands, Nota delivers an unmatched balance of performance and simplicity. With features like PoE/PoE+ power, Class-D design, USB-C connectivity, and power sharing, Nota provides an efficient, easy-to-install solution that ensures both high performance and ease of use. Additionally, it includes mounting accessories for flexible deployment in various environments.
Take Full Control
Nota is compatible with the latest version of ArmoníaPlus software, providing unmatched performance and seamless integration. With this software, users can have full control over their audio systems, ensuring optimal performance across the board.
Compact Design
The Nota amplifier boasts a small form factor, allowing it to seamlessly integrate into tight spaces. Its compact design doesn't compromise on performance and offers the flexibility to expand your system as it grows, making it ideal for installations with limited space.
Easy Installation

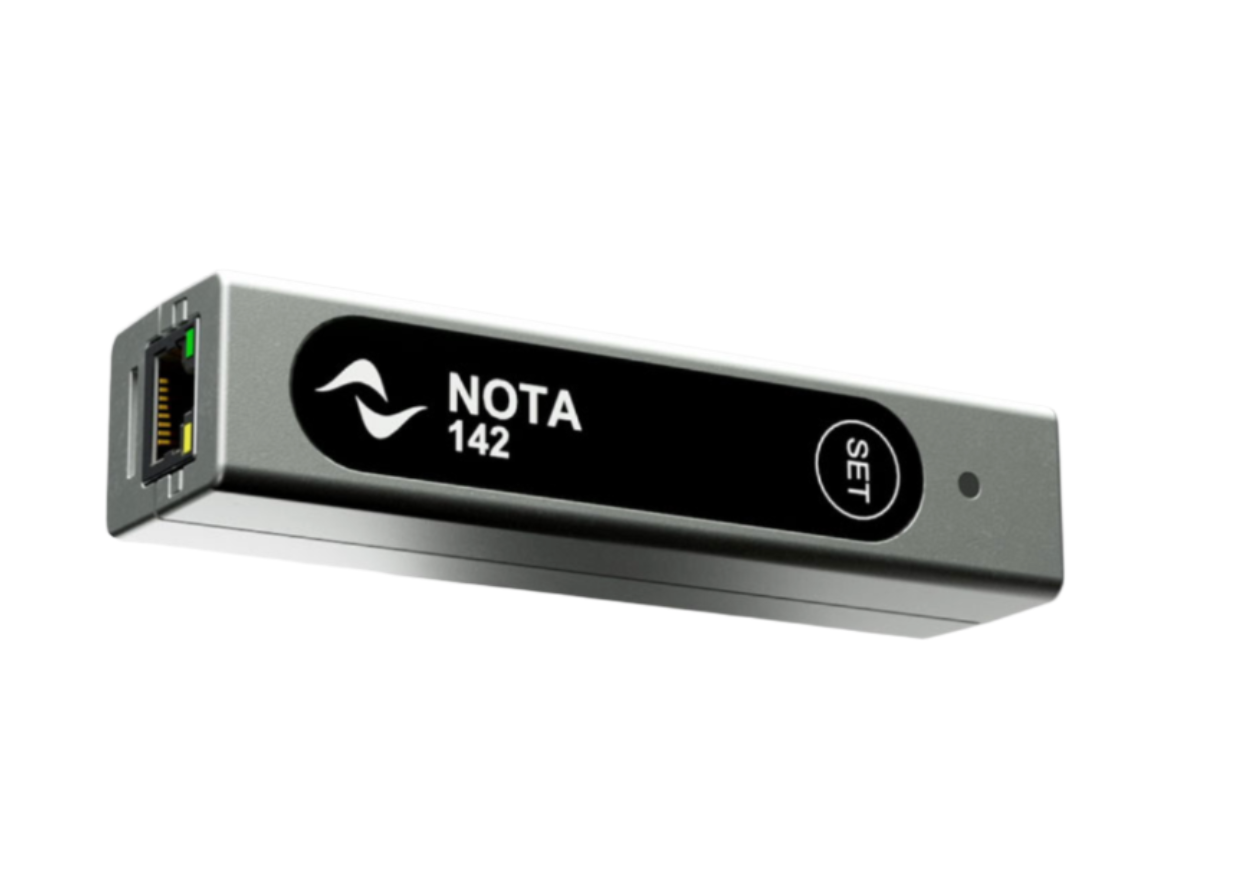

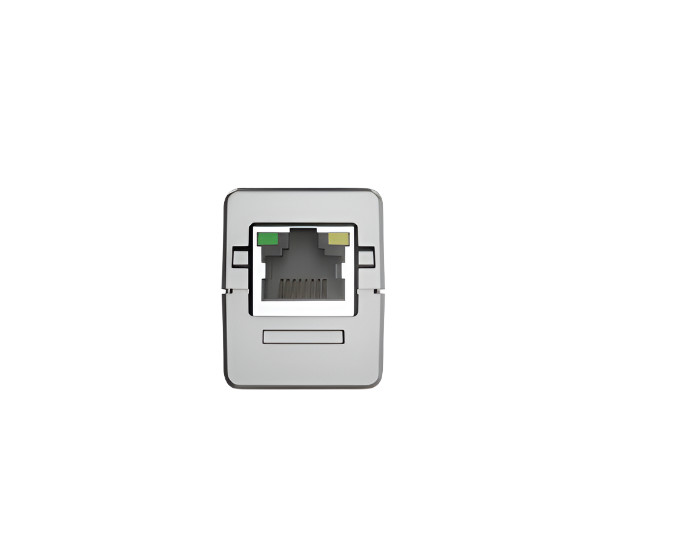

Thanks to PoE (Power over Ethernet) integration, Nota simplifies installation by delivering both power and data over a single cable. This reduces wiring complexity, streamlining the setup process and saving valuable time during installation.
AES67 Support
Nota ensures high-quality AoIP (Audio over IP) integration, supporting AES67. This feature guarantees compatibility with industry-standard networking protocols, allowing it to be installed in confined spaces without the risk of overheating or performance issues.
USB Connectivity

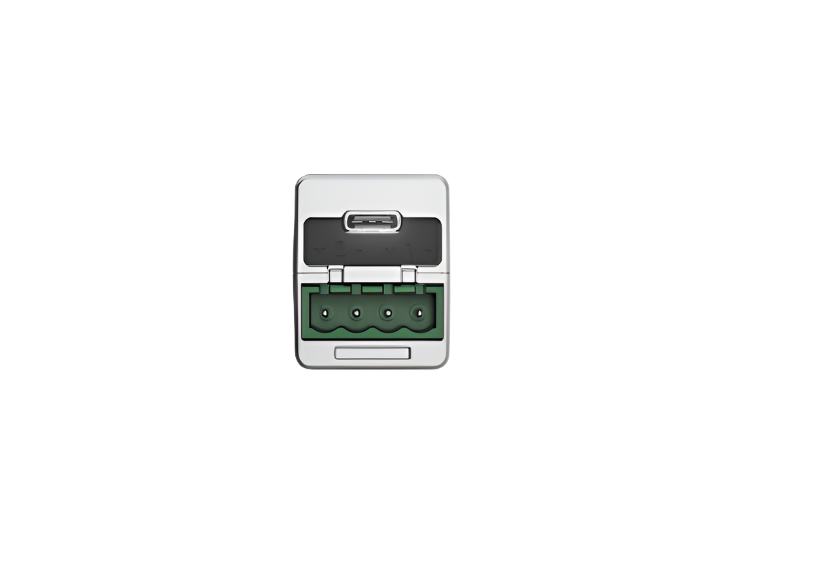

The USB-C port on Nota allows for connectivity with external multimedia devices. Additionally, it acts as a USB-to-AES67 converter, providing even more versatility for different system configurations and enhancing compatibility with various audio sources.
Built to Expand
Whether you start with a single zone or plan to scale up to large, complex installations, Nota is designed with growth in mind. Its compact form and powerful performance enable it to integrate seamlessly into existing systems. Nota offers the flexibility needed for future expansion, making it perfect for commercial and conferencing installations. It adapts effortlessly, ensuring scalability for both immediate and long-term needs.
Features
| Feature | Description |
|---|---|
| PoE/PoE+ Integration | Enables power and data transmission over Ethernet, simplifying installation and reducing wiring complexity. |
| Compact & Space-Saving Design | Highly compact form factor, ideal for installations with limited space, ensuring easy integration in tight environments. |
| Optimised Performance | Delivers 140 W power across two channels, ensuring high performance considering its compact form factor. |
| Auto Setup | Automatically measures the impedance curve of connected speakers and applies a high-pass filter to optimize sound quality and preserve the speakers. |
| Onboard DSP | Includes built-in DSP, offering audio control, speaker health monitoring, and system optimisation. |
| Control Options | Compatible with ArmoníaPlus software and third-party software products through available APIs for easy control. |
| USB Connectivity | Features a USB-C port for expanding systems by connecting external multimedia devices and acting as a USB to AES67 converter, enhancing system flexibility. |
| AES67 Support | Native support for the AES67 standard, enabling easy AoIP integration with other networked systems. |
| Cloud Monitoring | With Verso Gateway, the amplifier supports cloud monitoring via MyUniverso, allowing for real-time system diagnostics and control from anywhere. |
Technical Specifications
Audio Parameters
| Specification | Details |
|---|---|
| Number of Output Channels | 2 |
| Rated Power @ 4Ω | 140 W |
| Power Source | PoE+ / PoE |
| Power Output (Per Channel) | |
| - PoE+ | |
| 8Ω (symmetrical) | 35 W |
| 8Ω (asymmetrical) | 50 W |
| 4Ω (symmetrical) | 70 W |
| 2Ω (symmetrical) | 50 W |
| 16Ω (asymmetrical) | 40 W |
| 8Ω (asymmetrical) | 70 W |
| 4Ω (asymmetrical) | 110 W |
| 2Ω (asymmetrical) | 80 W |
| - PoE | |
| 8Ω (symmetrical) | 30 W |
| 8Ω (asymmetrical) | 33 W |
| 4Ω (symmetrical) | 30 W |
| 2Ω (symmetrical) | 35 W |
| 16Ω (asymmetrical) | 33 W |
| 8Ω (asymmetrical) | 50 W |
| 4Ω (asymmetrical) | 73 W |
| 2Ω (asymmetrical) | 35 W |
| Frequency Response | 10 Hz – 22 kHz |
| THD+N (0.1 W to Half Power) | < 0.005% |
| Dynamic Range | > 115 dB(A) |
Environment
| Specification | Details |
|---|---|
| Operating Temperature | 0°C – +35°C |
| Humidity | 90% non-condensing |
| IP Class | 30 |
| Certifications | CE, FCC, UKCA, CSA, Plenum rated |
DSP
| Specification | Details |
|---|---|
| DA Converters | 24 Bit @ 48 kHz |
| Dynamic Range | 115 dB(A) |
| Internal Precision | 32-bit floating point |
| Latency | < 10 ms |
| EQ | Parametric IIR (peaking, hi/lo shelving, all-pass, band-pass, band-stop, hi/lo pass) |
| Crossover | Butterworth, Linkwitz-Riley, Bessel (6 dB/oct to 48 dB/oct IIR) |
| Limiters | RMS voltage, Peak limiter |
| Input Delay | 0–100 ms |
| Output Delay | 0–10 ms |
| Startup Time | 1.1 ms |
Power Supply
| Specification | Details |
|---|---|
| PoE/PoE+ Voltage Range | 37–44 V |
| Max Continuous Current Drawn | 600 mA |
| Efficiency | ≥75% |
Mechanical Parameters
| Specification | Details |
|---|---|
| Nominal Size (D x W x H) | 115 x 23.4 x 31.4 mm |
| Nominal Size (D x W x H) | 4.5 x 1.1 x 1.2 in |
| Weight | 195 g |
| Weight (in lb) | 0.43 lb |
