Powersoft

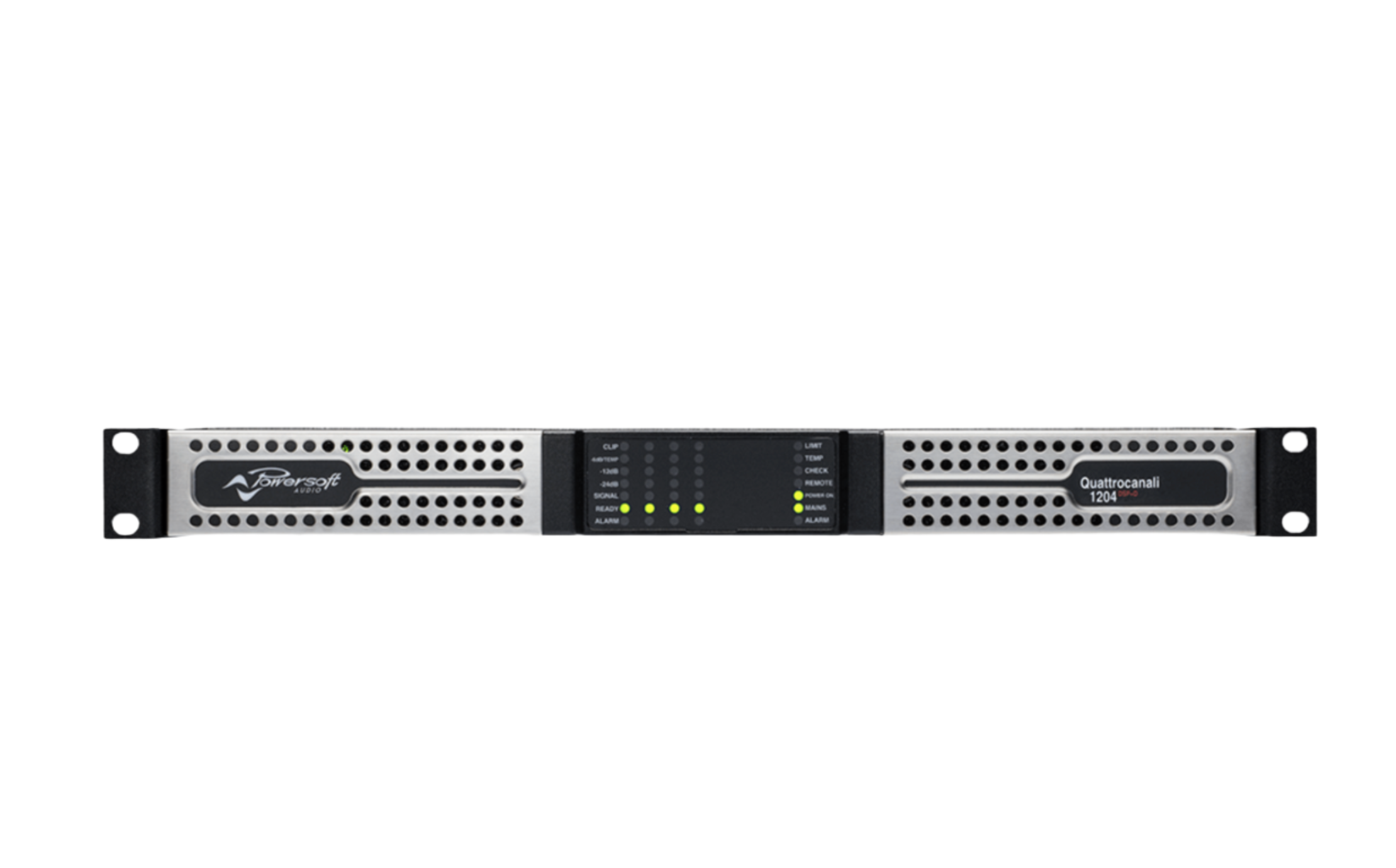

Powersoft Quattrocanali 1204 DSP+
- Regular price
- Rs. 225,680.00
- Sale price
- Rs. 225,680.00
- Regular price
-
Get free shipping on your order.
1 In Stock
Couldn't load pickup availability
Description
QUATTROCANALI 1204 DSP+ 1200W/4-channel Flexible Amplifier with DSP and AES67
Quattrocanali 1204 offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduces power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.
Quattrocanali is designed to operate with Lo-Z (from 2 Ω) and 70V/100V distributed lines or any mix of the two. DSP+ versions of the Quattrocanali grant in-depth control and monitoring via ArmoníaPlus, tailoring the sound and managing the system can be done in a remote, decentralised location.
DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS. MyPowersoft services are available for this product.
Features of Quattrocanali 1204 DSP+
Power Supply
| Feature | Description |
|---|---|
| Patented Output Filter with Ripple Cancellation Network | Minimizes ripple and noise, ensuring clean power delivery to the amplifier. |
| Low Inrush Limiting | Reduces the AC inrush current, eliminating the need for expensive power sequencers. |
| Detachable AC Mains Cable with IEC C19/22.2 Socket | Compatible with 16A for EU and 20A for USA, allowing for flexible installation. |
Protections
| Feature | Description |
|---|---|
| AC Protection | Automatically shuts down power if AC mains voltage is out of the operating range. |
| Clip Limiter | Prevents distorted waveforms from reaching the loudspeakers while maintaining peak power. |
| DC Protection | Protects the outputs from infrasonic signals that could damage the speakers. |
| VHF Protection | Safeguards speakers from strong, non-musical high-frequency signals. |
| Short Circuit Protection | Provides automatic protection and reset in case of short circuits or other stressful events. |
| Long-Term Limiter | Protects speakers from continuous non-audio (RMS) signals by reducing output. |
| Thermal Protection | Protects the output stage by monitoring temperatures up to 80°C (176°F). |
| Temperature-Controlled Variable Speed Fan | Ensures efficient cooling with front-to-back airflow, regulated by temperature. |
| Temperature Forecast with LCD Traced Historical Behavior | Displays temperature trends and historical behavior to anticipate cooling needs. |
General
| Feature | Description |
|---|---|
| Fixed Frequency Switch-Mode Output Stage | Provides high-grade sound accuracy and efficiency for optimal performance. |
| Compact Size (1 RU) | All models fit into a single rack unit, reducing rack cost and space. |
| Lightweight (7 kg/15.4 lbs) | Easy to handle and transport for racking and shipping. |

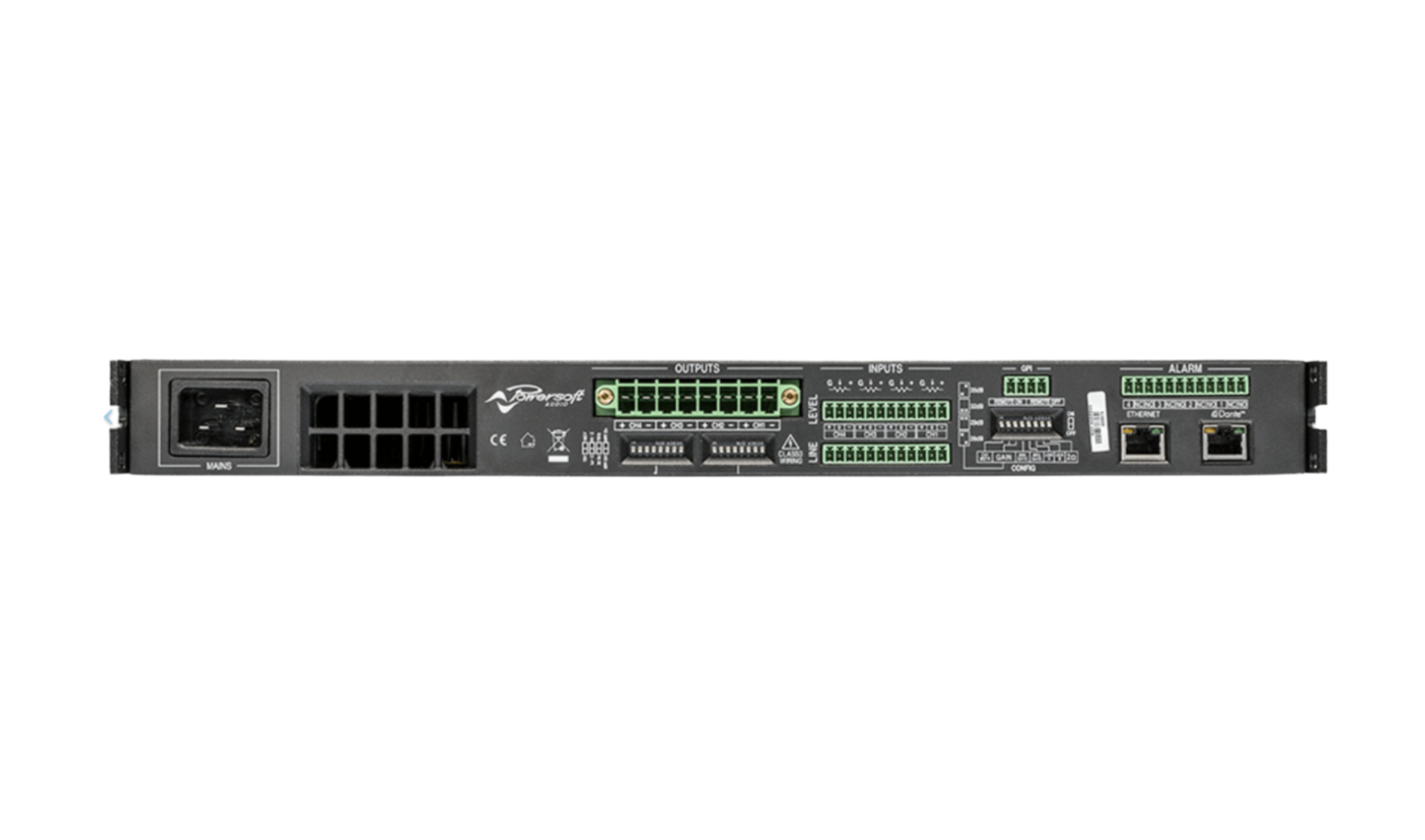

| Standard Phoenix Connectors | Includes connectors for analog audio outputs, aux supply, alarms, and GPIO. |
| Remotely Switchable Double Input per Channel | Enables remote switching between main and auxiliary inputs for each channel. |
Settings
| Feature | Description |
|---|---|
| Built-In Defeatable Clip Limiters for Each Channel | Allows users to switch clip limiters on or off for individual channels. |
| Digital Gain-Attenuator Control | Provides precise digital control over gain and attenuation levels. |
| Defeatable Gate Selection for Each Channel | Enables or disables gating for each individual channel. |
| User-Selectable Gain/Sensitivity | Users can adjust the sensitivity and gain for each channel based on requirements. |
| User-Selectable Maximum Output Power per Channel | Adjust the maximum output power for each channel for optimised performance. |
| User-Selectable Maximum Mains Current Draw | Allows users to select the maximum amount of current draw from the mains supply. |
| Lockable Setup via Access Key Code | Provides security by allowing setup to be locked with a user-selected access key. |
| Built-In Remote Control via RS-485 Interface | Full diagnostics, operational settings, and system monitoring via remote control. |
Digital Signal Processing (DSP)
| Feature | Description |
|---|---|
| TI C6000 DSP Platform | High-performance DSP platform for efficient audio processing. |
| Dual 24-bit @ 48 kHz AD/DA Converters with Tandem® Architecture | Ensures high-quality analog-to-digital and digital-to-analog conversion. |
| Independent Equalizers per Channel | Provides PEQ, raised cosine, shelving IIR filters, and custom output FIR filters for each channel. |
| Delay up to 100 ms for Time Alignment | Corrects time alignment between channels to ensure precise audio reproduction. |
| Active DampingControl™ | Compensates for cable losses, ensuring consistent sound quality over long distances. |
| Peak, RMS Voltage, RMS Current, TruePower™ Limiters | Protects the system by limiting power and preventing overload conditions. |
Remote Control and Monitoring
| Feature | Description |
|---|---|
| ArmoniaPlus Software Monitoring and Diagnostics | Offers control and diagnostics for system performance via dedicated software. |
| Dedicated WebApp | Provides a web-based application for monitoring and controlling the system. |
| Attenuation Control | Allows attenuation adjustment from 0dB to 26dB for each channel. |
| High-Pass Filters (35Hz, 70Hz) | Select between 35Hz and 70Hz high-pass filters for each channel. |
| Lo-Z/Hi-Z/70V/100V Output Selection | Allows users to select the appropriate output impedance for their system. |
| Adjustable Gain (26dB to 35dB) | Provides the ability to adjust gain levels between 26dB and 35dB for each channel. |
Specifications
General
| Specification | Details |
|---|---|
| Output Power per Channel | 400 W @ 2 Ω, 300 W @ 4 Ω, 300 W @ 8 Ω |
| Bridge Mode | 800 W @ 4 Ω, 600 W @ 8 Ω |
| Max Output Voltage / Current | Max Unclipped Voltage @ 8 Ω: 70 Vpeak, Current: 33 Apeak |
AC Main Power
| Specification | Details |
|---|---|
| Power Supply | Universal, regulated switch mode with PFC (Power Factor Correction) |
| Nominal Power Requirement | 100-240 V ±10%, 50-60 Hz |
| Operating Voltage | 90 V – 264 V |
Power Consumption / Current Draw
| Specification | Details |
|---|---|
| Idle (115V) | 31.1 W – 0.45 A |
| Idle (230V) | 31.5 W – 0.25 A |
| 1/8 of Max Output Power @ 4 Ω (115V) | 227 W – 2.1 A |
| 1/8 of Max Output Power @ 4 Ω (230V) | 251 W – 1.4 A |
Thermal
| Specification | Details |
|---|---|
| Operating Temperature Range | 0° – 45° C (32° – 113° F) |
| Thermal Dissipation (Idle) (115V) | 106 BTU/h |
| Thermal Dissipation (Idle) (230V) | 107 BTU/h |
| Thermal Dissipation (1/8 of Max Output Power @ 4 Ω) (115V) | 261 BTU/h |
| Thermal Dissipation (1/8 of Max Output Power @ 4 Ω) (230V) | 344 BTU/h |
