Quattrocanali 1204 DSP offers the traditionally amazing sound quality and reliability of all Powersoft products.
The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduce power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.
Quattrocanali is designed to operate with Lo-Z (from 2 Ω) and 70V/100V distributed lines or any mix of the two. DSP versions of the Quattrocanali grant in-depth control and monitoring via ArmoníaPlus, tailoring the sound and managing the system can be done by a remote, decentralised location.
This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS. MyPowersoft services are available for this product.
Features
Power Supply
Feature
Details
Patented Output Filter
Ripple cancellation network for improved performance
Low Inrush Limiting
Reduces AC inrush current, eliminating the need for expensive power sequencers
Detachable AC Mains Cable
IEC C19/22.2 (16A for EU, 20A for USA) socket for easy connection
Protections
Protection Type
Details
AC Protection
Shuts down power supply when AC mains voltage is outside operating range
Clip Limiter
Prevents severely clipped waveforms from reaching loudspeakers while maintaining full peak power output
DC Protection
Protects against infrasonic signal at the outputs
VHF Protection
Protects loudspeakers from non-audible, strong, non-musical high-frequency signals
Short Circuit Protection
Protects the amplifier from short circuits with automatic protection reset
Long Term Limiter
Protects loudspeakers from long-term RMS (non-audio) signals by reducing maximum output
Thermal Protection
Protects the output stages at temperatures up to 80 °C (176 °F)
Temperature-Controlled Fan
Variable speed fan with front-to-back airflow for efficient cooling
Temperature Forecast with LCD
Historical behavior tracking for improved temperature management
General Features
Feature
Details
Switch-Mode Output Stage
Fixed frequency switch-mode output stage for high-grade sound accuracy
Compact Size
Only 1RU for reduced rack cost and space
Light Weight
Weighs 7 kg (15.4 lbs) for easier racking and shipping

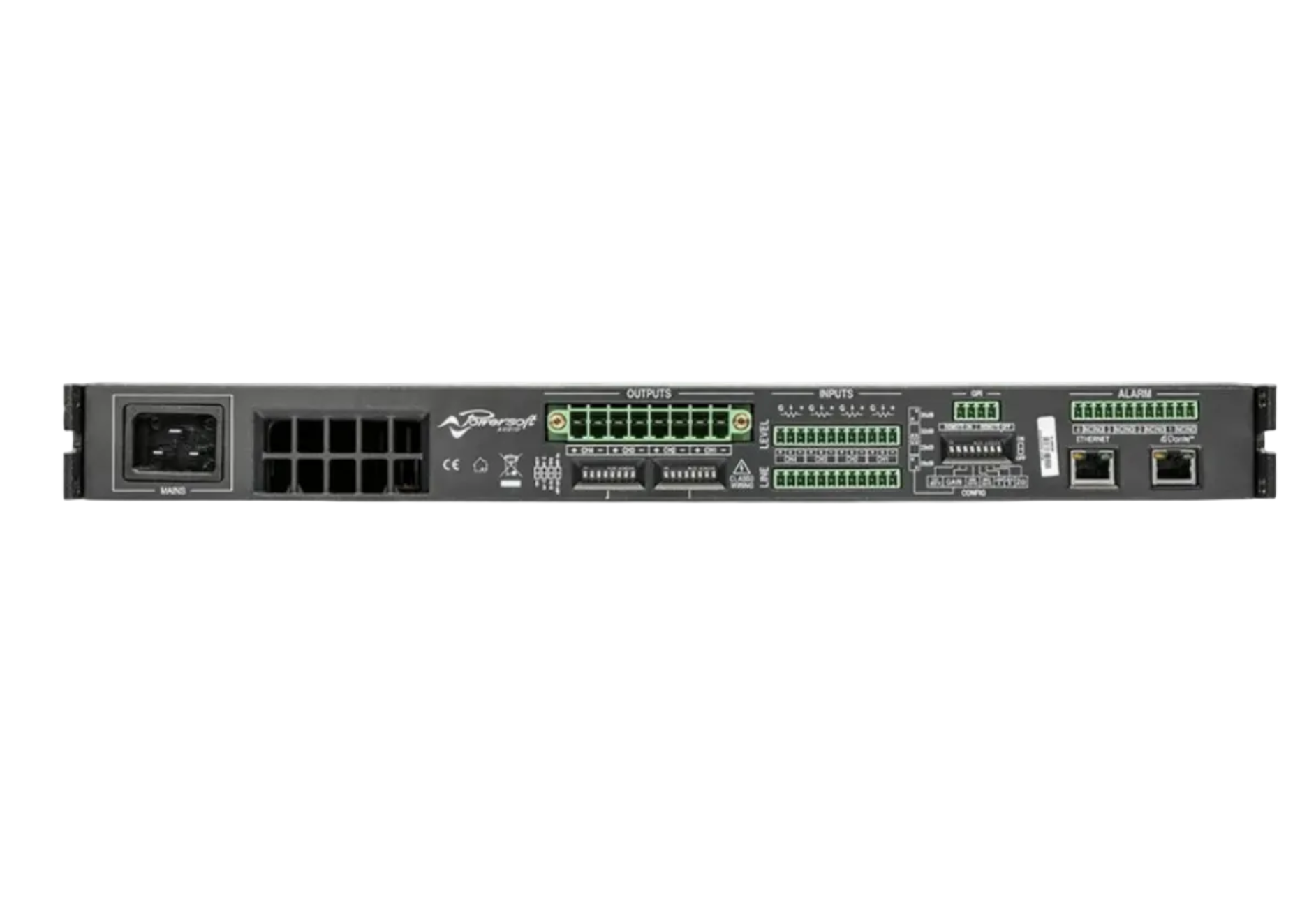

Standard Phoenix Connectors
For analog audio outputs, aux supply, alarms, and GPIO
Remotely Switchable Double Input per Channel
Main and auxiliary inputs per channel with remote switching
Settings
Setting Feature
Details
Clip Limiters
Built-in defeatable clip limiters for each channel
Digital Gain-Attenuator Control
Provides precise control over output levels
Gate Selection
Defeatable gate selection for each channel
User Selectable Gain/Sensitivity
Allows users to adjust gain and sensitivity per channel
User Selectable Maximum Output Power
Adjust maximum output power per channel
User Selectable Maximum Mains Current Draw
Adjust maximum current draw from the mains
Lockable Setup
Lockable setup with a user-selectable access key code for security
RS-485 Interface
Built-in remote control for diagnostics, operational settings, and system monitoring
Digital Signal Processing
Feature
Details
TI C6000 DSP Platform
High-performance DSP platform for precise signal processing
Accurate power limiting to avoid distortion and protect the system
Remote Control and Monitoring
Control Method
Details
Software Control
Control and diagnostics via ArmoniaPlus software and dedicated WebApp
Hardware Control
Attenuation (0dB to 26dB), High-pass filters (35Hz, 70Hz), Lo-Z/Hi-Z/70V/100V output selection, Adjustable gain (26dB to 35dB)
Specifications
General
Category
Details
Output Power per Channel
400 W @ 2 Ω, 300 W @ 4 Ω, 300 W @ 8 Ω
Bridge Mode
800 W @ 4 Ω, 600 W @ 8 Ω
Max Output Voltage / Current
Category
Details
Max Unclipped Voltage @ 8 Ω
70 Vpeak
Current
33 Apeak
AC Main Power
Category
Details
Power Supply
Universal, regulated switch mode with PFC
Nominal Power Requirement
100-240 V ±10%, 50-60 Hz
Operating Voltage
90 V – 264 V
Power Consumption / Current Draw
Category
Details
Idle
115 V: 31.1 W – 0.45 A, 230 V: 31.5 W – 0.25 A
1/8 of Max Output Power @ 4 Ω
115 V: 227 W – 2.1 A, 230 V: 251 W – 1.4 A
Thermal
Category
Details
Operating Temperature Range
0° – 45° C, 32° – 113° F
Thermal Dissipation*
Idle
115 V: 106 BTU/h, 230 V: 107 BTU/h
1/8 of Max Output Power @ 4 Ω
115 V: 261 BTU/h, 230 V: 344 BTU/h
