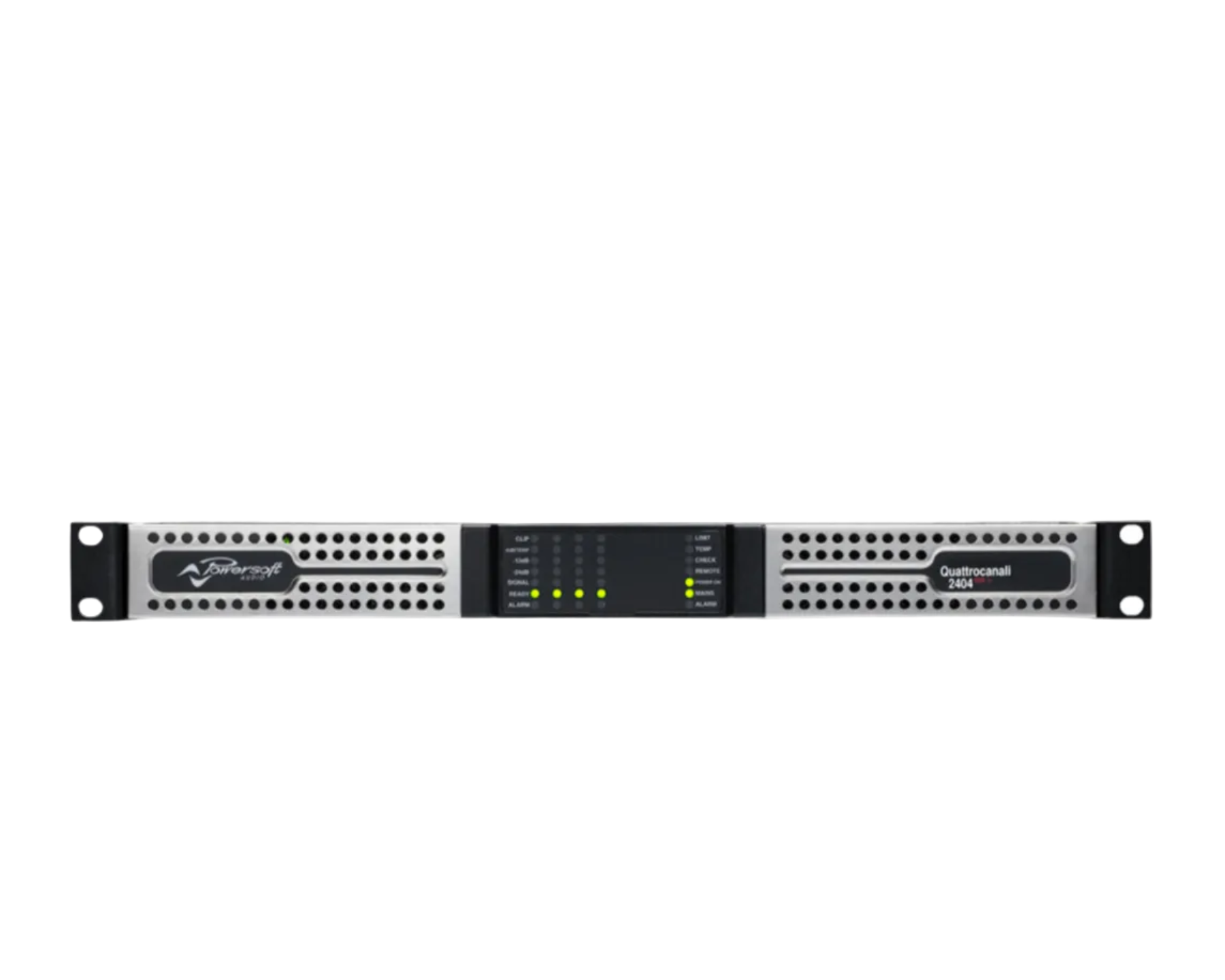

Powersoft Quattrocanali 2404 DSP+
- Regular price
- Rs. 277,980.00
- Sale price
- Rs. 277,980.00
- Regular price
-
Couldn't load pickup availability
Description
FOUR CHANNEL 2404 DSP+ 2400W/4-Channel Flexible Amplifier with DSP and AES67
Quattrocanali 2404 DSP+ offers the renowned quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system, in any load and usage conditions.Quattrocanali offers the lowest thermal dissipation in the industry, eliminating the need for external cooling units.
Quattrocanali is designed to be used with low impedance loads (from 2 Ω) and with 70/100V distributed systems: it is also possible to mix the different types of load in any combination.The DSP+ versions of Quattrocanali guarantee remote control and monitoring functions via Armonìa. The DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio network architecture.
This amplifier platform can be implemented in critical applications, such as alarm systems, thanks to the power supply that guarantees operability even when connected to a UPS. MyPowersoft services are available for this product.
Functionality
Power Supply
| Feature | Specification |
|---|---|
| Power Supply Technology | Legendary Powersoft universal power supply with switch mode technology up to 400 VAC with Power Factor Correction |
| Inrush Current | Low inrush current reduces power consumption at start-up, eliminating the need for expensive power sequencers |
| Power Cord | Detachable IEC C19/22.2 plug (16A for EU, 20A for USA) |
Protections
| Feature | Specification |
|---|---|
| AC Protection | Power off when mains voltage is out of range |
| Clip Limiter | Prevents signals with too high a peak value from reaching the speakers, while maintaining full peak power |
| DC Protection | Prevents infrasonic signals from reaching the output |
| VHF Protection | Protects speakers from inaudible and non-musical signals |
| Short Circuit Protection | Protects the amplifier from short circuit or other stressful events to the output |
| Long-Term Limiter | Protects the speaker from long-term stationary signals (non-audio) by reducing the output signal |
| Thermal Protection | Output stage operating temperature up to 80°C (176°F) |
| Temperature Control | Variable speed fan with front/back airflow |
General
| Feature | Specification |
|---|---|
| Output Stage | Fixed-frequency switch-mode for a high degree of sonic accuracy |
| Size | Compact size – 1 RU (reduced space and cost) |
| Weight | 7 kg (easy to transport) |

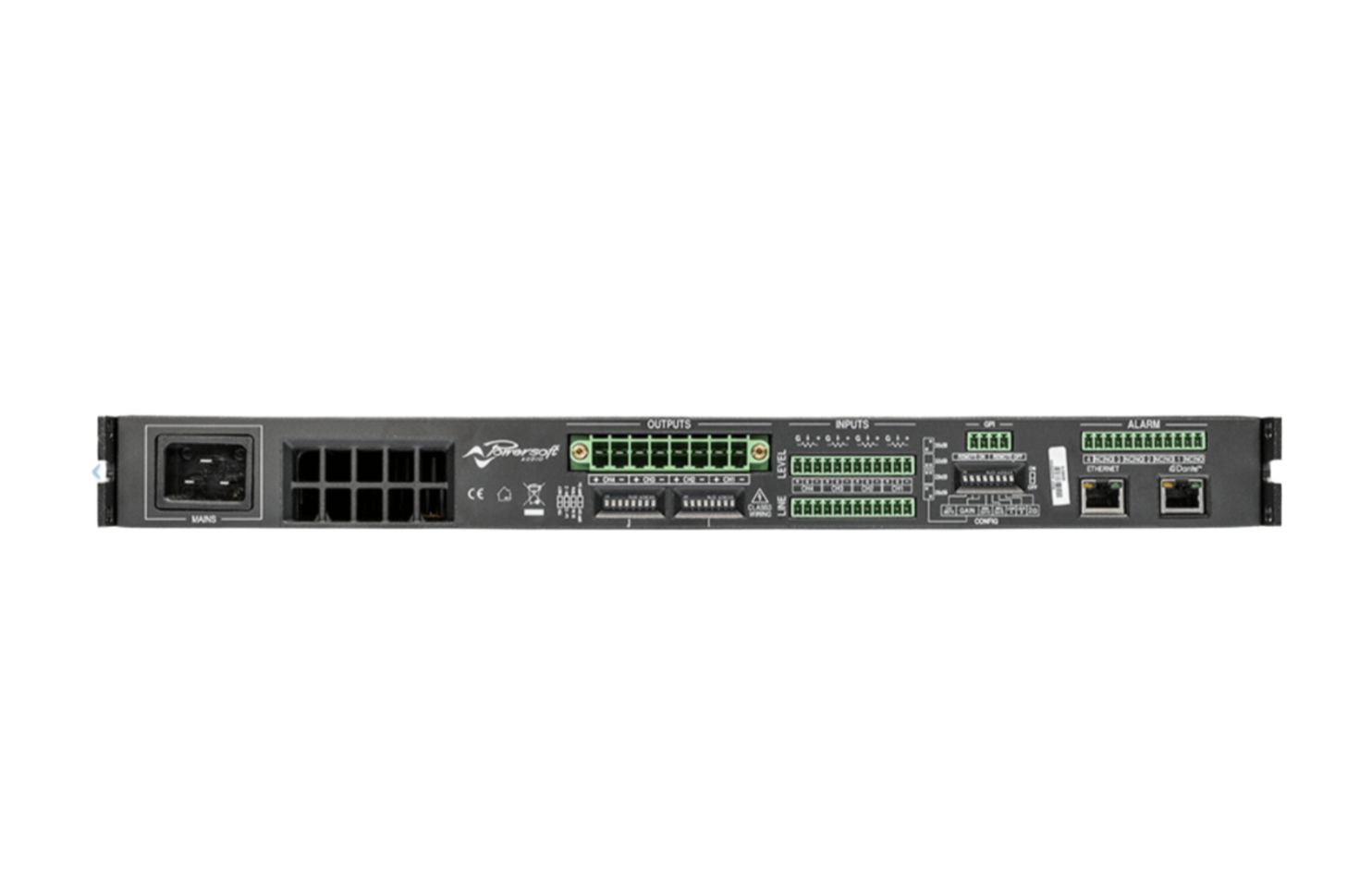

| Connectors | Standard Phoenix connectors: analog inputs, audio outputs, aux, alarms, and GPIO |
| Remote Channel Input | Main and aux inputs remotely switchable per channel |
Settings
| Feature | Specification |
|---|---|
| Clip Limiter | Switchable for each channel |
| Gain/Attenuation Control | Digital gain/attenuation control |
| Gate Selection | Excludable gate selection for each channel |
| Gain/Sensitivity | User-selectable gain/sensitivity |
| Maximum Output Power | User-selectable maximum output power for each channel |
| Maximum Current Absorption | User-selectable maximum current absorption from the network |
| Access Key | User-selectable settings access key |
| Remote Control | Remote control via RS-485 interface for diagnostics, operational settings, and system monitoring |
Digital Signal Processing (DSP)
| Feature | Specification |
|---|---|
| DSP Platform | TI C6000 |
| AD/DA Converters | Dual 24-bit @ 48 kHz Tandem® |
| Equalizers | Independent input/output equalizers with PEQ, raised cosine, custom IIR and FIR shelving filters |
| Delay | Up to 16 ms for time alignment |
| Active DampingControl™ | Cable loss compensation |
| Limiters | Peak limiters, RMS voltage, RMS current, TruePower™ limiters |
Remote Control and Monitoring
| Feature | Specification |
|---|---|
| Software Control | Monitoring, control, and diagnostics via ArmoniaPlus, Dedicated WebApp |
| Hardware Control | Attenuation control (0dB to 26dB), High-pass filters (35 Hz, 70 Hz), Lo-Z/Hi-Z/70V/100V selection, Gain (26dB to 35dB) |
Technical Specifications
General Spec
| Feature | Specification |
|---|---|
| Output Power per Channel | 800W @ 2Ω, 600W @ 4Ω, 600W @ 8Ω |
| Bridge Mode Output Power | 1600W @ 4Ω, 1200W @ 8Ω |
| Max Output Voltage / Current | Max unclipped voltage @ 8Ω: 100Vpeak |
| Max Current Output Voltage | Current: 45Apeak |
AC Mains Power
| Feature | Specification |
|---|---|
| Power Supply | Universal, regulated switch mode with PFC (Power Factor Correction) |
| Nominal Power Requirement | 100-240V ±10%, 50-60Hz |
| Operating Voltage | 90V – 264V |
Power Consumption / Current Draw
| Feature | Specification (115V) | Specification (230V) |
|---|---|---|
| Idle Power Consumption | 31.1W – 0.45A | 31.5W – 0.25A |
| 1/8 of Max Output Power @ 4Ω | 405W – 2.1A | 405W – 2.5A |
Thermal Specifications
| Feature | Specification (115V) | Specification (230V) |
|---|---|---|
| Operating Temperature Range | 0° – 45° C (32° – 113° F) | |
| Thermal Dissipation (Idle) | 106 BTU/h | 107 BTU/h |
| Thermal Dissipation (1/8 Power @ 4Ω) | 360 BTU/h | 360 BTU/h |
