powersoft Quattrocanali 8804 DSP+D 9600W/4-channel Flexible Amplifier with DSP and Dante
- Regular price
- Rs. 422,775.00
- Sale price
- Rs. 422,775.00
- Regular price
-
Couldn't load pickup availability
Description
QUATTROCANALI 8804 DSP+D 9600W/4-channel Flexible Amplifier with DSP and Dante™
Quattrocanali 8804 DSP+D offers the traditionally amazing sound quality and reliability of all Powersoft products. The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduce power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.
Quattrocanali is designed to operate with Lo-Z (from 2 Ω) and 70V/100V distributed lines or any mix of the two. DSP+D versions of the Quattrocanali grant in-depth control and monitoring via ArmoníaPlus, tailoring the sound and managing the system can be done by a remote, decentralised location.
This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS. MyPowersoft services are available for this product.
Features
The power supply features a patented output filter with a ripple cancellation network, ensuring clean and stable performance. It is equipped with inrush limiting technology, which effectively reduces AC inrush current and eliminates the need for costly power sequencers. Additionally, the unit comes with a detachable AC mains cable, compatible with IEC C19/22.2 sockets—supporting 16A for the EU and 20A for the USA.
Specifications
Protection
| Protection Type | Description |
|---|---|
| AC Protection | Shuts down power supply when AC mains voltage is outside the operating range |
| Clip Limiter | Prevents severely clipped waveforms from reaching loudspeakers while maintaining full peak power |
| DC Protection | Protects against infrasonic signal at the outputs |
| VHF Protection | Protects loudspeakers against non-audible, strong, non-musical high-frequency signals |
| Short Circuit Protection | Protects amplifier from short circuit or other stressful events with automatic protection reset |
| Long-Term Limiter | Protects loudspeakers against steady long-term RMS (non-audio) signals by reducing maximum output |
| Thermal Protection | Protects output stages operating temperature up to 80°C (176°F) |
| Temperature-Controlled Fan | Continuous variable speed fan, front-to-back airflow |
General
| Specification | Details |
|---|---|
| Output Stage | Fixed frequency switch-mode for high-grade sound accuracy |
| Rack Size | Compact – Only 1RU for reduced rack cost and space |
| Weight | 7 kg (15.4 lbs) for easier racking and shipping |

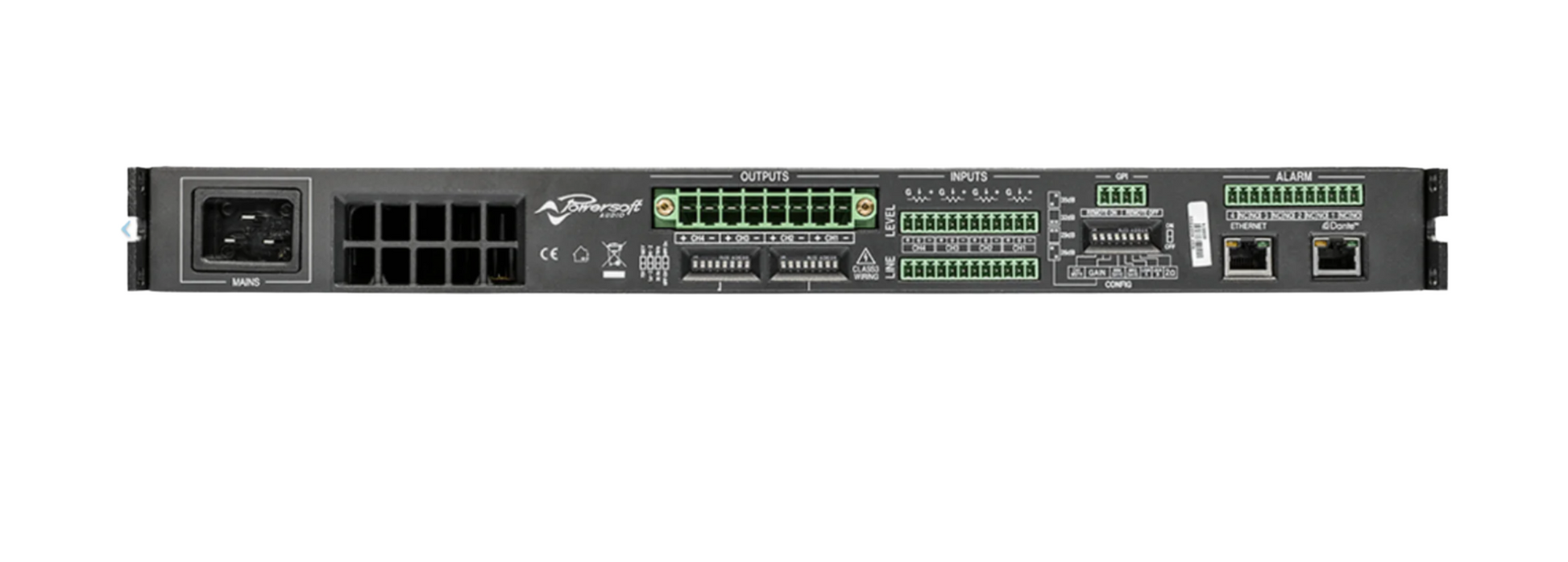

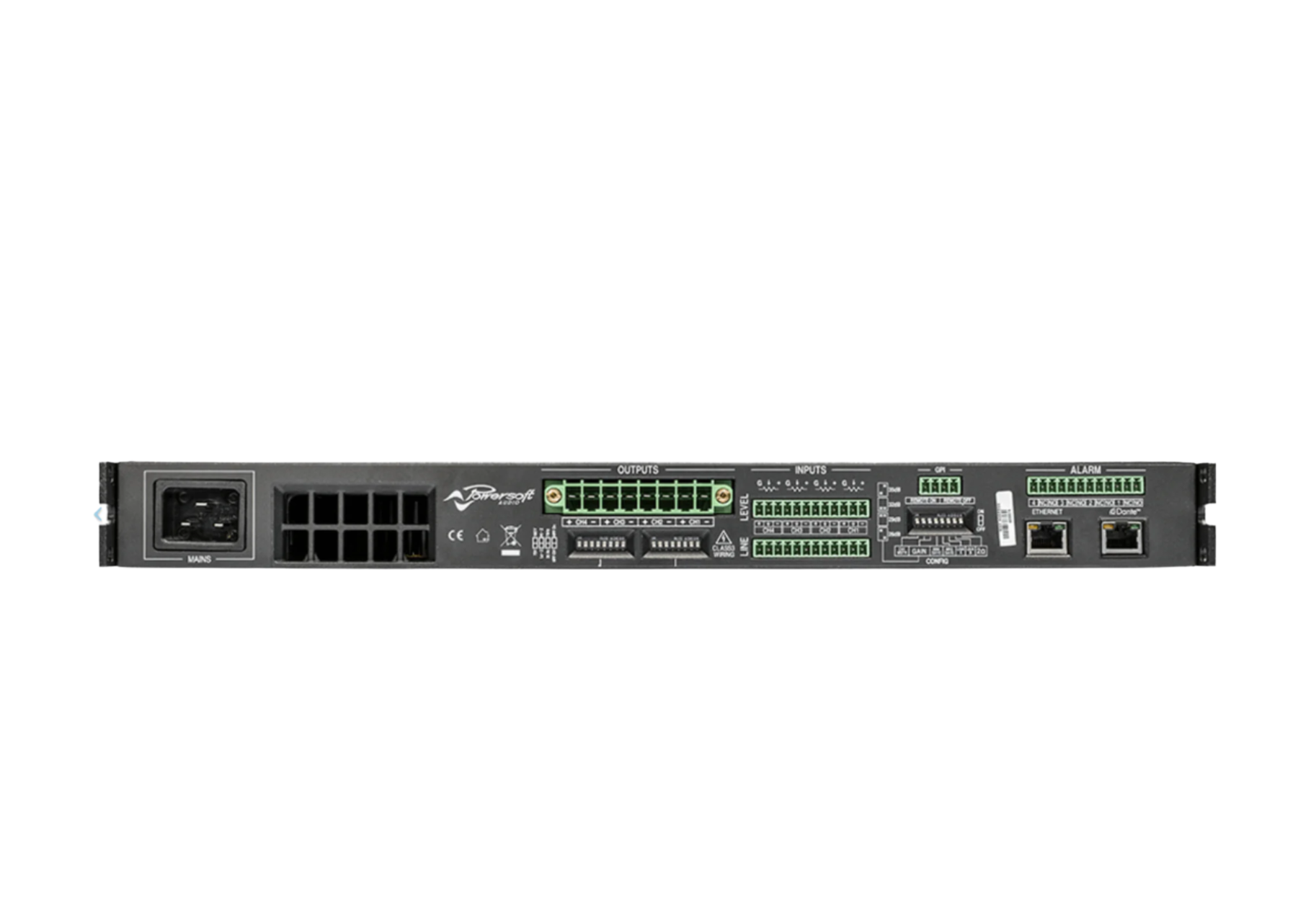

| Connectors | Standard Phoenix connectors: analog audio outputs, aux supply, alarms, GPIO |
| Input Control | Remotely switchable double input (main and aux) per channel |
Settings
| Setting Type | Details |
|---|---|
| Clip Limiters | Built-in defeatable clip limiters for each channel |
| Digital Gain Control | Digital gain-attenuator control |
| Gate Selection | Defeatable gate selection for each channel |
| Gain/Sensitivity | User-selectable gain/sensitivity |
| Max Output Power | User-selectable maximum output power for each channel |
| Max Mains Current Draw | User-selectable maximum mains current draw |
| Lockable Setup | Lockable setup by user-selectable access key code |
| Remote Control | Built-in remote control via RS-485 interface for full diagnostics, operational settings, and system monitoring |
Digital Signal Processing
| Specification | Details |
|---|---|
| DSP Platform | TI C6000 DSP platform |
| AD/DA Converter | Dual 24bit @ 48 kHz Tandem® architecture |
| Input/Output Equalizers | Independent PEQ, raised cosine, shelving IIR filters, and custom output FIR filters |
| Delay | Up to 100 ms for time alignment |
| Damping Control | Active DampingControl™ for cable compensation |
| Limiters | Peak, RMS voltage, RMS current, TruePower™ limiters |
Remote Control and Monitoring
| Control and Monitoring Method | Details |
|---|---|
| Software Monitoring | Control and diagnostics via ArmoníaPlus and Dedicated WebApp |
| Hardware Control | Attenuation (from 0dB to 26dB), High-pass filters (35Hz, 70Hz), Lo-Z/Hi-Z/70V/100V output selection, Adjustable gain (from 26dB to 35 dB) |
