Powersoft Unica 4L | 12K4 Power Amplifier

3rd Generation Amplification Technology

The Powersoft Unica 4L employs state-of-the-art amplification architecture that maximizes audio performance and reliability. This third-generation technology allows for advanced processing capabilities, including precise audio control and monitoring. The result is a powerful solution designed to handle the complexities of modern audio systems.

Networking Capabilities

Equipped with three configurable 1Gb Ethernet ports, the Unica 4L enables flexible networking options. Users can set up daisy-chain configurations or utilize Dante redundancy for increased reliability. The amplifier supports both Switched and Split-Redundant operating modes, ensuring efficient management of audio over IP traffic while maintaining network security with dedicated configuration options.

Power over Ethernet (PoE) Input

The PoE input feature allows the amplifier’s logic circuitry and network ports to remain powered even during mains loss. This ensures quick recovery after power restoration and allows for monitoring of loudspeakers and output circuitry without mains power. The capability to operate on PoE++ enhances deployment flexibility.

Enhanced Power Sharing

The Unica 4L boasts advanced Power Sharing capabilities, enabling each output channel to deliver up to twice its rated power when loaded asymmetrically. This feature enhances versatility in system design and allows seamless integration of both low-impedance and 70/100V loudspeakers without requiring mode configuration.

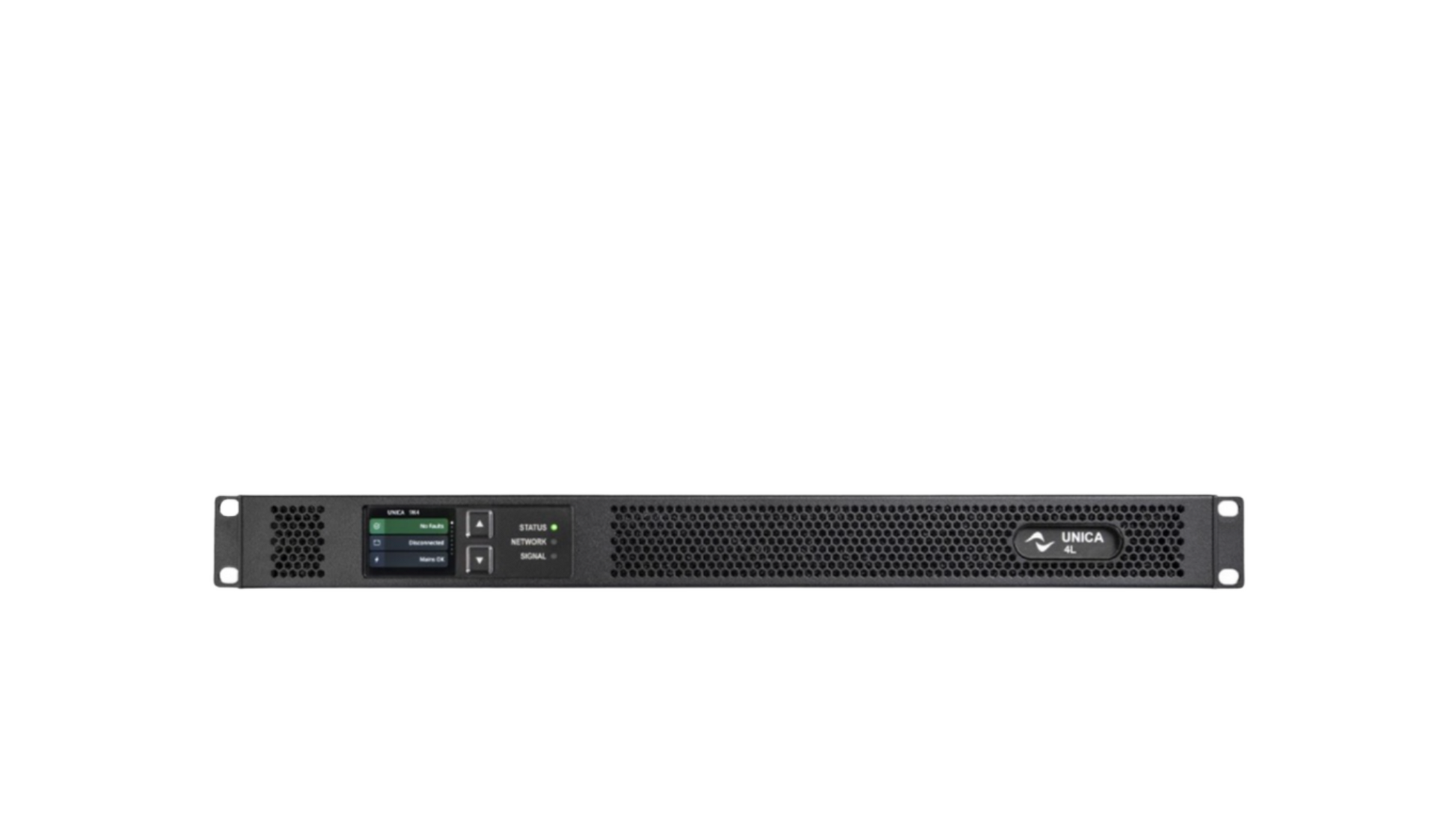

Front Panel LCD Display

A user-friendly front panel LCD display provides instant access to the amplifier’s status, simplifying troubleshooting and monitoring. The display offers essential information, making maintenance straightforward and efficient.

ArmoníaPlus Software Integration

The Unica 4L is fully compatible with Powersoft’s ArmoníaPlus software, allowing users to adjust amplifier parameters, load speaker presets, and fine-tune complex audio systems easily. This software enhances control and customisation, ensuring optimal performance.

Eco Mode

The Eco Mode feature automatically turns off output channels when audio signals are absent, minimising energy consumption. Channels power back on instantly upon signal detection, ensuring that audio performance remains unaffected while saving energy.

Easy Swap Functionality

The Easy Swap feature facilitates quick amplifier replacement without requiring specific product knowledge. This is made possible by the Unica’s ability to store backups on a USB flash drive. Users can restore backups to a replacement amplifier effortlessly by following simple instructions on the front-panel display.

Universo Cloud Connectivity

The Unica 4L offers cloud-native connectivity, allowing users to monitor the amplifier’s status remotely from any device. This feature enhances accessibility and control, making it easy to manage audio installations from anywhere in the world.

Output Power

The amplifier delivers impressive output power, offering 3000 W at 2 Ω, 3000 W at 4 Ω, and 2000 W at 8 Ω per channel. In bridge mode, it provides 6000 W at both 4 Ω and 8 Ω, ensuring sufficient power for demanding applications.
