Unica represents the next generation of cloud based amplifier platforms featuring high power density, top-shelf sound quality, and class-leading efficiency, designed to fulfil the requirements of medium to large installations with a single product family, providing a consistent user experience. The all-new power supply section takes efficiency and world-operability to higher heights, resulting in less power dispersed through wasted heat. These performances, coupled with a clever approach to heat management, allow a drastic reduction in fan noise. The DSP section is operable even when only PoE+ power is available, simplifying deployment and pre-configuration operations.
Thanks to a firmware-level protocol, audio over IP is managed through both Dante and AES67 protocols, and networking is achieved through 3 ethernet ports, allowing both Dante redundancy and splitting control vs AoIP traffic. Enhanced Power Sharing capabilities have been developed for the output section, with each output channel capable of delivering up to twice the power when loaded asymmetrically. Unica also represents a significant milestone in Powersoft’s development of IoT devices with cloud-native connectivity and remote monitoring functions without needing specific product registration or configuration. Cloud integration allows storing and sharing projects online, keeping the amplifier’s firmware up to date, or may be used for simple integration in third-party systems through API.
Technical Specifications
Amplification Technology
Feature
Description
Architecture
State-of-the-art processing and amplification for top-tier audio performance and reliability
System Capabilities
Advanced processing, networking, and monitoring for complex audio environments
Networking
Feature
Description

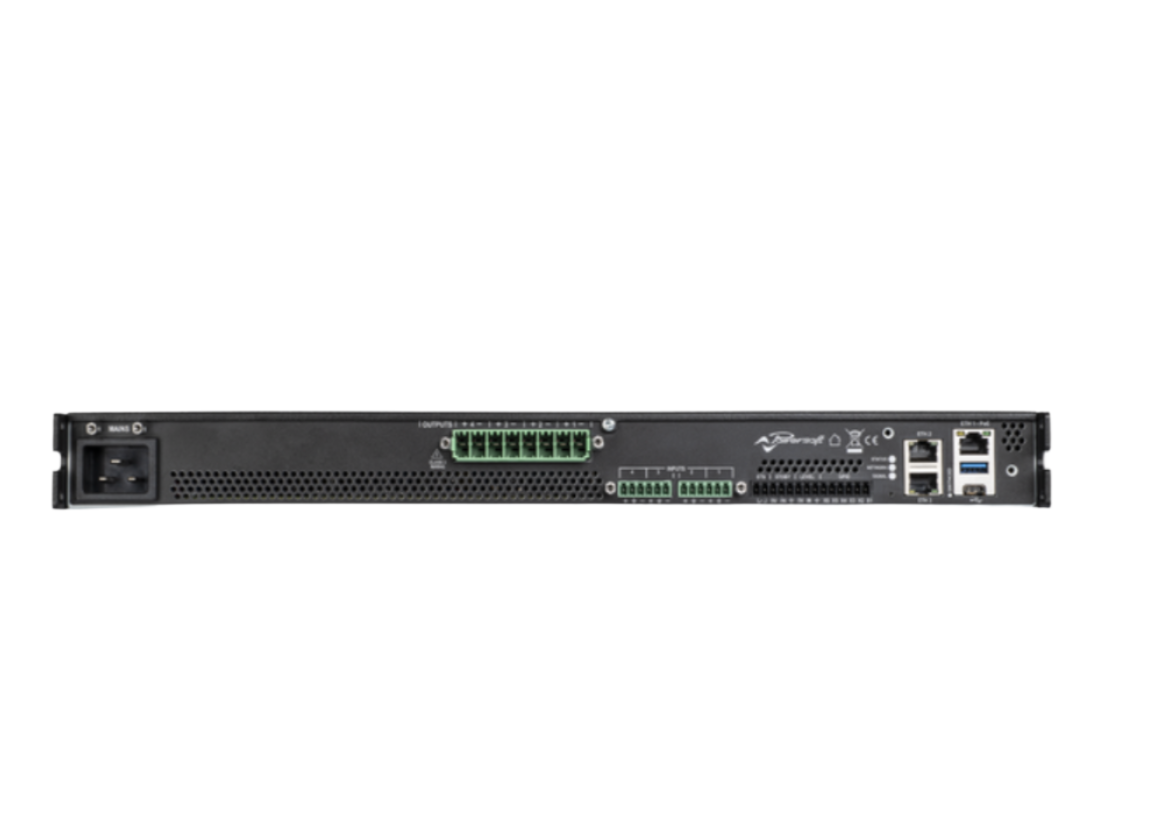

Network Ports
Three configurable 1Gb ports supporting daisy-chain and Dante-redundant topologies
Operating Modes
Switched Mode and Split-Redundant Mode:• 1 port for control• 2 ports for Dante/AES67 (traffic separation)
Network Security
Dedicated webpage for advanced network-security configuration
PoE Input
Feature
Description
Power over Ethernet
Keeps network ports and amplifier logic powered during mains power loss
Wake-Up Time
Short delay before resuming full operation after power is restored
Unica Platform Support
Allows loudspeaker and output monitoring without mains power when powered via PoE++
Power Sharing
Feature
Description
Dynamic Output Power
Each channel can deliver up to twice its rated power when asymmetrically loaded
Impedance Flexibility
Supports 70V/100V and low-impedance loudspeakers down to 2 Ω
Bridging Support
Channels can be bridged for higher output power
Loudspeaker Diagnostics
Extensive tools for loudspeaker condition and performance monitoring

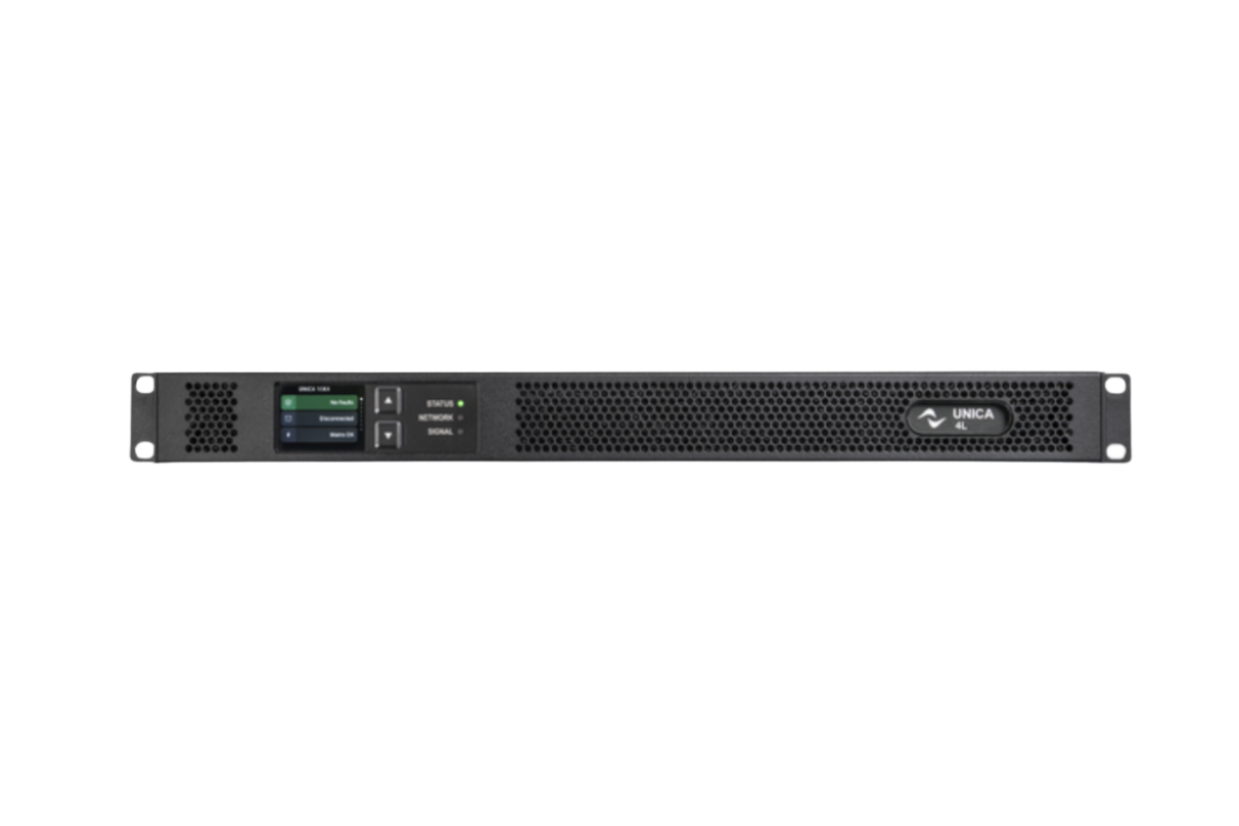

Front Panel Display
Feature
Description
User Interface
Displays amplifier status, diagnostics, and system information for troubleshooting and maintenance
ArmoníaPlus Software Integration
Feature
Description
Software Functionality
Enables full network connectivity and access to onboard DSP and system settings
User Adjustments
Simplifies parameter changes, speaker preset loading, and tuning complex setups
Eco Mode
Feature
Description
Energy Efficiency
Automatically disables unused output channels when idle
Fast Reactivation
Channels power up instantly when audio is detected, without affecting performance
Easy Swap
Feature
Description
Quick Replacement
No special knowledge required to swap amplifiers in the field
Backup & Restore
USB-based backup system for effortless configuration transfer between units
Universo Cloud Platform
Feature
Description
Cloud Monitoring
Remote amplifier status monitoring and diagnostics from any device, anywhere via Powersoft's Universo platform
