Powersoft Unica 8M I 1K8 Power Amplifier

Description

Unica represents the next generation of cloud based amplifier platforms featuring high power density, top-shelf sound quality, and class-leading efficiency, designed to fulfill the requirements of medium to large installations with a single product family, providing a consistent user experience.The all-new power supply section takes efficiency and world-operability to higher heights, resulting in less power dispersed through wasted heat. These performances, coupled with a clever approach to heat management, allow a drastic reduction in fan noise. The DSP section is operable even when only PoE+ power is available, simplifying deployment and pre-configuration operations.Thanks to a firmware-level protocol, audio over IP is managed through both Dante and AES67 protocols, and networking is achieved through 3 ethernet ports, allowing both Dante redundancy and splitting control vs AoIP traffic.

Enhanced Power Sharing capabilities have been developed for the output section, with each output channel capable of delivering up to twice the power when loaded asymmetrically. Unica also represents a significant milestone in Powersoft’s development of IoT devices with cloud-native connectivity and remote monitoring functions without needing specific product registration or configuration. Cloud integration allows storing and sharing projects online, keeping the amplifier’s firmware up to date, or may be used for simple integration in third-party systems through API.

Features

High-Density, Network-Driven Performance

The Powersoft Unica 8M | 1K8 is a next-generation installation amplifier engineered for maximum power density, advanced networking, and intelligent system control. Built on Powersoft’s latest amplification platform, it delivers exceptional audio quality, operational efficiency, and future-ready connectivity for complex professional audio environments.

3rd Generation Powersoft Amplification Technology

At the core of the Unica 8M | 1K8 is Powersoft’s 3rd Generation amplification technology, featuring a state-of-the-art processing and amplification architecture. This platform ensures superior sound quality, enhanced efficiency, and long-term reliability even under demanding continuous-use conditions.

Advanced Network Architecture

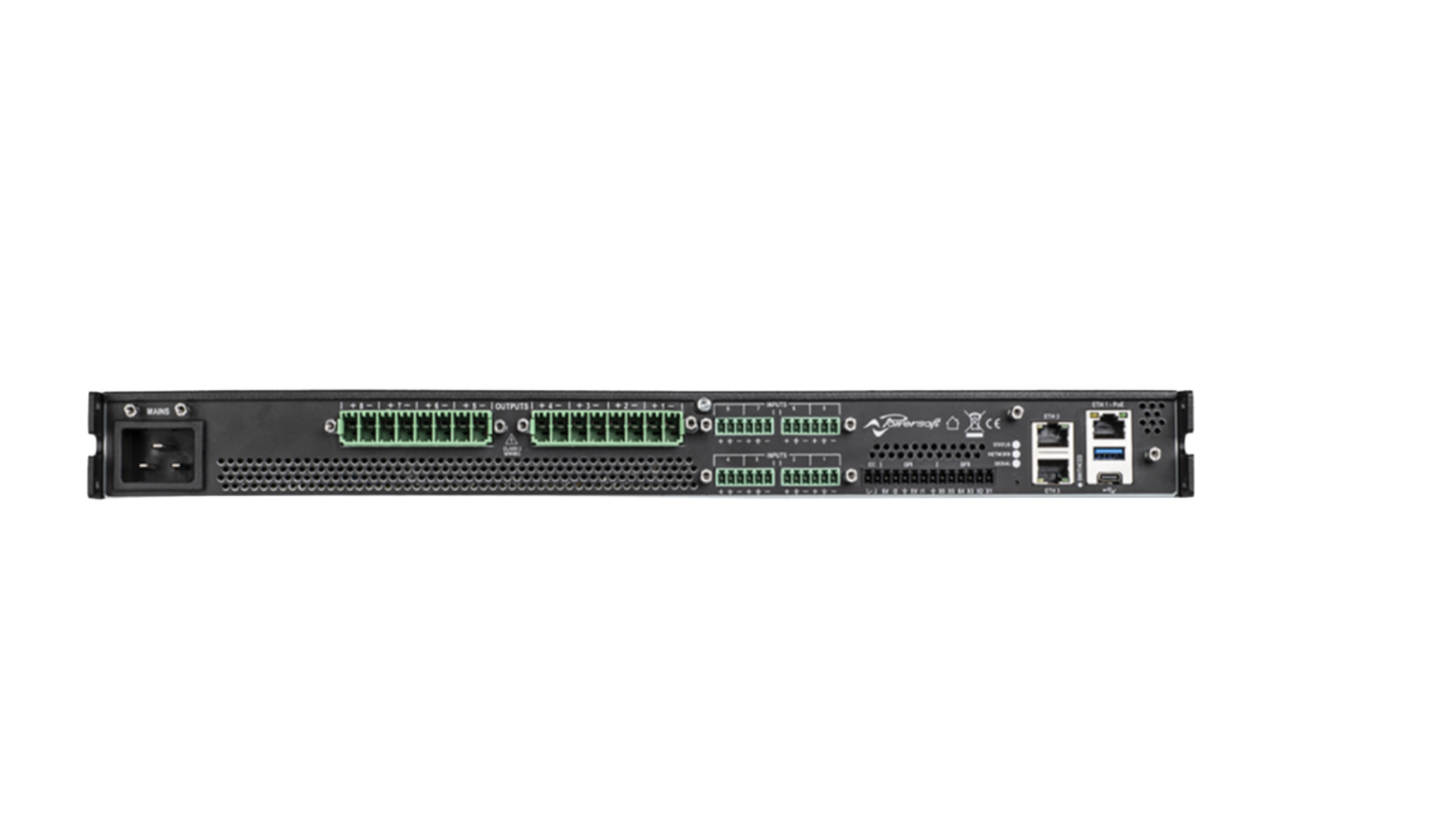

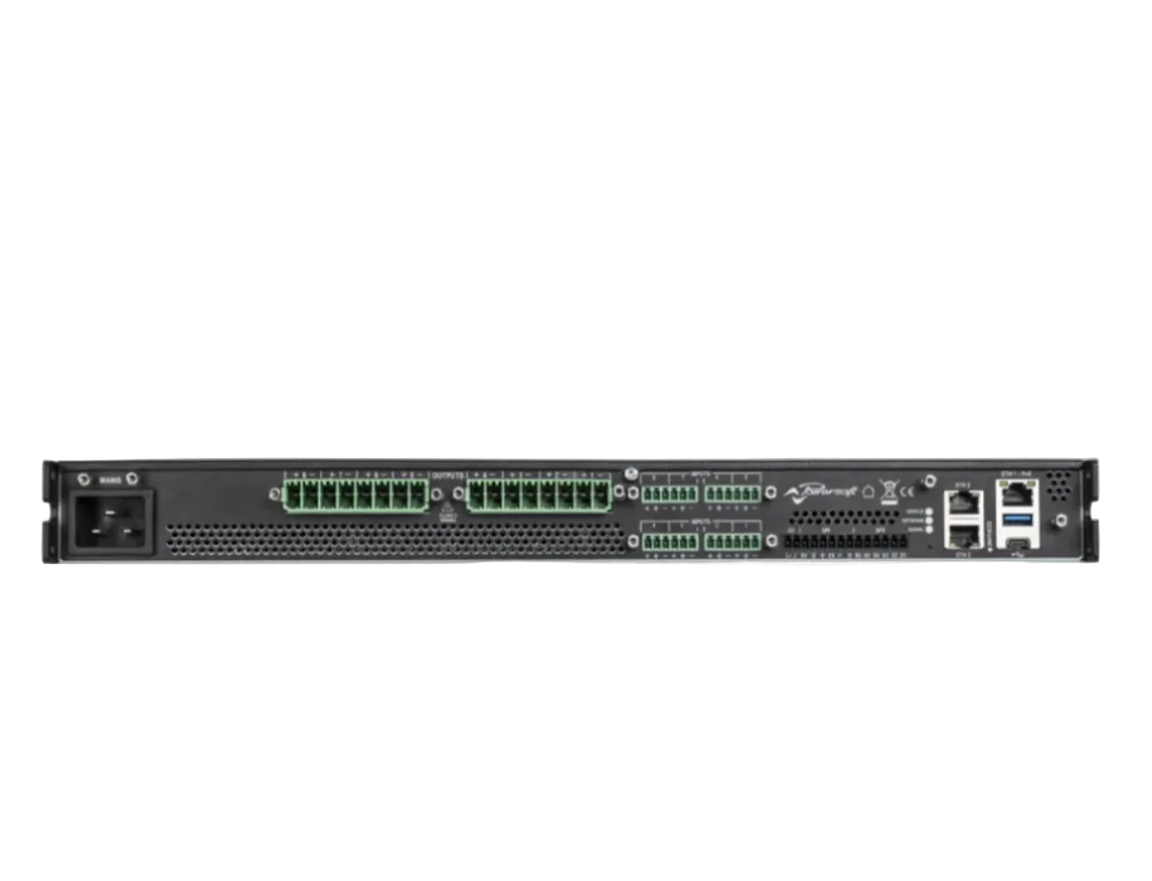

The amplifier is equipped with three fully configurable 1Gb Ethernet ports, supporting daisy-chain and Dante-redundant network topologies in both switched and split-redundant modes. A dedicated network-security webpage provides enhanced protection and control, making the Unica 8M suitable for mission-critical and large-scale installations.

PoE Input for System Resilience

Power over Ethernet (PoE++) input allows the network ports and amplifier logic to remain operational during mains power loss. This enables faster wake-up times and ensures continuous monitoring of loudspeakers and amplifier circuitry, even when the main power supply is unavailable.

Intelligent Power Sharing

Unica 8M | 1K8 features dynamic power sharing, allowing outputs to deliver up to twice their rated power when channels are asymmetrically loaded. It supports both 70V/100V distributed systems and low-impedance loudspeakers down to 2Ω without requiring manual mode configuration, offering unmatched deployment flexibility.

Front Panel Display and Local Monitoring

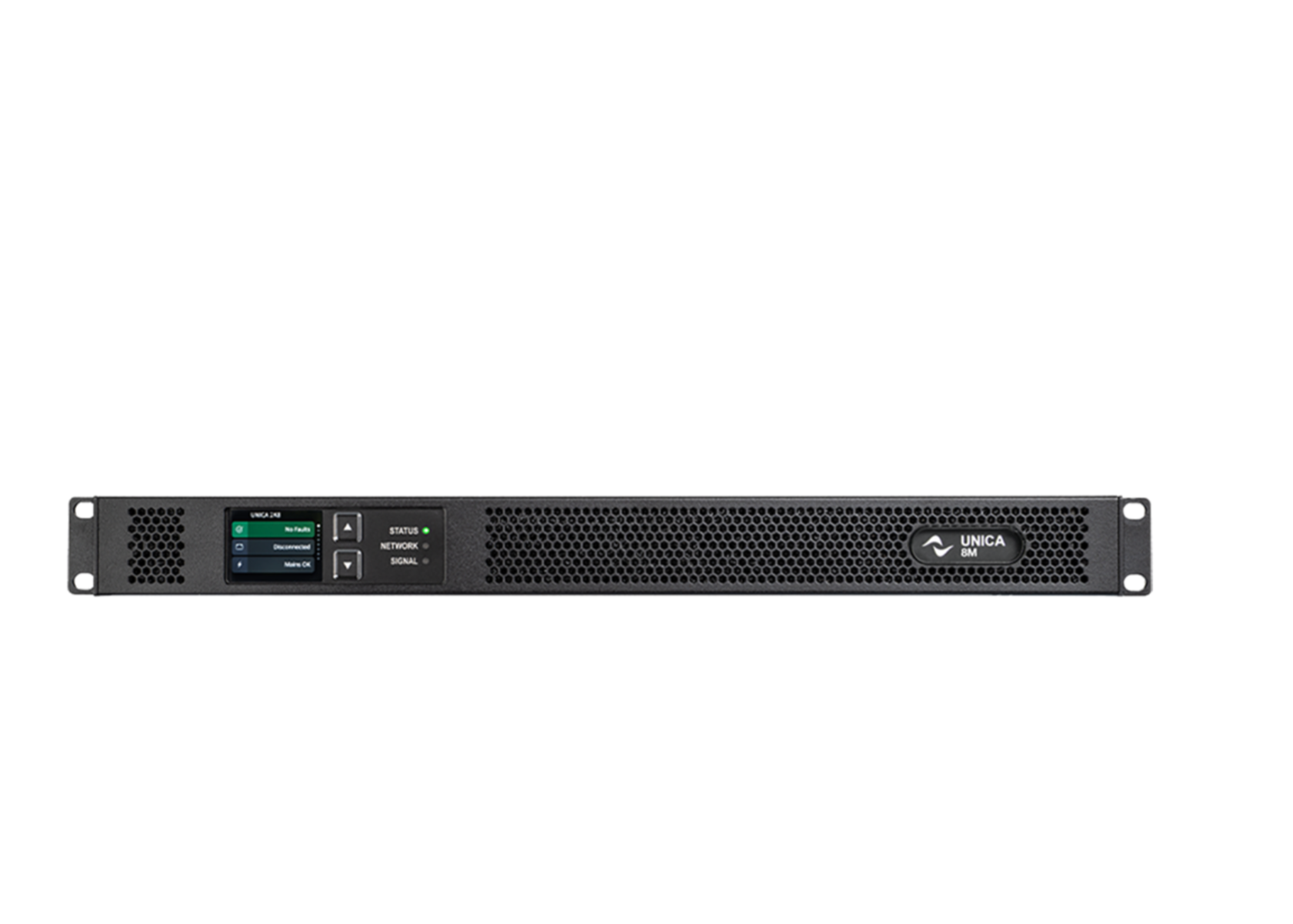

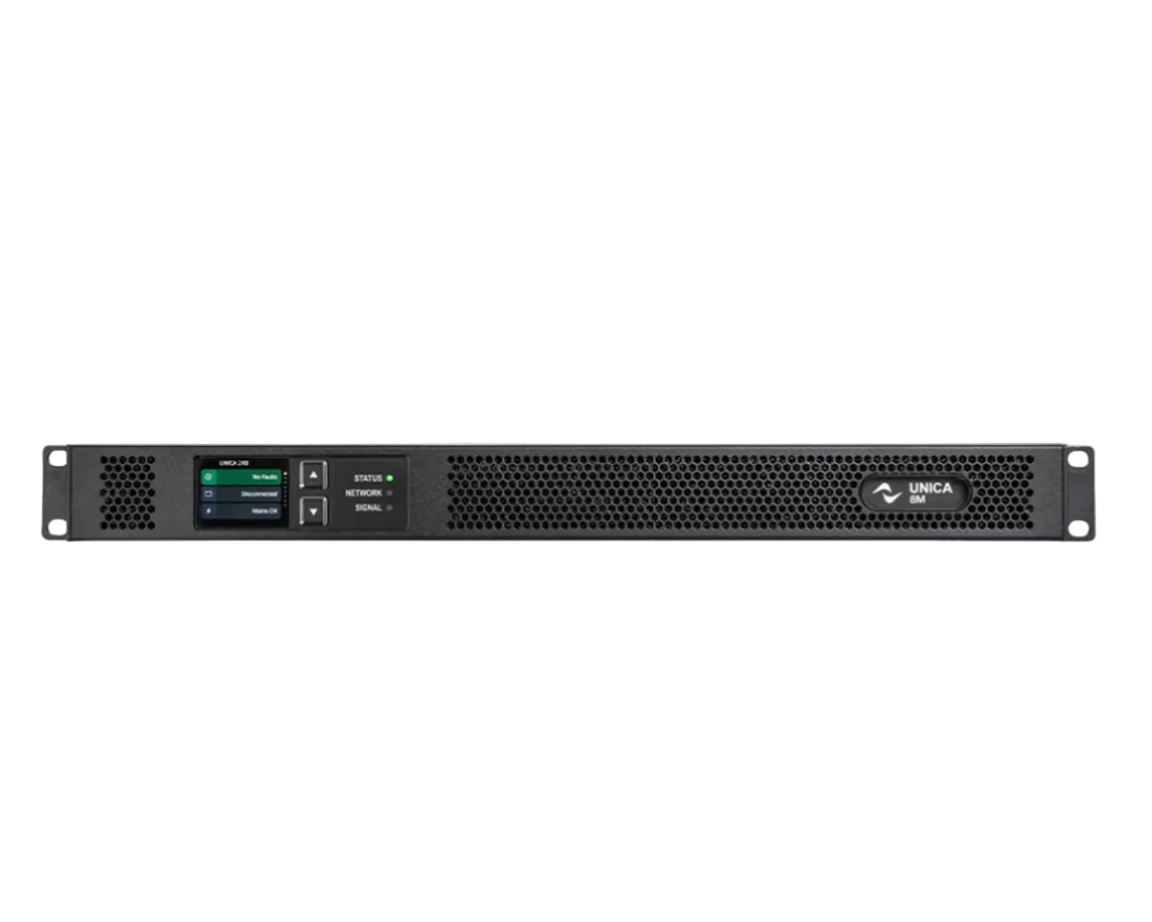

A clear, informative front panel display provides instant access to amplifier status and key operational data. This simplifies troubleshooting, system monitoring, and routine maintenance directly at the rack.

System Control via ArmoníaPlus

Full integration with Powersoft’s ArmoníaPlus software enables network-based control, real-time monitoring, and onboard DSP processing. Installers and system engineers can easily configure amplifier parameters, tune loudspeaker systems, and manage complex audio networks from a single interface.

Eco Mode for Energy Efficiency

Eco Mode automatically powers down individual output channels when no audio signal is detected. This intelligent energy-saving feature reduces power consumption and heat generation without compromising system readiness.

Easy Swap for Rapid Maintenance

The Easy Swap function allows fast amplifier replacement by restoring system backups directly from a USB flash drive. This ensures minimal downtime and seamless recovery, regardless of system size or installation complexity.

Universo Cloud Integration

With native Universo Cloud connectivity, the Unica 8M | 1K8 enables remote monitoring of amplifier status from any device, anywhere. This cloud-based platform provides real-time insights, diagnostics, and system visibility, making it ideal for modern, remotely managed audio infrastructures.

Technical Specifications
