About Powersoft
Powersoft is the world leader in lightweight, high power, single rack space, energy efficient amplifiers for the professional audio market. Founded in Italy in 1995, headquartered in Florence, Italy, with offices in New Jersey, Powersoft couples the experience and precision of its production department with exceptional components to deliver products with perfect audio response and high-performance reliability. Its state-of-the-art amplifiers can be found in an array of markets, ranging from stadiums, sporting arenas, theme parks, performance venues and airports to convention centers, churches, and clubs, and are used by the world’s leading tour sound companies.
Powersoft PF000682 UNICA 8M 8K8 8 Channel 1000 Watt Amplifier
The Unica Series is a compact, 1RU amplifier platform developed primarily for installed applications. The 8-channel version includes 2kW, 4kW, and 8kW total power models, making Unica one of the most power dense solutions available. The PF000682 UNICA 8M 8K8 features Powersoft’s next-generation DSP for state-of-the-art processing and audio performance. The three 1Gb Ethernet ports, along with the native Dante and AES67 support allow for different network topologies including daisy-chain and Dante redundant.
8-Channel Power Amplifier With DSP
With the Unica series, Powersoft presents a new generation of eight-channel power amplifiers with total output ranging from 2 to 16 kW. The product family features Powersoft’s latest and most powerful DSP platform and is configured and controlled via the manufacturer’s ArmoniaPlus software. Alongside Unica, Powersoft is also introducing the “Universo” cloud platform that enables remote access via the Internet.
Features
Ultra-High Power with Intelligent Network Control
The Powersoft Unica 8M | 8K8 is a high-performance installation amplifier designed for large-scale, mission-critical audio systems. Combining extreme power density with advanced networking, monitoring, and energy-efficient operation, it delivers reliable performance for demanding professional environments such as arenas, auditoriums, and high-end commercial installations.
3rd Generation Powersoft Amplification Technology
Powered by Powersoft’s 3rd Generation amplification platform, the Unica 8M | 8K8 integrates advanced signal processing, networking, and real-time monitoring into a single architecture. This technology ensures exceptional audio quality, operational stability, and long-term reliability even under continuous high-power operation.
Advanced Networking and Redundancy
The amplifier features three configurable 1Gb Ethernet ports supporting serial network topologies and Dante redundancy in both switched and split-redundant modes. A dedicated network security web page enables advanced configuration and protection, making it ideal for complex, network-driven audio systems.
PoE++ Input for Continuous Monitoring
With PoE++ support, the network ports and amplifier logic remain powered during mains power outages. This ensures fast startup times once power is restored and allows ongoing monitoring of amplifier status and loudspeaker circuits during downtime.
Intelligent Power Sharing Architecture
Each output channel can deliver up to twice its rated power when asymmetrically loaded. The Unica 8M | 8K8 supports both 70V/100V distributed systems and low-impedance loudspeakers down to 2 ohms without requiring output mode configuration, offering unmatched flexibility across installation types.

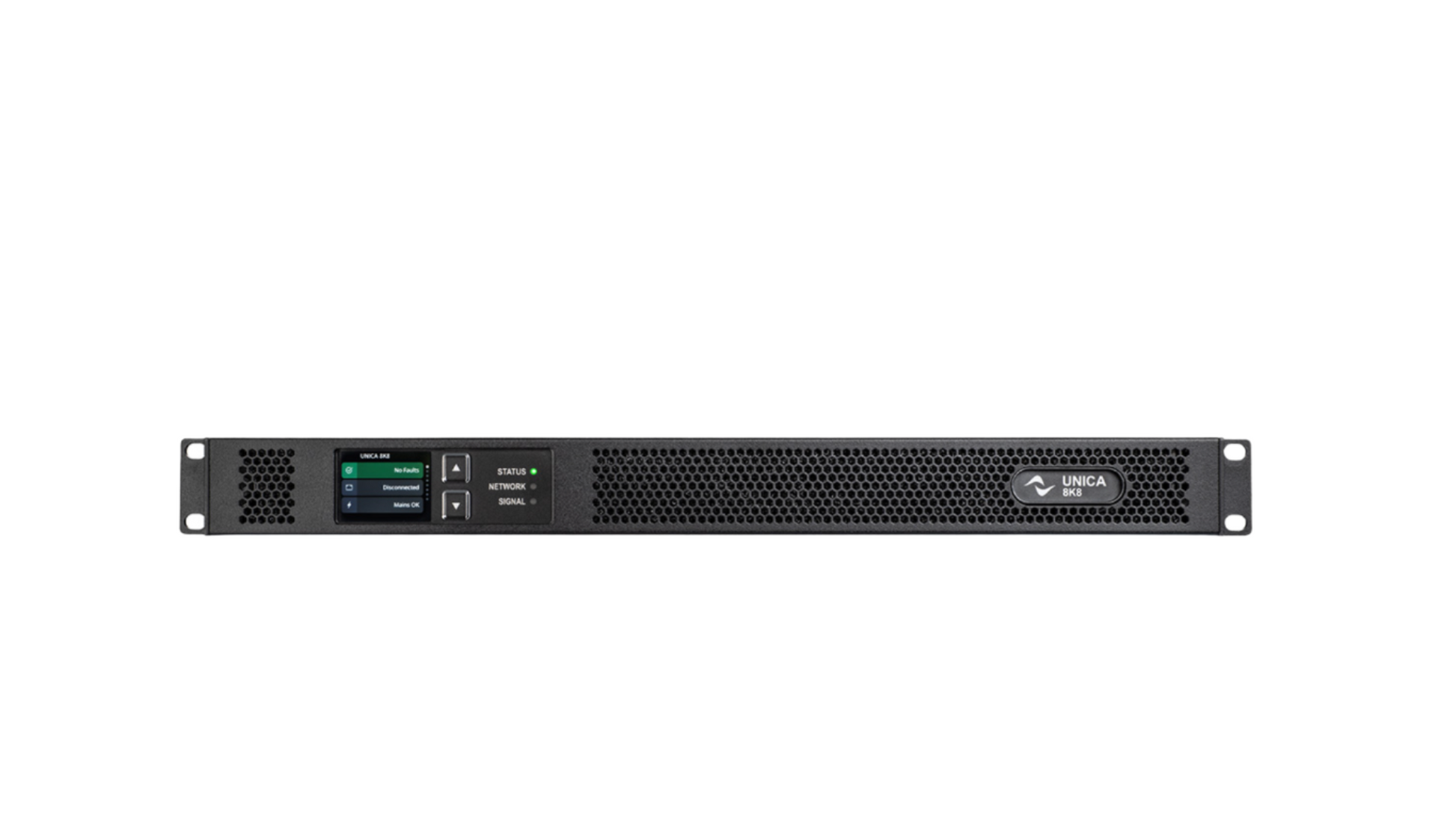

Front Panel LCD Display
A front-mounted LCD display provides clear access to amplifier status and operational data. This simplifies on-site troubleshooting, monitoring, and routine maintenance, improving service efficiency in professional installations.
ArmoníaPlus Software Integration
Full compatibility with Powersoft’s ArmoníaPlus software enables comprehensive system control, including parameter adjustment, preset loading, and real-time monitoring. Onboard DSP and network connectivity allow seamless management of even the most complex audio systems.
Eco Mode for Energy Efficiency
Eco Mode automatically disables individual output channels when no audio signal is detected. This intelligent power-saving feature reduces energy consumption and heat generation without compromising performance or system readiness.
Easy Exchange for Fast System Recovery
The Easy Exchange function allows quick amplifier replacement using backups stored on a USB flash drive. System settings can be restored effortlessly, minimizing downtime regardless of installation size or complexity.
Universo Cloud Connectivity
Native integration with Powersoft’s Universo cloud platform enables remote monitoring of amplifier status from anywhere. This cloud-based solution provides real-time visibility, diagnostics, and system insights for modern, remotely managed audio installations.
Technical Specifications
| Category |
Spec |
| Output Power per Channel |
1000 W @ 2 Ω1000 W @ 4 Ω1000 W @ 8 Ω |
| Bridge Mode Output Power |
2000 W @ 4 Ω2000 W @ 8 Ω |
| Maximum Discharge Voltage |
160 Vpeak |
| Maximum Discharge Current |
48 Apeak |
| Power Supply Type |
Universal switching mode, regulated, with PFC (Power Factor Correction) |
| Required Rated Power |
100–240 V ±10%, 50–60 Hz |
| Operating Voltage Range |
80 V – 265 V |
| Dimensions (W × D × H) |
489 × 400 × 44.3 mm |
| Dimensions (inches) |
19.3 × 15.8 × 1.7 inches |
| Weight |
7.9 kg |
| Ingress Protection Class |
IP 20 |
| Power Consumption – No Load |
65 W – 0.707 A @ 115 V73 W – 0.605 A @ 230 V |
| Power Consumption – 1/8 Max Output @ 4 Ω |
1380 W – 12 A @ 115 V1360 W – 6.1 A @ 230 V |
| Operating Temperature Range |
0° – 45° C (32° – 113° F) |
| Heat Dissipation – No Load |
222 BTU/h @ 115 V249 BTU/h @ 230 V |
| Heat Dissipation – 1/8 Max Output @ 4 Ω |
1297 BTU/h @ 115 V1228 BTU/h @ 230 V |
