WM Touch

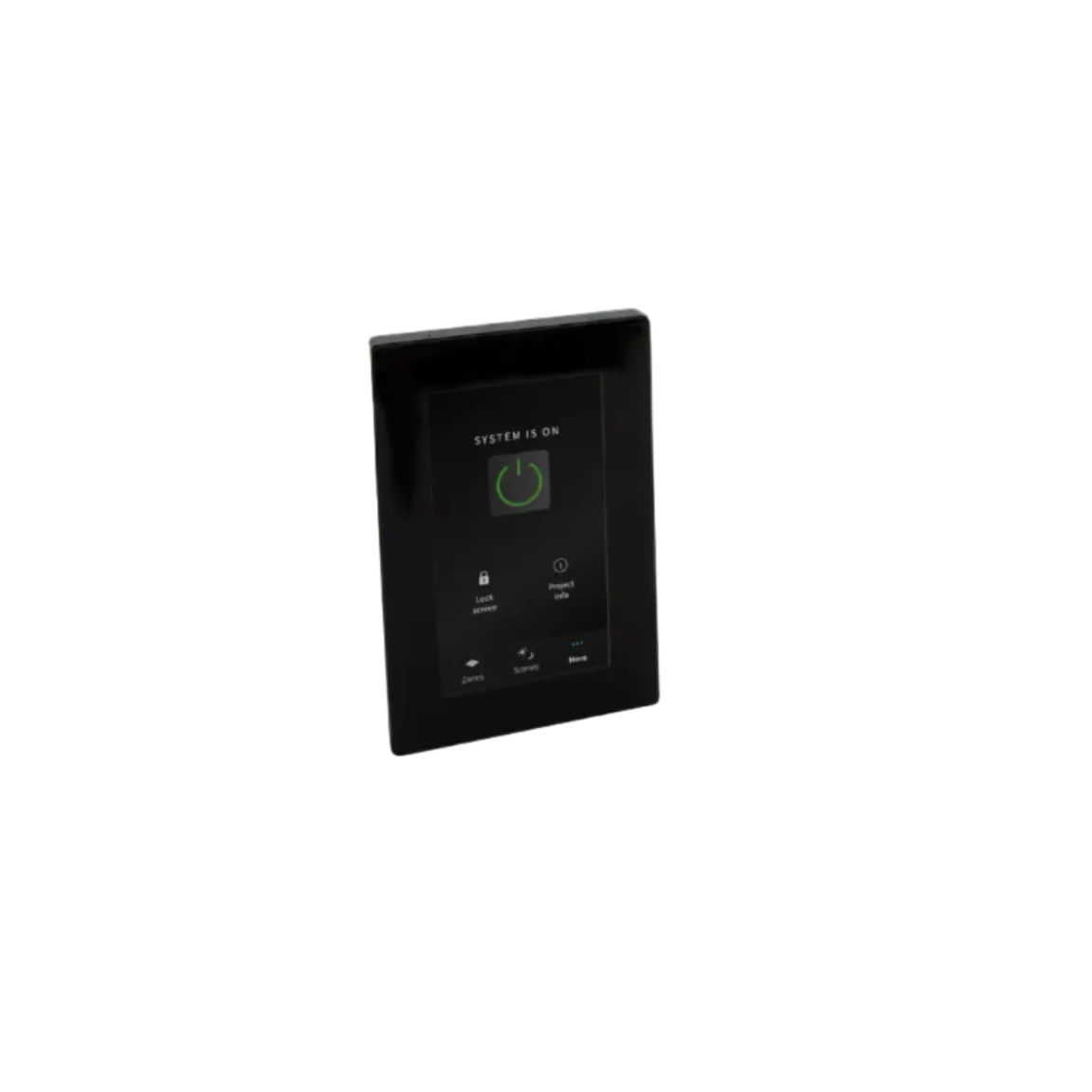

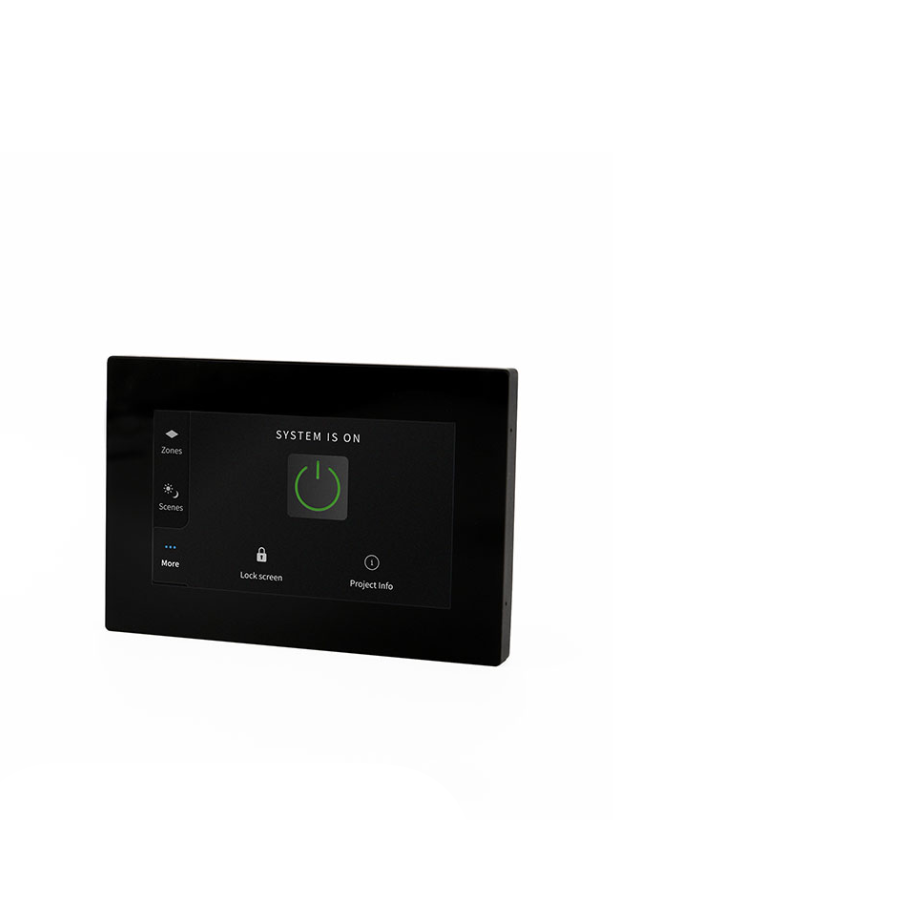

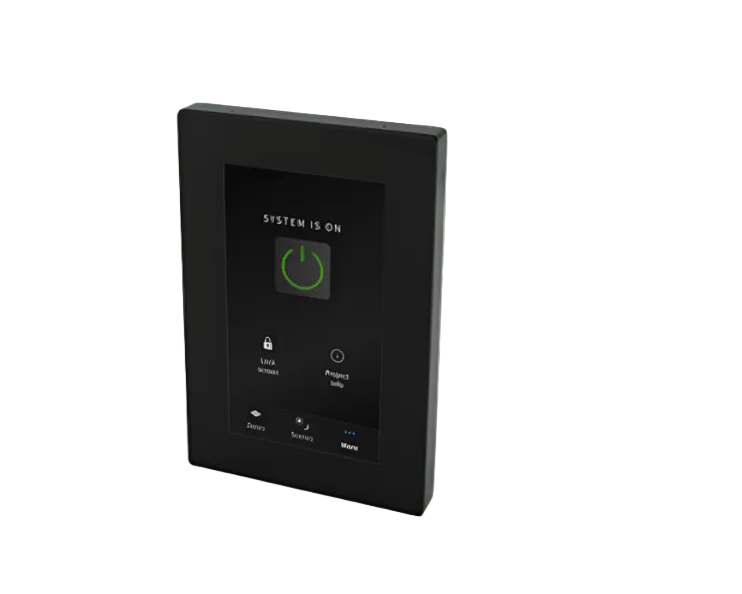

Control of sources, zones, and scenes is made easy and straightforward using a dedicated User interface. The WM Touch is a PoE fed wall-mounted touch screen that allows giving control of the entirety of the dynamic music distribution system from a single 4.3’’screen panel.
It is an elegant, effective, and intuitive control tool which uses standard ethernet to connect to the amplifiers and can be part of any normal network via RJ45 cable. Thanks to the PoE powering and the simplicity of installation in any single gang back box the WM Touch installation process is very straightforward and simple. It can be mounted both in vertical and horizontal orientation and is available in a black and white version.

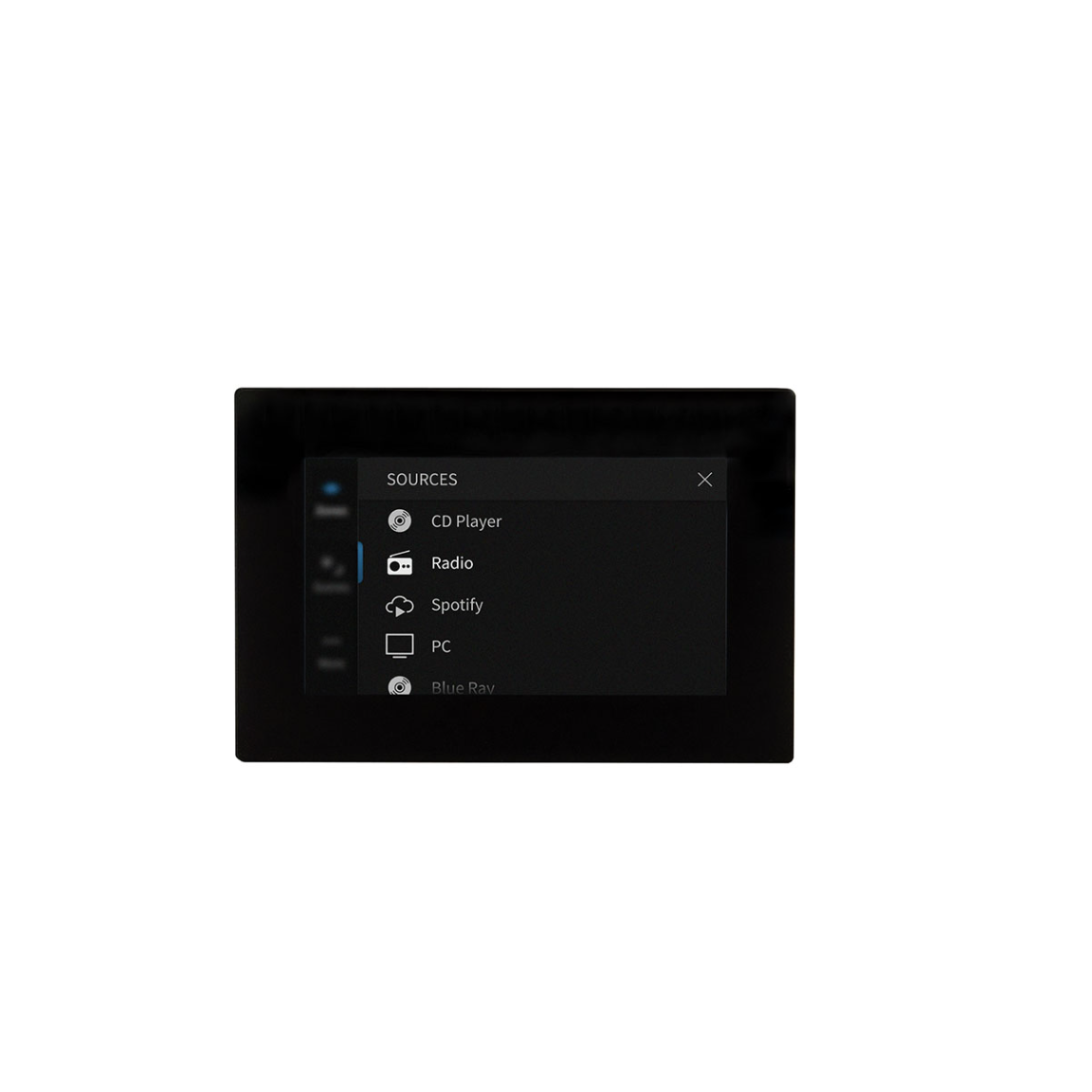

The WM Touch offers a variety of User Interface layouts. The pre-load layouts are specifically designed for dynamic music distribution applications, ensuring intuitive interaction and granting a low learning curve, which provides a straightforward user experience and makes it easy to set up. Within the Wall Mount Touch it is possible to create user-friendly and very intuitive user screens.
Specifications
| Spec. | Details |
|---|---|
| Item Category Code | POWERSOFT |
| Vendor Item No. | PF000640 |
| Product Group | ACCESS7 |
| Net Weight | 0.16 kg (160 grams) |
| Gross Weight | 0 kg (likely placeholder or not specified) |
| Country/Region of Origin | Italy (IT) |
| Screen Size | 4.3 inches (16:9 aspect ratio) |
| Brightness | 300 nits |
| Mounting | Single-gang box compatible; vertical or horizontal installation |
| Power Supply | PoE (Power over Ethernet) required |
| Connectivity | RJ45 (100 Mbps Ethernet), max 100 m cable length (Cat5 or better) |
| Operating Temperature Range | 0°C to 45°C |
| Dimensions (W x D x H) | 127.4 mm x 14.4 mm x 86.4 mm |
| Compatible Amplifier Platforms | Mezzo A/AD Series, Duecanali DSP+D, Quattrocanali DSP+D, Ottocanali DSP+D, X Series, T Series |
