PRISMASONIC CINOMORPH CYLINDRICAL
- Regular price
- Rs. 450,000.00
- Sale price
- Rs. 450,000.00
- Regular price
-
Couldn't load pickup availability
Prismasonic Cinomorph Cylindrical -

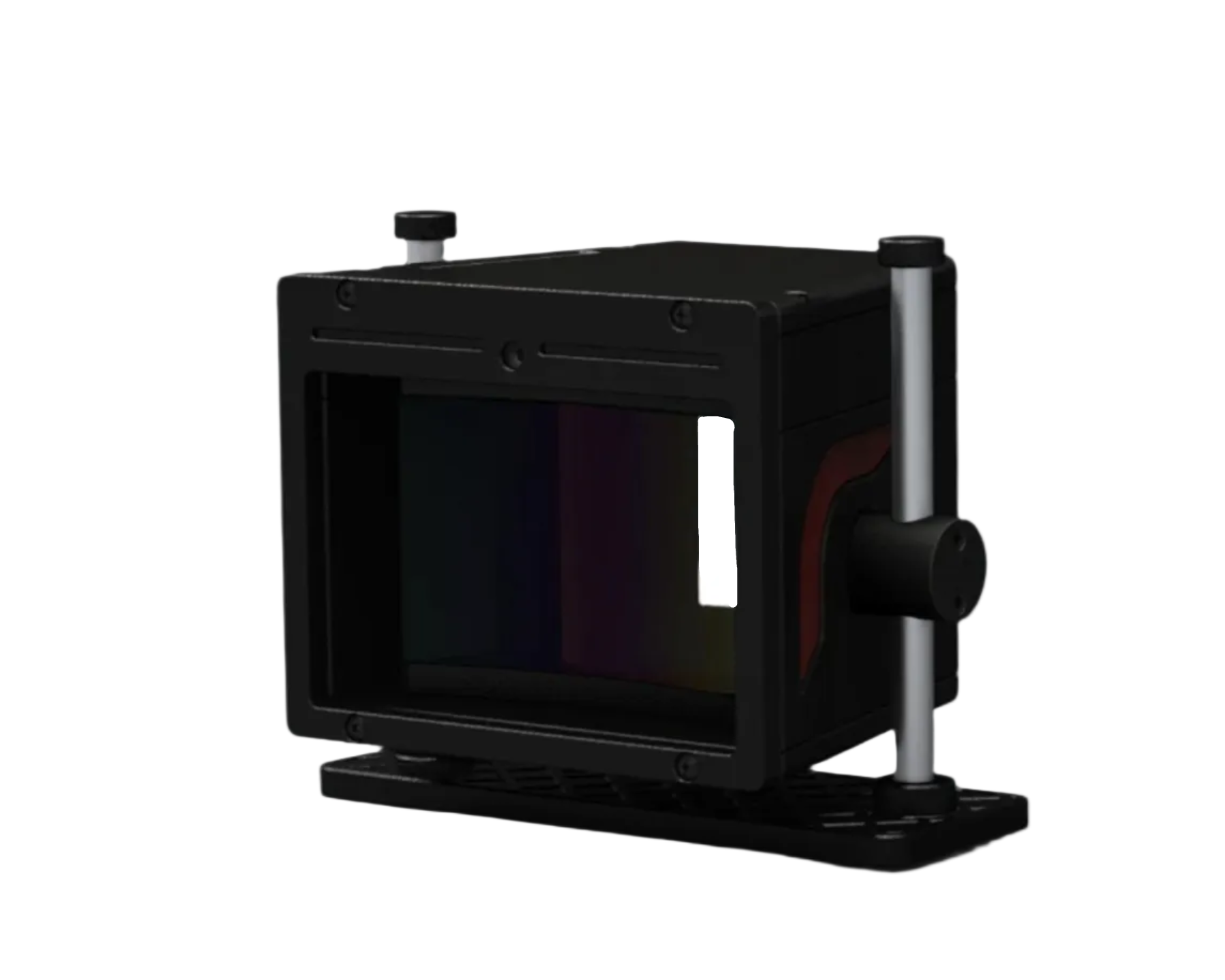

Cinomorph cylindrical lens has a very large aperture 4-element optics, which allows to project a large picture from a small distance.
Description of Prismasonic Cinomorph Cylindrical -
Cinomorph_cylindrical lens has a very large aperture 4-elements optics, which allows to project a large picture from a small distance. The cylindrical precision optics have a reference class picture quality with an extremely good corner-to-corner uniformity. The continuous focus correction allows the projector to be positioned close to the screen, allowing the throw distance down to 2 meters.
Both the front lens and the smaller rear lens have their own adjustments. The focus adjustment is performed from the front using the L-wrench, and in case of imbalance in focus between the left and the right sides, the small lens has an adjustment to correct this.
Lift stand option for the Cinomorph_cylindrical allows to shift the lens aside from the beam for the 16:9 media. The two motors drive the lens up and down with the aid of constant force springs. The system also has a pair of adjustable slide locks on the sides for both "IN" and "OUT" positions to match the vertical alignment with different projectors and setups. This also makes the mode switching very quick and precise to operate.
The silent motors move the lens in a couple of seconds from end to end. The remote controller has two powerful IR LEDs, which can effortlessly control the lens even in the largest rooms. The IR commands can be further transferred to the universal remote controller.
Motorized focus option for the Cinomorph_cylindrical adds an extra facilitating feature for setting up the lens. Like in a case of projectors it is a pleasant to have, even if not absolutely necessary. Especially with the celling mounted and long throw distance setups it gives a great help in finding the focus sweet pot.
Prismasonic Cinomorph Cylindrical Technical Specification -
A projector with a high quality anamorphic lens enables the use of an ultra wide screen with the side masking system. And this makes it possible to present the films exactly with the same intensive vibes as in the commercial cinemas. The setup is called Cinemascope. Also, it is appropriate to be aware that the big majority of all time movies has been filmed in this 2.4:1 aspect ratio, which refers to this word Cinemascope.
The true constant height system means that the widest movies are always also the biggest in size, and this is not happening in the home cinemas with a standard 16:9 aspect ratio. All the Cinomorph anamorphic lenses have the horizontal expansion optics, thus supporting perfectly a constant height, 2.4:1 Cinemascope setup. The lens series is based on both corrected prisms and cylindrical optics.
Cinomorph cylindrical has the high precision, 1.35x horizontal expansion optics. It consists of very large aperture 4-element lenses, which allows to project a large picture from a small distance. The precision optical cylinders offer a reference class picture quality with an extremely good corner-to-corner uniformity.
The continuous focus correction also allows the projector to be positioned from infinity, down to 2 meters distance form the screen. Both front lens and the smaller rear lens have their own adjustments. The focus is adjusted from the front using the L-wrench. In case of imbalance in focus between the sides of picture, the small lens has a clever adjustment to correct this.
