Rotel C8+ 8-channel Multi-Zone Amplifier
- Regular price
- Rs. 329,900.00
- Sale price
- Rs. 329,900.00
- Regular price
-
Couldn't load pickup availability
Description
C8+ Multi-Room Hi-Fi Amplifier
Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm loads. The C8+ includes 4 Analog and 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings. The custom 2U height requires no top or bottom clearance when rack mounting.
Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm speakers utilizing Rotel’s proprietary amplification technology.

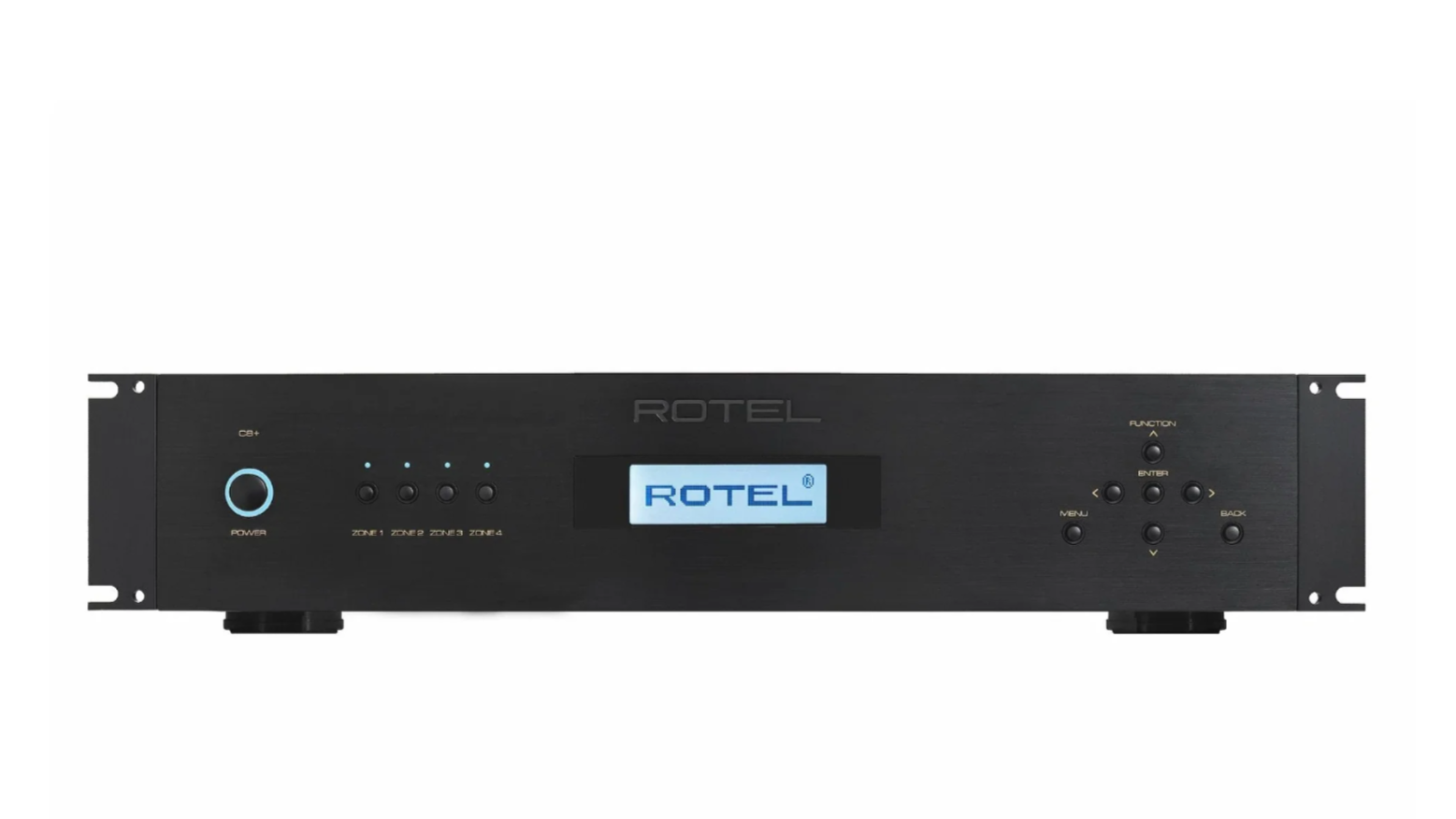

The oversized in-house manufactured toroidal transformer drives thirty-two output devices for effortless, controlled bass energy. For ultimate installation flexibility the C8+ includes 4 Analog, 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings.

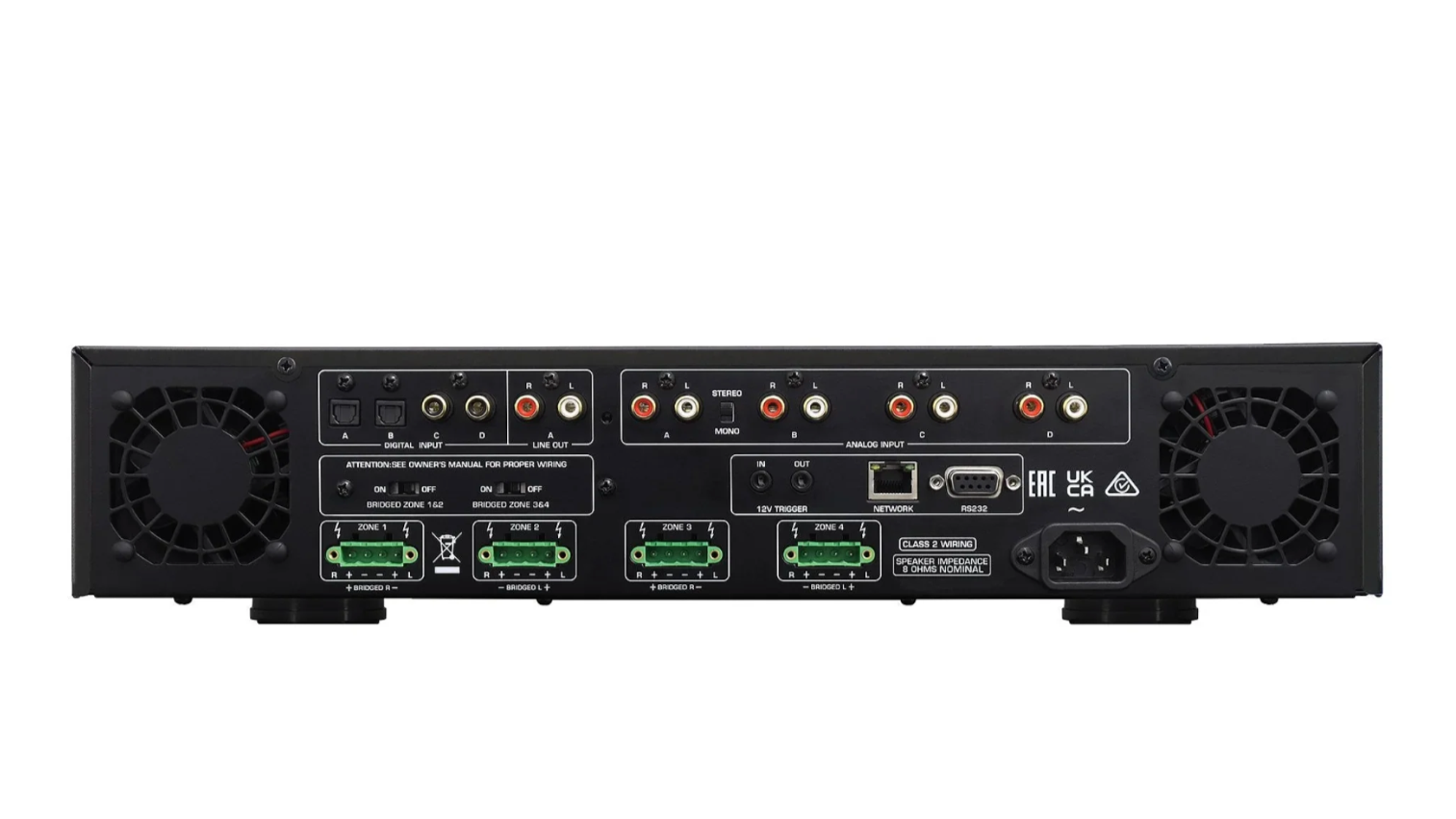

Control system integration is available via IP and RS232 interfaces and 12-Volt trigger. The custom 2U height requires no top or bottom clearance when rack mounting. The C8+ is available in black only.
Features
This amplifier delivers powerful and precise performance with 8 channels of 150 watts each at 4 ohms, all driven by a robust Class AB amplifier design that ensures rich, detailed sound with minimal distortion. At its core are four individual 24-bit/192kHz Digital to Analogue Converters (DACs), offering high-resolution audio conversion for pristine signal clarity. A custom-engineered toroidal transformer provides stable and efficient power delivery, enhancing both audio fidelity and reliability. The inclusion of a 12-volt trigger input allows for seamless integration into automated systems, enabling synchronized power control with other devices. For ease of installation in professional AV setups, rack ears are included, making it ideal for rack-mounted configurations.
Technical Details
| Spec | Value |
|---|---|
| Dimensions (W × H × D) | 430 × 97 × 414 mm (17" × 3.9" × 16.3") |
| Front Panel Height | 2U / 88.1 mm (3.5") |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 980W |
| Standby Power Consumption | Normal: <0.5W, Network Standby: <2W |
| Net Weight | 18.35 kg (40.79 lbs.) |
| BTU Rating (4Ω, 1/8th power) | 2744 BTU/h |
| Maximum Power Output | 150W/Ch (8 channels driven, 4Ω) |
| Continuous Power Output | 100W/Ch (8 channels driven, 8Ω) |
| Total Harmonic Distortion (THD) | <0.1% |
| Frequency Response | Line Level Inputs: 10Hz - 100kHz, +0dB, ±0.5dB |
| Frequency Response | Digital Inputs: 10Hz - 20kHz, 0 ± 0.5dB |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 100 dB |
| S/N Ratio (IHF "A" Weighted) | Digital Inputs: 102 dB |
| Intermodulation Distortion (60Hz:7kHz, 4:1) | <0.1% |
| Damping Factor (20Hz - 20kHz, 8Ω) | 80 |
| Tone Controls | ± 10dB at 100Hz / 10kHz |
| Crosstalk / Separation | >50 dB |
| Digital to Analog Converters | Texas Instruments |
| Input Sensitivity | Line Level Inputs: 0.43V |
| Input Sensitivity | Digital Inputs: -13.5dBfs |
| Input Impedance | Line Level Inputs: 31 kΩ |
| Input Impedance | Digital Inputs: 75Ω |
| Input Overload | Line Level Inputs (RCA): 2.8V |
| Optical Digital Signals | SPDIF LPCM (up to 192kHz/24-bit) |
