Rotel Diamond Series RA-6000 Integrated Amplifier
- Regular price
- Rs. 529,900.00
- Sale price
- Rs. 529,900.00
- Regular price
-
Couldn't load pickup availability
Description

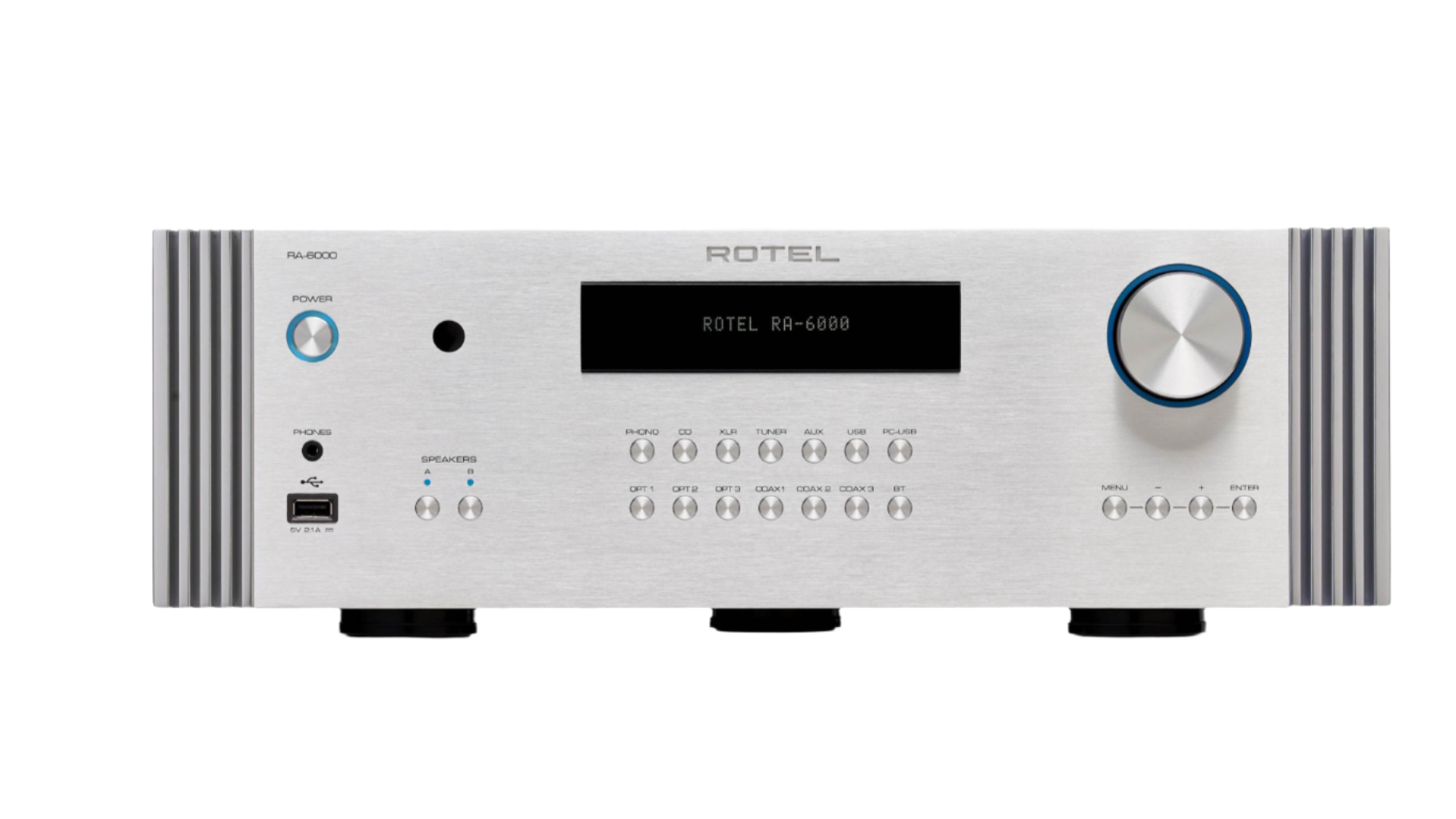

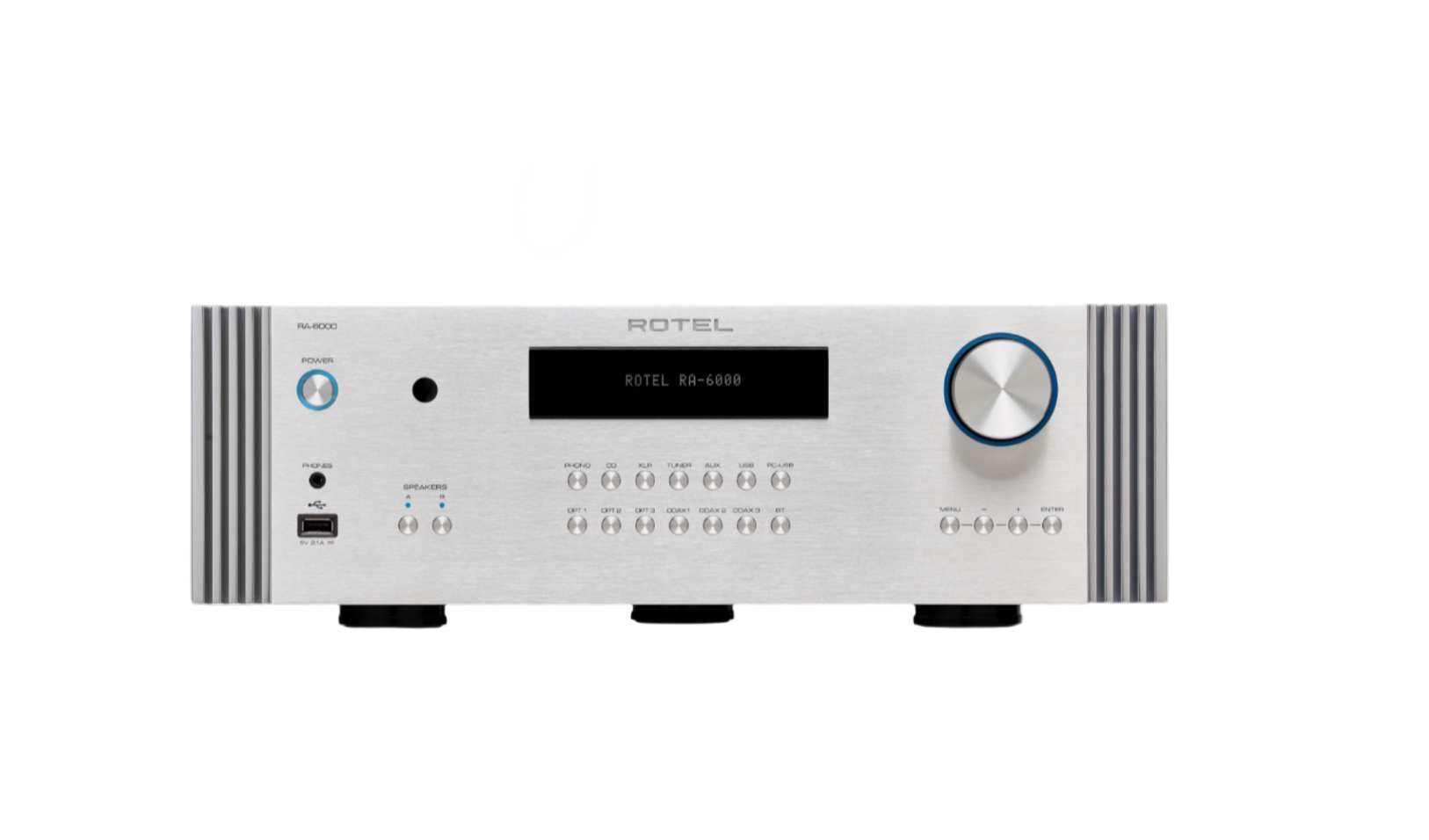

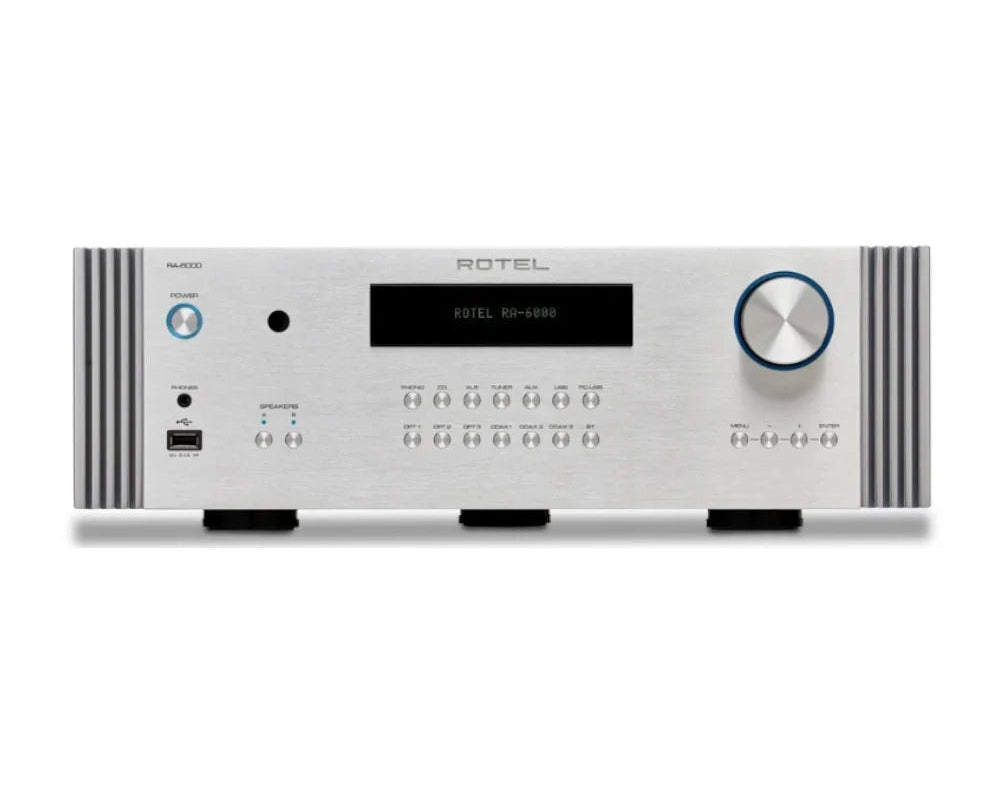

RA-6000 Integrated Amplifier
The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.
The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.

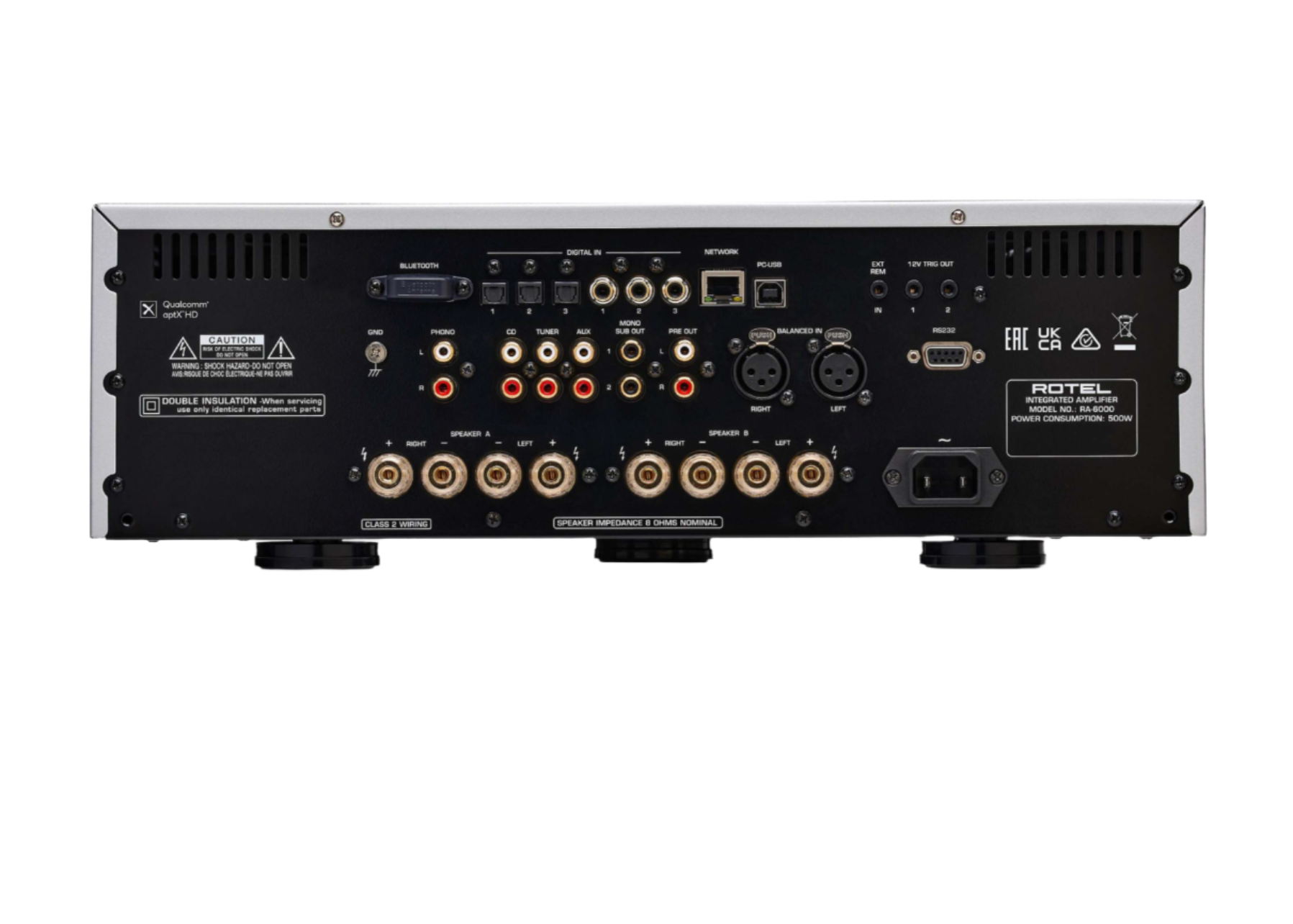

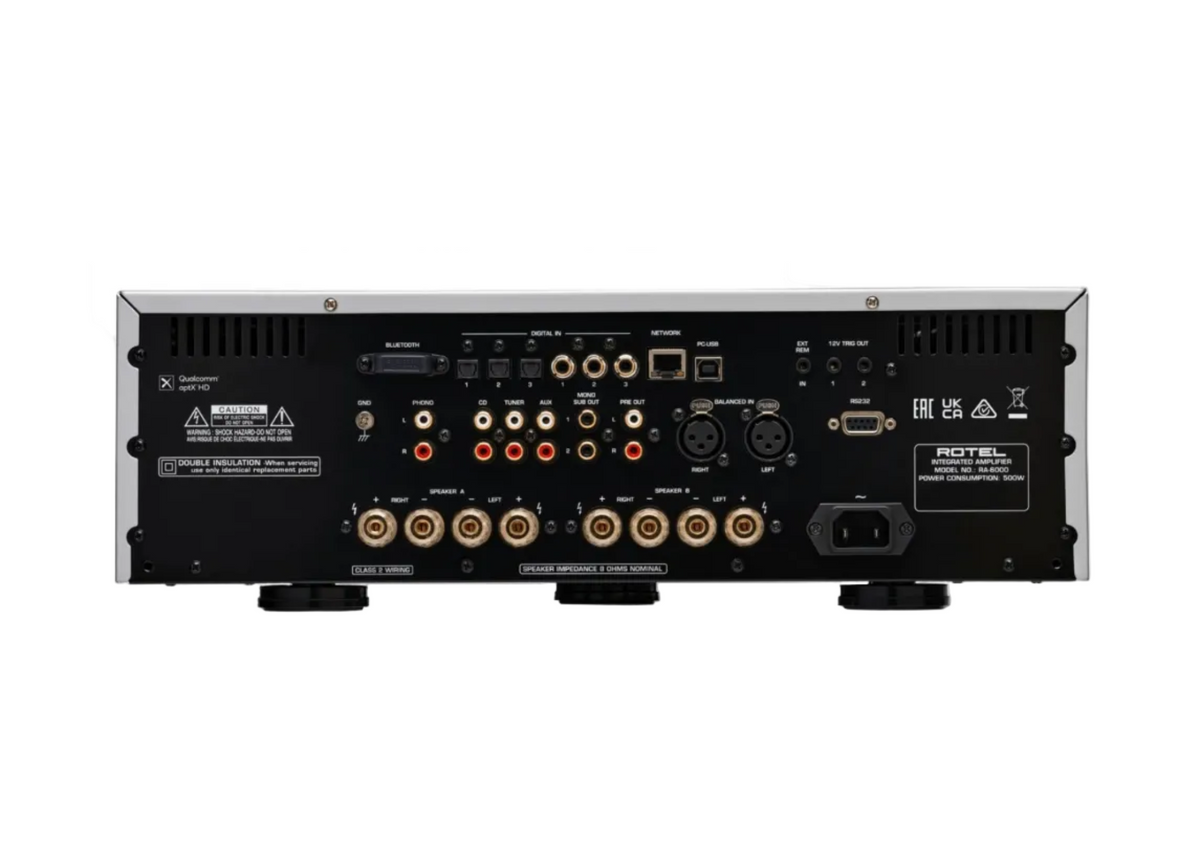

Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested. A Moving Magnet Phono stage is also included for vinyl fans. Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation. Ethernet, RS232,12V trigger and external remote input simplify integration with control systems. The RA-6000 is available in both Black and Silver colors.
Technical Details
| Spec | Description |
|---|---|
| Dimensions (W × H × D) | 431 × 144 × 425 mm (17" × 5.7" × 16") |
| Front Panel Height | 3U / 132.6mm (5.25") |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 500W |
| Standby Power Consumption | <0.5W |
| Net Weight | 18.81 kg (41.47 lbs.) |
| BTU (4 ohms, 1/8th power) | 1239 BTU/h |
| Maximum Power Output | 350W/Ch (4Ω) |
| Continuous Power Output | 200W/Ch (8Ω) |
| Total Harmonic Distortion (THD) | <0.0075% |
| Frequency Response | Line Level Inputs: 10Hz - 100kHz, ±0.5dB, Digital Inputs: 10Hz - 90kHz, ±2dB, Phono Input: 20Hz - 20kHz, ±0.5dB |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 103dB, Digital Inputs: 102dB, Phono Input: 80dB |
| Intermodulation Distortion (60Hz:7kHz, 4:1) | <0.03% |
| Damping Factor | 600 |
| Input Sensitivity | Line Level Inputs (RCA): 340mV, Line Level Inputs (XLR): 540mV, Digital Inputs: 0 dBfs, Phono Input (MM): 5.2mV |
| Input Impedance | Line Level Inputs (RCA): 5.6kΩ, Line Level Inputs (XLR): 100kΩ, Digital Inputs: 75Ω, Phono Input (MM): 47kΩ |
| Input Overload | Line Level Inputs (RCA): 3.5V, Line Level Inputs (XLR): 4.5V, Phono Input: 52mV |
| Preout Level | 1.9V |
| Output Impedance | 100Ω |
| Coax/Optical Digital Input Signals | LPCM (Up to 24-bit/192kHz) |
| PC-USB | USB Audio Class 2.0 (up to 32-bit/384kHz) *Driver installation required |
| MQA and MQA Studio | Up to 24-bit/384kHz |
| Roon Tested | Yes |
Up to 10 Years of Hassle-Free Warranty.
Many sellers offer products without service, but we’ve got you covered. Contact us to book your warranty, drop it in-store, or ship it to us for a refund or exchange for up to 10 years.
