Description
RMB-1585MKII

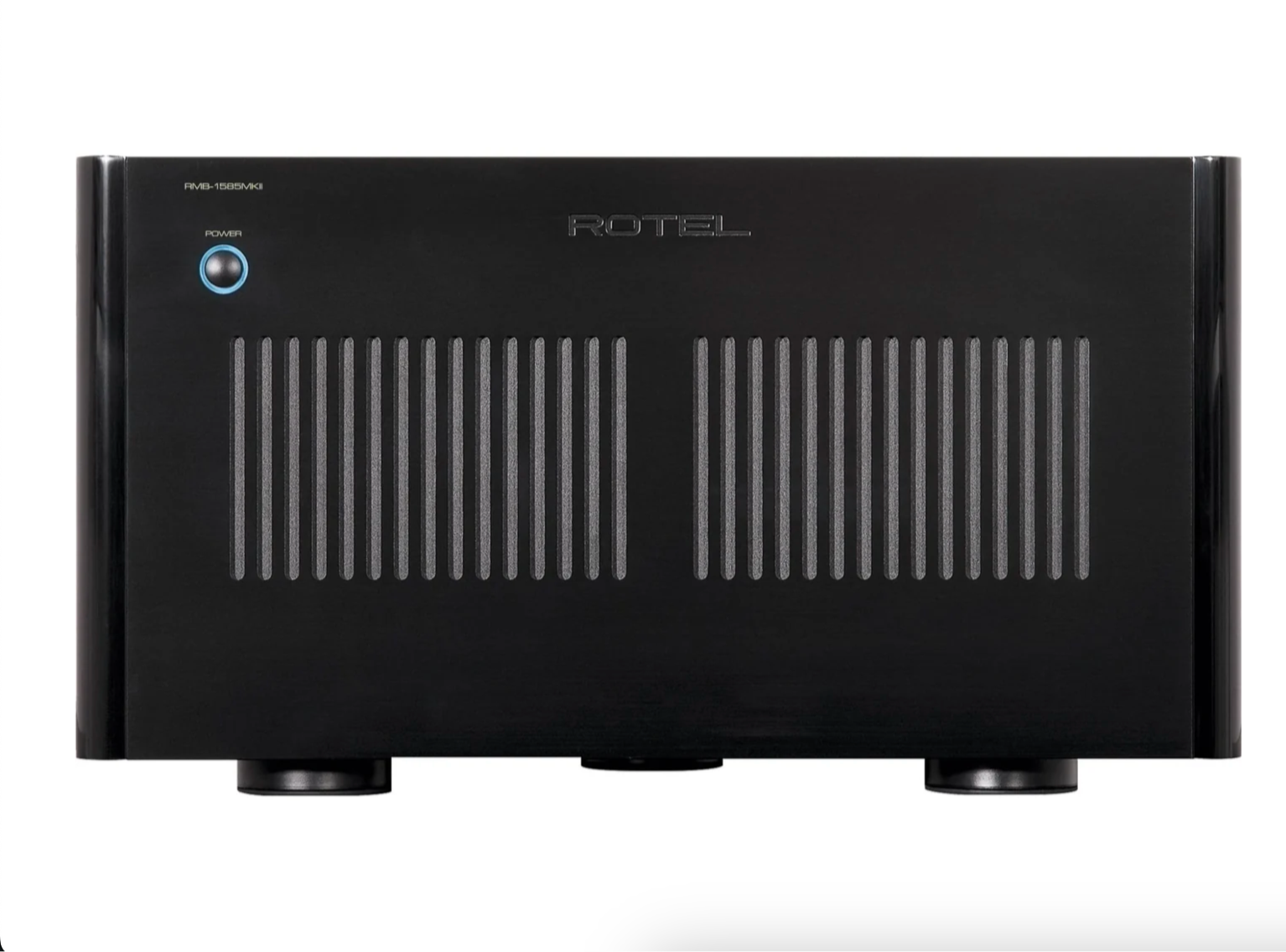

Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high power, audiophile performance amplifiers for multi-channel systems.
The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.
Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high powered, audiophile performance amplifiers for multi-channel systems.
Following Rotel's updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages to delivering ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.
The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.
The RMB-1585MKII is available in both black and silver colors.
Features
- 210 watts per channel into 8 ohms (20-20,000 Hz) at 0.03% THD with all channels driven
- 4-ohm stable for use with a wide range of speakers
- Class AB design
- dual custom made massive toroidal transformers for stable, noise-free performance
- eight high-efficiency energy storage capacitors supply a ready reserve of current
- frequency response: 10-100,000 Hz (+0.1/-0.3dB)
- signal-to-noise ratio: 120 dB
- four thermostat-controlled, variable-speed ultra-low-noise fans

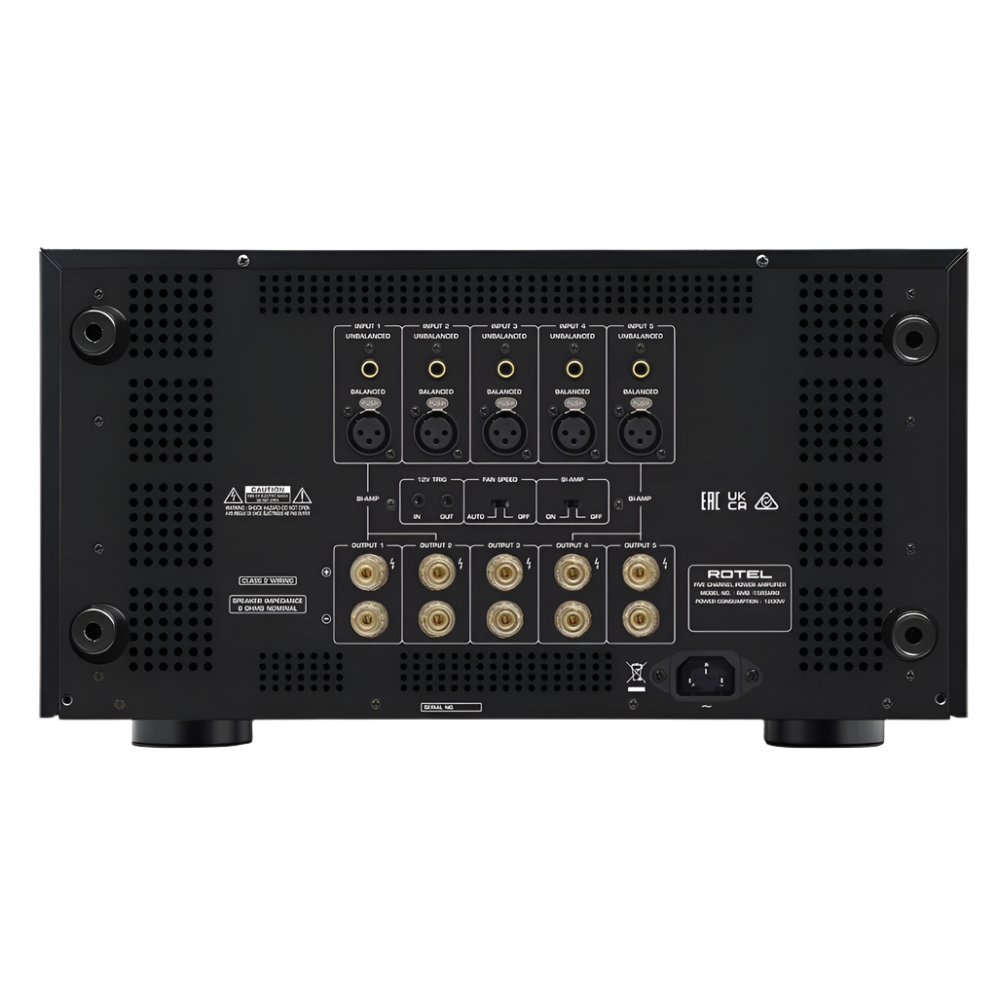

- rear panel switch features selectable 5-channel mode or bi-amp mode
- in bi-amp mode, channels 1+2 and channels 4+5 are wired to receive the same input signal
- allows easier bi-amping of compatible left and right speakers
- rack mountable with optional hardware (sold separately)
- detachable power cord
Technical Details
| Specification | Value |
|---|---|
| Dimensions (W × H × D) | 431 × 237 × 456 mm (17" × 9.4" × 18") |
| Front Panel Height | 5U / 221 mm (8.75") |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 1200W |
| Net Weight | 37.4 kg (82 lbs.) |
| BTU Rating (4Ω, 1/8th power) | 3317 BTU/h |
| Power Output | 210W/Ch (5 channels driven, 8Ω) |
| Power Output | 340W/Ch (5 channels driven, 4Ω) |
| Power Output | 440W/Ch (2 channels driven, 4Ω) |
| Total Harmonic Distortion (THD) | <0.03% |
| Frequency Response | 10Hz - 100kHz, +0.1dB, -0.3dB |
| Signal to Noise Ratio (A Weighting) | 120 dB |
| Gain | 26.9 dB |
| Intermodulation Distortion (60Hz:7kHz, 4:1) | <0.03% |
| Damping Factor (1kHz, 8Ω) | 223 |
| Crosstalk/Separation | >55dB |
| Input Sensitivity | Unbalanced: 1.89V, Balanced: 4.7V |
| Input Impedance | Unbalanced: 12 kΩ, Balanced: 50 kΩ |
