Screen Research CLF-120-1.78-4WB ClearPix 4K 0.7 Acoustically Transparent Screen
- Regular price
- Rs. 595,000.00
- Sale price
- Rs. 595,000.00
- Regular price
-
Couldn't load pickup availability
Description
120" Wide Classic Line Fixed Frame Projector Screen With Woven ClearPix 4 AT Material (1.78:1)

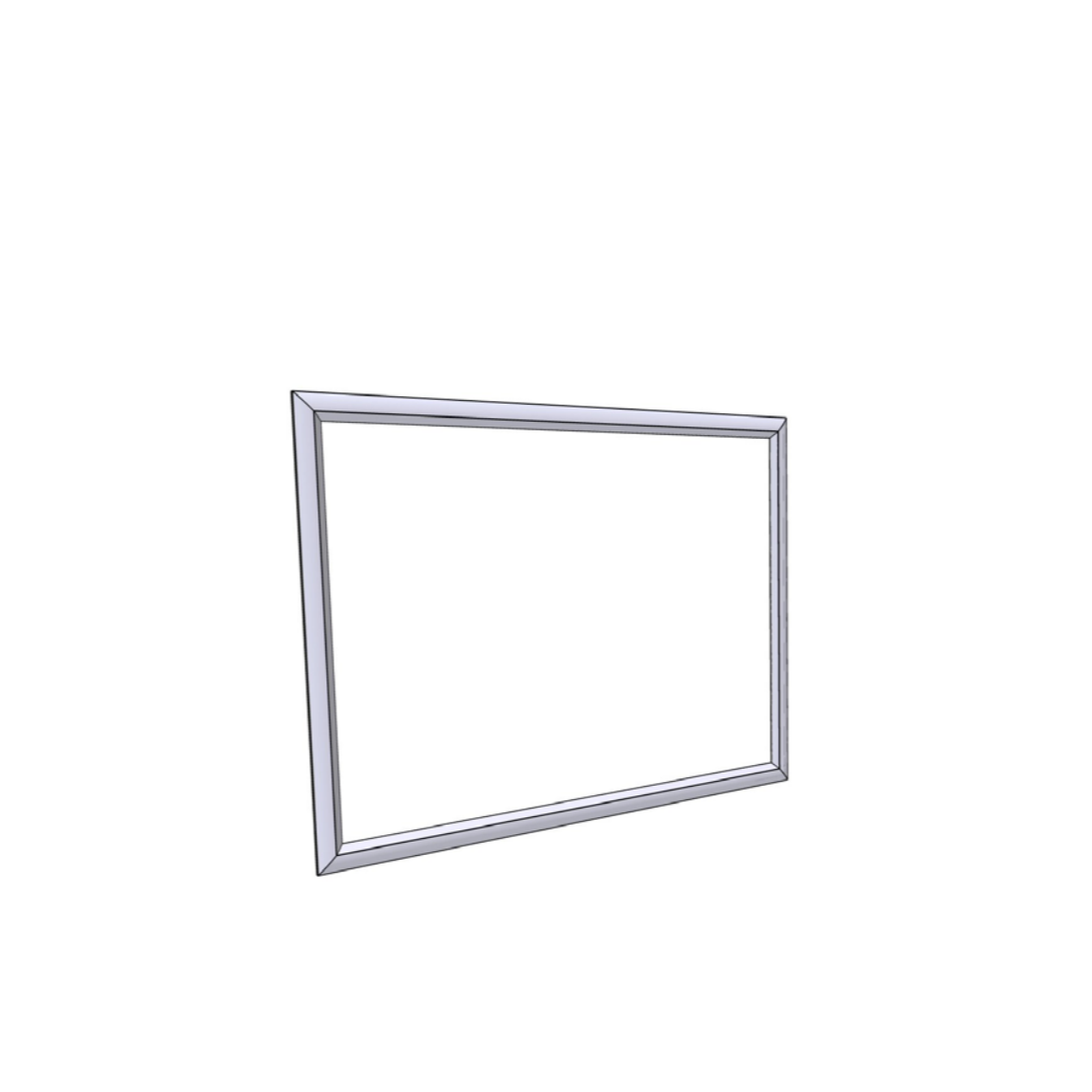

One of the most annoying effects on vision is caused by light reflecting off the frame of the screen. Extensive research into the structure of the profile, both from a functional and an aesthetic point of view, has resulted in the creation of a screen equipped with a special aluminium frame, angular on the internal side. A solution designed to direct the reflection towards the outer edges of the screen instead of the projection surface or the audience.
The profiles are coated in a velvety flock finish, which totally absorbs light and enhances the perception of contrast in the projected images. Tensioning is provided by elastic cables which guarantee the perfect planarity of the surface, preventing any risk of undulation. The main applications of this product are in the Home Cinema sector its use in the domestic environment is favored by a harmonious design and by the installation system incorporated into the profile: the wall-mounted bracket slides into the back of the frame and disappears, ensuring the total adherence of the frame to the wall.
Features
The Screen Research CLF-120-1.78-4WB offers a light-reflecting optimized frame design that minimizes unwanted glare and reflections, enhancing overall picture clarity and viewer comfort. Its constant fabric tensioning system uses elastic cables to maintain a perfectly flat and smooth projection surface, eliminating wrinkles or sagging over time. Additionally, the screen includes an easy and fast fabric mount attachment system, simplifying installation and allowing for quick fabric replacement when needed, making it both user-friendly and durable for long-term use.
Screen Surface
ClearPix 4WB (with black backing) is an acoustically transparent white material designed to solve two major challenges in one fabric. Its woven construction prevents moiré patterns while providing an acoustically transparent structure with minimal insertion loss, eliminating the need for additional acoustic correction. At the same time, ClearPix™ fabrics maintain perfect color balance and a uniform white field with no hot spots, ensuring the ultimate video performance. Additionally, ClearPix™ fabrics have been certified by leading international organizations, including THX, ISF, and PVA, guaranteeing top-tier quality and reliability.
Technical Details
| Attribute | Spec |
|---|---|
| Order Code | PSCH2205 |
| Image Width (A) | 120" / 3048 mm |
| Image Height (B) | 67" / 1713 mm |
| Image Diagonal (C) | 138" / 3496 mm |
| Overall Width – Front (D) | 124.31" / 3157 mm |
| Overall Height (E) | 73.72" / 1882 mm |
| Frame Width (F) | 3.35" / 85 mm |
| Frame Depth (G) | 1.11" / 28 mm |
| Overall Depth (H) | 4.34" / 110 mm |
| Radius (R) | 617.9" / 15695 mm |
| Wall Surface at Edge (K) | 3.34" / 85 mm |
| Surface Deflection (I) | 2.93" / 75 mm |
| Wall Surface at Center (J) | 0.43" / 11 mm |
| Lead Time | 45 days |
General Information
| Attribute | Spec |
|---|---|
| Length | 124.31" / 3157 mm |
| Height (Std. Packaging) | 5.12" / 130 mm |
| Depth (Pallet Packaging) | 9.45" / 240 mm |
| Net Weight | 34.1 lbs / 15.5 kg |
| Shipping Weight | 40.7 lbs / 18.5 kg |
Bracket Mounting
| Bracket Type | Ratio 1.78:1 |
|---|---|
| Standard Wall Mount (F-STD) | Included |
| Standard Curve Wall Mount (TF-WMB1) | Optional |
