Sonus Faber PC-563P
- Regular price
- Rs. 121,900.00
- Sale price
- Rs. 121,900.00
- Regular price
-
Couldn't load pickup availability
Description
2 way Point In-ceiling System

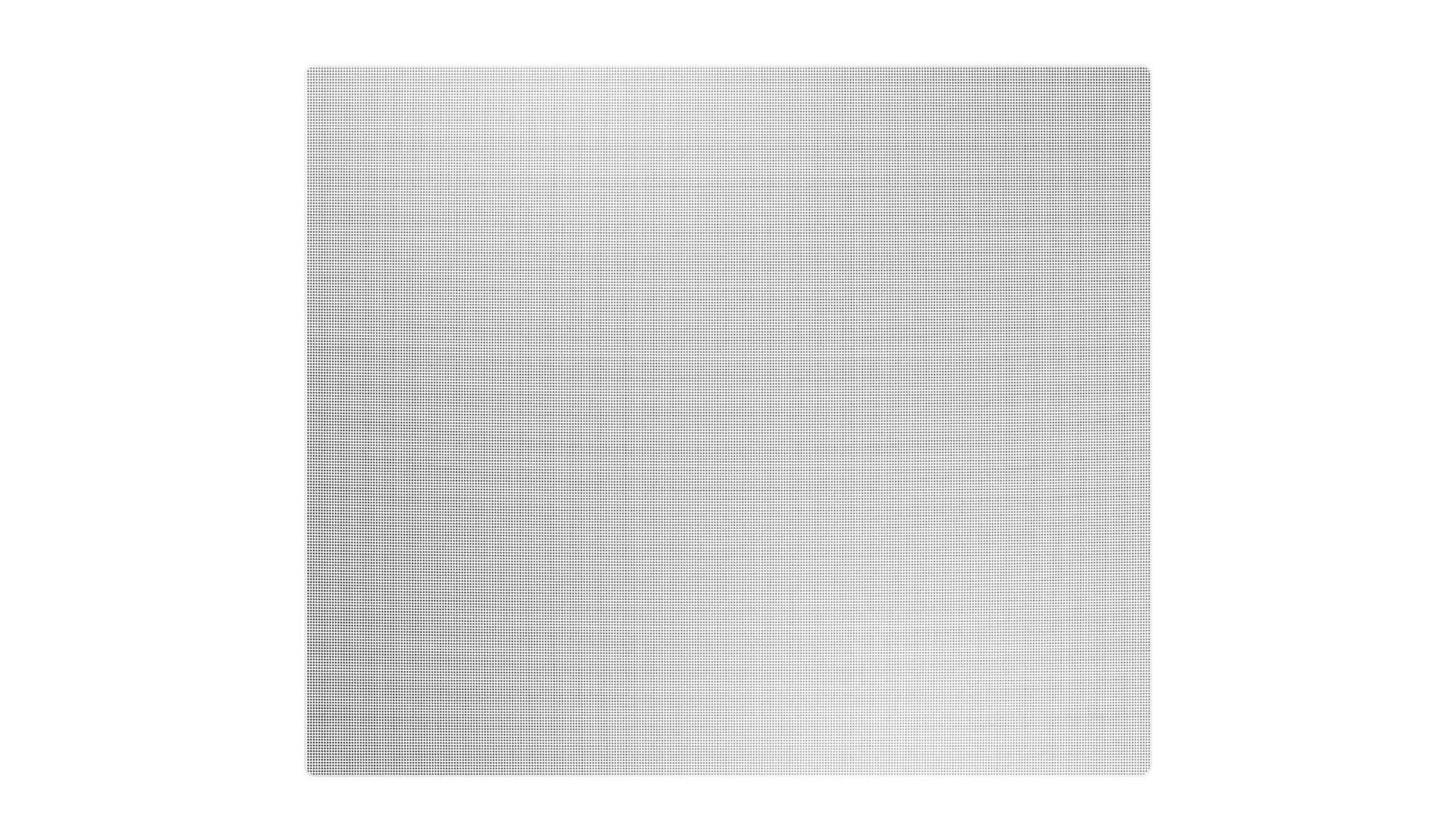

All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible.
Classic Design and Versatility with Sound Pointing

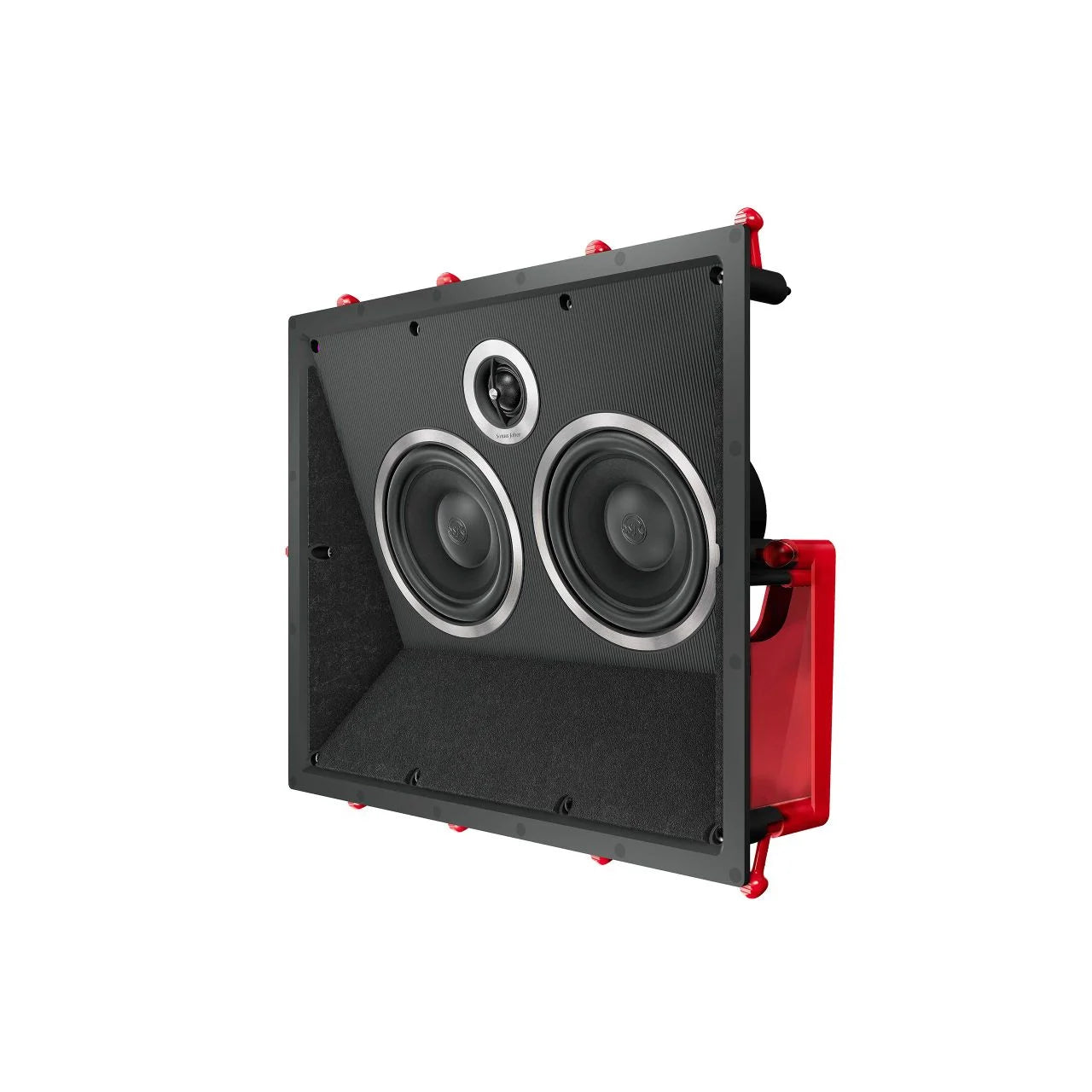

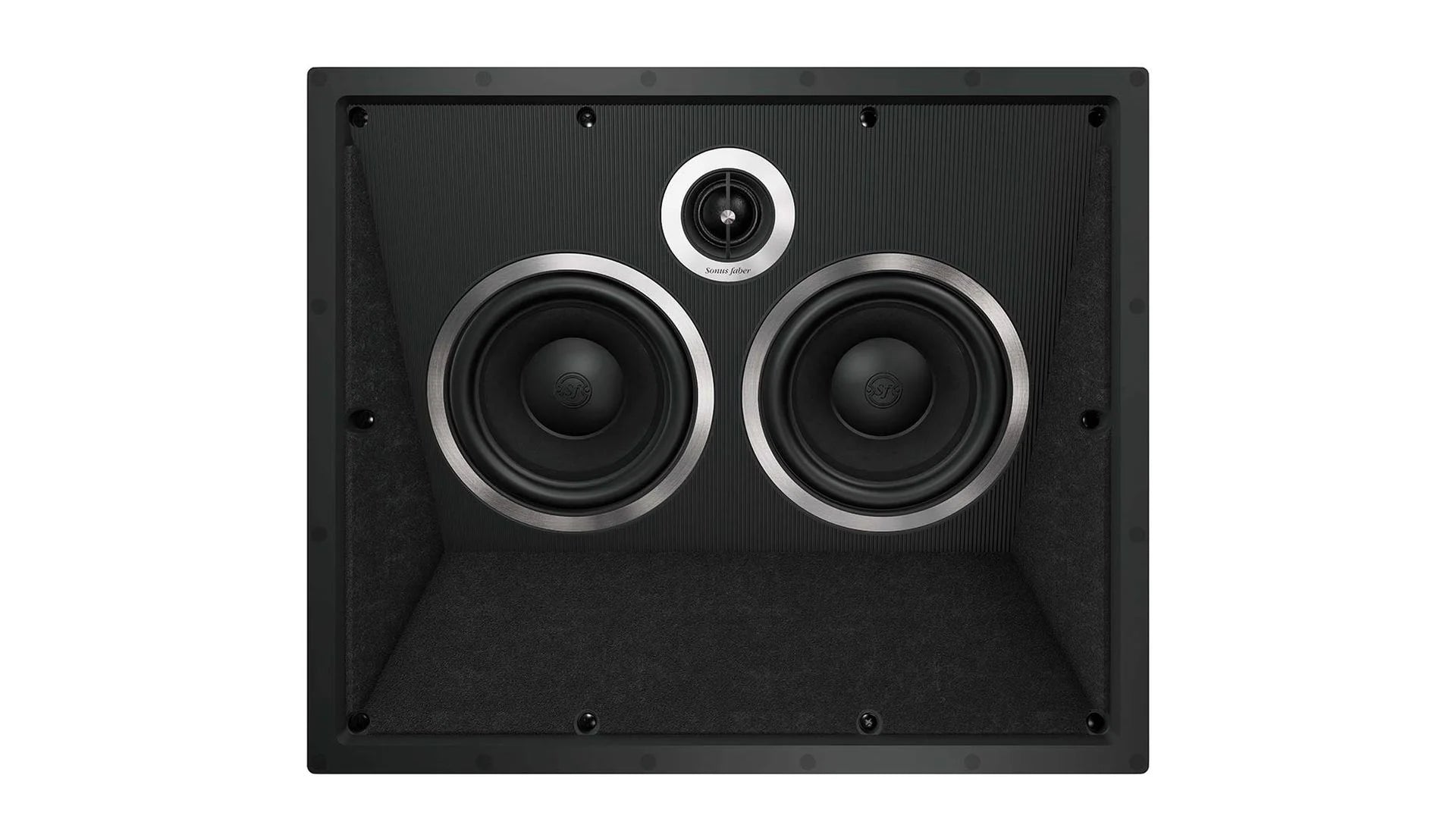

The PC-563P in-ceiling speaker reflects the refined design language of the Sonetto Collection, blending acoustic precision with understated elegance. Designed as a 2-way in-ceiling system, it features a 1.1-inch D.A.D. tweeter and a 6.5-inch midwoofer, both angled to direct sound toward the listening position delivering a more focused and immersive audio experience, even from overhead. The speaker is housed behind a magnetic edgeless round metal grille, with an optional square version, both of which can be easily painted to match any interior. Its swing-out dog fixing system ensures fast, secure installation into plasterboard ceilings, making the PC-563P a versatile and high-performance solution for both discreet and directional sound delivery in home audio environments.
Technical Specifications
| Type | 2-way Point Source In-Ceiling System, Infinite Baffle |
|---|---|
| Tweeter | DAD™ Ø 29 mm / 1.1 in |
| Midwoofer | 2 x Ø 165 mm / 6.5 in |
| Crossover Frequency | 1,650 Hz (ParaCross Topology™) |
| Frequency Response | 45 Hz – 25,000 Hz (-6 dB) |
| Sensitivity | 92 dB SPL (2.83 VRMS @ 1M) |
| Nominal Impedance | 4 ohm |
| Coverage Angle | ±45° Horizontal / ±45° Vertical (@1 kHz, -6 dB) |
| Suggested Amplifier Power | 40 W – 250 W (without clipping) |
| Frame Outer Dimensions | 460 x 386 mm / 18.1 x 15.1 in |
| Cut-Out Dimensions | 433 x 359 mm / 17 x 14.1 in |
| Depth Behind Surface | 148 mm / 5.8 in |
| Protrusion | 13 mm / 0.5 in |
| Net Weight | 6.5 kg / 14.3 lb |
| Included in the Box | Bezel-free square magnetic grille |
