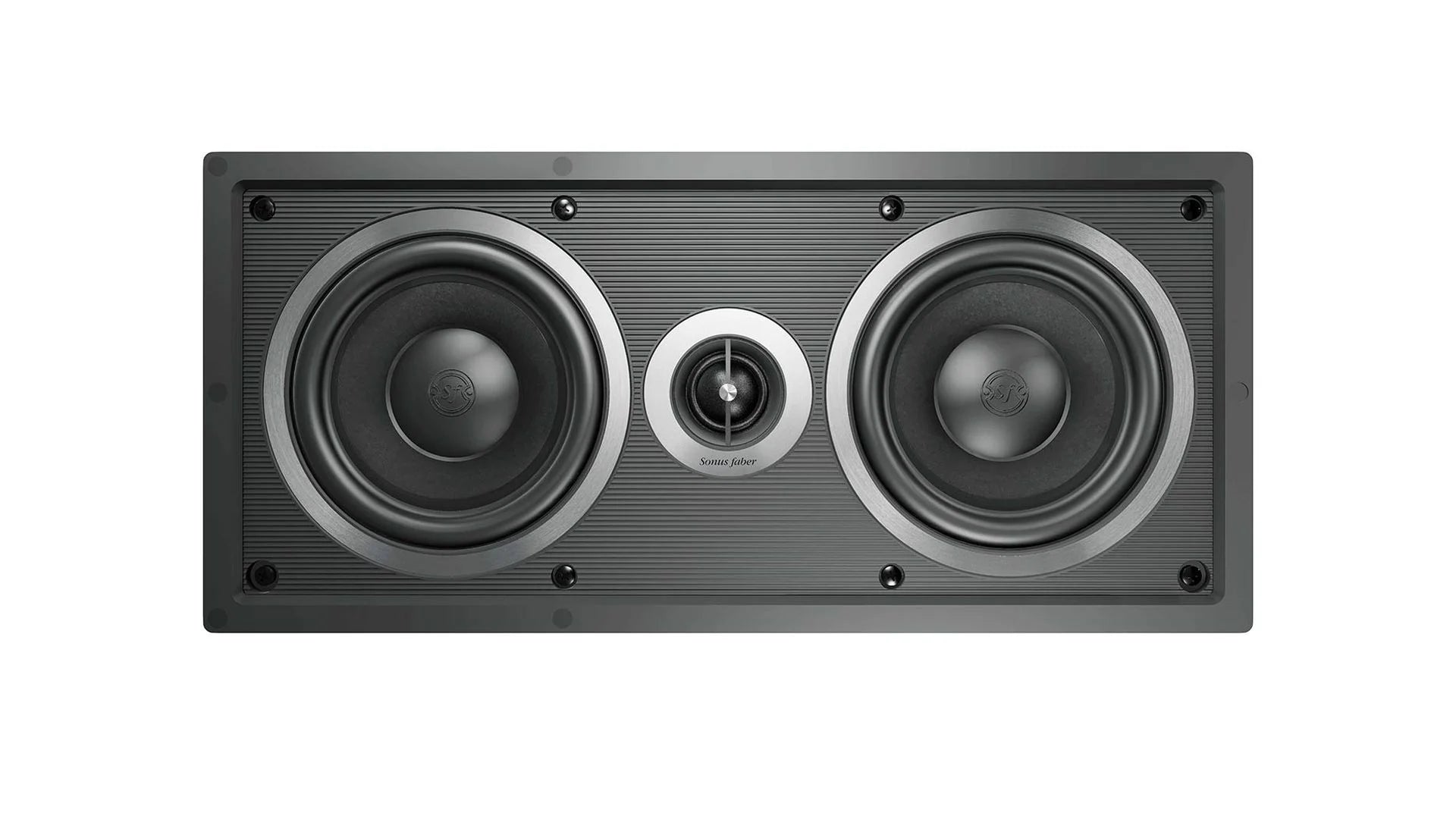

Sonus Faber Palladio Level 5 PL-563 2-Way In-Wall Speaker
- Regular price
- Rs. 124,900.00
- Sale price
- Rs. 124,900.00
- Regular price
-
Couldn't load pickup availability
Description
2 way left/right/center In-wall System

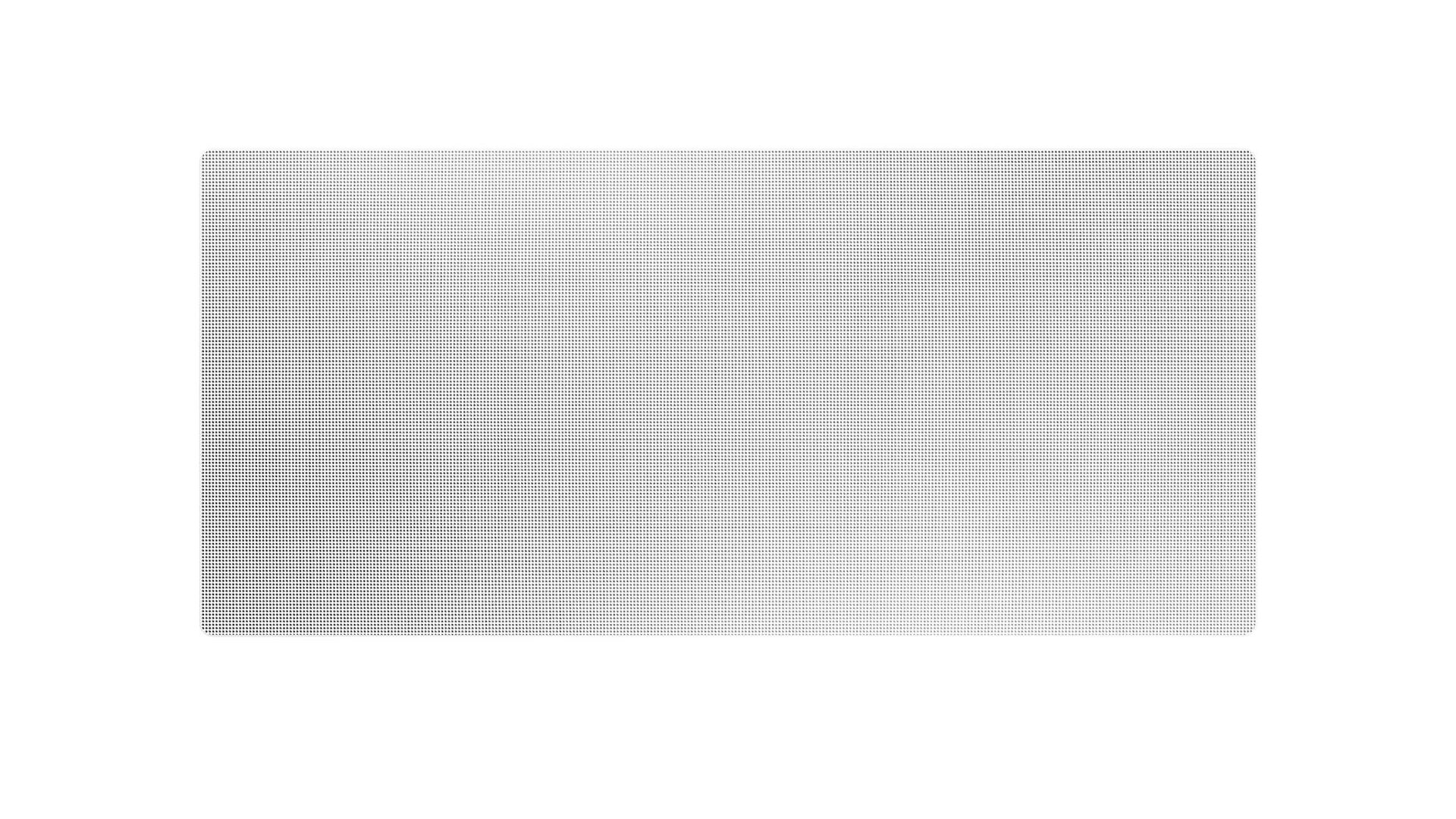

All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible.
Classic Design and Versatility

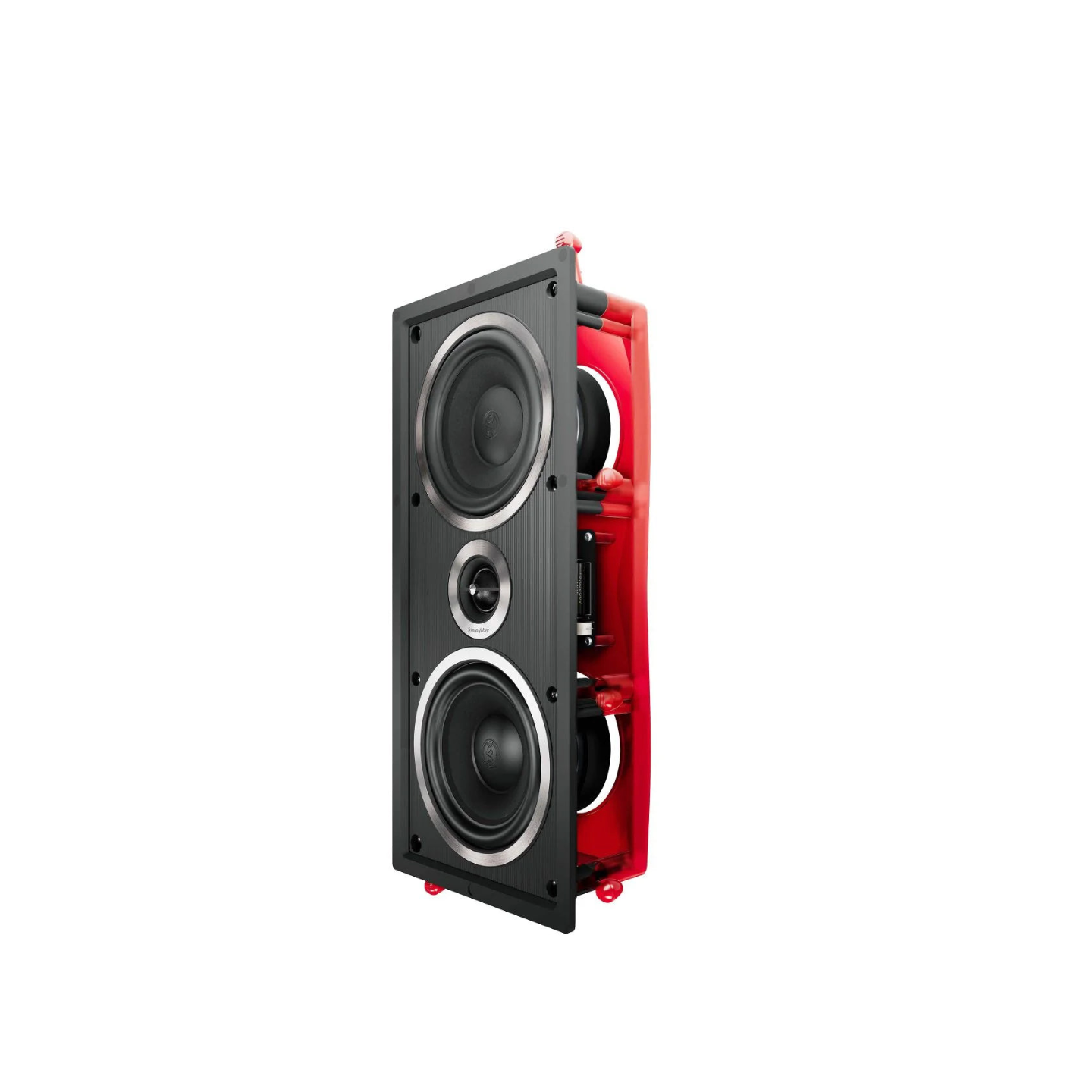

The PL-563 speaker embodies the classic design and sonic excellence inspired by the Sonetto Collection, offering remarkable versatility to suit a wide range of installation needs. Engineered as a 2-way in-wall system, it features a 1.1-inch D.A.D. tweeter and two 6.5-inch mid-woofers, delivering a rich and immersive audio experience. Its adaptable design allows it to function effectively as a front, side, or surround speaker when mounted vertically or as a center channel when installed horizontally. To support this flexibility, the tweeter ring can be rotated to align with the speaker’s orientation. Aesthetically, the PL-563 features a magnetic edgeless square metal grille that is paint-ready for seamless blending into any décor. Installation is both fast and secure, thanks to the swing-out dog fixing system, ensuring reliable mounting in plasterboard walls.
Technical Specifications
| Spec | Details |
|---|---|
| Type | 2-way Left / Right / Center In-Wall System, Infinite Baffle |
| Tweeter | DAD™ Ø 29 mm (1.1 in) |
| Midwoofer | 2 × Ø 165 mm (6.5 in) |
| Crossover Frequency | 1,650 Hz (ParaCross Topology™) |
| Frequency Response | 50 Hz – 25,000 Hz |
| Sensitivity | 92 dB SPL (2.83 VRMS @ 1 m) |
| Nominal Impedance | 4 Ohm |
| Coverage Angle | ±45° Horizontal / ±60° Vertical (@1 kHz, -6 dB) |
| Suggested Amplifier Power | 40 W – 250 W (without clipping) |
| Frame Outer Dimensions | 471 × 216 mm (18.5 × 8.5 in) |
| Cut-Out Dimensions | 448 × 192 mm (17.6 × 7.6 in) |
| Depth Behind Surface | 101 mm (3.4 in) |
| Protrusion | 13 mm (0.51 in) |
| Net Weight | 6.3 kg (13.9 lb) |
| Included in the Box | Bezel-free square magnetic grille |
