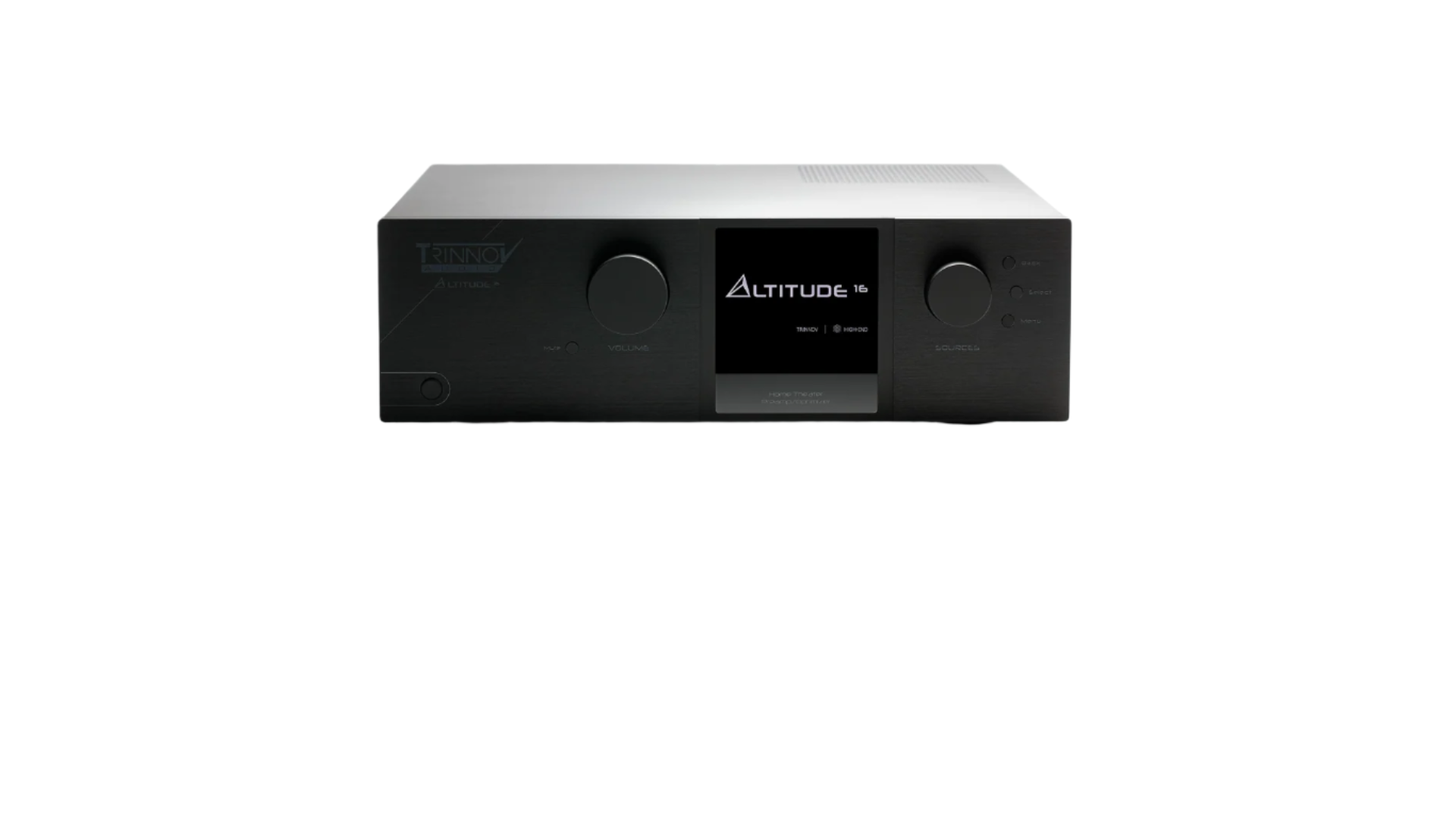

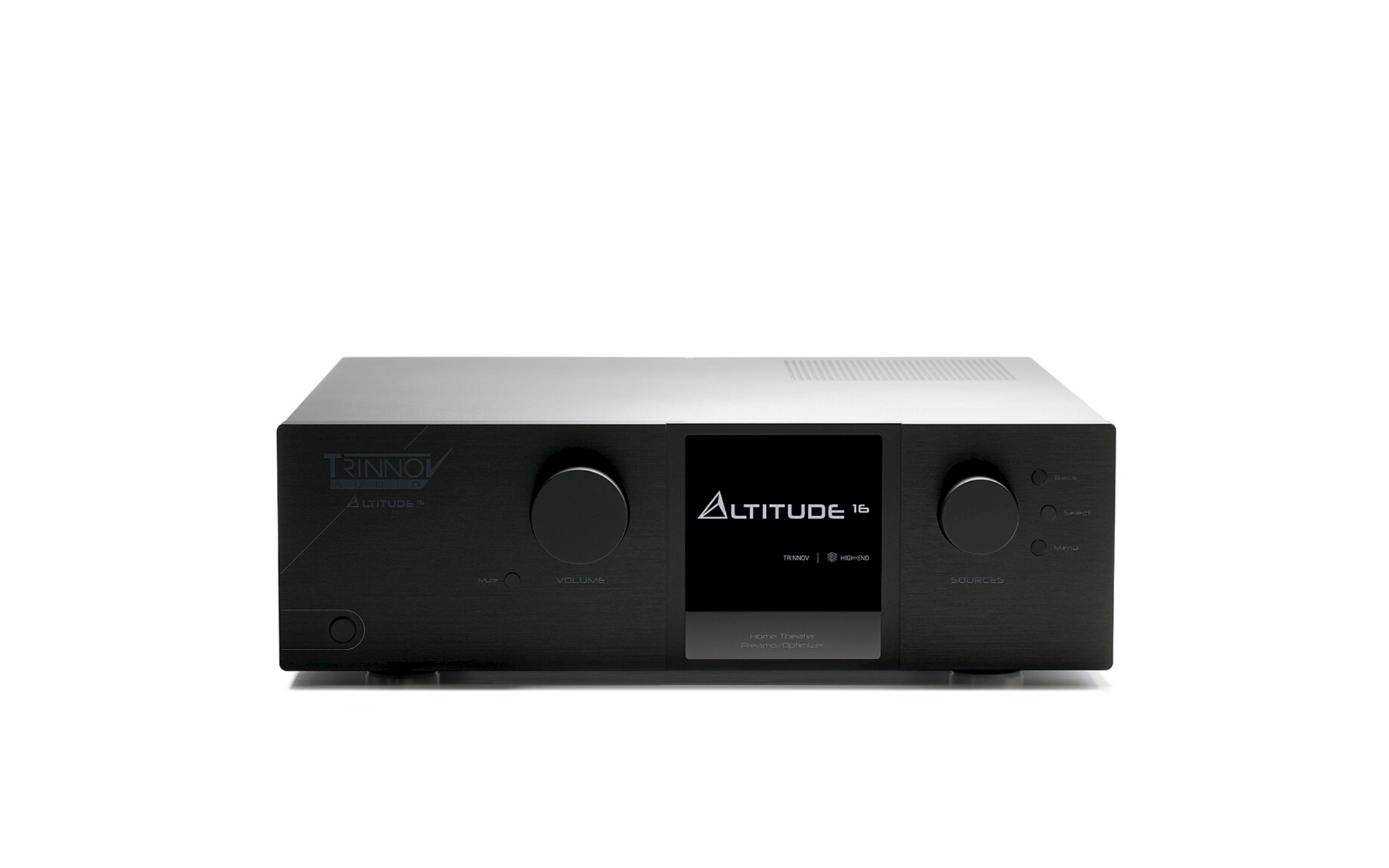

The Trinnov Altitude16 is a state-of-the-art immersive audio processor that brings the renowned performance and advanced processing capabilities of the flagship Altitude32 to a wider audience. Designed for systems requiring up to 20 discrete channels, the Altitude16 delivers uncompromising sound quality and flexibility without compromise. It supports the latest immersive audio formats including Dolby Atmos, DTS:X Pro, and Auro-3D, and is capable of native 24-bit / 96kHz high-resolution audio processing. The processor allows for up to four-way active crossovers and imposes no restrictions on channel layout or subwoofer assignments, ensuring maximum customisation and optimisation for any home theater environment. Whether you're building a high-performance media room or a full-scale dedicated cinema, the Altitude16 offers the same cutting-edge audio processing technology, calibration tools, and immersive experience that have made Trinnov an industry leader.
Features
Dolby Atmos
The Altitude16 joins the Altitude32 as the only AV Processors on the market capable of decoding and rendering Dolby Atmos Home content with any 20-channel speaker layout. When it comes to channel count, the devil is in the details when it matters which channels are supported. Within its 20-channel capability, the Altitude16 supports any speaker layout, including multiple side surround speakers and high numbers of subwoofers.
DTS:X Pro
In 2019, Trinnov worked closely with DTS to introduce DTS:X Pro to the consumer market. Altitude owners enjoyed this major upgrade a year before our competitors could offer it. It benefits not only native DTS:X playback, but also the Neural:X upmixer, which greatly improves immersive playback of traditional soundtracks, maximizing speaker usage and listening envelopment.
Auro-3D
The founders of Trinnov and Auro Technologies know each other well, having been at the forefront of immersive sound research and development dating back to the early 2000s. Auro-3D, up to 13.1 channel configuration has been available on the Altitude32 since 2015. The Auro-Matic upmixer, highly popular among Altitude owners for music playback is also supported for all inputs.
Technical Specifications
Object-Based Audio Decoding
Format
Spec
Dolby Atmos®
Native decoding & upmix: Up to 20 discrete channels
Auro-3D®
Native decoding & Auromatic upmix: Up to 13.1 channels
DTS:X® Pro
Up to 20 discrete channels
Speaker Layout Support
All
IMAX Enhanced
Yes

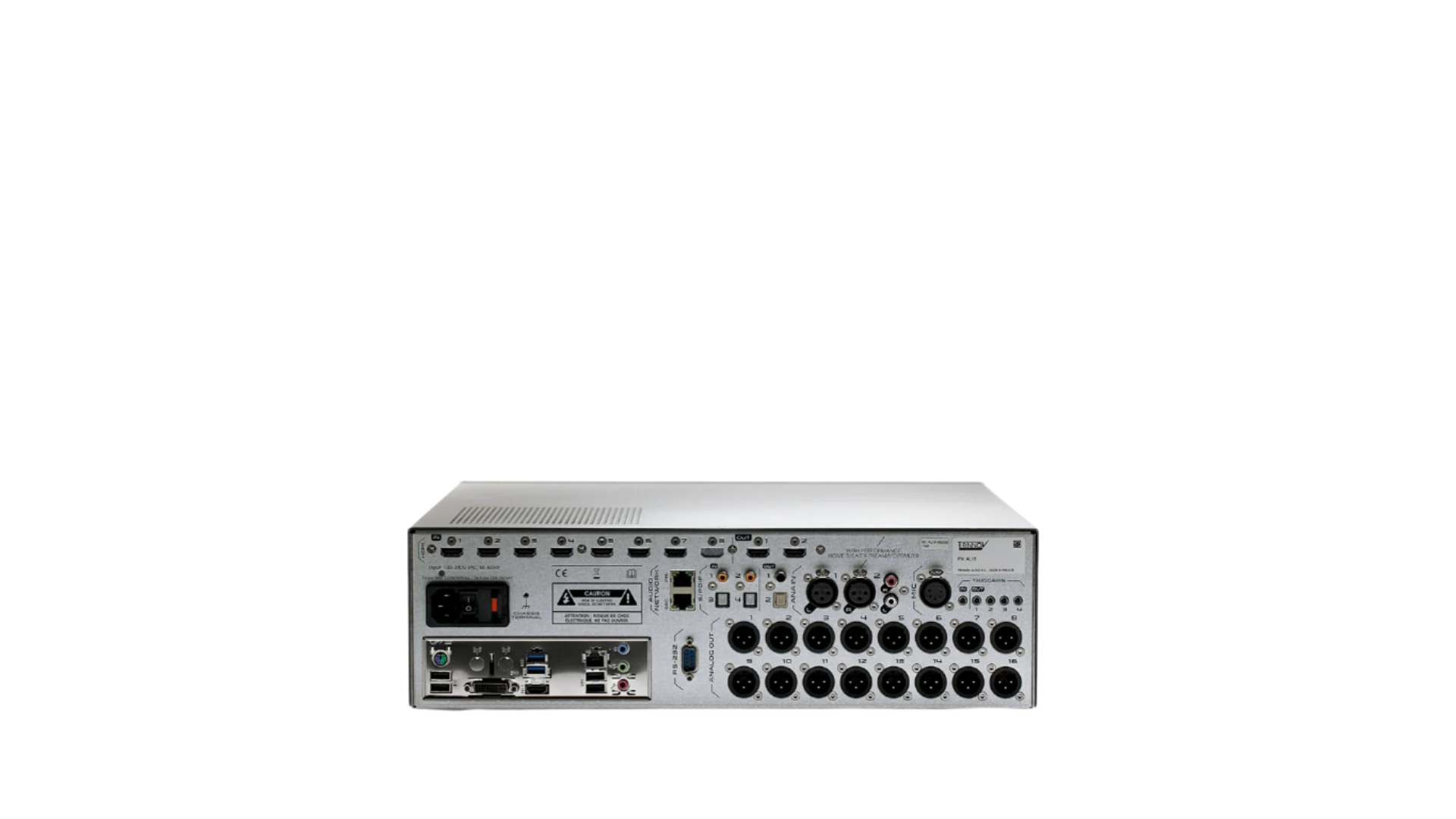

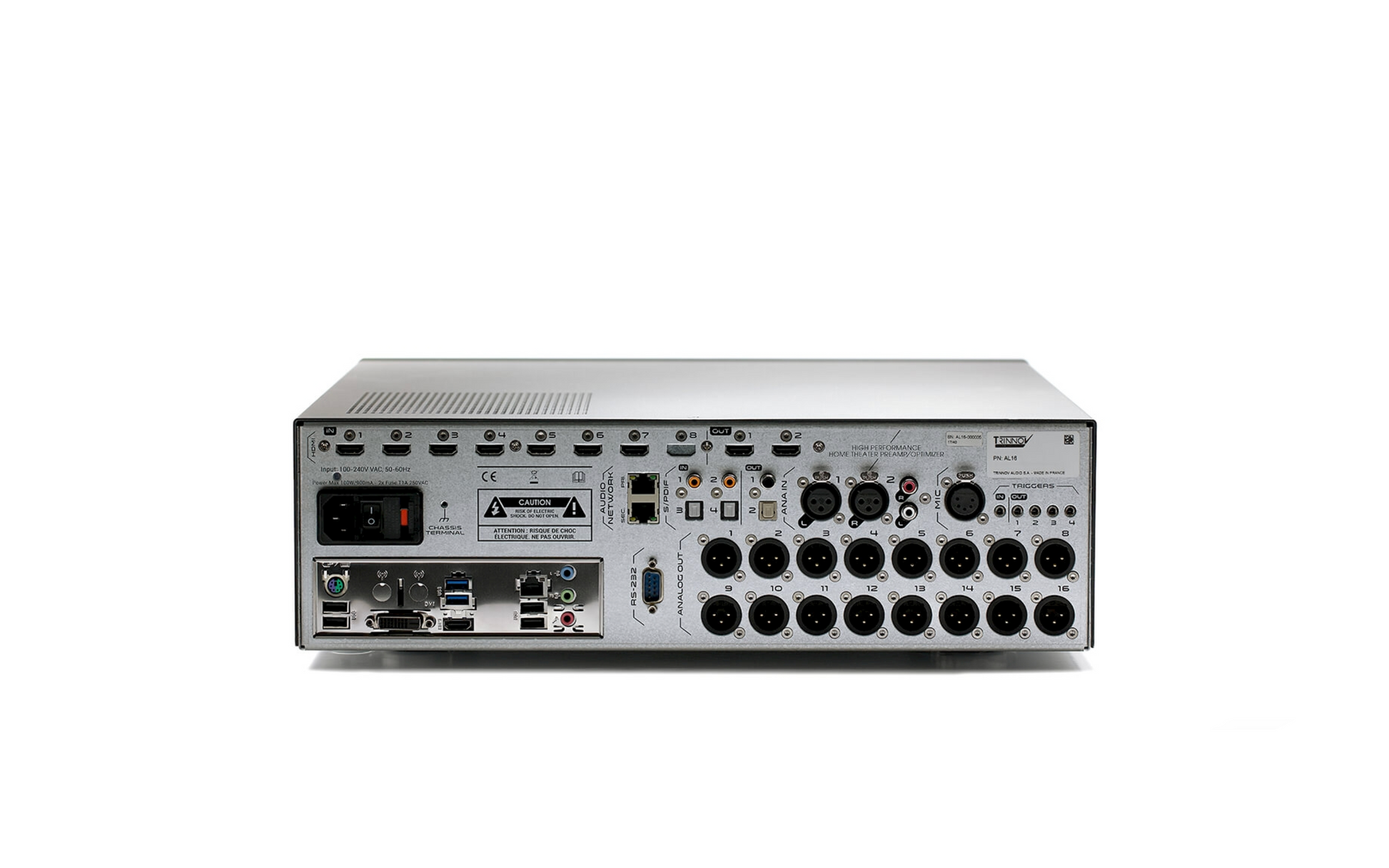

HDMI Connectivity
Category
Spec
HDMI Outputs
2x HDMI 2.1 / HDCP 2.3
HDMI Inputs
8
HDR Support
HDR10, HDR10+, HLG, Dolby Vision
Max Resolution
4K @ 120Hz / 8K @ 60Hz
Max Bandwidth
40Gbps on all inputs and outputs
Supported Frame Rates
4K: 24/25/30/48/60/100/1208K: 24/25/30/48/60
ARC / eARC
Available on Output 1
On-Screen Display (OSD)
Main information displayed
Digital Audio
Category
Spec
S/PDIF Inputs
4 (2 optical, 2 coaxial)
S/PDIF Outputs
2 (1 optical, 1 coaxial)
+4 Outputs
Combines Analog and S/PDIF outputs
Audio Network
Dual ports (reserved for future use)
Analog Audio
Category
Spec
Microphone Input
1x 5-pin XLR (for 3D calibration mic)
Balanced Inputs
1x Stereo XLR
Unbalanced Inputs
1x Stereo RCA
Balanced Outputs
16x XLR
Input Impedance
20k Ohms / 10k Ohms
Audio Processing
Category
Spec
Data Precision
64-bit, floating point
Max Sampling Rate
Native, up to 96kHz
Processor
Intel multi-core, hyper-threaded
ADC Resolution
24-bit / 96kHz
DAC Resolution
24-bit / 192kHz
A/D SNR
119 dB (A-weighted)
D/A SNR
118 dB (A-weighted)
Reference Level
+18dBu @ 0dBFS (Balanced)
Clock / Jitter
Attenuation > 50 dB above 100Hz
Cooling System
Custom heat sinks + silent fans
Safety Components
AntiPop relays on each output
Power Supply
Category
Spec
Power Requirement
100 – 240V (auto-selecting)
Max Power Consumption
76W
Thermal Conversion
260 BTU/h
Mains Fuse
2x 1A slow blow
Internal Power Supplies
Separate for Audio and Processing
Dimensions & Weight
Category
Spec
Dimensions (W x H x D)
438 x 139 x 430 mm (17 1/4" x 5 1/2" x 17 15/16")
Shipping Dimensions
74 x 59 x 30 cm
Weight
11.3 kg / 24.9 lbs
Shipping Weight / Volume
18.2 kg / 0.131 m³
Rack-mounting
3U – Rack ears included
