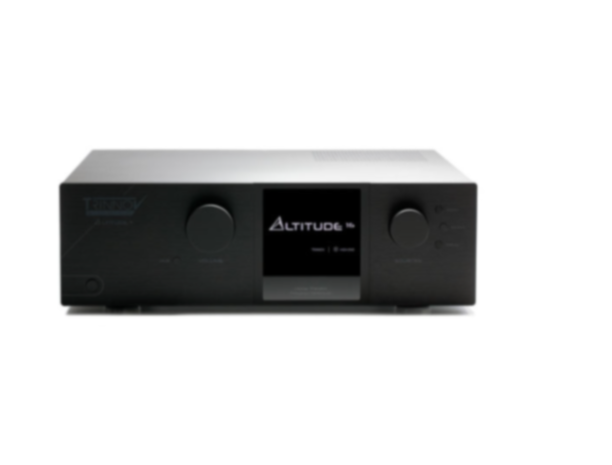

The Trinnov Altitude16 is a state-of-the-art immersive audio processor that brings the renowned performance and advanced processing capabilities of the flagship Altitude32 to a wider audience. Designed for systems requiring up to 20 discrete channels, the Altitude16 delivers uncompromising sound quality and flexibility without compromise. It supports the latest immersive audio formats including Dolby Atmos, DTS:X Pro, and Auro-3D, and is capable of native 24-bit / 96kHz high-resolution audio processing. The processor allows for up to four-way active crossovers and imposes no restrictions on channel layout or subwoofer assignments, ensuring maximum customisation and optimisation for any home theater environment. Whether you're building a high-performance media room or a full-scale dedicated cinema, the Altitude16 offers the same cutting-edge audio processing technology, calibration tools, and immersive experience that have made Trinnov an industry leader.
Technical Specifications
Object-Based Audio Decoding
Format
Specification
Dolby Atmos®
Native decoding & upmix: Up to 20 discrete channels
Auro-3D®
Native decoding & Auromatic upmix: Up to 13.1 channels
DTS:X® Pro
Up to 20 discrete channels
Speaker Layout Support
All
IMAX Enhanced
Yes

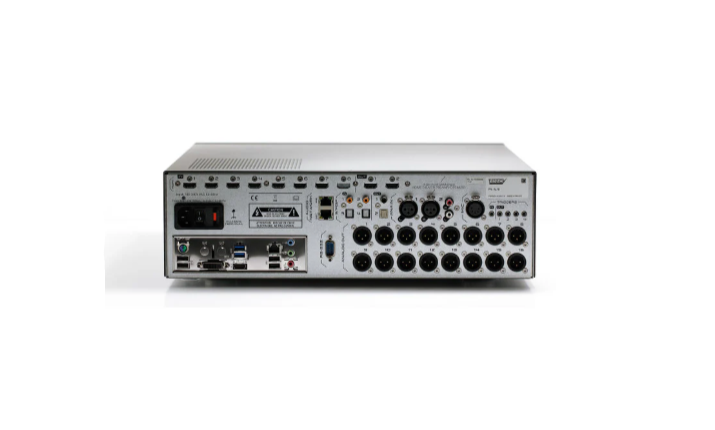

HDMI Connectivity
Category
Specification
HDMI Outputs
2x HDMI 2.1 / HDCP 2.3
HDMI Inputs
8
HDR Support
HDR10, HDR10+, HLG, Dolby Vision
Max Resolution
4K @ 120Hz / 8K @ 60Hz
Max Bandwidth
40Gbps on all inputs and outputs
Supported Frame Rates
4K: 24/25/30/48/60/100/1208K: 24/25/30/48/60
ARC / eARC
Available on Output 1
On-Screen Display (OSD)
Main information displayed
Digital Audio
Category
Specification
S/PDIF Inputs
4 (2 optical, 2 coaxial)
S/PDIF Outputs
2 (1 optical, 1 coaxial)
+4 Outputs
Combines Analog and S/PDIF outputs
Audio Network
Dual ports (reserved for future use)
Analog Audio
Category
Specification
Microphone Input
1x 5-pin XLR (for 3D calibration mic)
Balanced Inputs
1x Stereo XLR
Unbalanced Inputs
1x Stereo RCA
Balanced Outputs
16x XLR
Input Impedance
20k Ohms / 10k Ohms
Audio Processing
Category
Specification
Data Precision
64-bit, floating point
Max Sampling Rate
Native, up to 96kHz
Processor
Intel multi-core, hyper-threaded
ADC Resolution
24-bit / 96kHz
DAC Resolution
24-bit / 192kHz
A/D SNR
119 dB (A-weighted)
D/A SNR
118 dB (A-weighted)
Reference Level
+18dBu @ 0dBFS (Balanced)
Clock / Jitter
Attenuation > 50 dB above 100Hz
Cooling System
Custom heat sinks + silent fans
Safety Components
AntiPop relays on each output
Power Supply
Category
Specification
Power Requirement
100 – 240V (auto-selecting)
Max Power Consumption
76W
Thermal Conversion
260 BTU/h
Mains Fuse
2x 1A slow blow
Internal Power Supplies
Separate for Audio and Processing
Dimensions & Weight
Category
Specification
Dimensions (W x H x D)
438 x 139 x 430 mm (17 1/4" x 5 1/2" x 17 15/16")
Shipping Dimensions
74 x 59 x 30 cm
Weight
11.3 kg / 24.9 lbs
Shipping Weight / Volume
18.2 kg / 0.131 m³
Rack-mounting
3U – Rack ears included
